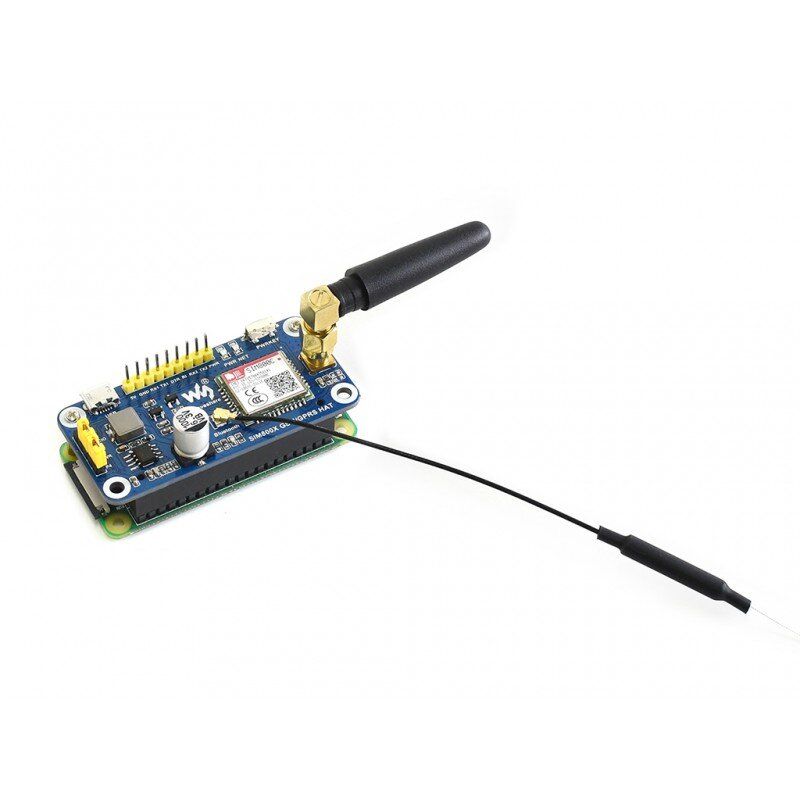

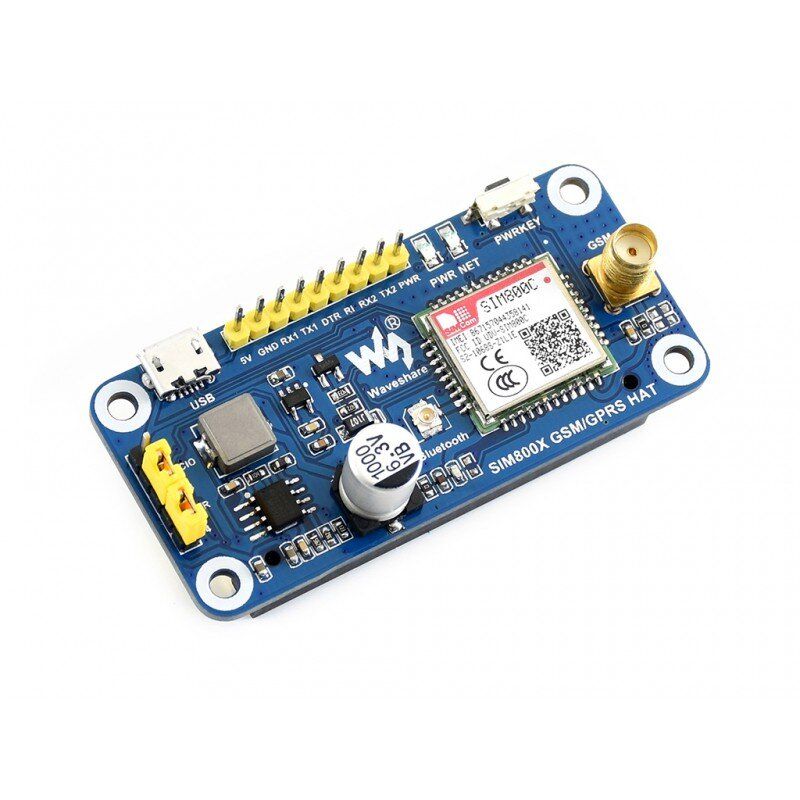

Raspberry Pi GSM/GPRS/Bluetooth HAT expansion board (16157)

The Raspberry Pi GSM/GPRS/Bluetooth HAT expansion board is a convenient, low-power Raspberry Pi HAT that has a variety of communication functions: GSM, GPRS, and Bluetooth, allowing your Pi to easily send messages, connect to the wireless Internet, transfer data via Bluetooth, and more.

Features.

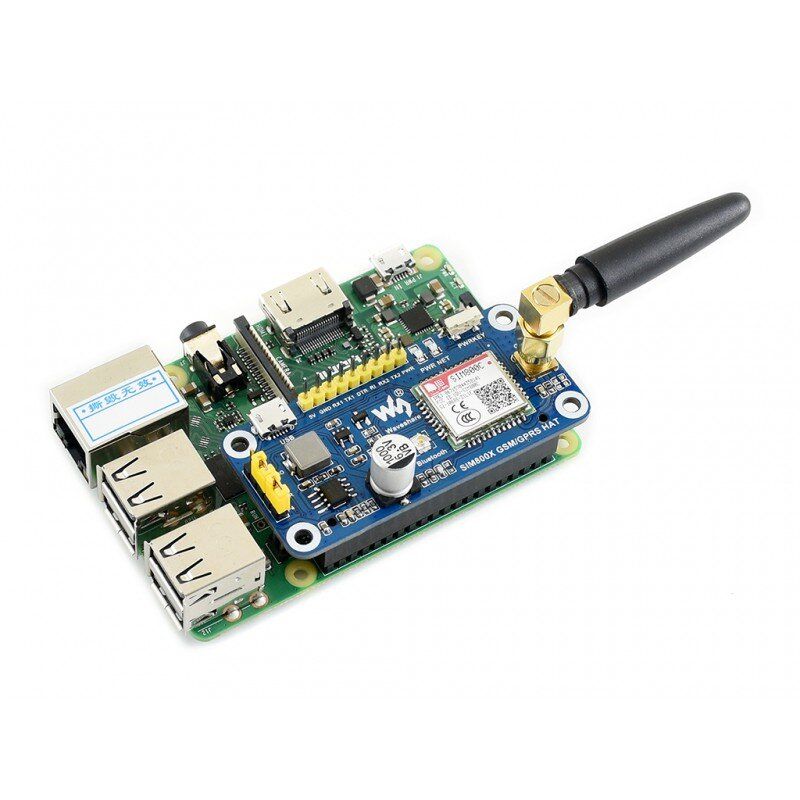

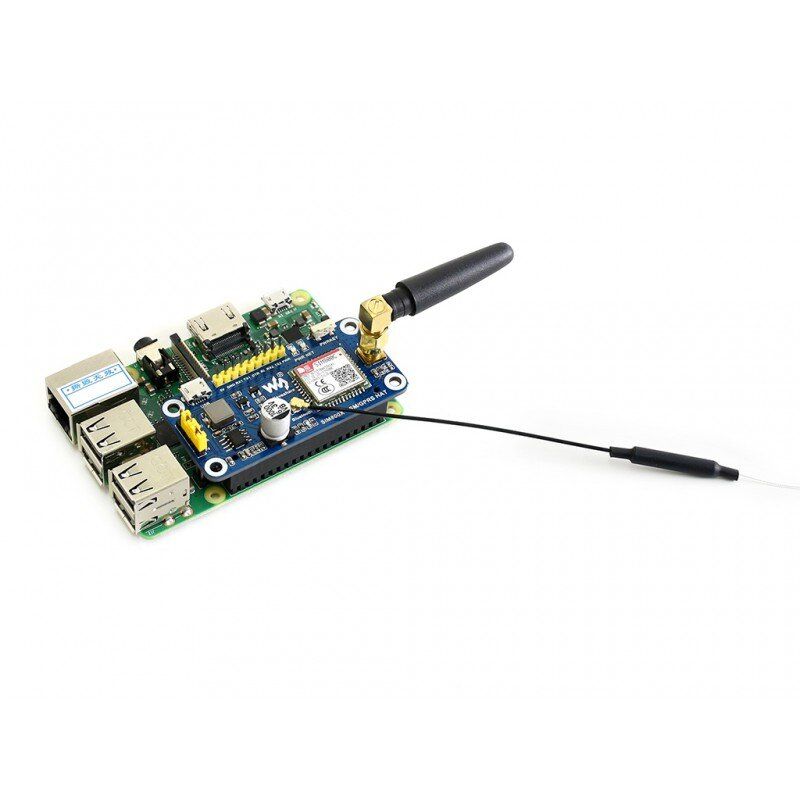

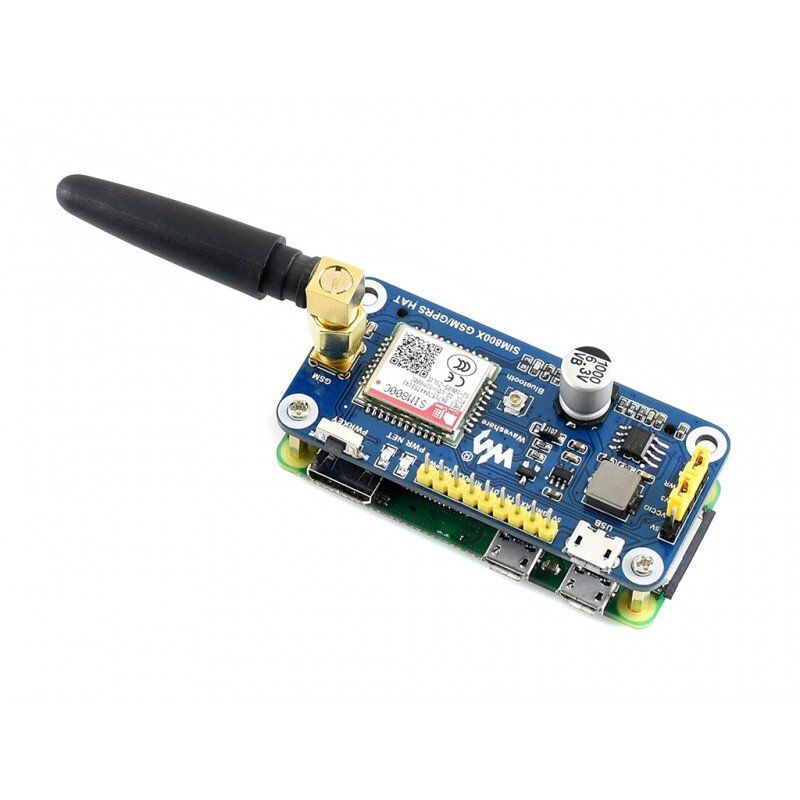

• Standard Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi, Jetson Nano series boards
• Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
• Bluetooth 3.0, supports data transfer via Bluetooth
• UART interface, for connecting host control boards such as Arduino/STM32
• Built-in voltage level converter, 3.3V (default), can be switched to 5V with a jumper
• 2 LEDs to indicate the operating status of the module

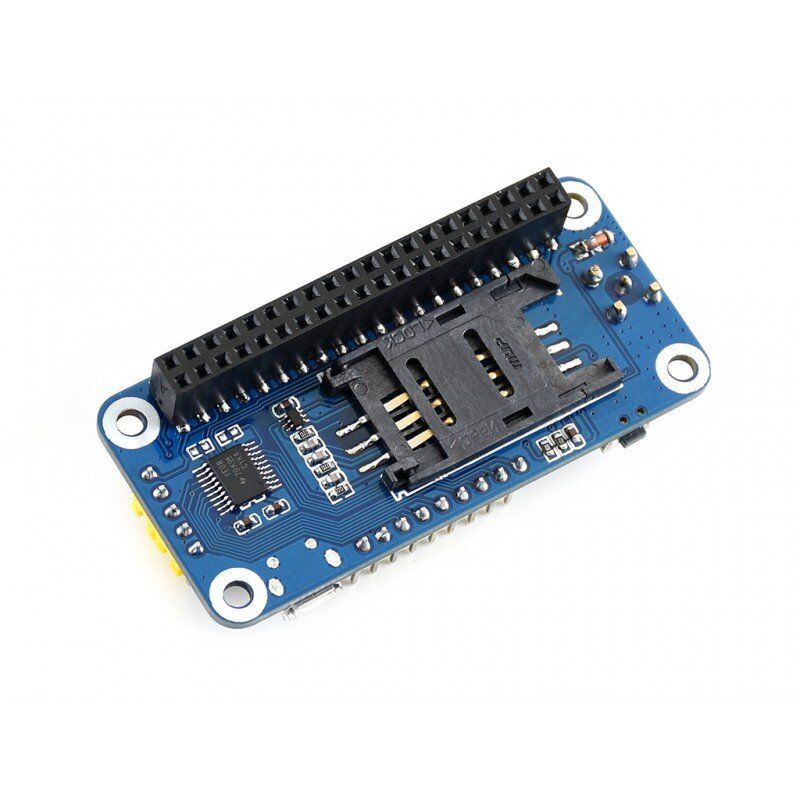

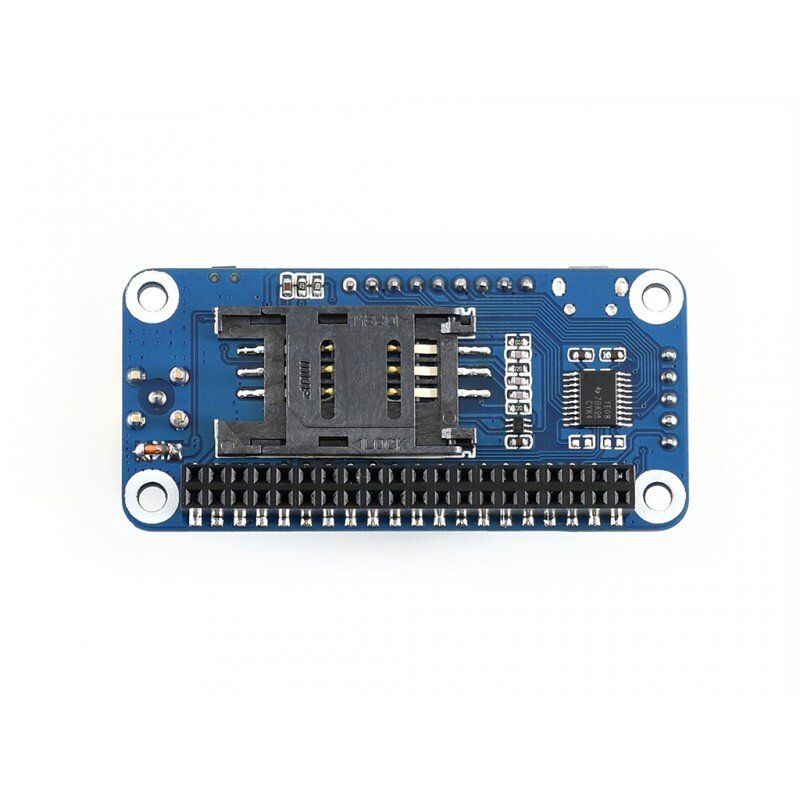

• SIM card slot for 1.8 V / 3 V SIM cards
• Automatic transmission rate detection (1200 bps 115200 bps)
• Management by AT commands (3GPP TS 27.007, 27.005 and extended AT commands SIMCOM)
• Supports SIM application tools: GSM 11.14 Release 99
• Comes with development resources and manual (examples for Raspberry Pi / Jetson Nano / Arduino / STM32)

Features:

GSM/GPRS.

Band
GSM 850 / EGSM 900 / DCS 1800 / PCS 1900 MHz
Four-band automatic search
Complies with GSM phase 2/2 +
radiation power
Class 4 (2 W at GSM 850 / EGSM 900 MHz)
Class 1 (1 W at DCS 1800 / PCS 1900 MHz)
GPRS connectivity
GPRS multislot class 12 (default)
GPRS multislot class 1 12 (customizable)
GPRS data function
Incoming channel speed: maximum 85.6 Kbps
Outgoing channel rate: maximum 85.6 Kbps
Coding schemes: CS-1 CS-2 CS-3 CS-4
Supports PAP (password authentication protocol) for PPP connection
supports PBCCH
supports USSD
SMS
Supports: MT / MO / CB / Text / PDU modes
SMS storage: SIM card

Bluetooth.

Integrates AT commands
Complies with Bluetooth 3.0 + EDR specification
Supports SPP, OPP, HFP/HSP, etc.

Other Specifications:

Power Supply: 5V (USB port or pin connector)
Operating voltage: 5V/3.3V (default)
Operating temperature: -40°C 85°C
Storage temperature: -45°C 90°C
Dimensions: 30.2 mm x 65 mm

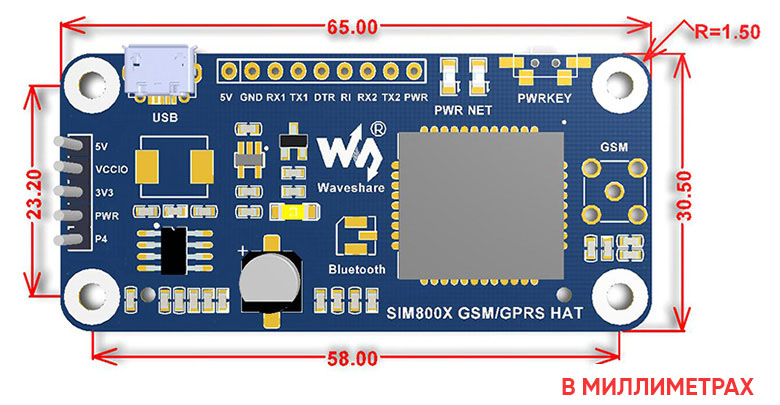

Overall dimensions:

Information for developers: demo codes, schematics, data tables, etc.

www.waveshare.com/wiki/SIM800C_GSM/GPRS_HAT

The package includes:

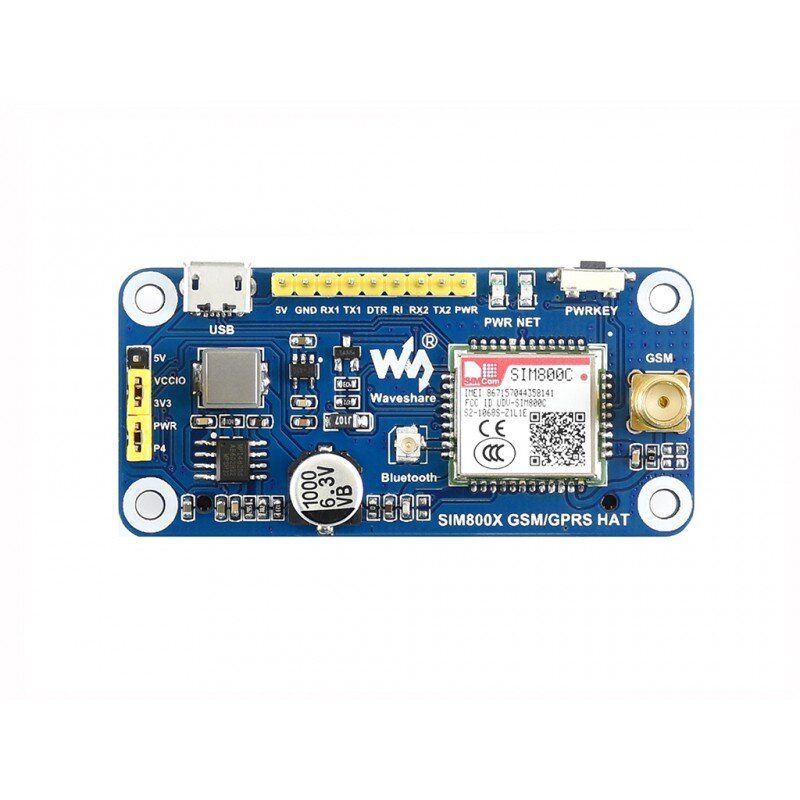

1. SIM800C GSM/GPRS HAT - 1 pc.
2. GSM antenna - 1 pc.
3. Bluetooth antenna - 1 pc.
4. USB type A plug to micro cable - 1 pc.
5. RPi mounting kit - 1 pc.

1. 2. 3. 4. 5.

Note: Raspberry Pi is not included in the package.

weight: 0.076 kg
