Raspberry Thermal Imaging 80x62 Camera HAT expansion card (25287)

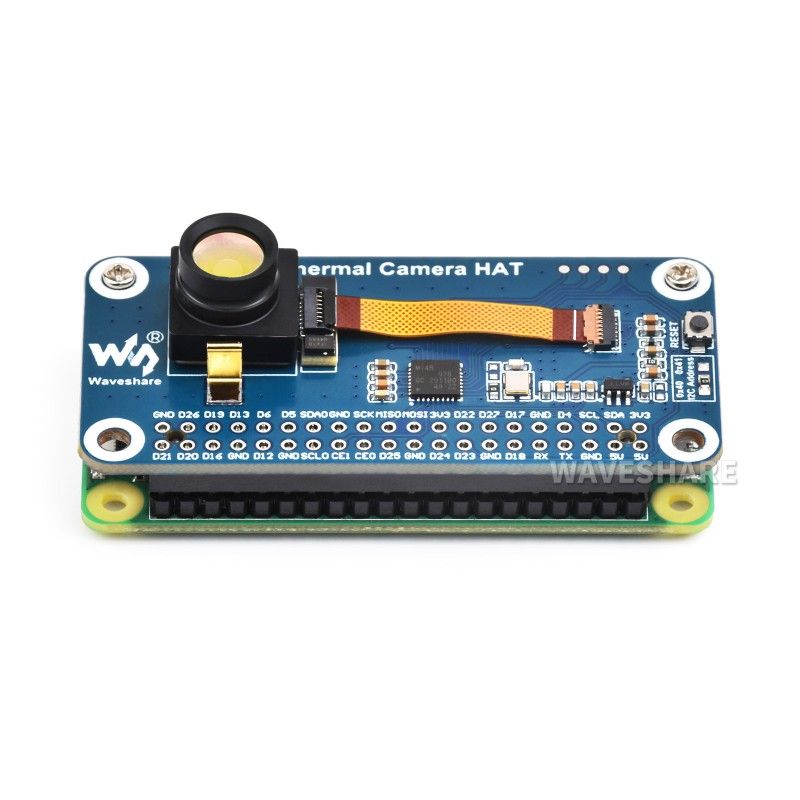

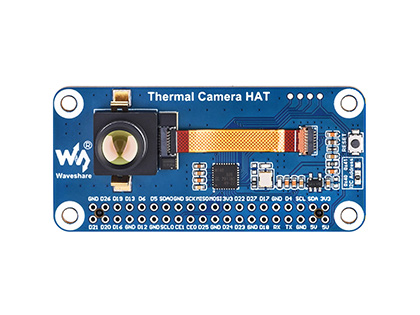

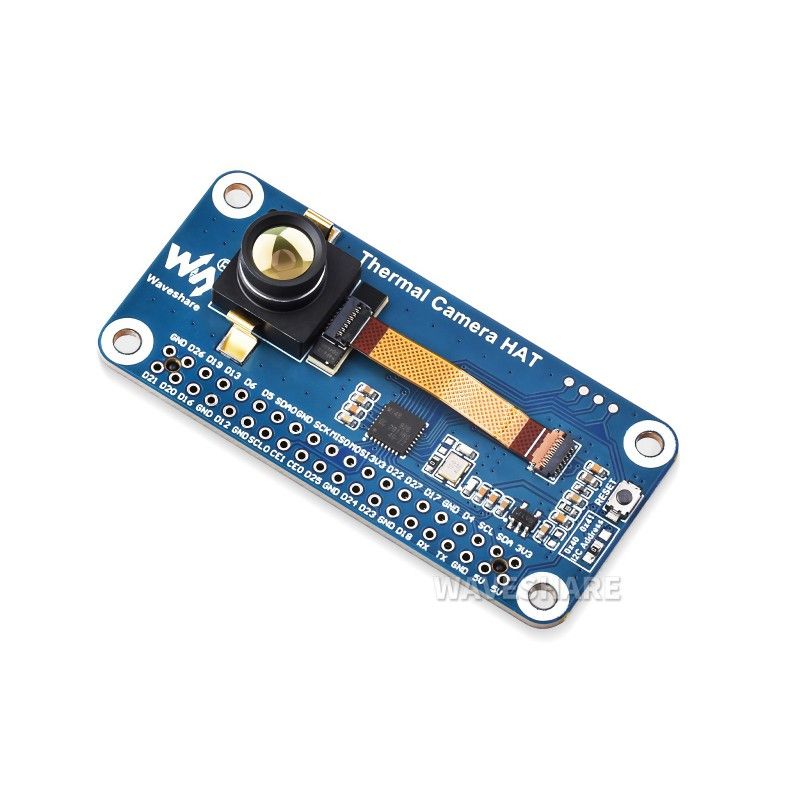

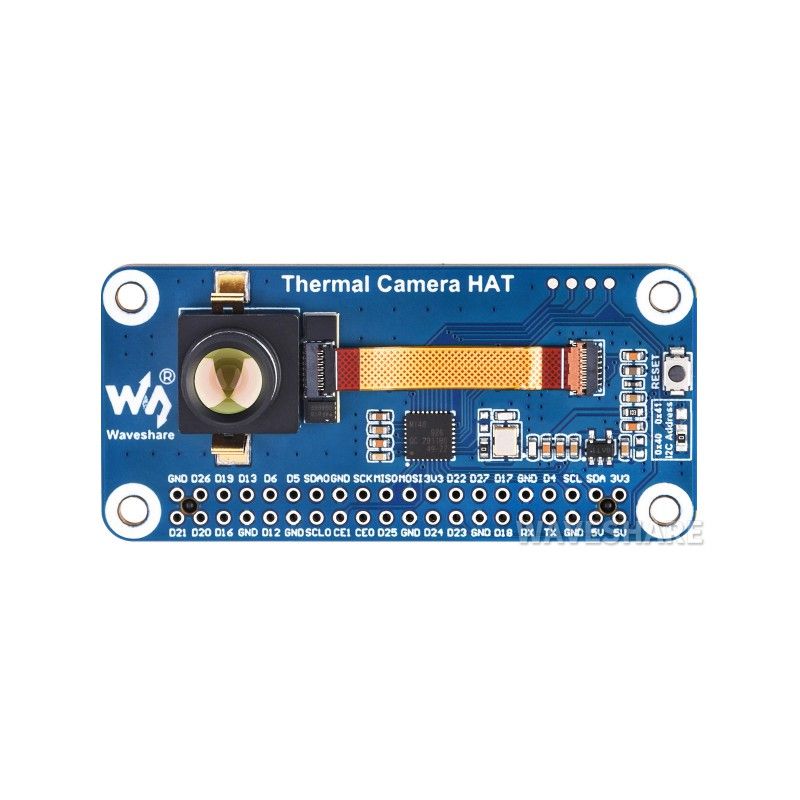

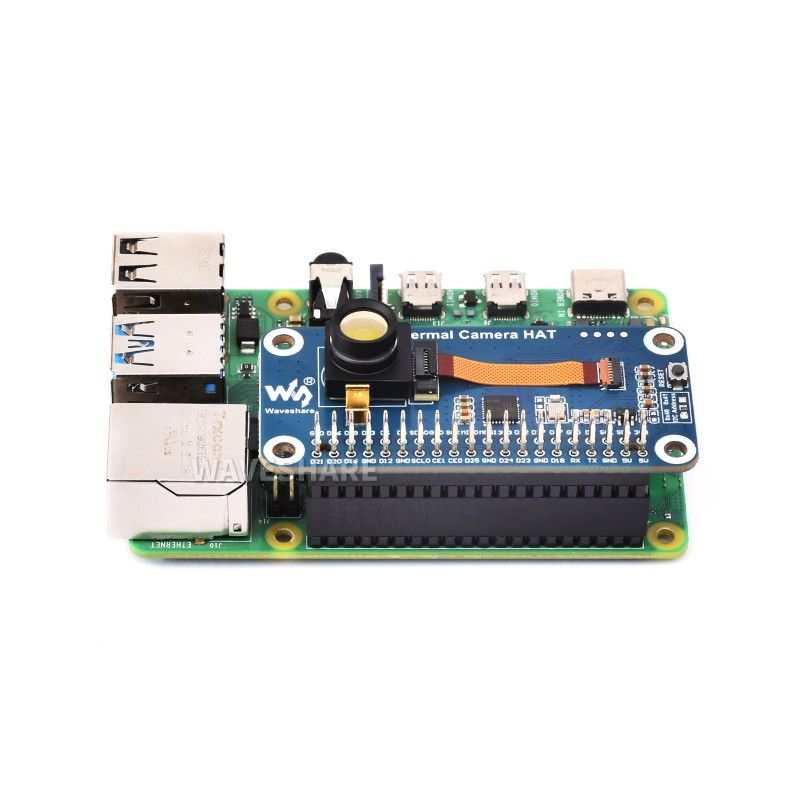

TheRaspberry Thermal Imaging 80x62 Camera HAT (25287 ) adds thermal imaging functionality to your Raspberry Pi projects with a 40PIN GPIO connector. It uses an infrared thermal imaging camera that employs a hybrid microbolometer and thermal battery pixel technology and has an 80x62 pixel sensor. It detects the infrared radiation of objects in its field of view, converts the data into the surface temperature of the objects by calculation, and then creates thermal images for further integration into various industrial or intelligent projects or control applications.

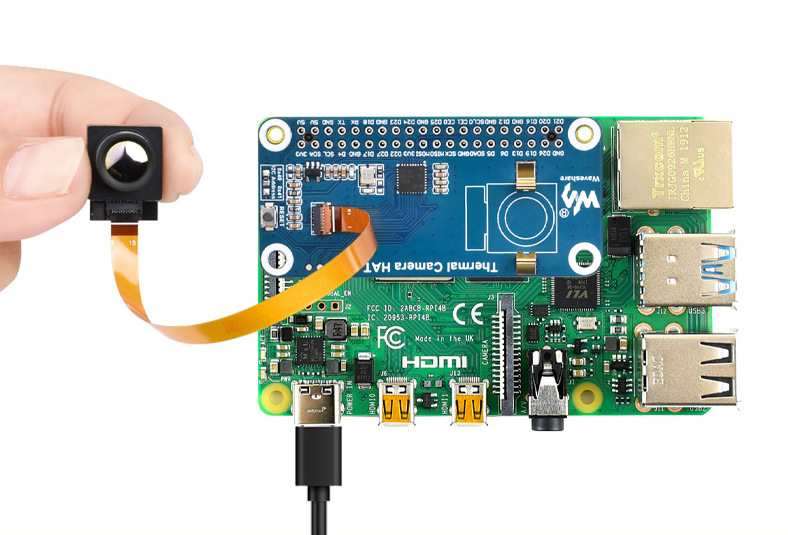

The flat cable allows the camera module to be placed outside the expansion board, which provides flexibility in applications and in different projects.

Key features:

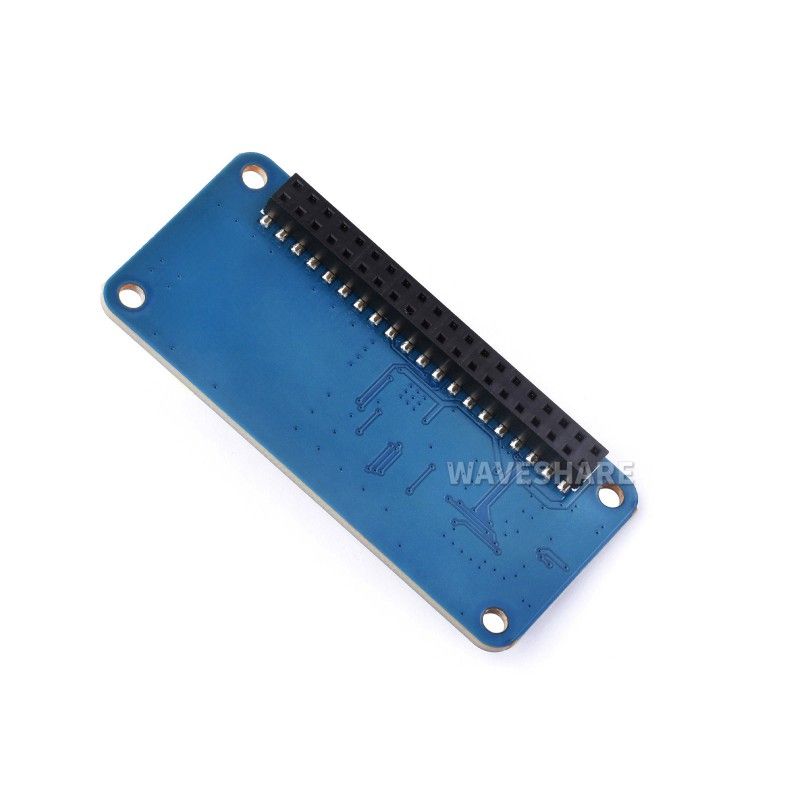

• Thermal camera module with built-in 40-pin GPIO connector is compatible with standard Raspberry Pi boards
• Uses hybrid microbolometer and thermal battery technology
• Has a matrix of 80x62 pixels
• Provides continuous operation and thermal video streaming thanks to its shutterless design
• Has a Noise Equivalent Temperature Difference (NETD) of 150 µC RMS at 1 Hz refresh rate
• Provides thermal image output video stream up to 25 frames per second (max)
• Comes with online resources and manuals

Specifications.

• POWER SUPPLY: 5В
• OPERATING CURRENT: 61mA@5V
• WAVELENGTH RANGE: 814 microns
• OPERATING TEMPERATURE: -2085 ℃
• TARGET TEMPERATURE: -20400 ℃
• REFRESH RATE: 25 FPS (max)
• Field of view: 45°(H)×45°(V)
• NOISE EQUIVALENT TEMPERATURE DIFFERENCE: 150 mK
• MEASUREMENT ACCURACY: ±2 ℃ (ambient temperature 1070 ℃)

Possible applications:

• High-precision long-term non-contact online temperature monitoring (smart home, smart lighting, building and facility inspection)
• Industrial monitoring and diagnostics of equipment, safety and security, intrusion/motion detection (IR thermal imagers, IR thermometers)
• Thermal analysis of small targets, thermal trend analysis and solutions
• Visualization of temperature differences in natural studies

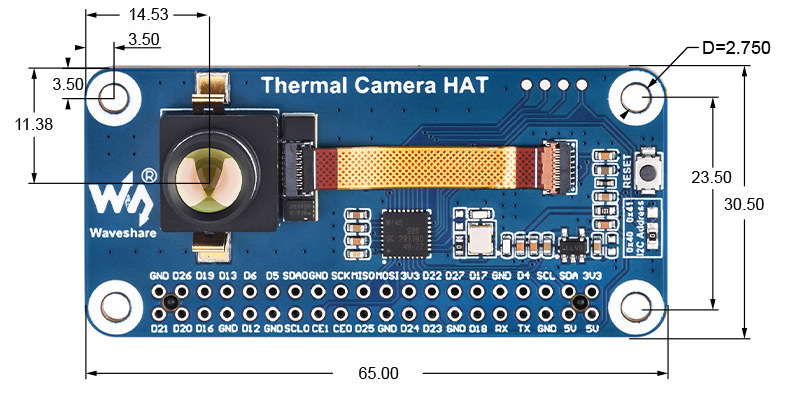

Overall dimensions: 65mm x 30.5mm

Wiki: www.waveshare.com/wiki/Thermal_Camera_HAT

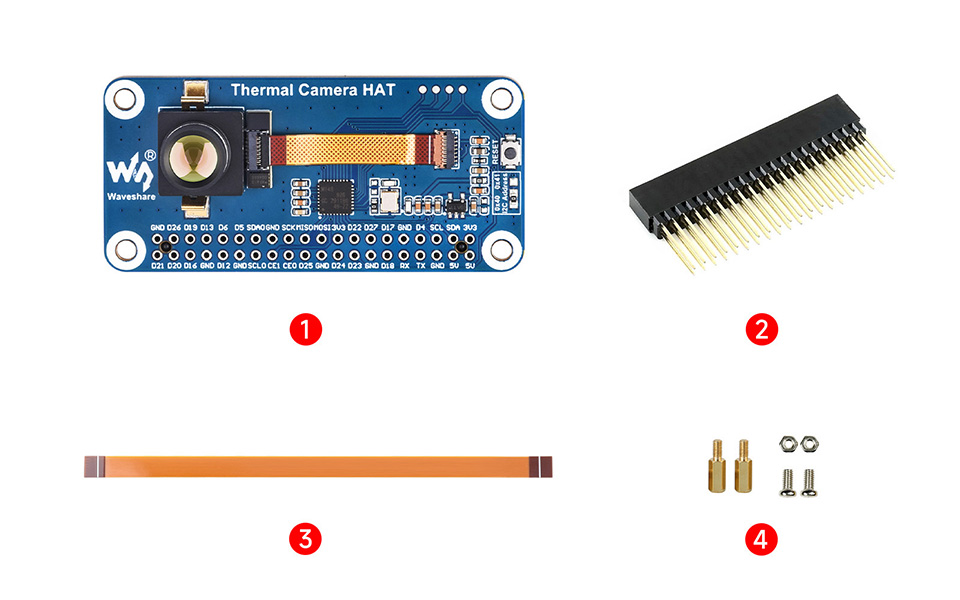

Scope of delivery:

1. Thermal Camera HAT x1
2. Socket 40PIN x1
3. FPC 15 PIN cable 0.3 mm pitch 100 mm x1
4. Package of screws x1 pc

Weight: 0.021kg
