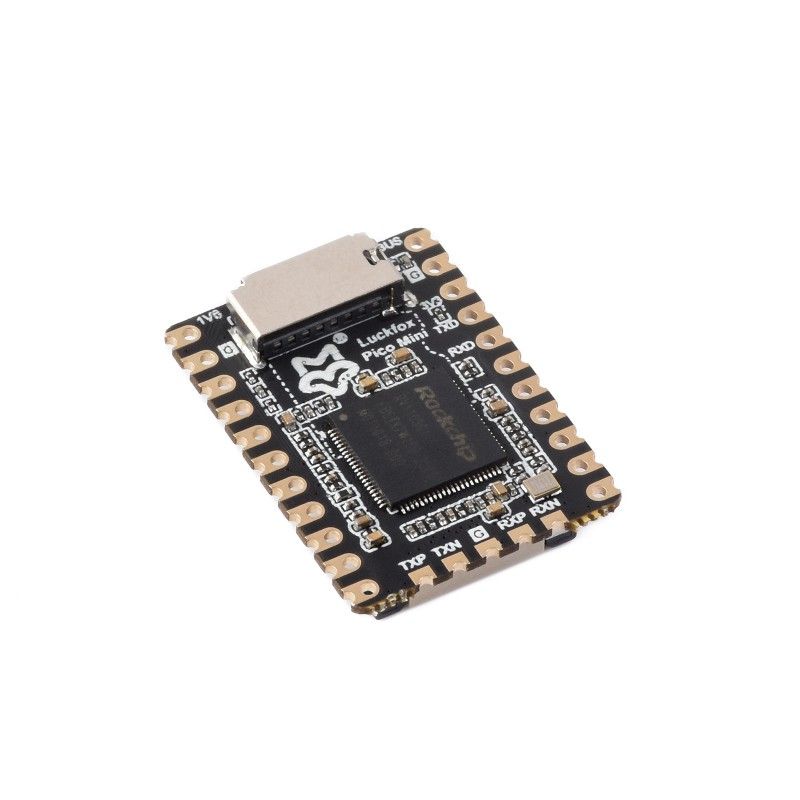

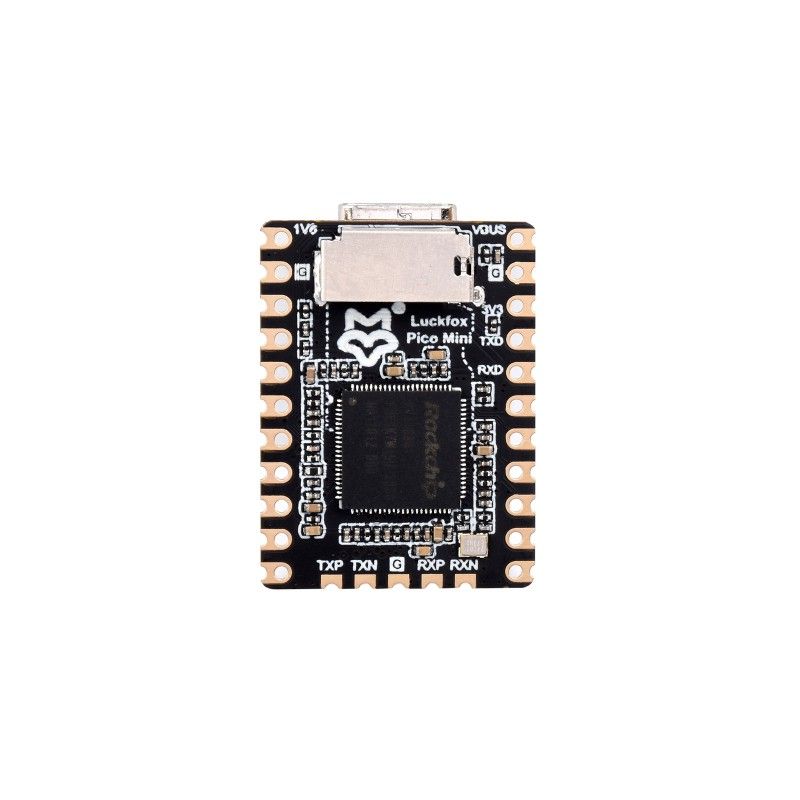

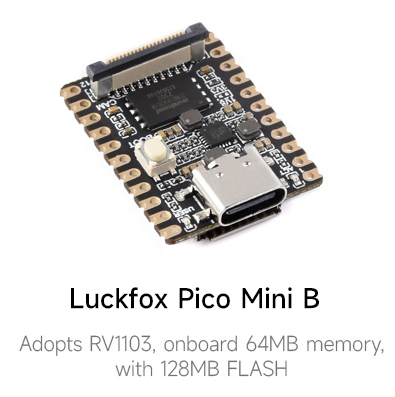

Luckfox Pico Mini B (128MB FLASH)

The Luckfox Pico Mini B (128MB FLASH ) is a compact board for Linux-based projects that utilizes the performance of ARM Cortex-A7, RISC-V MCU, NPU and ISP processors and features built-in SPI NAND FLASH (128MB). The board is designed for various types of development and includes a variety of data and signal processing capabilities. It allows developers to quickly and efficiently create innovative solutions in the field of embedded systems, robotics, and other areas where high-performance computing and image processing are important. This board will be an indispensable tool for those looking for a powerful and versatile development tool for their projects.

Application scenarios:

Specifications:

• Processor: Cortex [email protected] + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: 4M input @ 30fps (max)
• Memory: 64MB DDR2
• USB: USB 2.0 host/device
• Camera interface: MIPI CSI 2-lane
• GPIO: 17 × GPIO pins
• Storage: SPI NAND FLASH (128MB)

Integrates CPU, NPU, ISP and other processors:

• Single-core 32-bit ARM Cortex-A7 core with integrated NEON and FPU
• Built-in 4th generation NPU of Rockchip's own design provides high computing accuracy and supports hybrid quantization of int4, int8 and int16. The processing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• Built-in third-generation ISP3.2 of our own design, supports 4 megapixels, with several image enhancement and correction algorithms, such as HDR, WDR, multi-level noise reduction, etc.
• It has high encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% of the bit rate of normal CBR mode, so that the camera images are high-definition with a smaller size, twice the storage space
• Embedded RISC-V microcontroller supports low power consumption and fast startup, supports fast image capture in 250ms and loading the AI model library at the same time to realize "one second" face recognition
• Built-in 16-bit DDR2 DRAM, which is capable of supporting demanding memory bandwidth
• Integrated with built-in POR, audio codec and MAC PHY

Integrated TF card slot and camera interface

Pinout:

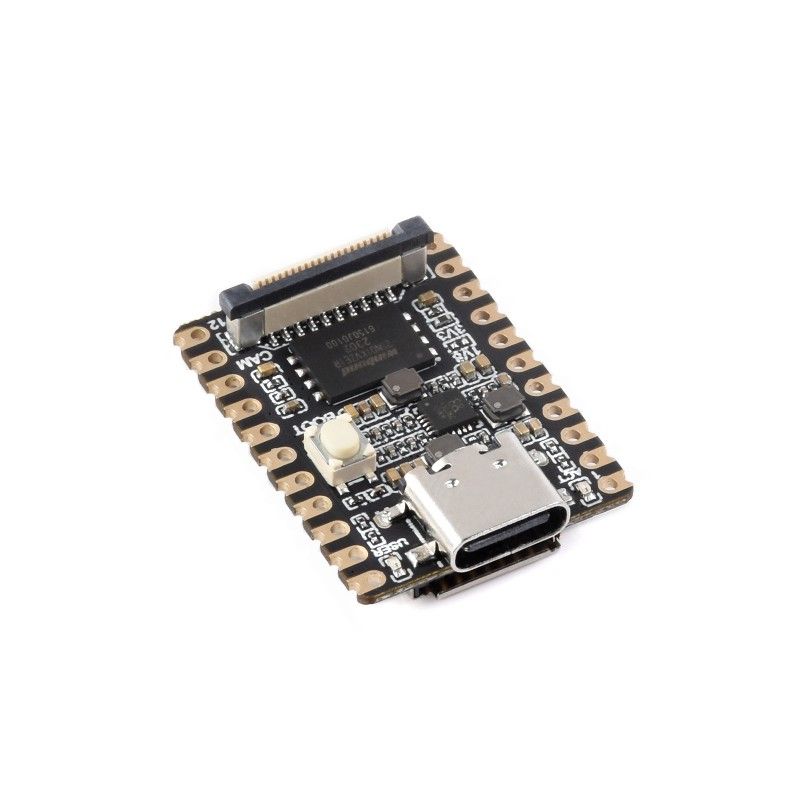

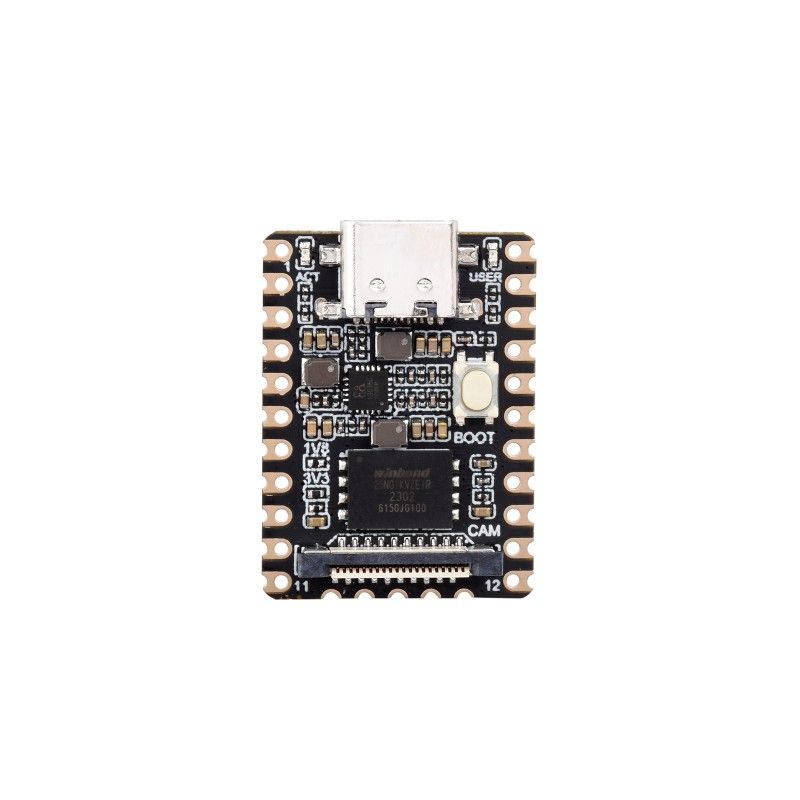

Board Elements:

1. USB Type-C connector for power and program recording
2. ACT-LED system status indicator (in the default system)
3. USER-LED
4. BOOT® button Press it during power on to enter the boot mode
5. SLC NAND FLASH®

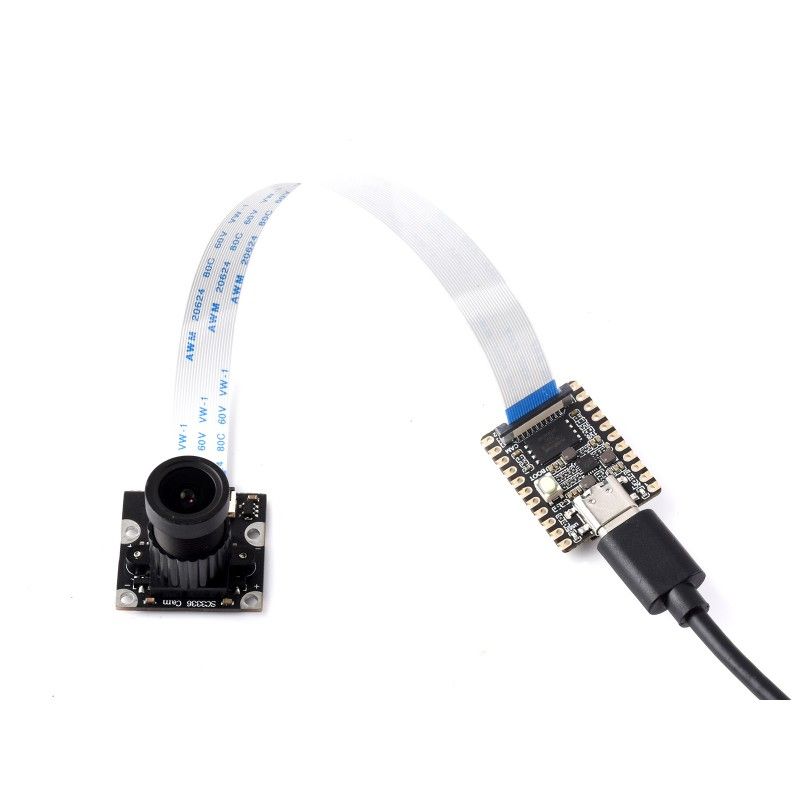

6. CSI camera interface: 2-way MIPI CSI
7. TF card slot
8. RV1106® Vision SoC processor with integrated ARM Cortex-A7 core

Overall dimensions: 21 mm x 28.14 mm

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start/

Scope of delivery:

1. Luckfox Pico Mini A x1

Weight: 0.003 kg
