Raspberry Pi Compute Module 4 5" Touch Screen Expansion Board (22024)

£62.90

Description

Raspberry Pi Compute Module 4 - not included in the package!

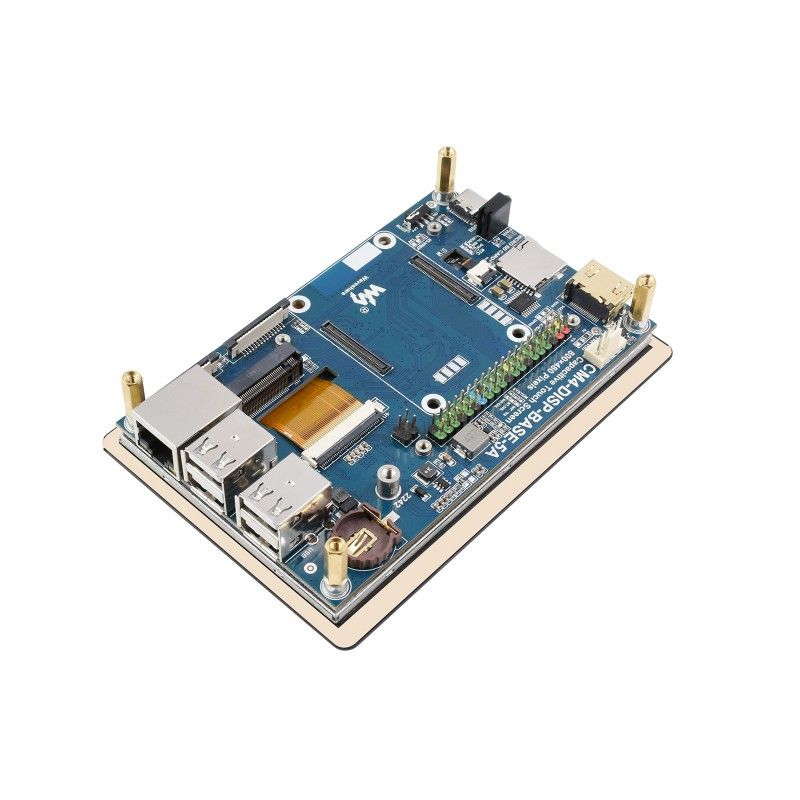

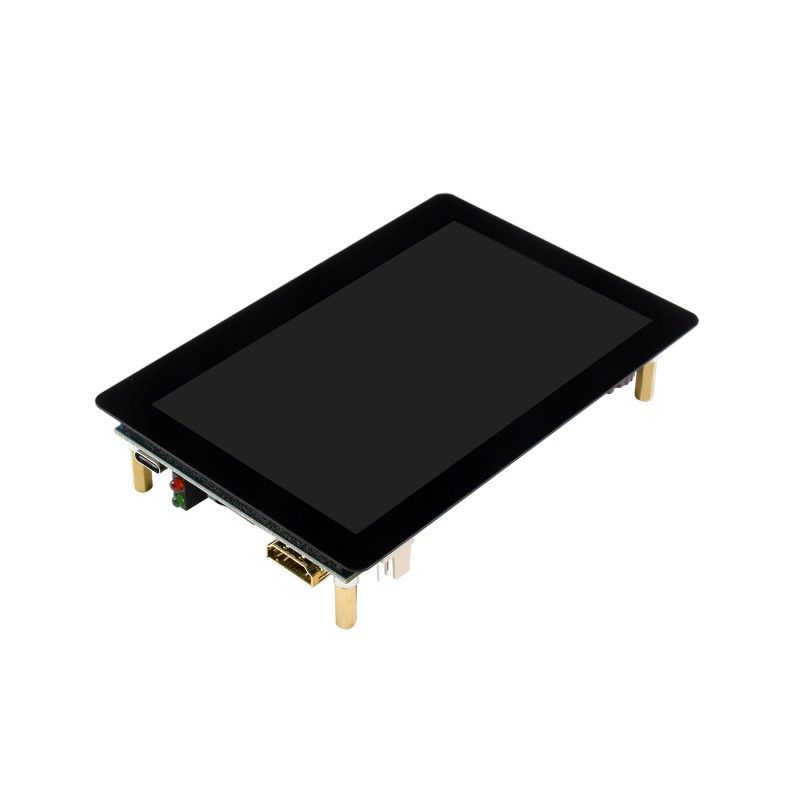

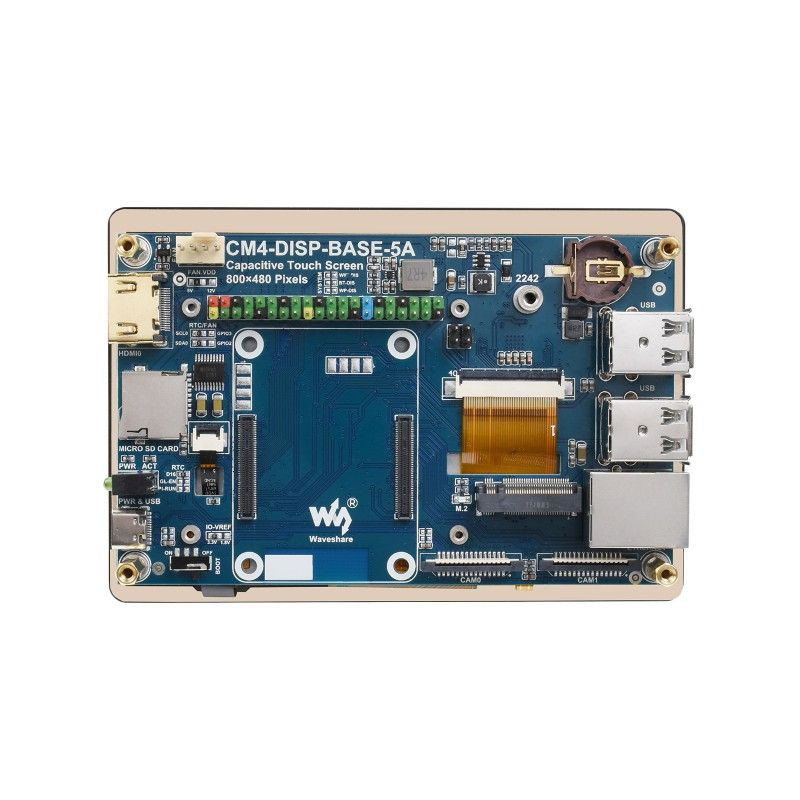

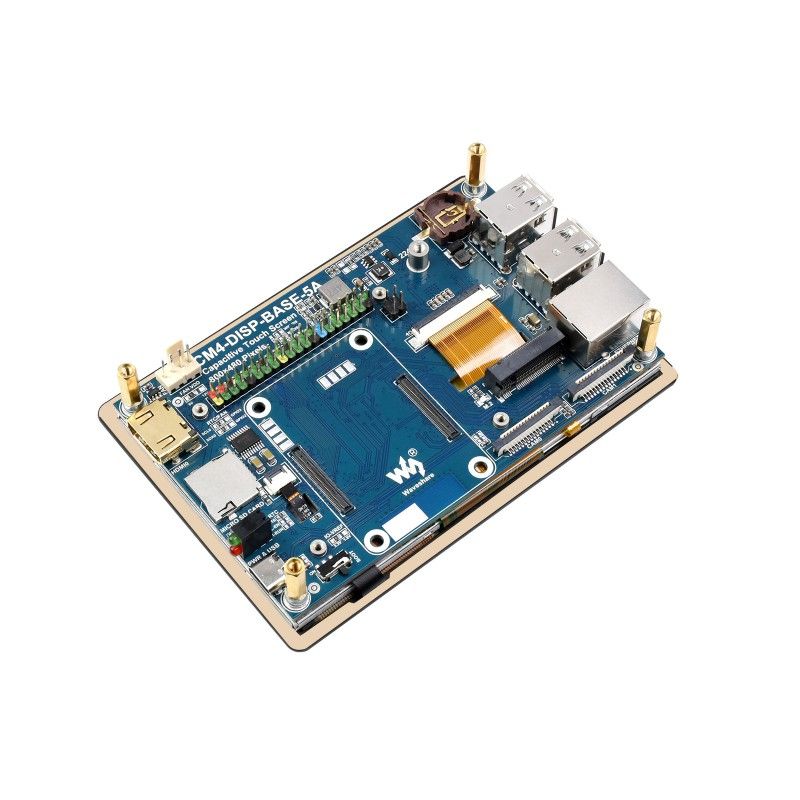

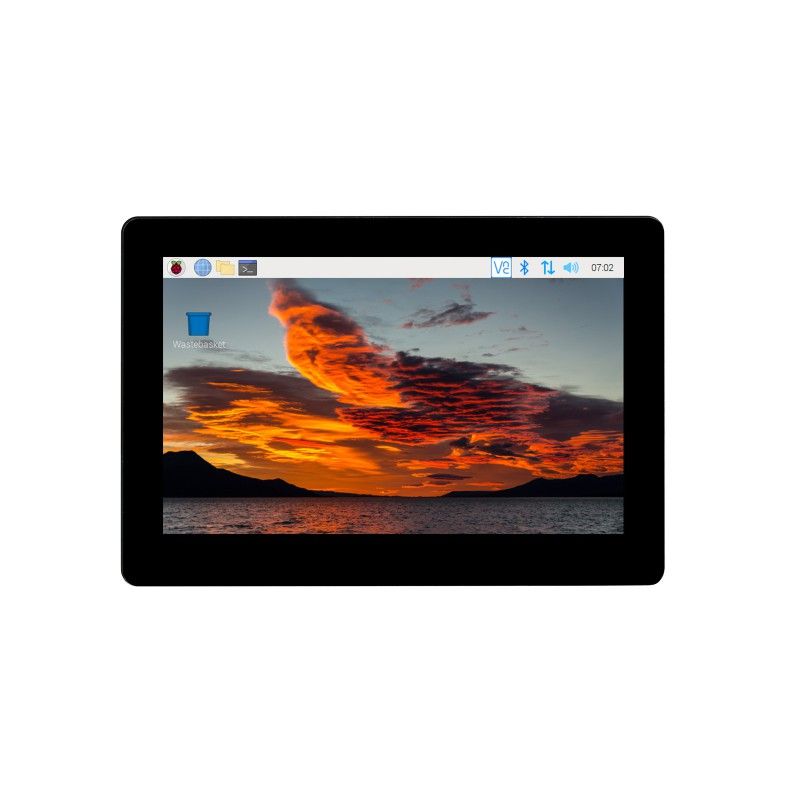

Raspberry Pi Compute Module 4 5" Touch Screen Expansion Board (22024 ) is a touch screen expansion board that allows you to directly connect the Raspberry Pi Compute Module CM4 (for all CM4 variants) to a 5" 800×480 Pixel IPS touch screen, and also supports a camera and video output.

Note: All third-party devices, cables, and modules in this example are for demonstration purposes only and are not included.

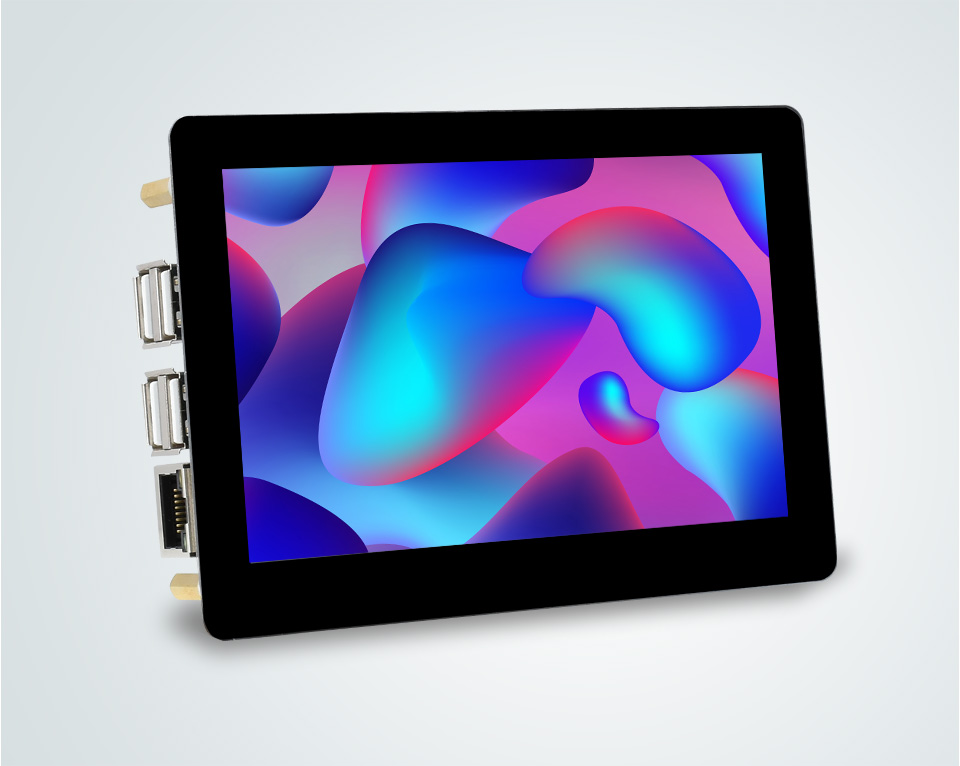

IPS screen provides a wide viewing angle, fast response, and accurate and natural colors.

Provides 4K output to a 4K (3840*2160) 30fps external display via HDMI port

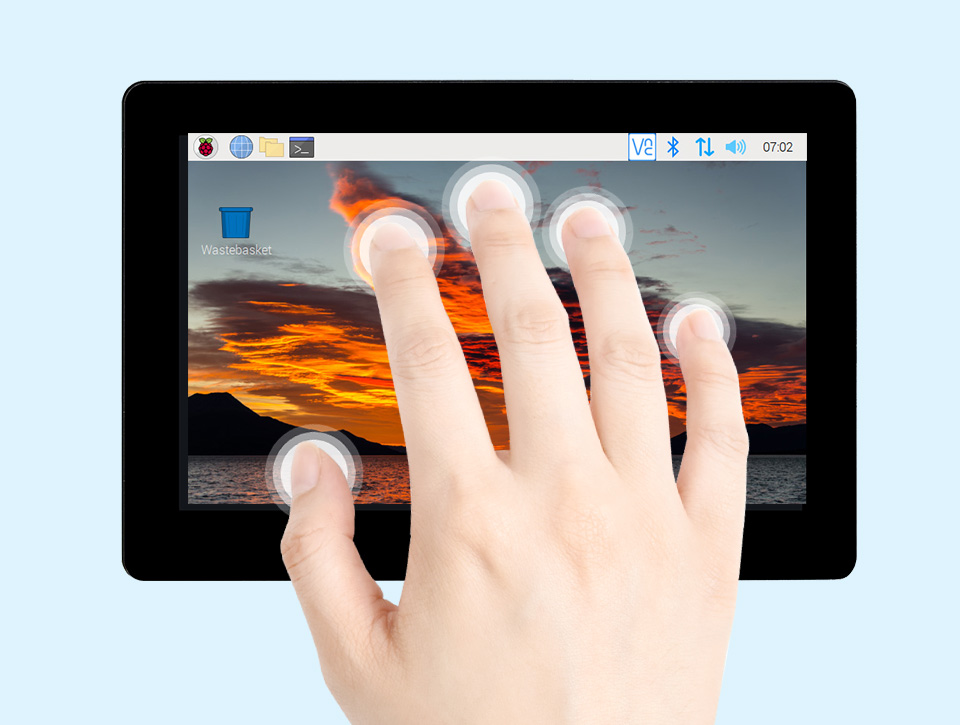

5-point capacitive touch screen

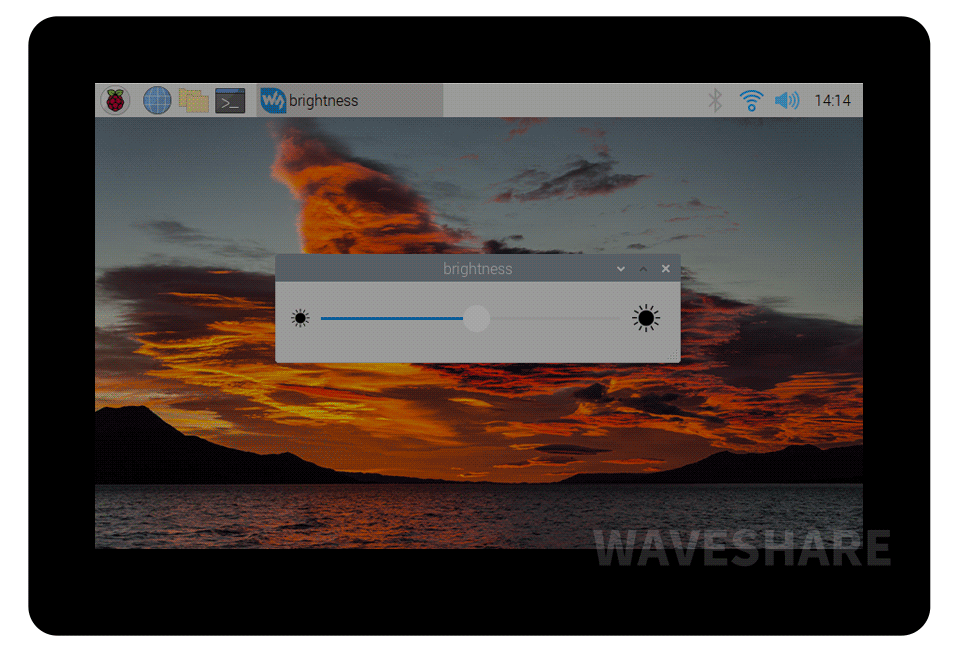

Display backlight brightness is software adjustable and provides more power savings for nighttime or battery-powered projects

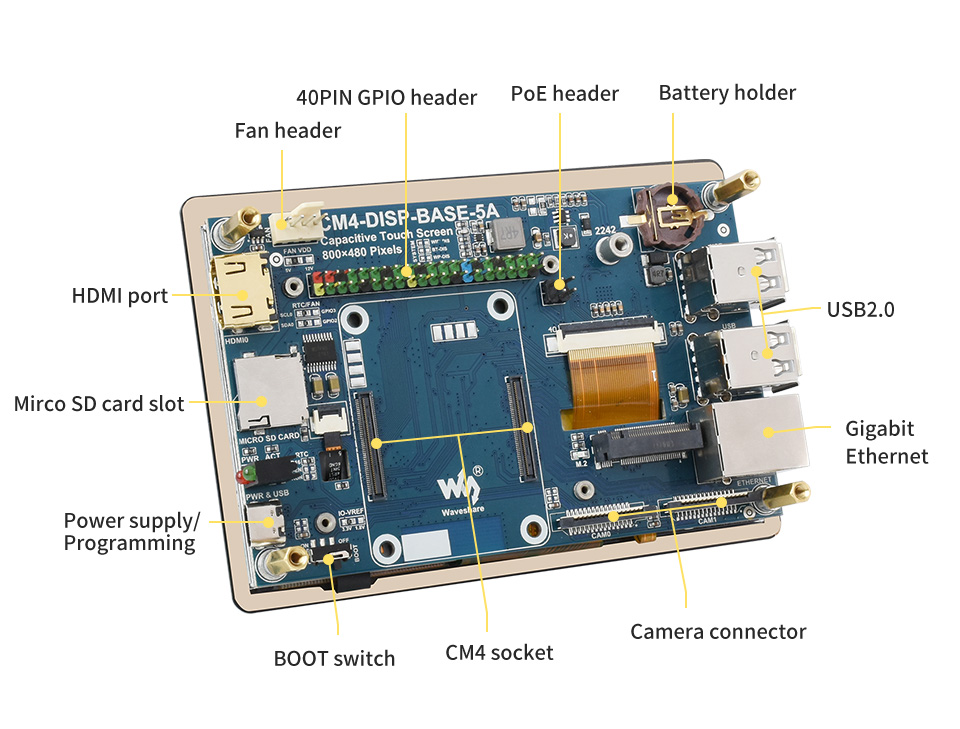

Technical specifications:

CM4 SOCKET	fits all Compute Module 4 variants
Network.	Gigabit Ethernet RJ45 connector
Network.	M.2 M KEY, supports NVME SSD
POE	PoE connector (optional PoE HAT expansion card is required to enable PoE)
USB	USB 2.0 × 4
Display.	5″ screen, 800×480 pixels, 5-point capacitive sensor

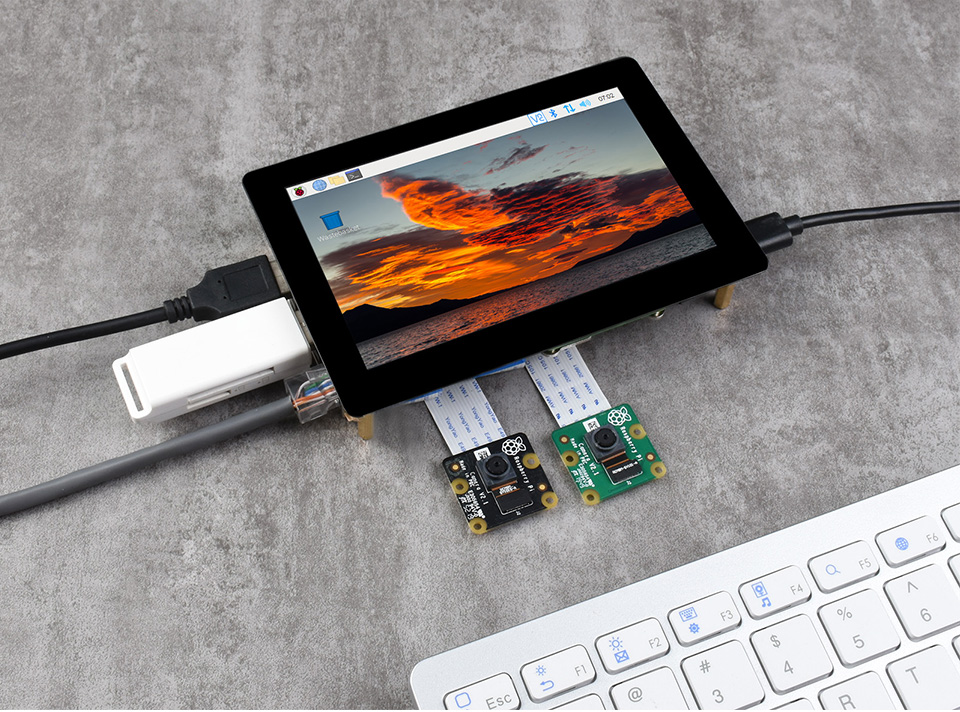

Camera	MIPI CSI-2 × 2 port (15-pin FPC 1.0 mm connector)
Video.	HDMI, support 4K 30fps output
RTC	Real-time clock with battery slot and ability to wake up Compute Module 4 from sleep mode
Data storage	Micro SD card slot for Compute Module 4 Lite variants (without eMMC)
Fan connector	allows you to adjust and measure the speed, 5V / 12V
Power supply	5V

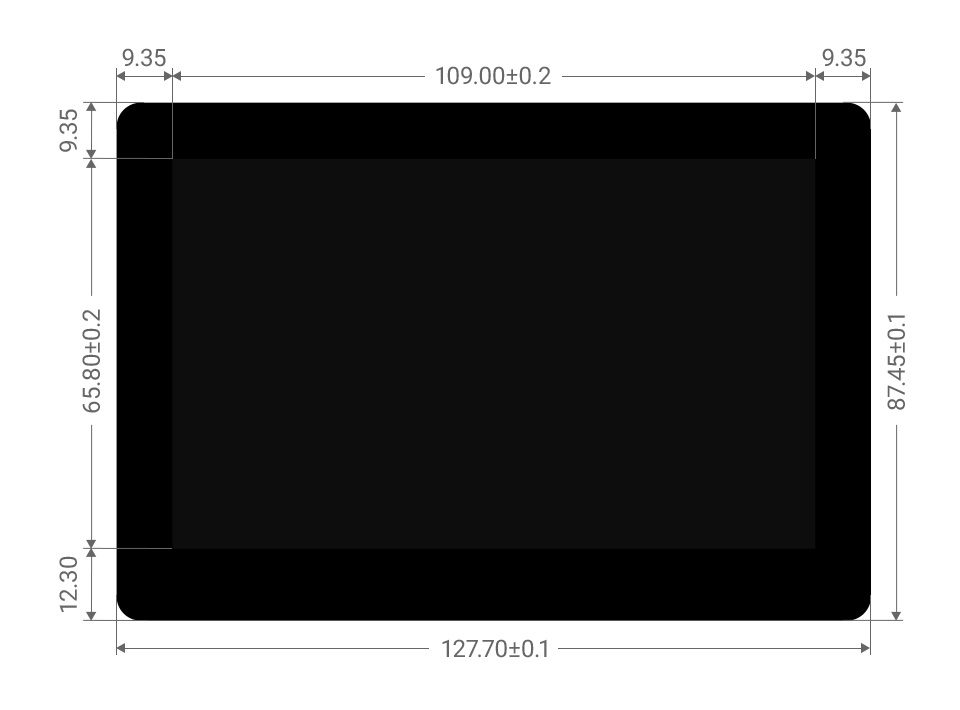

Overall dimensions	127.7 × 87.45mm
