Raspberry Pi High Quality Camera M12 Lens Mount

In Stock

£48.00

Camera type:Camera without a lens

Compatibility:Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi 1Model B/B+, Raspberry Pi 1 Model A+, Raspberry Pi Zero/Zero W, RPi Compute Module 4

Country of origin:Made in UK

Interface (female):CSI/DSI

Sensor:IMX477

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Raspberry Pi High Quality Camera M12 Lens Mount

£48.00

Description

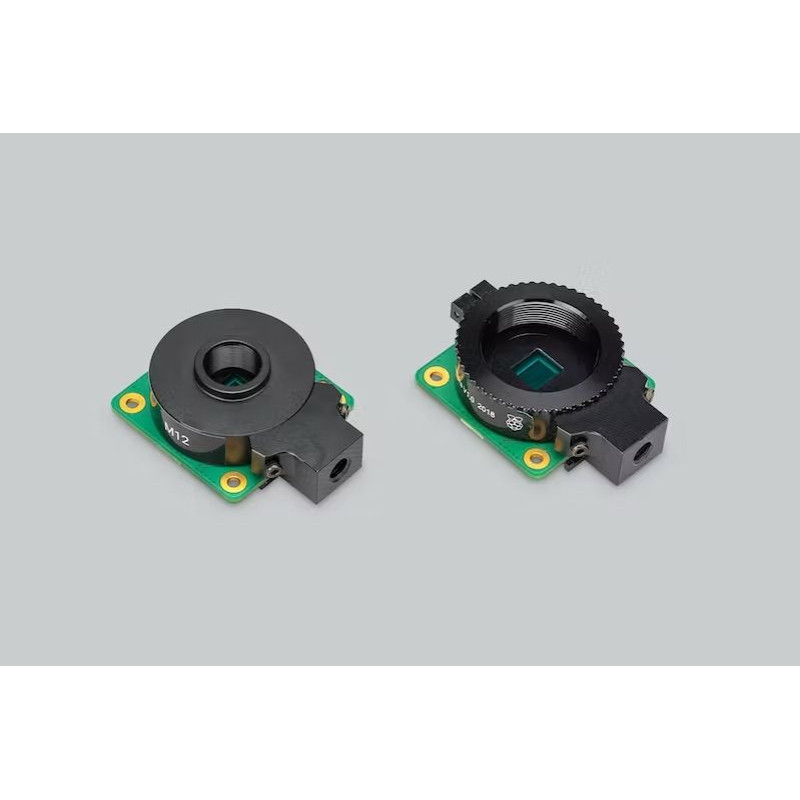

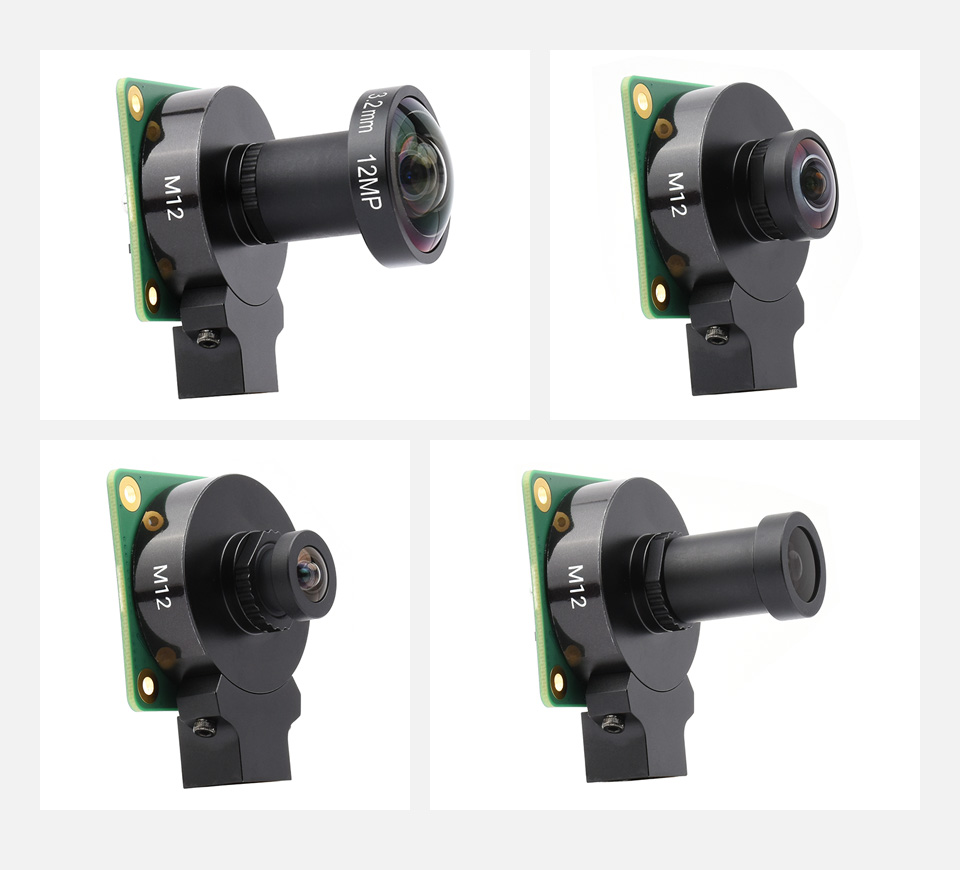

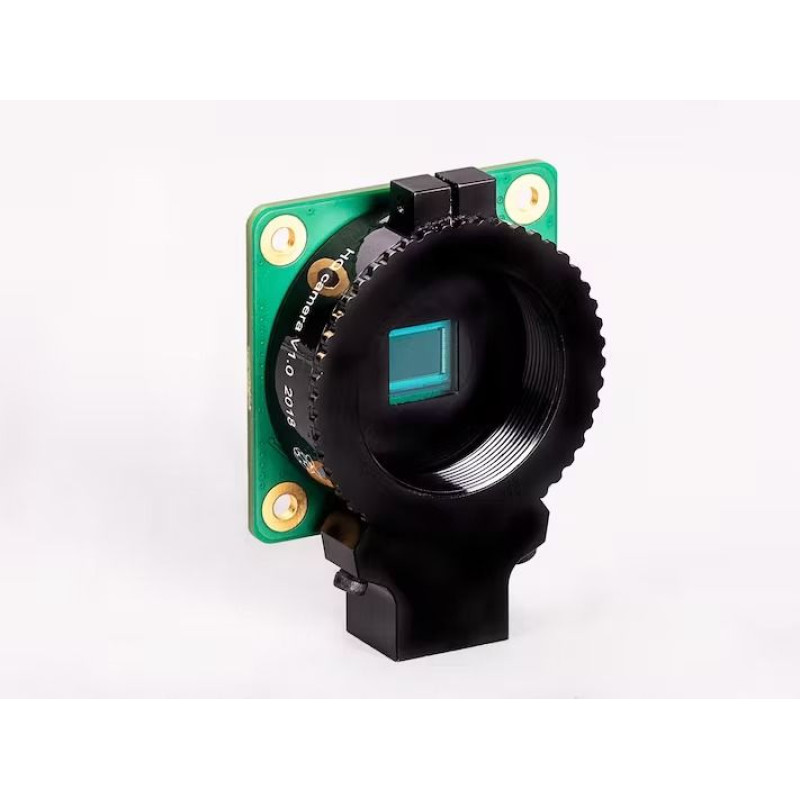

TheRaspberry Pi High Quality Camera M12 is based on a Sony IMX477 sensor with a resolution of 12.3 megapixels, a 7.9 mm diagonal sensor size, and a back-illuminated sensor architecture with adjustable back focus. Available with a choice of C/CS or M12 mounts. The M12 mount requires an M12 lens for industrial and commercial applications that require a higher level of image accuracy.

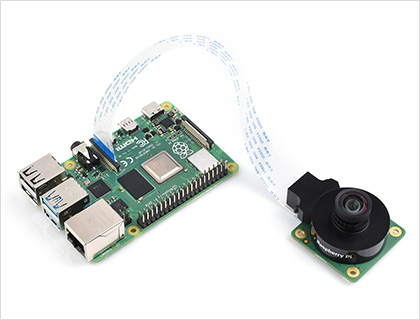

The Raspberry Pi HQ Camera M12 is compatible with all Raspberry Pi series boards.

Compared to the 8-megapixel regular Raspberry Pi camera, the Raspberry Pi High Quality offers up to 12.3 megapixels, as well as nearly 50% more area per pixel, providing a better image effect

Specifications:

Sony IMX477R back-illuminated multilayer sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 µm × 1.55 µm pixel size
Output: RAW12/10/8, COMP8
Lens back focus length: 2.6-11.8 mm (version with M12 mount), 12.5-22.4 mm (version with CS mount)
Lens sensor format: 1/2.3 inches (7.9 mm) or larger
IR filter: Built-in
Tripod mount: 1/4"-20

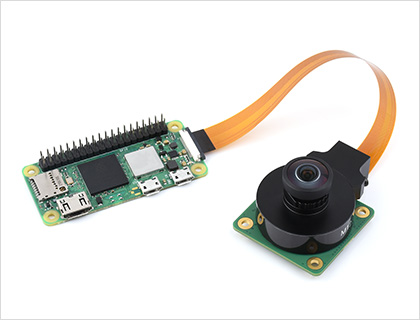

Length of the ribbon cable: 200 mm. All Raspberry Pi Zero models require a special Raspberry Pi Zero camera cable, which must be purchased separately. The standard cable supplied with the camera is not compatible with the smaller camera connector of the Raspberry Pi Zero.

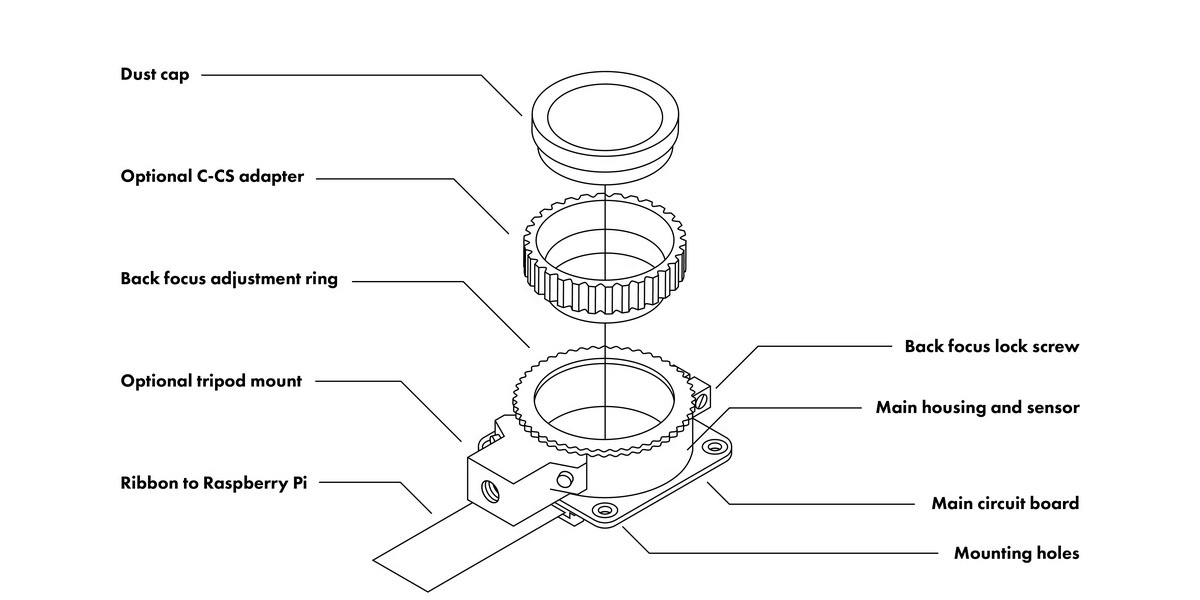

The CS mount version of the camera is designed to mount CS mount lenses and, with the included adapter, C mount lenses. The CGL 6mm CS-mount and 16mm C-mount lenses are examples of third-party products that are compatible with this camera; see the step-by-step instructions for installing these CS and C-mount lenses.

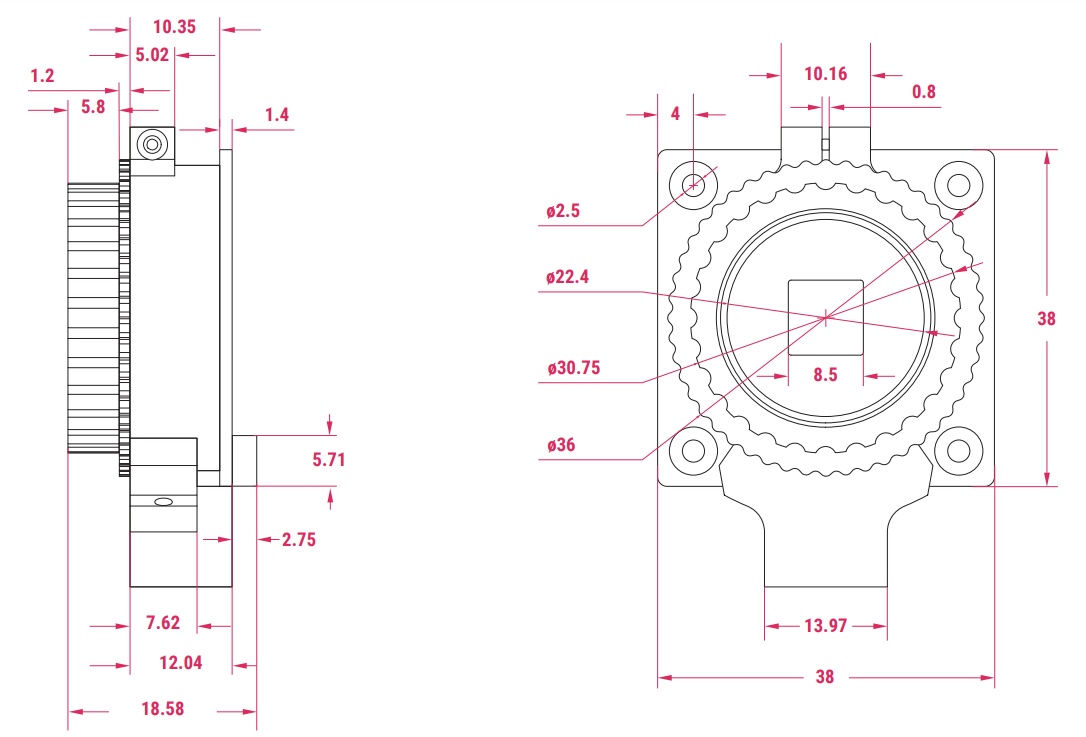

Overall dimensions for CS-mount mount

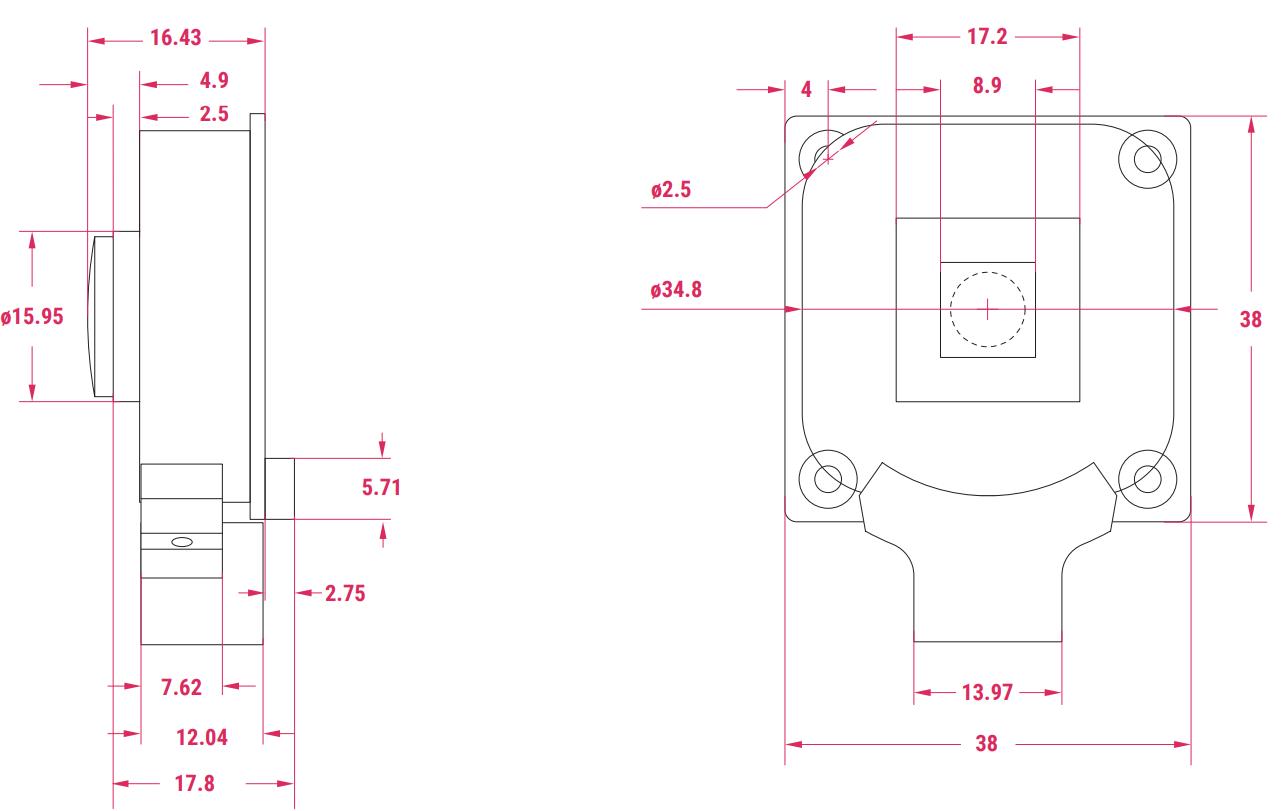

Overall dimensions for M12-mount mount

Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera_M12

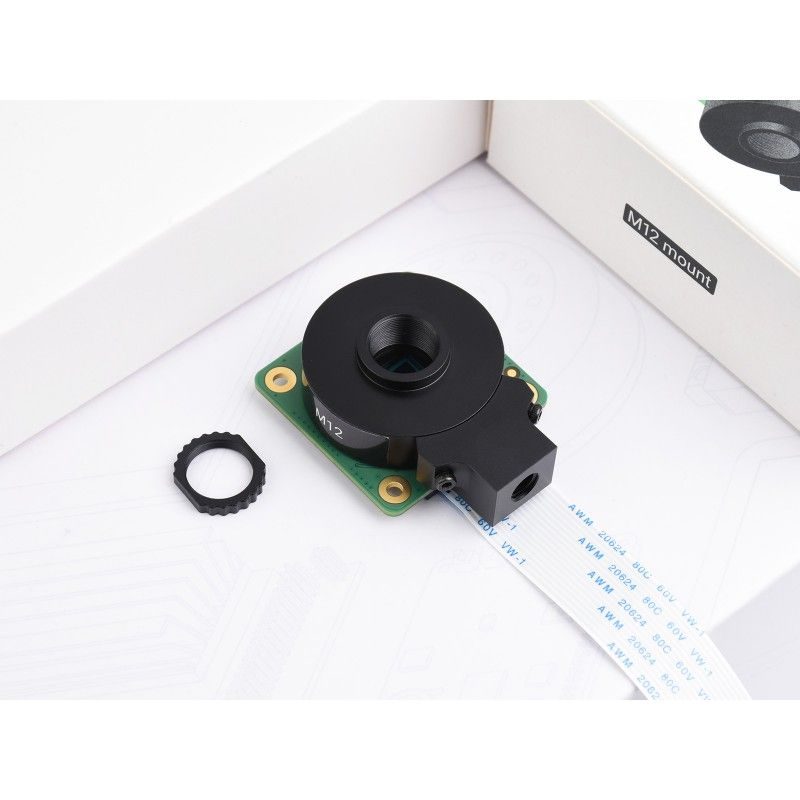

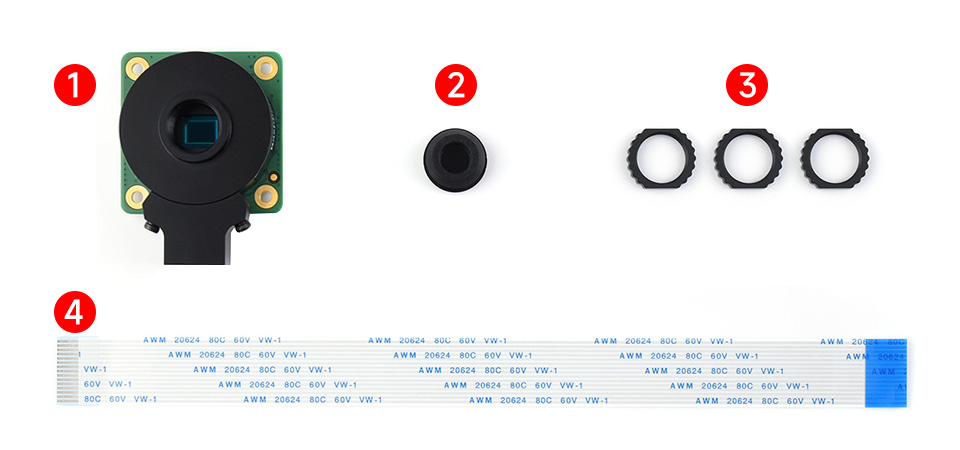

Included in the package:

Raspberry Pi HQ M12 camera x1
Dust cover x1
M12 connector (3 pcs.) x1
15-pin FFC (contact of opposite sides) x1

Weight: 0.49 kg

Specifications

Main characteristics

Camera type

Camera without a lens

Compatibility

Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B/B+, Raspberry Pi 1Model B/B+, Raspberry Pi 1 Model A+, Raspberry Pi Zero/Zero W, RPi Compute Module 4

Country of origin

Made in UK

Interface (female)

CSI/DSI

Sensor

IMX477

Type of attachment

M12-mount
