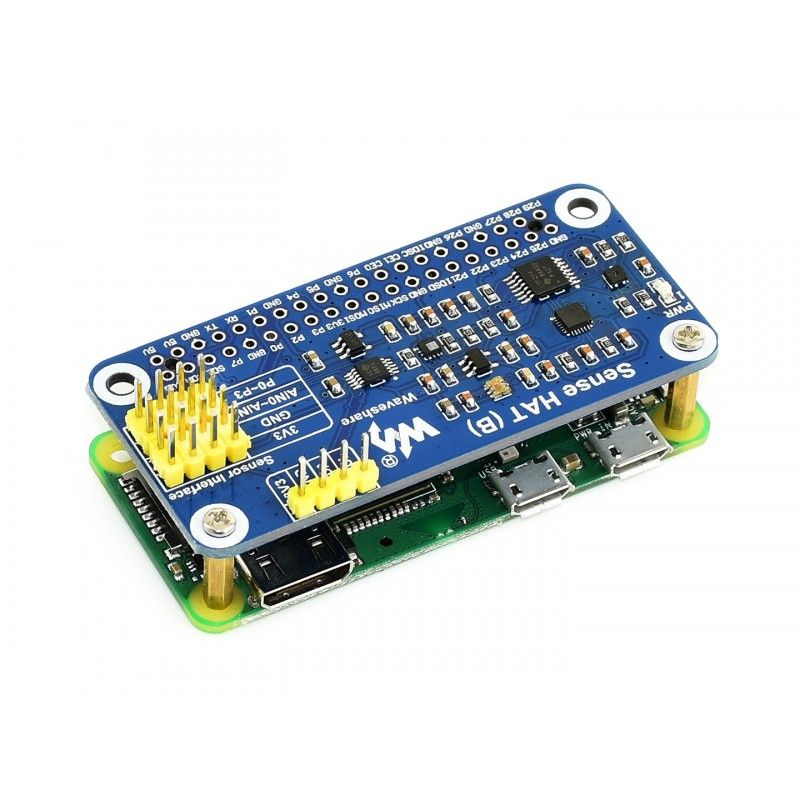

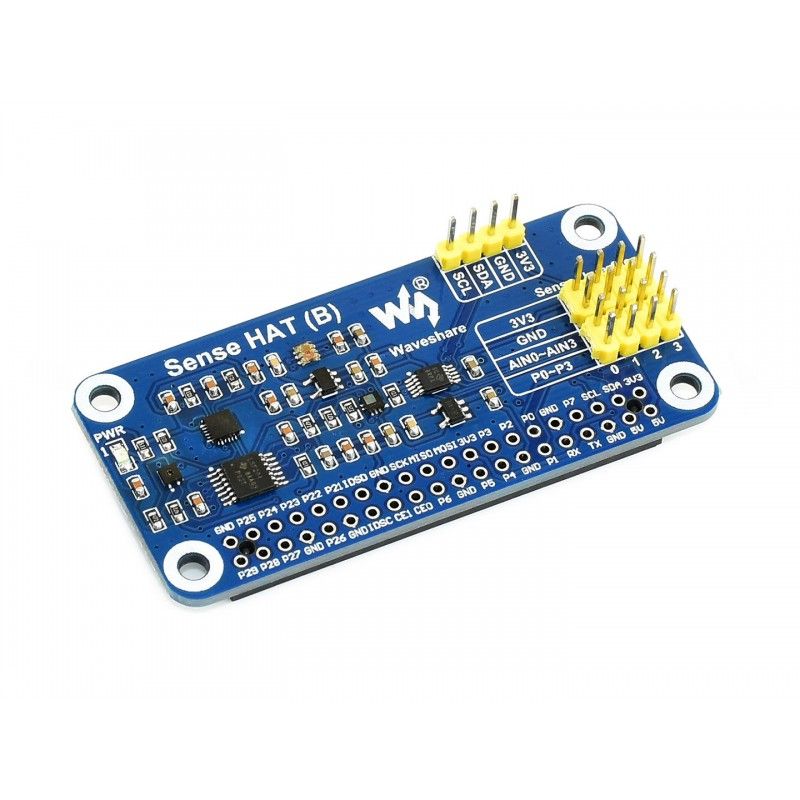

Raspberry Pi Sense HAT (B) expansion board (16864)

The Raspberry Pi Sense HAT (B) Expansion Board (16864 ) is an expansion board for the Raspberry Pi that contains a variety of sensors for collecting environmental data. It allows the user to collect data on temperature, humidity, pressure, orientation, motion, and other parameters.

Sense HAT (B) can be used for a variety of projects such as data collection and analysis, environmental monitoring, game development, and more. It can be connected to a Raspberry Pi using a standard GPIO connector and interact with it using Python software.

This device can be useful for creating a variety of projects related to environmental data collection, such as weather stations, air quality measurements, or plant monitoring. In addition, Sense HAT can be used to learn the basics of programming and engineering in various educational institutions.

Key features:

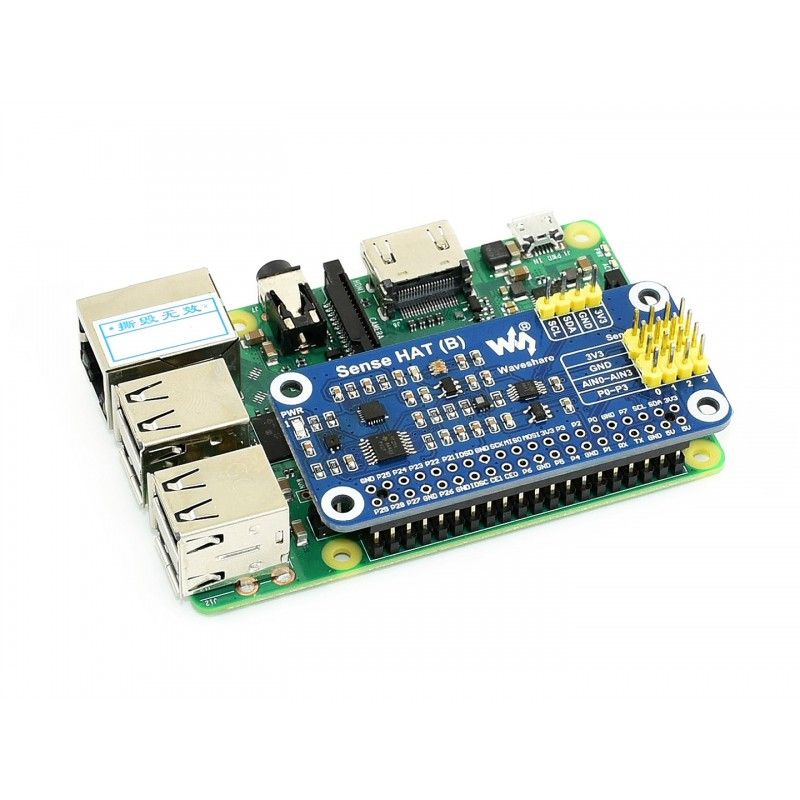

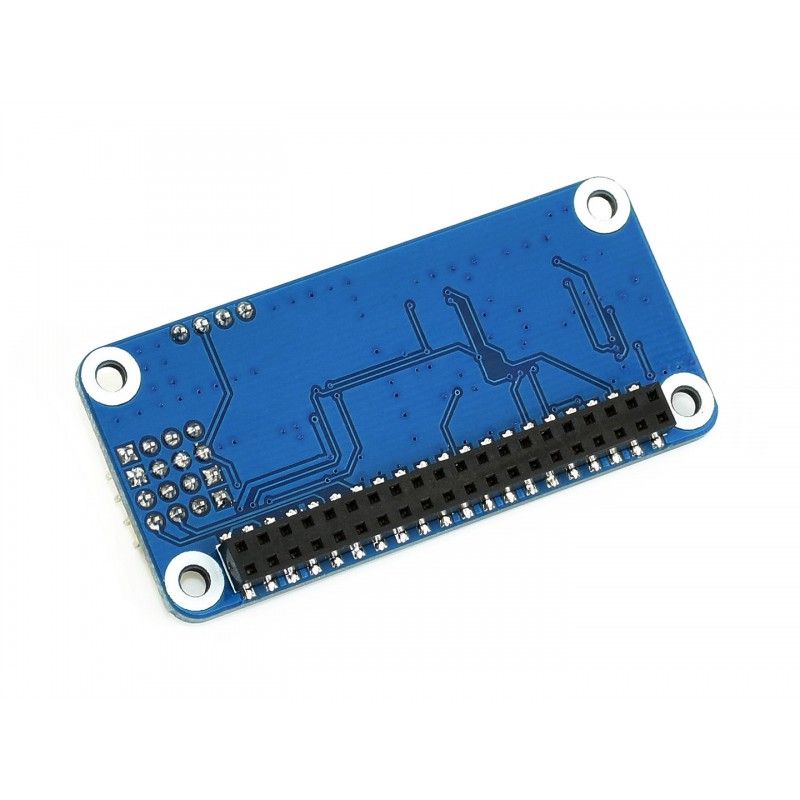

• Has a standard Raspberry Pi 40PIN GPIO expansion connector and supports Raspberry Pi series boards
• Has a built-in ICM20948 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer) that detects motion, orientation and magnetic field.
• It has a built-in SHTC3 digital temperature and humidity sensor for environmental monitoring
• Has a built-in barometric pressure sensor LPS22HB, which allows you to control the environment
• Has a built-in TCS34725 color sensor that detects the color of nearby objects
• Has a built-in SGM58031, 4-channel 16-bit precision ADC, AD expansion to support more external sensors
• Has I2C control pins for connecting other host boards such as STM32
• Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications:

• Operating voltage: 3,3 В
• Communication interface: I2C
• Logic level: 3,3 В
• Dimensions: 65 mm x 30.5 mm
• GYROSCOPE
  • RANGE: ±250, ±500, ±1000, ±2000 dps
  • RESOLUTION: 16-bit
• ACCELEROMETER
  • RANGE: ±2, ±4, ±8, ±16 g
  • RESOLUTION: 16-bit
• MAGNETOMETER
  • RANGE: ±49 gauss
  • RESOLUTION: 16-bit
• BAROMETER
  • RANGE: 260 to 1260 hPa
  • ACCURACY: ±0.025 hPa (normal temperature)
  • SPEED: 1 Hz 75 Hz
• TEMPERATURE AND HUMIDITY
  • RANGE (TEMP): -30 100 °C
  • ACCURACY (TEMP): ±0,2 °C
  • RANGE (HUMIDITY): 0% 100% RH
  • ACCURACY (HUMIDITY): ±2% RH
• OTHERS: color sensor, high-precision 16-bit AD converter

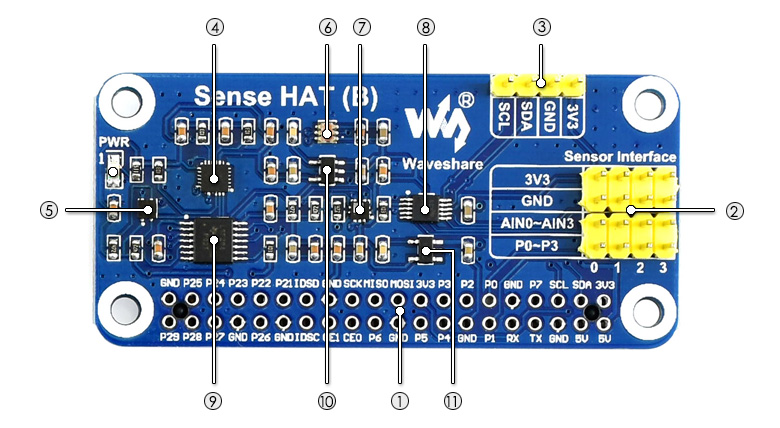

Board elements and interfaces:

1. Raspberry Pi GPIO connector for connection to a Raspberry Pi

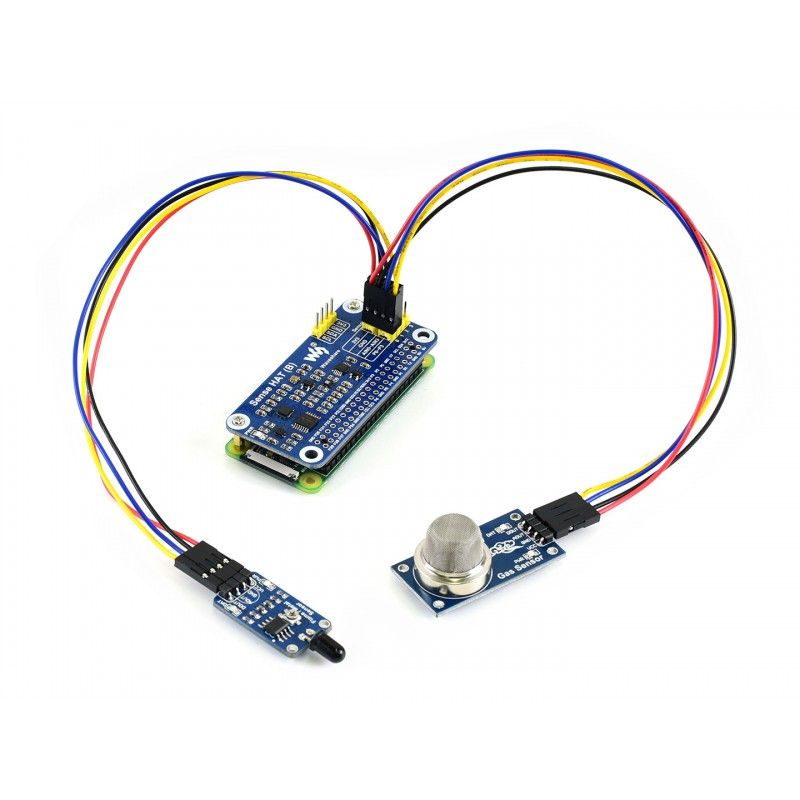

2. Sensor interface for external sensors
3. I2C connector for connection to host boards such as STM32
4. ICM-20948 - 9-axis motion sensor
5. SHTC3 - Temperature and humidity sensor
6. TCS34725 - Color sensor
7. LPS22HB - Barometric pressure sensor
8. SGM58031 - 16-bit ADC
9. LSF0204PWR - 4-channel voltage level transmitter
10. RT9193-18 - 1.8V linear regulator
11. RT9193-33 - linear regulator 3.3V

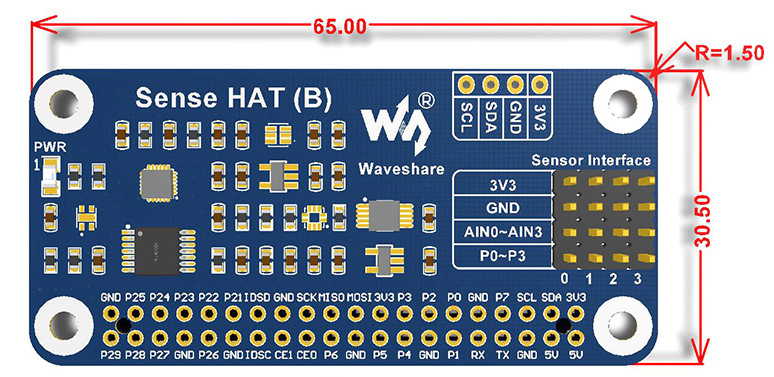

Overall dimensions: 65mm x 30.5mm

WIKI: www.waveshare.com/wiki/Sense_HAT_(B)

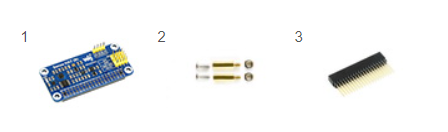

Scope of delivery:

1. Sense HAT (B) x1
2. Package of screws x1 pc
3. 2x20PIN comb x1

Weight: 0.019 kg
