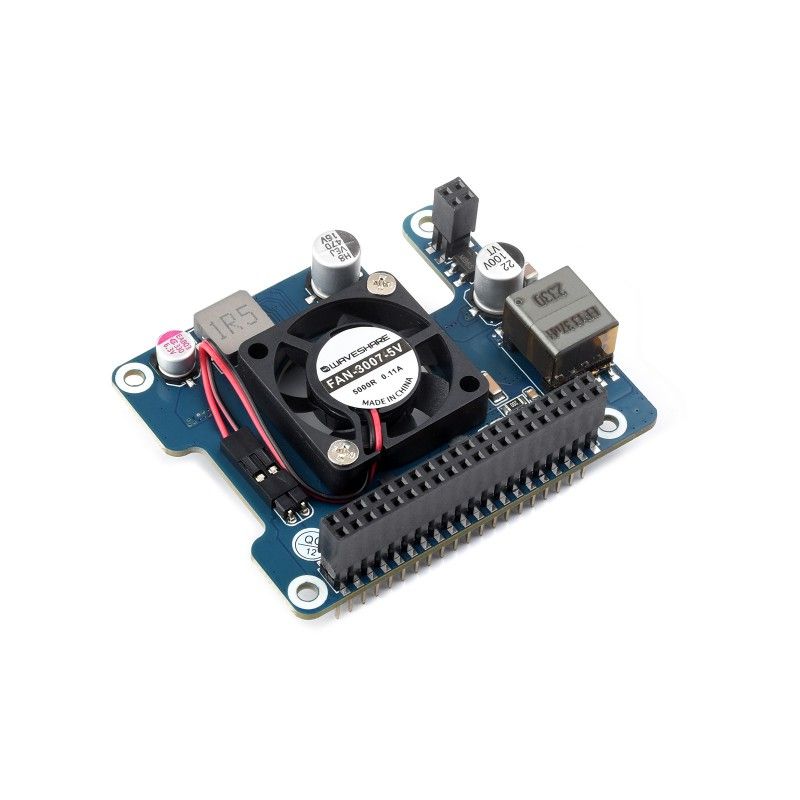

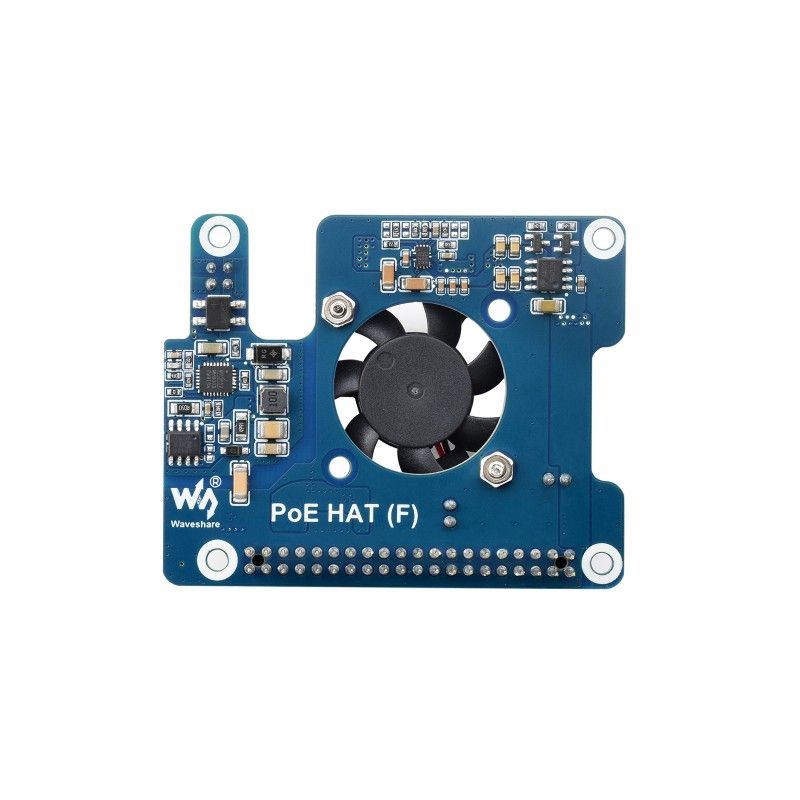

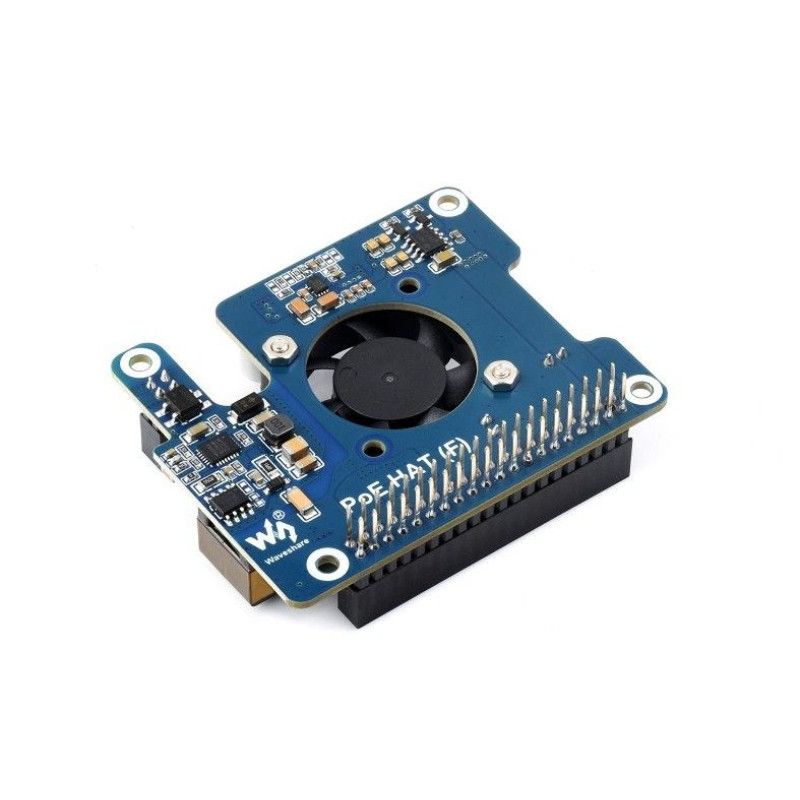

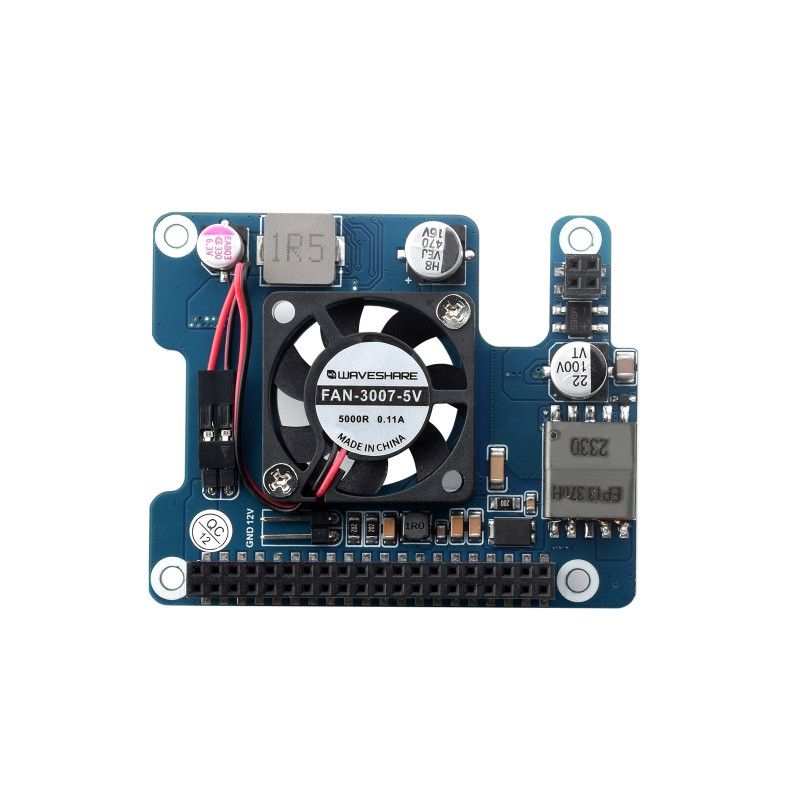

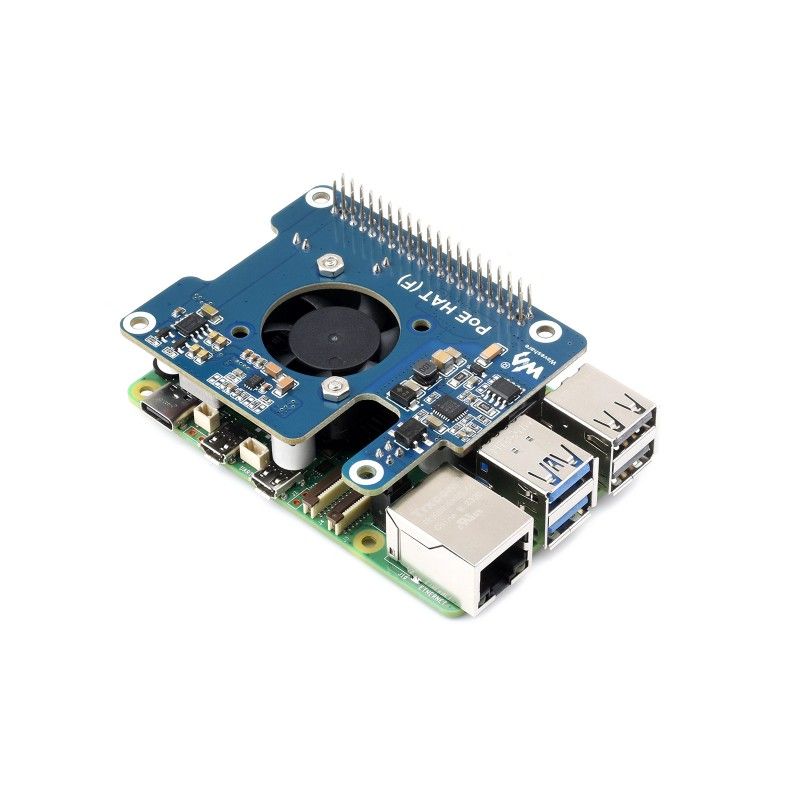

Raspberry Pi5 PoE HAT expansion board (F)

The Raspberry Pi5 PoE HAT (F) is an add-on module for the Raspberry Pi 5 designed to provide power and data transmission using Power over Ethernet (PoE) technology. The PoE HAT(F) is a convenient and powerful add-on for powering the Raspberry Pi 5 using PoE technology, simplifying cabling infrastructure and ensuring reliable device performance.

Main features:

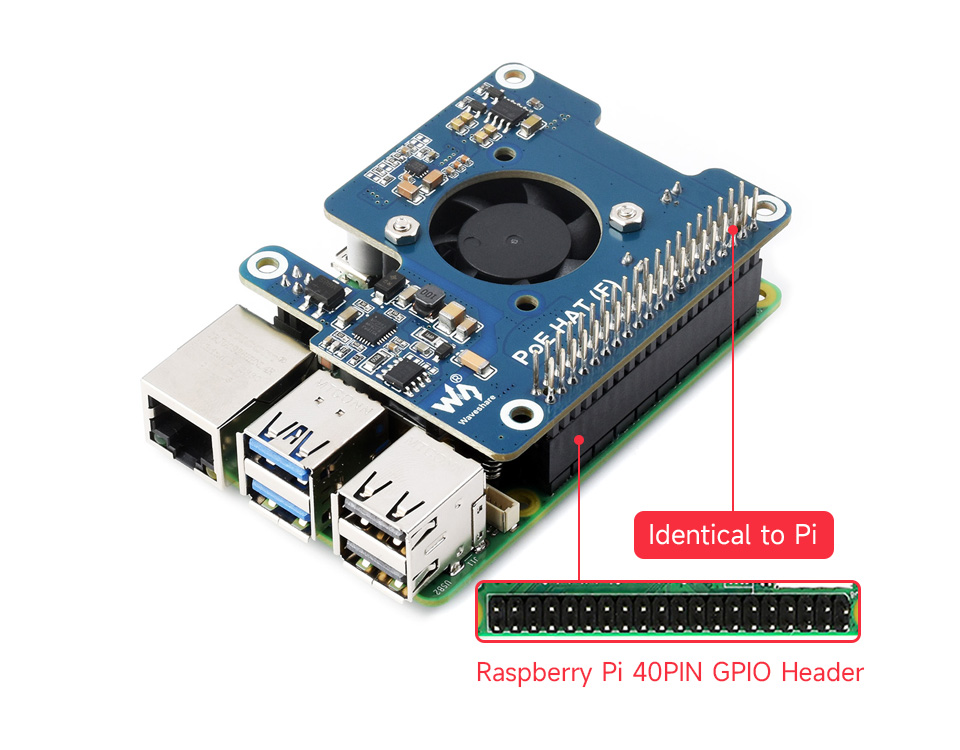

• Has a standard Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi 5
• Uses PoE (Power Over Ethernet) technology compatible with the IEEE 802.3af/at standard
• Contains a fully isolated switching power supply (SMPS)
• Features 12V and 5V power outputs to support more peripherals
• Provides high power for stable operation of the Raspberry Pi 5 even under heavy load or demanding applications.
• Equipped with an active cooling system with a metal heat sink and cooling fan for better heat dissipation from the Raspberry Pi 5

Specifications:

POE POWER INPUT: 37V 57V DC
OUTPUT:

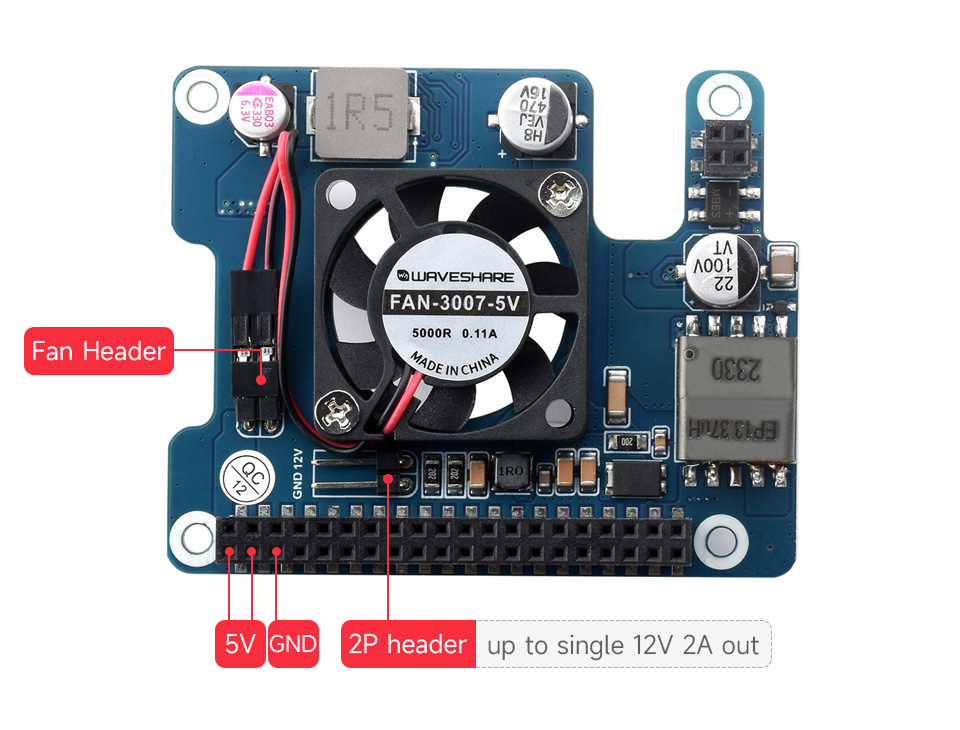

• GPIO connector: 5 V 4.5 A (MAX)
• 2P connector: 12V 2A (MAX)

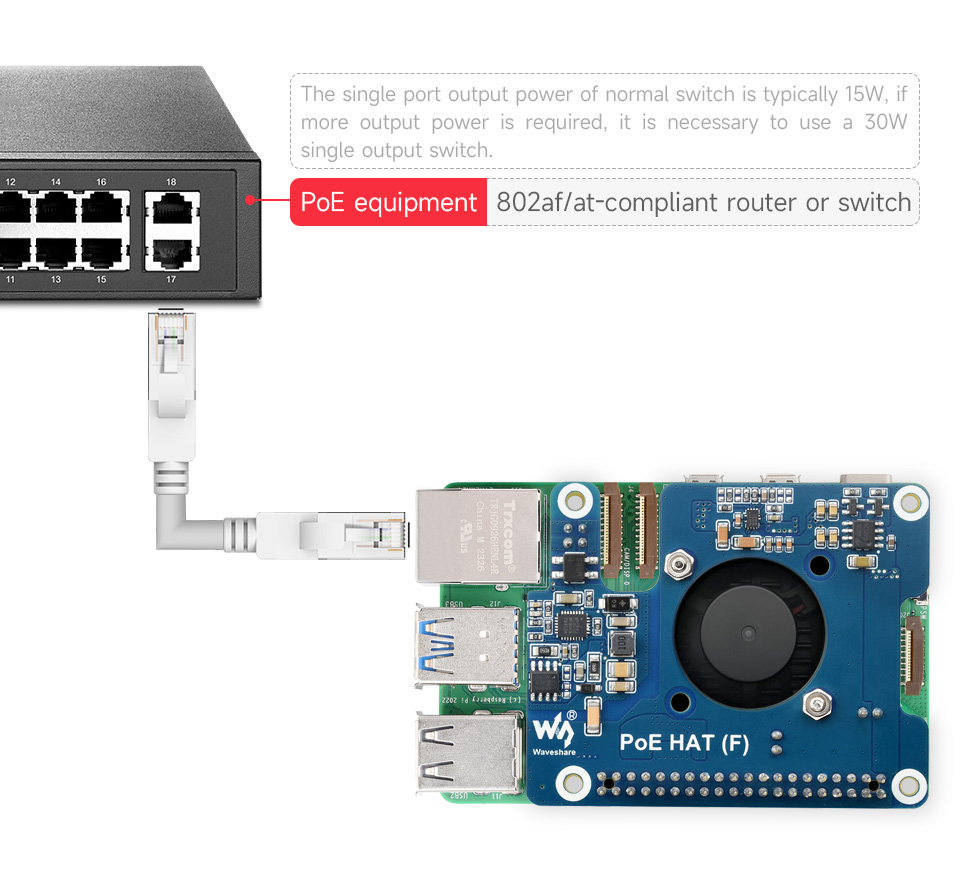

NETWORK STANDARD: IEEE 802.3af/at PoE

Built-in 5 V and 12 V outputs
The 5V connector provides an output current of up to 4.5A (MAX. 25W for a total output power of 12V+5V)
Has the ability to power additional devices, providing stable power to the Raspberry Pi

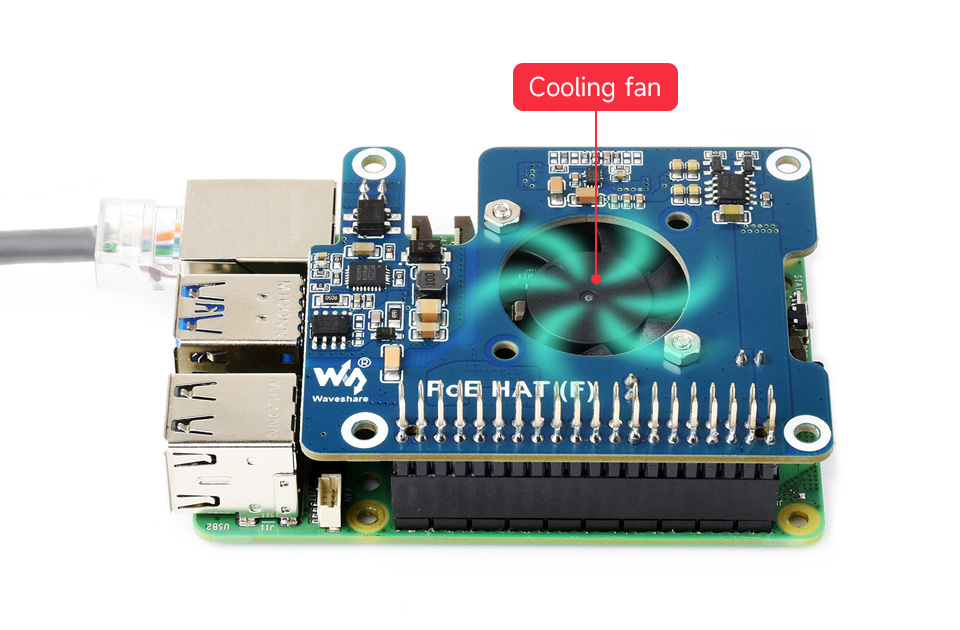

Active cooling fan accelerates the cooling effect, providing more stable operation

Contains the original MP8759GD voltage boost chip, providing up to 5A with sufficient heat dissipation

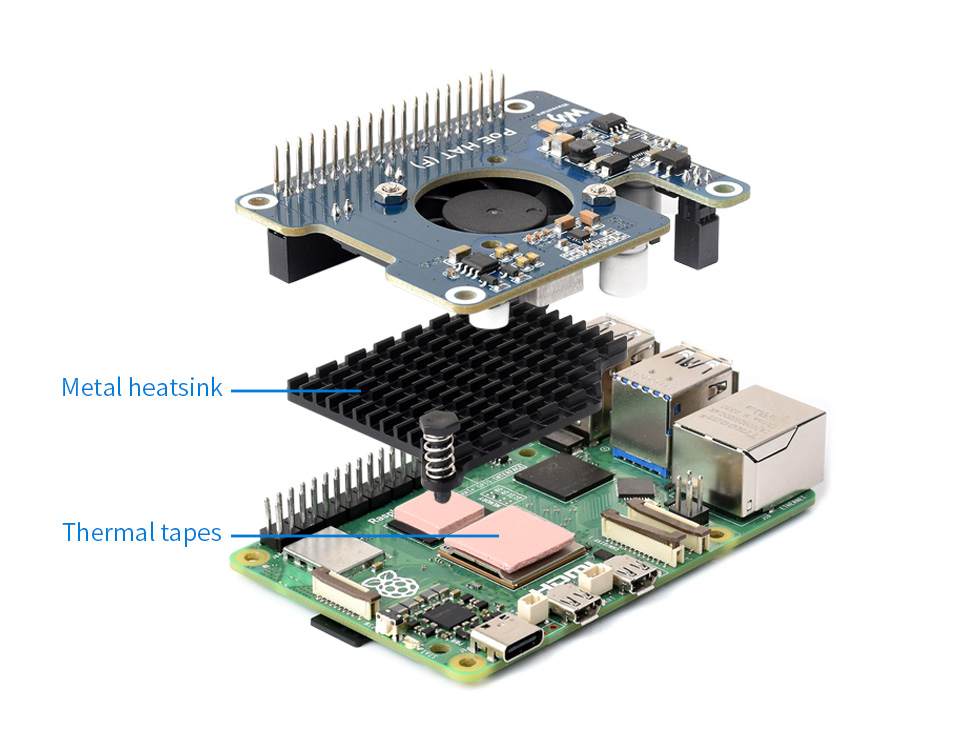

Assembly procedure:

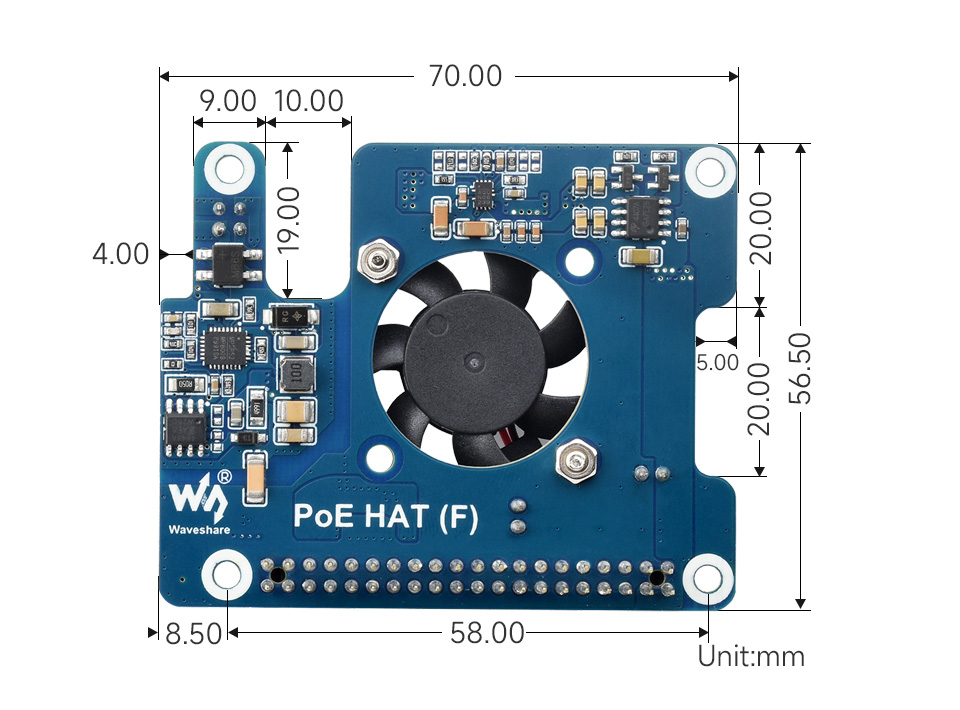

Overall dimensions: 56.5 mm × 70.0 mm

WIKI: www.waveshare.com/wiki/PoE_HAT_(F)

Weight: 0.056 kg

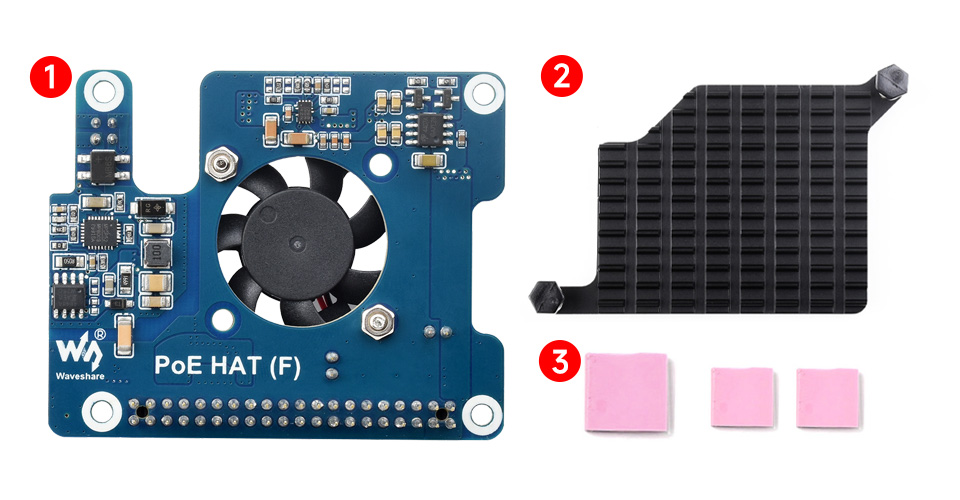

Scope of delivery:

1. PoE HAT(F) x1
2. Metal radiator x1
3. Thermal tape (3pcs) x1
