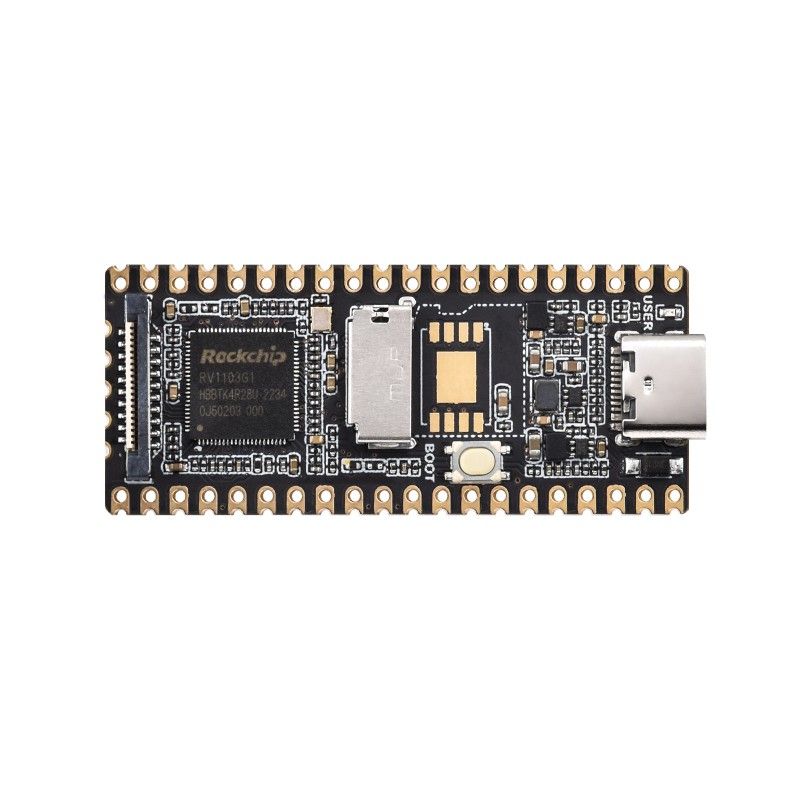

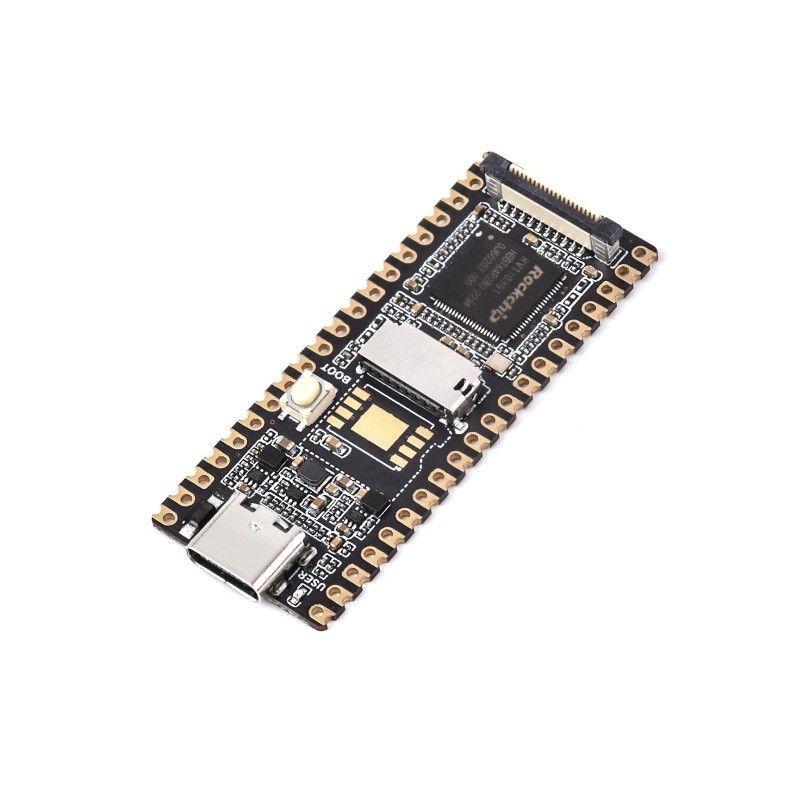

Luckfox Pico

TheLuckfox Pico is an innovative and powerful development board for projects that require high performance and versatility. This board is ideal for enthusiasts, developers, and engineers looking for a compact and powerful solution to their creative challenges. The LuckFox Pico Plus RV1103 Linux Micro Development Board is great for a variety of applications, including:

• Developing IoT devices with network connectivity.
• Creating media centers and multimedia devices.
• Research and development in artificial intelligence and image processing.
• Development of embedded systems and robotics.

Main features:

• Integration of ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors: This board features a number of powerful processors, including ARM Cortex-A7 and RISC-V, to provide high computing power and the ability to develop a variety of applications.

• The board supports the Linux operating system, which allows developers to use a wide range of software resources and libraries to create a variety of applications.

• The Ethernet interface makes this board ideal for projects that require network connectivity, such as IoT (Internet of Things) devices, servers, and routers.

• The integrated NPU (Neural Network Accelerator) and ISP (Image Processing Unit) microcontrollers enhance the development capabilities of applications related to artificial intelligence and computer vision.

Specifications:

• Processor: Cortex [email protected] + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: 4M input @ 30fps (max)
• Memory: 64Mb DDR2
• USB: USB 2.0 host/device

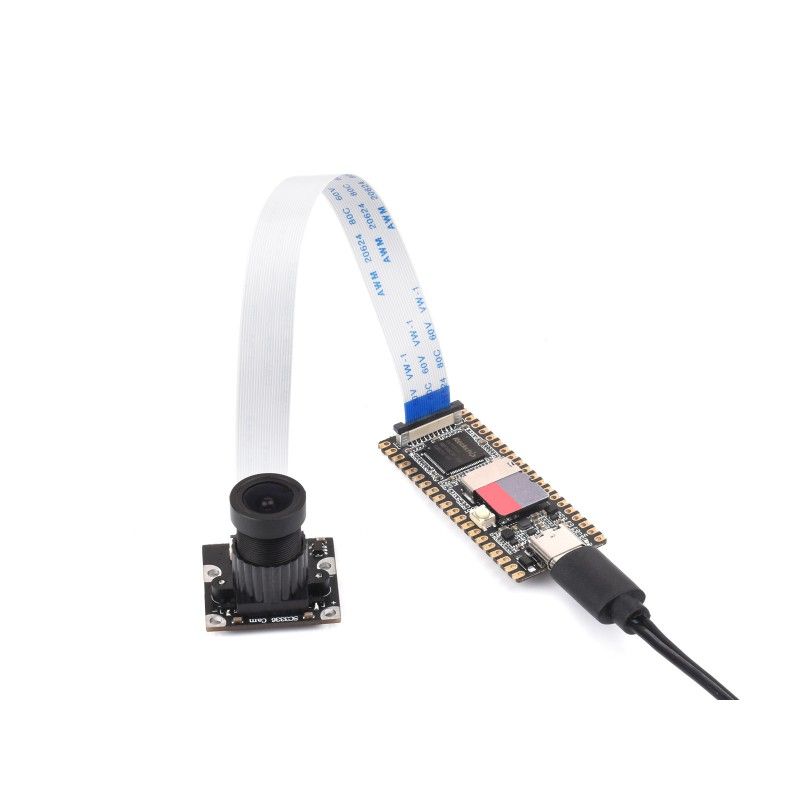

• Camera: MIPI CSI 2-way
• GPIO: 25 × GPIO pins
• Ethernet port: 10/100M Ethernet controller and built-in PHY
• Default memory: TF card (not included)

Highly integrated and powerful performance (integrates CPU, NPU, ISP and other processors)

• Single-core 32-bit ARM Cortex-A7 core with integrated NEON and FPU.
• The built-in 4th generation NPU of Rockchip's own design provides high computing accuracy and supports hybrid quantization of int4, int8 and int16. The computing power of int8 is 0.5 TOPS, and with int4 - up to 1.0 TOPS.
• Built-in third-generation ISP3.2 of its own design, supports 4 megapixels, with several image enhancement and correction algorithms, such as HDR, WDR, multi-level noise reduction, etc.
• It has powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% of the bitrate of the normal CBR mode, so that the camera images are high-definition with a smaller size, twice the storage space.
• The built-in RISC-V microcontroller supports low power consumption and fast startup, supports fast image capture in 250ms and loading the AI model library at the same time to realize "one second" face recognition
• Built-in 16-bit DDR2 DRAM, which is capable of supporting demanding memory bandwidth.
• Integrated with built-in POR, audio codec and MAC PHY.

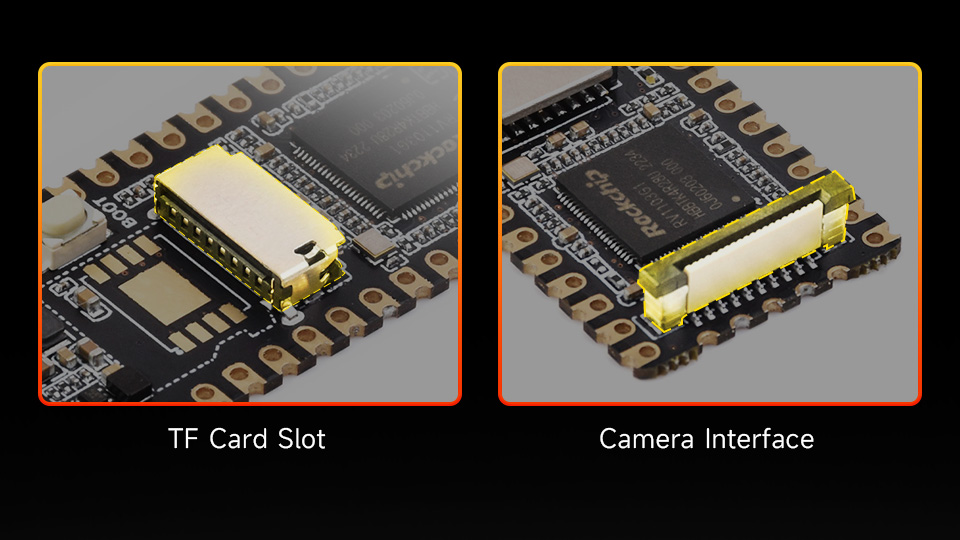

It has a TF card slot and a camera interface.

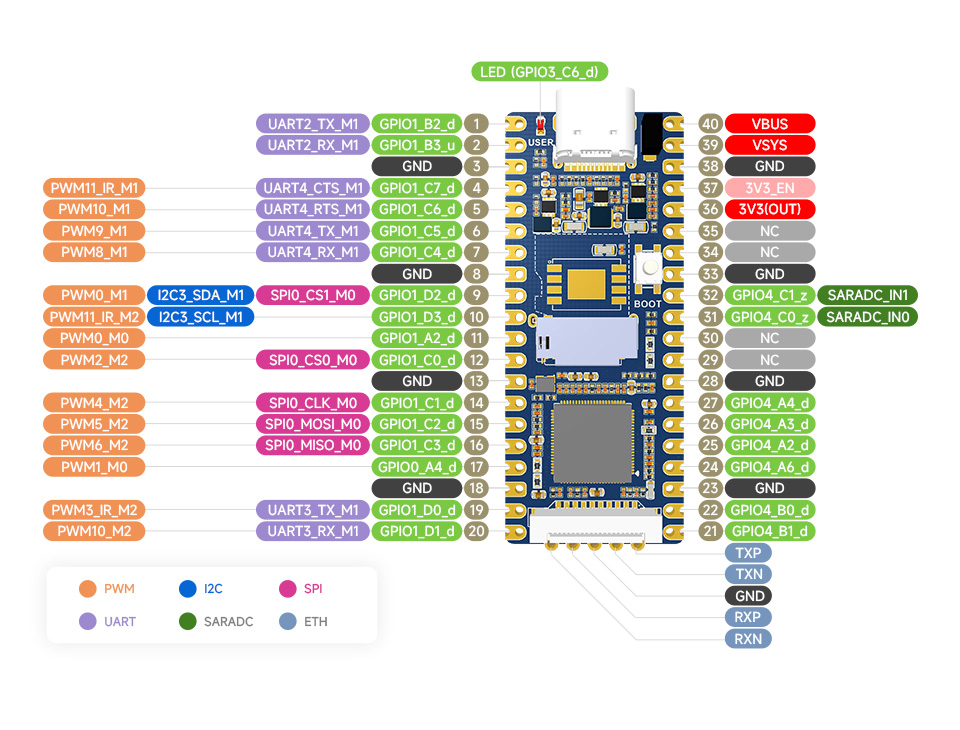

Pinout:

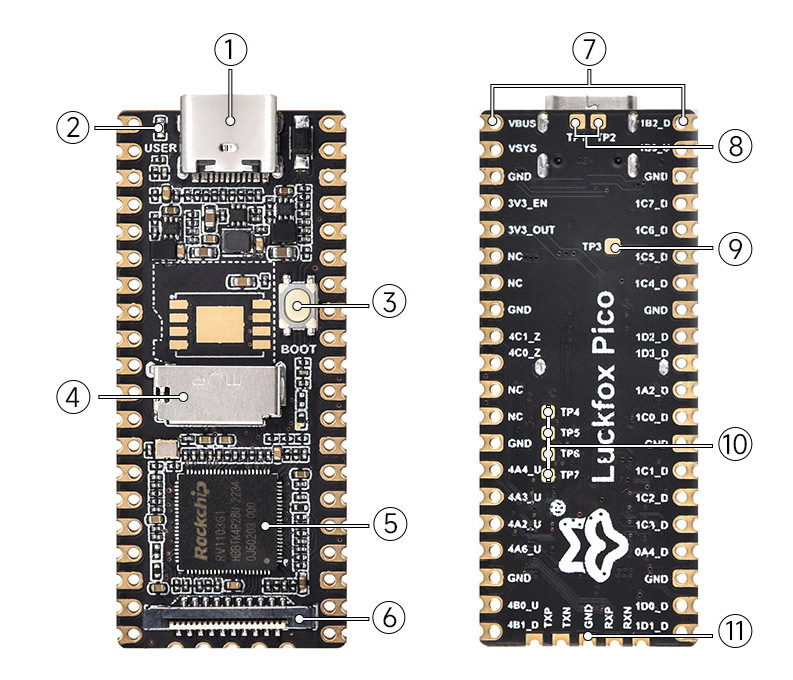

Board elements:

1. USB Type-C connector
2. ACT-LED
3. BOOT button. Press it during power on to enter the boot mode
4. TF card slot
5. RV1103 Vision SoC processor with integrated ARM Cortex-A7 core
6. CSI MIPI CSI 2-lane camera interface
7. GPIO connector
8. USB test panels
9. BOOT test panel
10. Microphone test panels
11. Ethernet interface pins

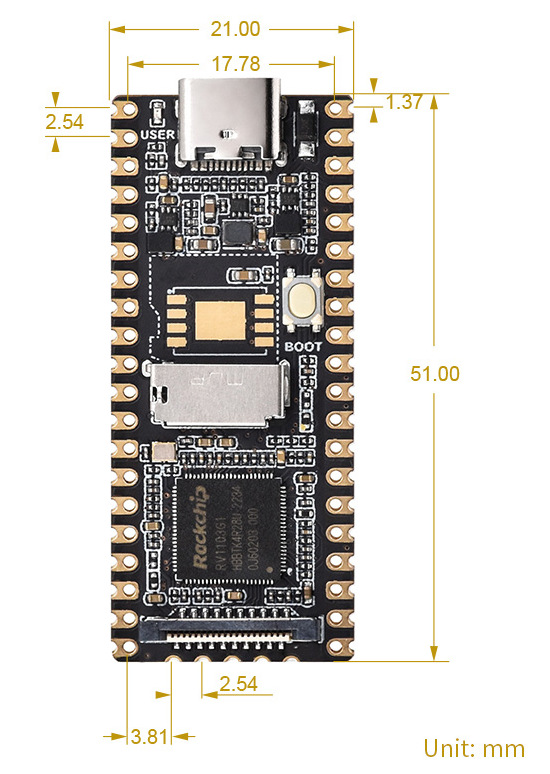

Overall dimensions: 51mm x 21mm

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start

Scope of delivery:

1. Luckfox Pico x1

Weight: 0.004 kg
