Description

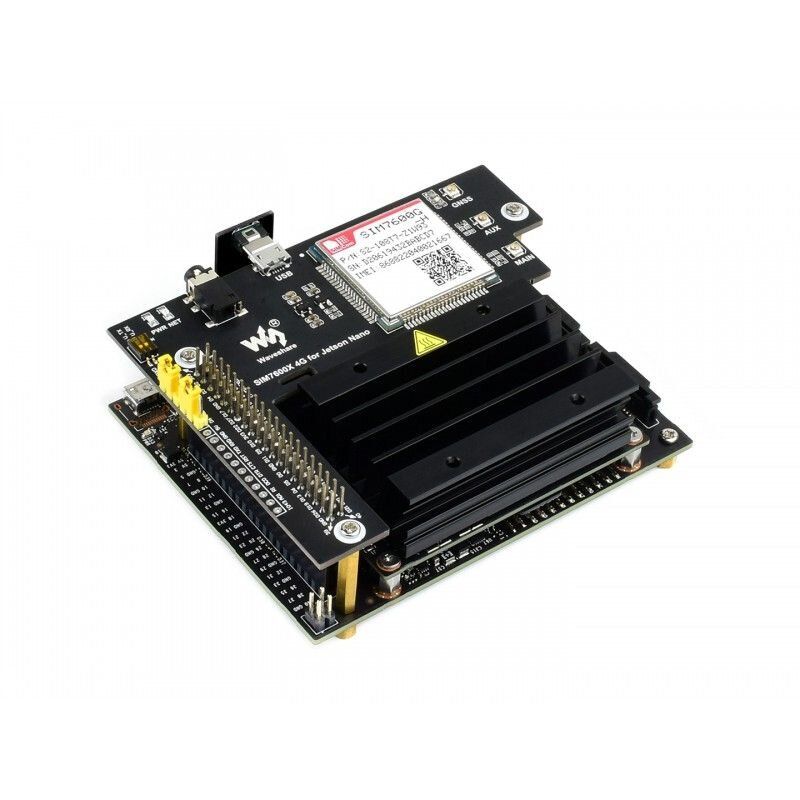

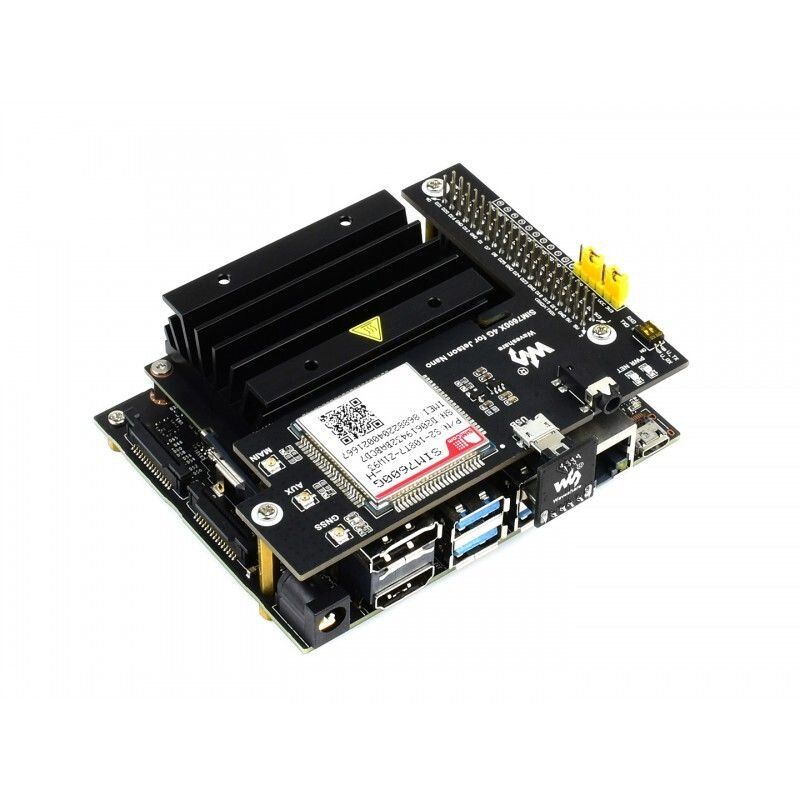

SIM7600G-H 4G/3G/2G/GNSS Module for Jetson N ano, LTE CAT4, Global Applicable is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, supporting LTE CAT4 with data rates up to 150Mbps with fairly low power consumption.

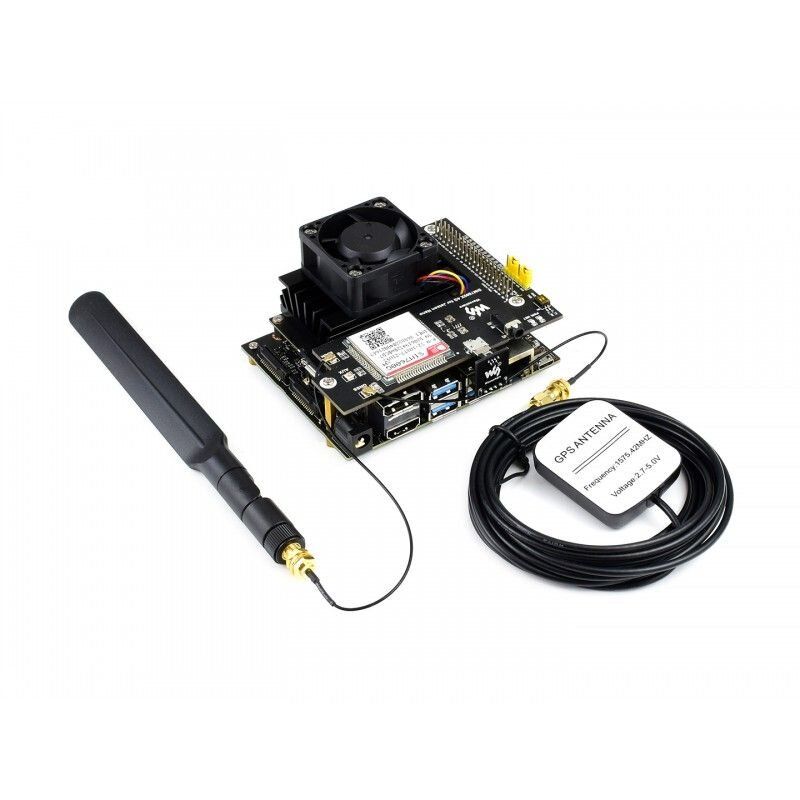

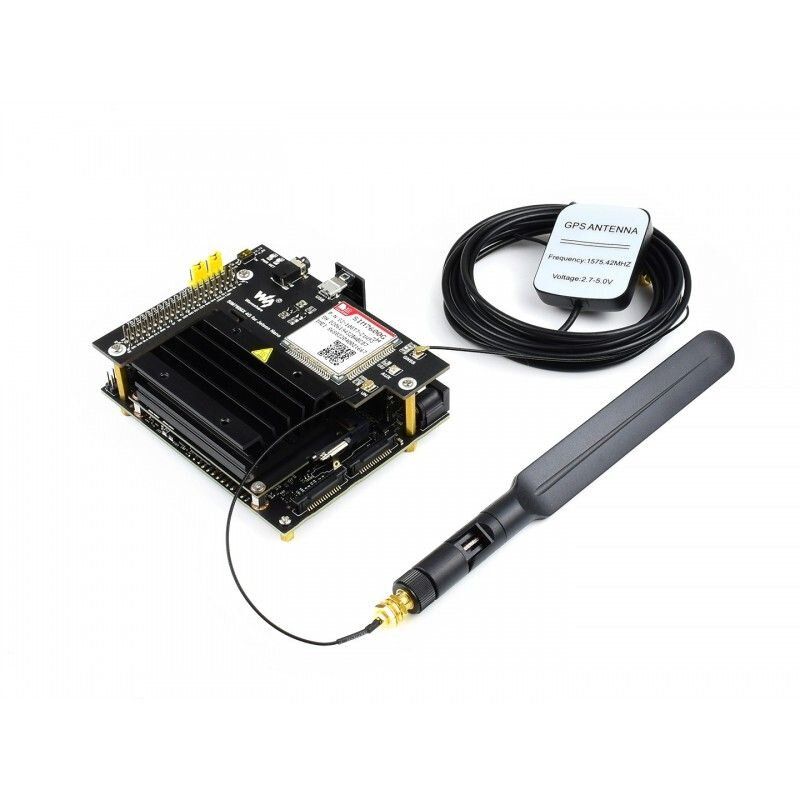

Simply plug it into the Jetson Nano developer kit, easily enable functions such as 4G high-speed connection, wireless communication, remote video monitoring, phone call, SMS sending, global positioning, etc.

Features

40PIN GPIO connector for connecting Jetson Nano
Supports modem, phone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Built-in USB interface for testing AT commands, obtaining GPS positioning data, etc.
UART control connector for connecting to host boards such as Arduino/STM32

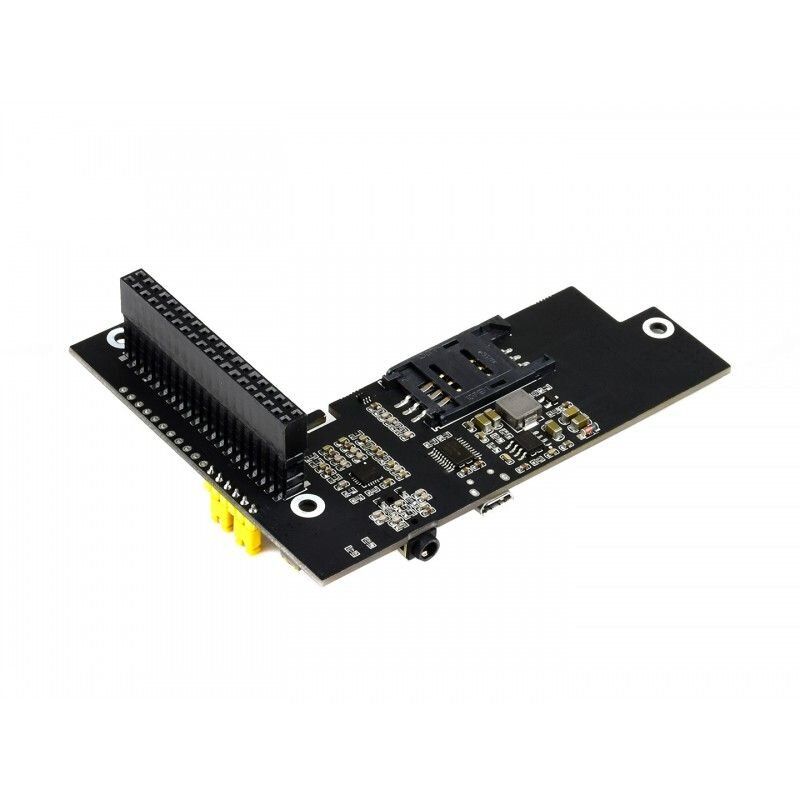

SIM card slot, supports 1.8V/3V SIM card
Built-in 3.5mm audio jack with headphone and microphone support for phone calls
2 LED indicators, easy to monitor working status
Built-in voltage converter, the working voltage can be customized to 3.3V or 5V with a jumper
Transmission speed: 300 bps 4Mbps (default: 115200 bps)
Data rate: 9600 bits / s 115200 bits / s
Management with AT commands (3GPP TS 27.007, 27.005 and V.25TER)
Supports SIM application tools: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and guidance (examples for Jetson Nano / Raspberry Pi / Arduino / STM32)

Communication characteristics:

	LTE	WCDMA / TD-SCDMA / CDMA 2000			EDGE	GSM/GPRS
Band	LTE-TDD B34/B38/B39/B40/B41 LTE-FDD B1/B2/B3/B4/B5/B7/B8 /B12/B13/B18/B19/B20/B25/B26/B28/B66	UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19			GSM/GPRS/EDGE 850/900/1800/1900MH
radiation power	0.25W				0.5W@EGSM900 0.4W@DCS1800	2W@GSM900 1W@DCS1800
speed transmission of data	LTE CAT 4 Transmission ≤50 Mbps Reception ≤150 Mbps	UMTS transmit ≤384Kbps reception ≤384Kbps HSPA + RECEPTION output ≤5.76Mbps reception ≤42Mbps	TD-SCDMA return ≤128Kbps reception ≤384Kbps TD-HSDPA / HSUPA transmit ≤2.2Mbps reception ≤2.8Mbps	CDMA2000 / EVDO transmit ≤1.8Mbps reception ≤3.1Mbps	EDGE transmit ≤236.8kbps reception ≤236.8kbps	GPRS send ≤85.6kbps reception ≤85.6kbps
SIM card	Normal SIM (not included)
region application	Global 4G/3G/2G

GNSS characteristics:

Receiver type:
16-channel
C/A code.
Sensitivity:
Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
Cold start: -148 dBm
Time-To-First-Fix :
Cold Start:
