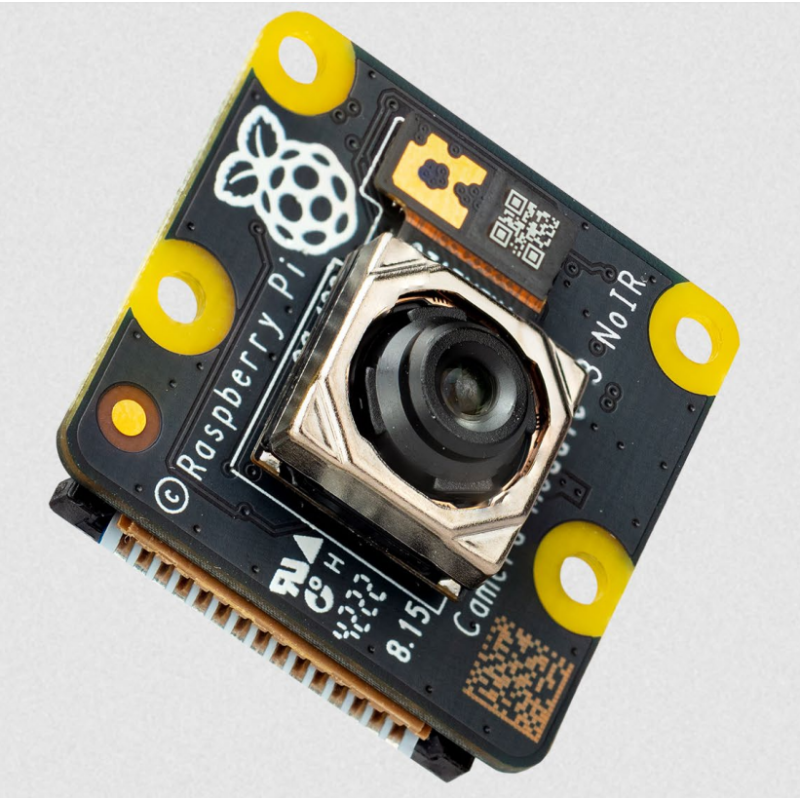

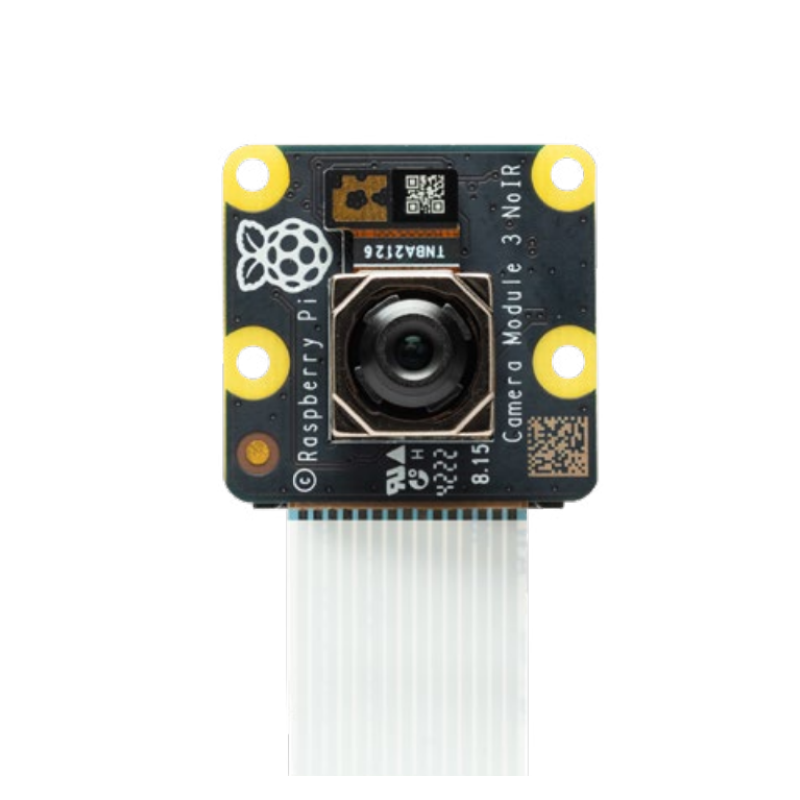

Raspberry Pi Camera Module 3 NoIR 12MP

TheRaspberry Pi Camera Module 3 NoIR is a compact camera from Raspberry Pi that features a 12-megapixel IMX708 sensor with HDR and phase detection autofocus with a standard lens and no IR filter (IR sensitive).

Camera module 3 can be used to capture Full HD video as well as still images and supports HDR mode up to 3 megapixels. It is fully supported by the libcamera library, including Camera Module 3's fast autofocus feature, making it easy for beginners to use and offering much for advanced users.

Camera Module 3 is compatible with all Raspberry Pi computers, except for early Raspberry Pi Zero models, which do not have an FPC connector. Later Raspberry Pi Zero models require an FPC adapter, which is sold separately.

The PCB size and mounting holes remain the same as for the Pi Camera Module 2.

The size of the Z is different: Due to its improved optics, the Pi Camera Module 3 is a few millimeters taller than the Pi Camera Module 2.

Technical specifications:

• Focusing range: 10cm → ∞
• Focal length: 4.74 mm
• Diagonal field of view: 75 degrees
• Horizontal field of view: 66 degrees
• Vertical field of view: 41 degrees
• Focal ratio (aperture): F1,8
• IR filter: not available
• Sensor: Sony IMX708
• Resolution: 11.9 megapixels
• Sensor size: sensor diagonal 7.4 mm
• Pixel size: 1.4 microns × 1.4 microns
• Horizontal/vertical resolution: 4608 × 2592 pixels
• General video modes: 1080p50, 720p100, 480p120
• Output: RAW10
• Autofocus system: phase detection autofocus
• Length of the ribbon cable: 200 mm
• Cable connector: 15 × 1 mm FPC
• Operating temperature: 0°C to 50°C

Raspberry Pi Camera Module 3 will remain in production until at least January 2030

The Pi Camera Module 3 line consists of 4 models:

• Standard and Wide versions,
• with or without an infrared filter (NoIR).

All Camera Module 3 variants have:
- 12-megapixel Sony IMX708 CMOS image sensor with backside illumination
- High signal-to-noise ratio (SNR)
- Built-in 2D dynamic defect pixel correction (DPC)
- Phase Detection AF (PDAF) for fast autofocusing
- QBC Re-mosaic function
- HDR mode (up to 3 megapixels)
- CSI-2 serial data output
- 2-wire serial communication (supports fast I2C mode and fast plus mode)
- 2-wire serial control of the focusing mechanism

Overall dimensions: 25 × 24 × 11.5 mm (height 12.4 mm for Wide variants)

Package contents:

- Raspberry Pi Camera Module 3 NoIR - 1 pc.

- Raspberry Pi Camera Cable FFC, 150mm - 1 pc.
