Raspberry Pi Zero WH

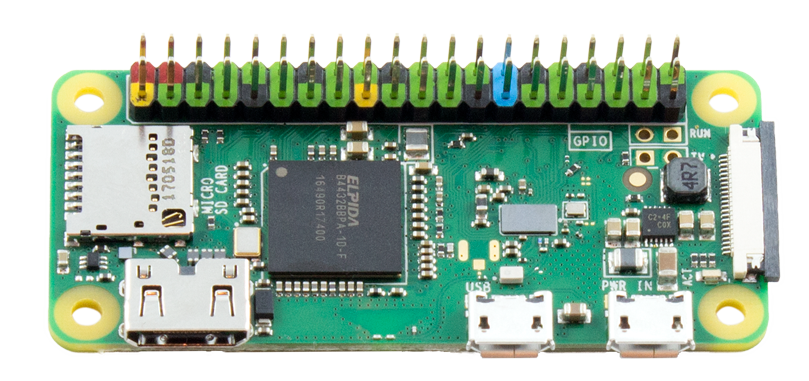

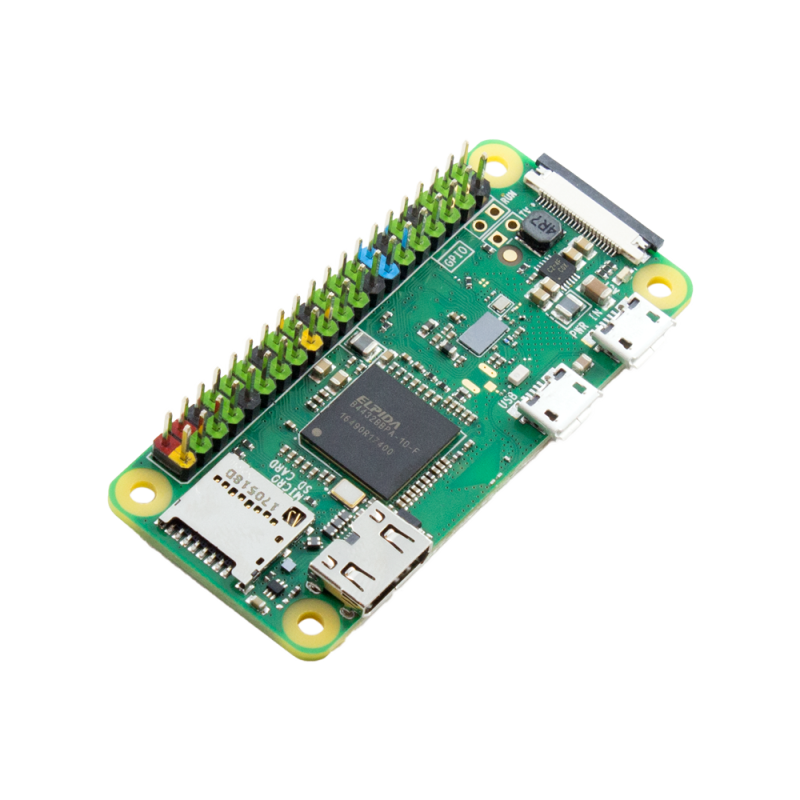

The Raspberry Pi Zero WH microcomputer (Wi-Fi + header ) is the same Raspberry Pi Zero W, but with a 40-pin GPIO connector already soldered.

(For the convenience of users, the connector may have color-coded pins).

The Raspberry Pi Zero WH is a great platform for experimenting with Internet of Things (IoT) applications, automation projects, including cameras, creating a mini-server, game console, player, all kinds of robotics, VPN client, media center, games, and php / python / nodejs / etc / c ++ development. The Raspberry Pi Zero WH is not designed for high performance, but it is quite enough for many purposes.

The Raspberry Pi Zero WH is based on the Broadcom BCM2835 chip, which includes an ARM1176JZ-F CPU processor overclocked to 1 GHz and a 400 MHz VideoCore IV dual-core GPU coprocessor. On top of it is an Elpida B4432BBPA-10-F 512MB memory chip.

The wireless antenna is integrated into the PCB.

Raspberry Pi Zero WH is a single-board computer based on ARM architecture that runs a fairly large list of operating systems (the most popular choice is various Linux distributions, such as ArchLinux). You just need to add a Micro SD card with the OS. The microcomputer has a single-core processor, which must be taken into account when choosing an OS.

Wireless communication characteristics (CYW43438):

• Frequency range: 2.4 GHz
• Wi-Fi: 802.11 b / g / n wireless LAN
• Bluetooth 4.1
• Bluetooth Low Energy (BLE).

Key Features:

• Chip: Broadcom BCM2835 with CPU and GPU
• CPU processor: ARM1176JZ-F with a clock speed of 1 GHz
• GPU graphics coprocessor: VideoCore IV with a clock speed of 400 MHz
• RAM memory: 512 MB
• Mini HDMI and Micro USB with OTG ports
• Power supply from Micro USB
• Standard 40-pin GPIO connector for expansion cards
• Composite video connector
• CSI (Camera Serial Interface) camera connector
• Memory card slot: MicroSD

Overall dimensions: 66mm × 32mm × 5mm
