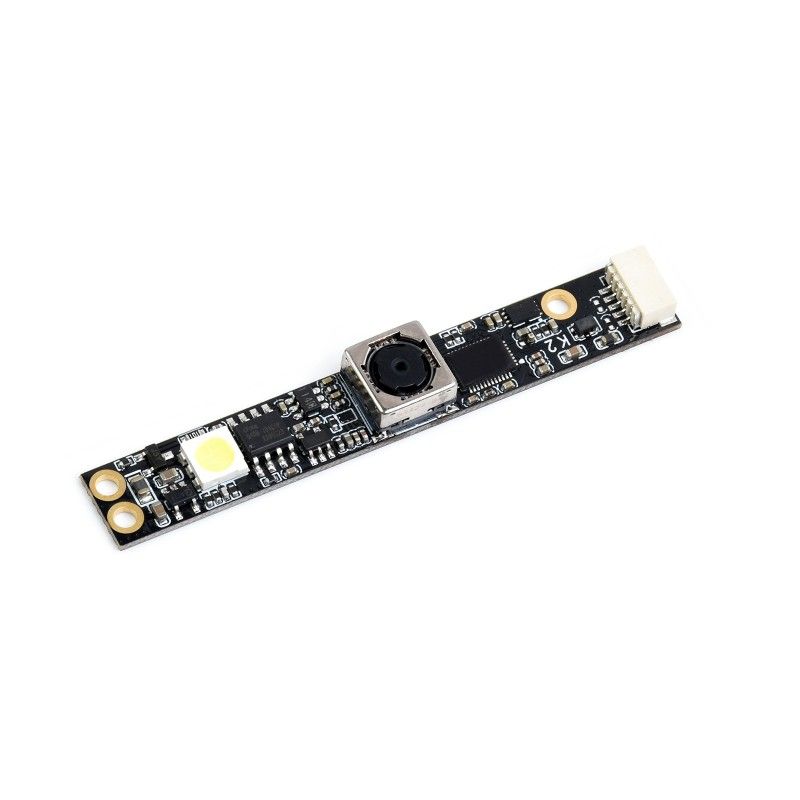

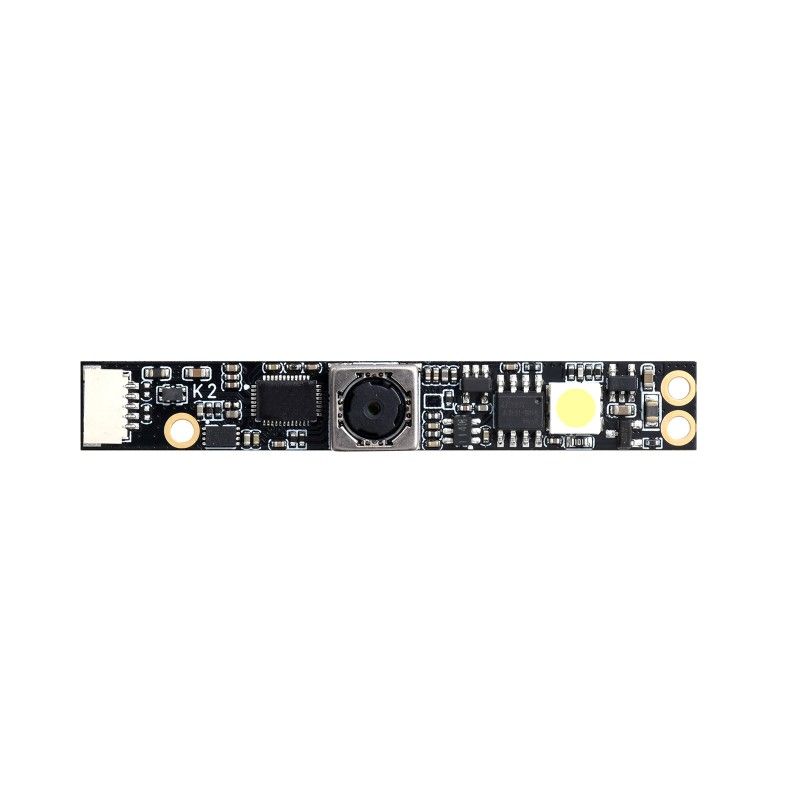

Waveshare OV5640 5MP USB Camera FF

The Waveshare OV5640 5MP USB FF Camera (21834 ) is a high-quality fixed focus (FF) camera with a 5-megapixel sensor that operates via a USB interface. This camera supports 1080p video recording, allowing you to capture high-quality video with high detail.

The OV5640 5MP USB camera has two AF and FF modes (can operate in either autofocus (AF) or fixed focus (FF) mode), which ensures excellent image quality in all conditions.

This camera has a wide range of advanced features, including auto exposure, white balance control, noise correction, and other settings that allow you to customize the camera to your needs.

The OV5640 5MP USB Camera is suitable for use in a variety of applications, including video conferencing, surveillance, monitoring, testing, science, and more. It is easy to use and has a compact size that makes it easy to place on any USB device.

The OV5640 5MP USB Camera is a high quality and reliable solution for capturing high-quality images and videos with high detail in a variety of applications,

Specifications:

PIXELS: 5MP.

SENSOR: OV5640

INTERFACE: USB 2.0

CAMERA.

• Sensor size: 1/4 inch
• Aperture (F): 2,8
• Focal length (EFL): 3.29 mm
• Field of view (FOV): 68°
• Distortion: < 1%

Focusing

• (B): AA with autofocus
• (C): FF with fixed focus

IMAGES.

• Supported formats: MJPG, YUV422
• Static image resolution: 2592 × 1944
• Video recording:
• 15 FPS 2592 × 1944
• 30 FPS 1920 × 1080
• 30 FPS 1280 × 720
• OPERATING VOLTAGE: 5В ± 5%
• CAMERA SIZE: 8.5 × 8.5 mm
• MODULE SIZE: 9 × 62 mm

NOTES:
Except for the focusing mechanism, the two cameras are exactly the same: OV5640 5MP USB Camera (B) with autofocus, USB OV5640 5MP (C) with fixed focus

Overall dimensions: 62mm x 9mm

Wiki: OV5640_5MP_USB_Camera

Scope of delivery:

1. OV5640 5MP USB camera x1

Weight: 0.027 kg
