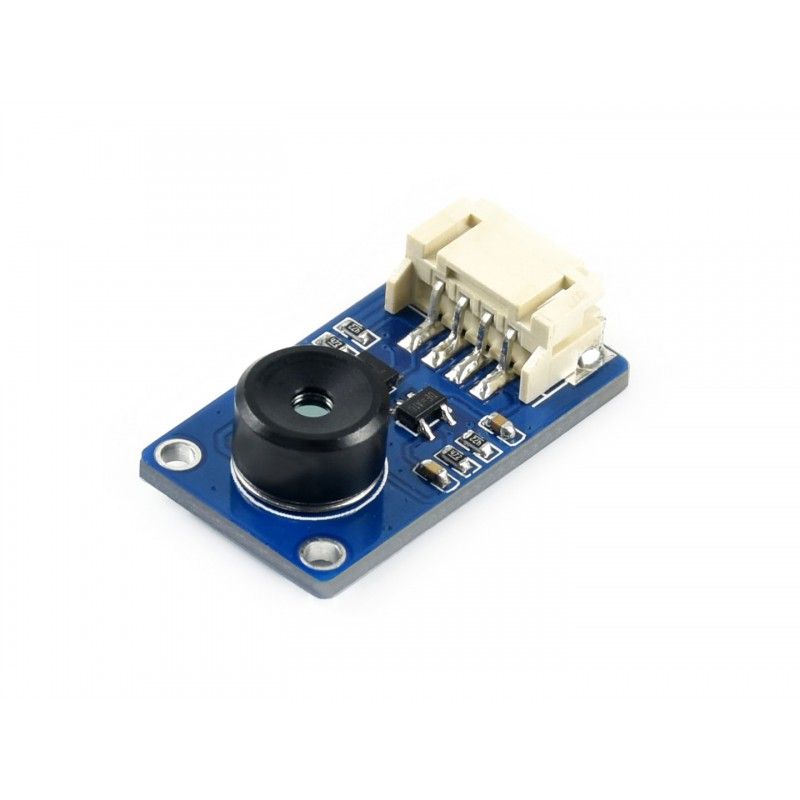

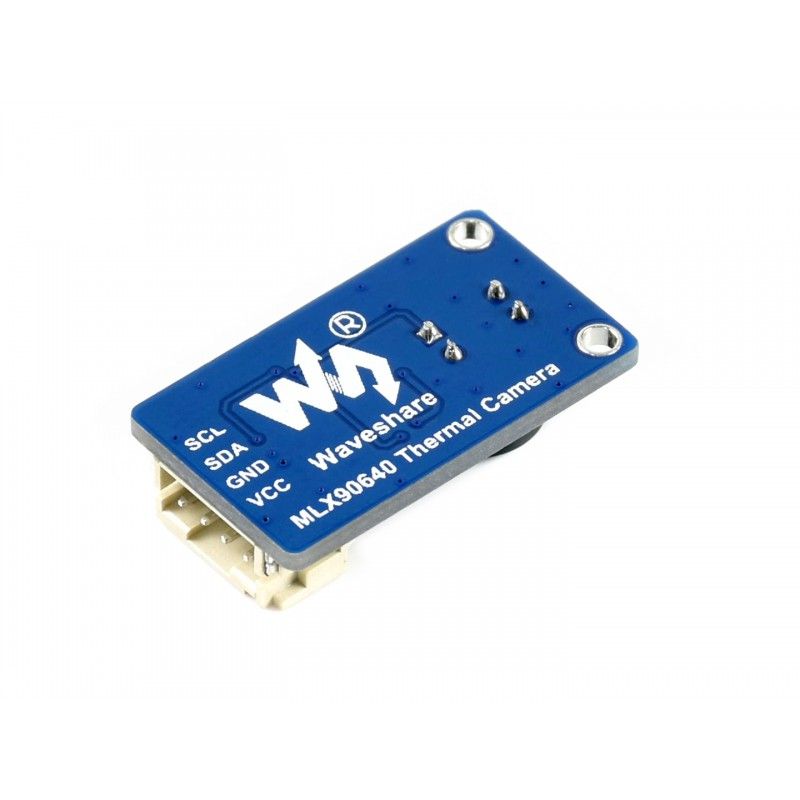

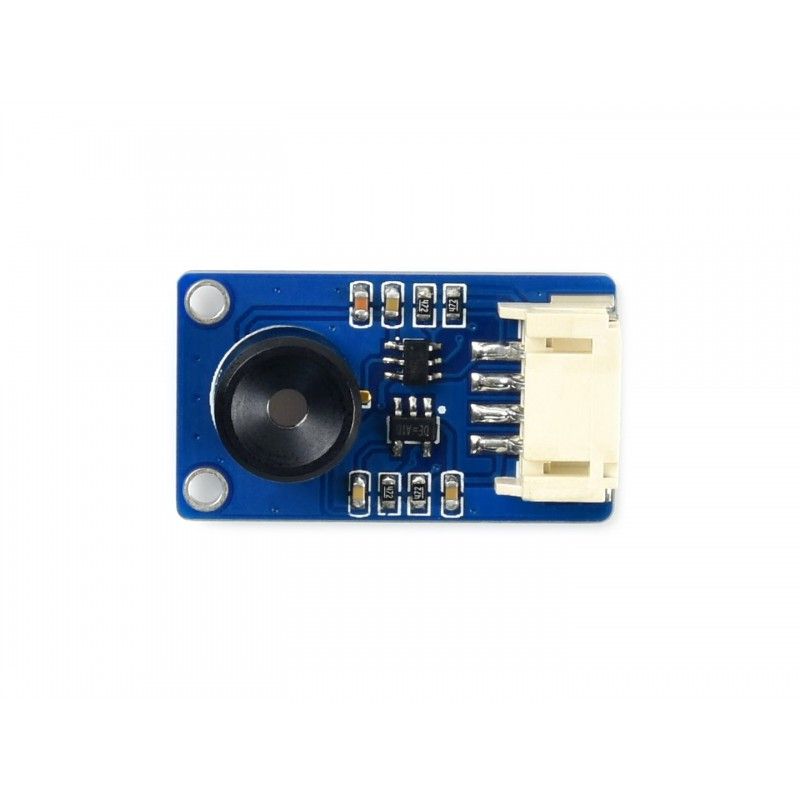

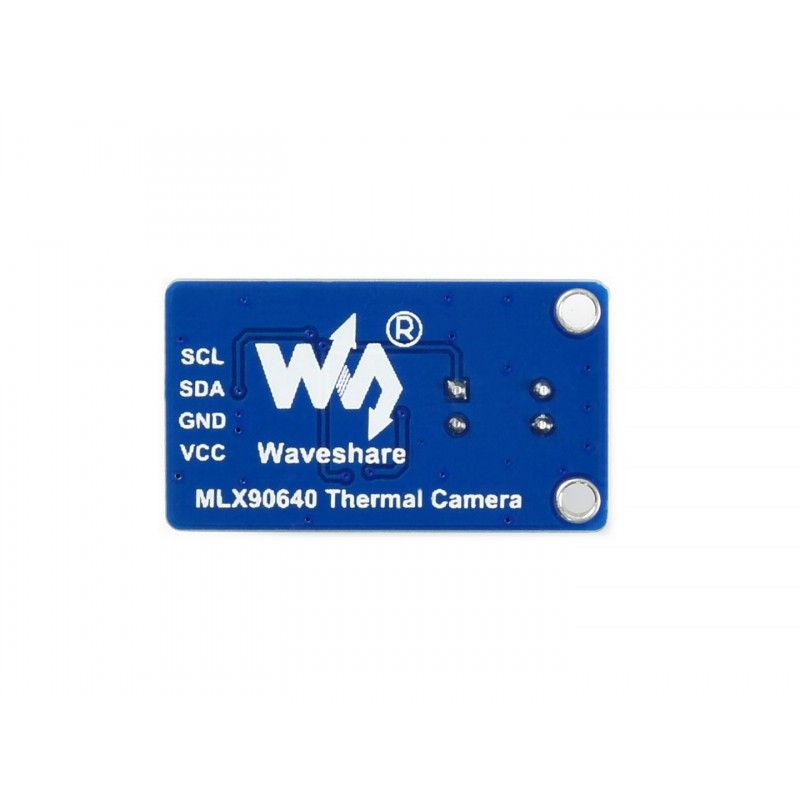

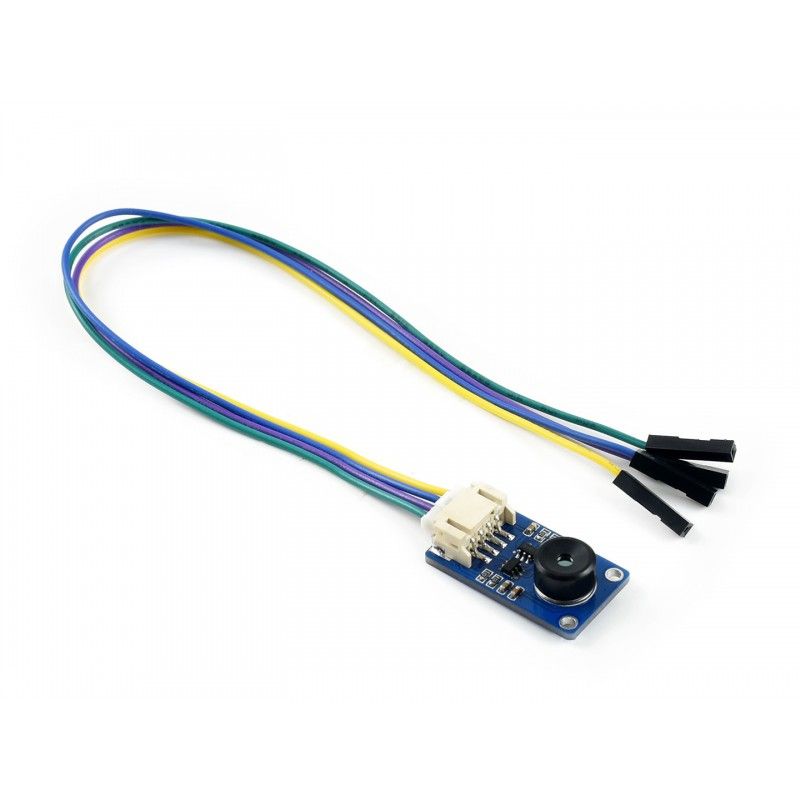

Waveshare MLX90640-D110 Thermal Camera (17219)

TheWaveshare MLX90640-D110 Thermal Camera (17219 ) is a compact camera that captures high-resolution thermal images with a wide viewing angle. The camera uses infrared technology to capture images of thermal radiation from objects. Its 110° FOV allows it to capture wide areas and produce images with greater coverage.

Applications for this camera range from temperature monitoring in buildings and heat leak detection to industrial and medical diagnostic applications.

The camera supports I2C connectivity and has low power consumption, which allows it to be used in battery or rechargeable devices.

With 32x24 pixels and 110° FOV, the MLX90640 IR Array Thermal Imaging Camera can be a powerful tool for thermal imaging in a variety of applications where temperature monitoring and control of heating processes are required.

It is compatible with 3.3V/5V operating voltage and supports host platforms such as Raspberry Pi/Arduino (ESP32)/STM32, etc.

Utilizing the MLX90640 far infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, convert the data into the surface temperature of objects through calculation, and then generate thermal images. With its small form factor, it can be easily integrated into a variety of industrial or smart control applications.

Key features:

• Has a MLX90640 far infrared thermal sensor sensor, 32×24 pixels
• Provides communication via I2C interface, configurable for fast mode (data rate up to 1 MHz)
• Has a noise equivalent temperature difference (NETD) of 0.1 K RMS at a refresh rate of 1 Hz
• Has a built-in voltage converter compatible with 3.3V/5V operating voltage
• Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Specifications:

• Operating voltage: 3.3V/5V
• Operating current:
