NVIDIA Jetson TX2 Developer Kit

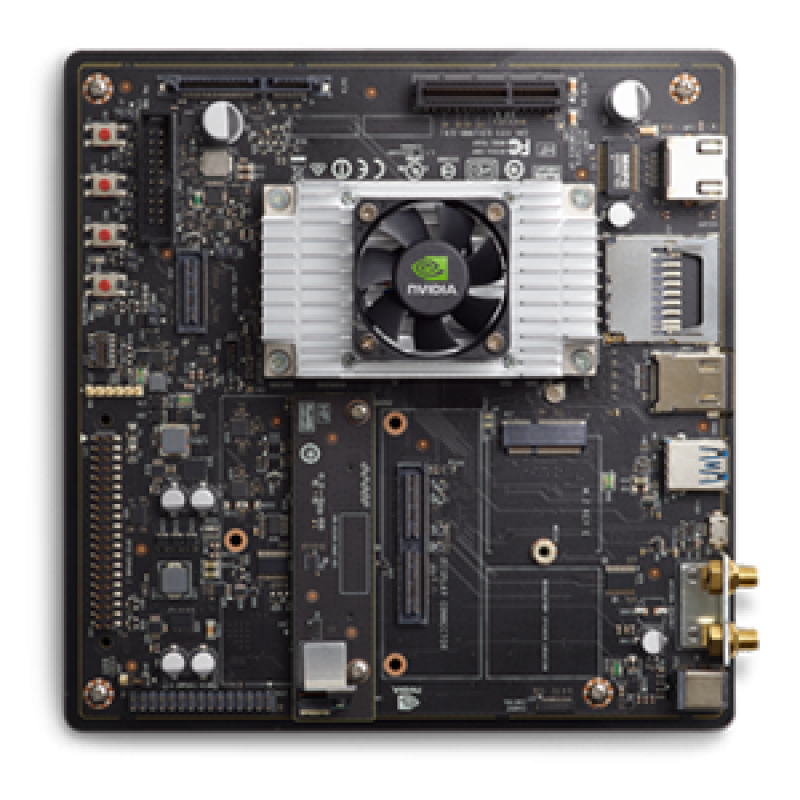

NVIDIA Jetson TX2 Developer Kit / 945-82771-0005-000 is a developer kit that includes a high-performance NVIDIA Jetson TX2 microcomputer implemented in the form factor of a computing module with a forced air cooling radiator (included), which is located on the base board, allowing you to use all the features of the computing module and connect all the physical interfaces included in its design: Wi-Fi, Ethernet, MIPI CSI-2, DPHY, HDMI 2.0 / eDP 1.4 / 2 DSI connectors / 2 DP 1.2 connectors, USB 3.0 + USB 2.0, GPIO 40-pin, I2C, I2S, SPI, CAN, UART.

The NVIDIA Jetson TX2 is a fairly productive microcomputer and allows you to run several neural networks in parallel. And all this on an easy-to-use and energy-efficient platform (power consumption is only from 7.5W to 15W).

The Jetson TX2 delivers 1.33 TFLOPs of performance for fast running of advanced AI algorithms on a dual-core Denver 2 64-bit processor together with a quad-core ARM A57 processor and a 256-core NVIDIA Pascal™ GPU with 8 GB of LPDDR4 memory with 59.7 Gbps bandwidth.

NVIDIA Jetson TX2 is a quick and easy way to start developing hardware and software for the Jetson TX2 series modules. The developer kit provides all the hardware capabilities and interfaces of the TX2 modules, supported by NVIDIA Jetpack, a complete SDK that includes BSPs, libraries for Deep Learning, computer vision, GPU computing, media processing, and more.

Specifications of the Jetson TX2 bundled module:

Specifications of Jetson TX2 Developer Board:

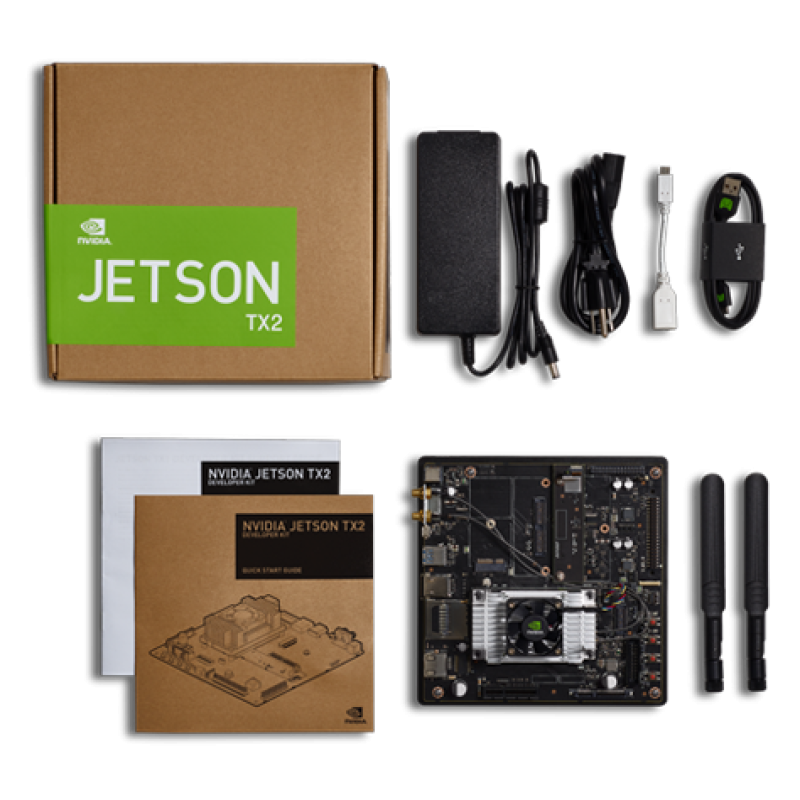

1. NVIDIA Jetson TX2 Developer Board with Jetson TX2 module
2. Power supply unit
3. Cable for the power supply
4. USB Micro-B (male) to USB A (female) cable
5. USB Micro-B (male) to USB A (female) cable
6. Rubber feet (4 pcs)
7. Getting started guide
8. Booklet with instructions for safe use
9. Antennas for connecting to Wi-Fi networks (2 pcs.)
