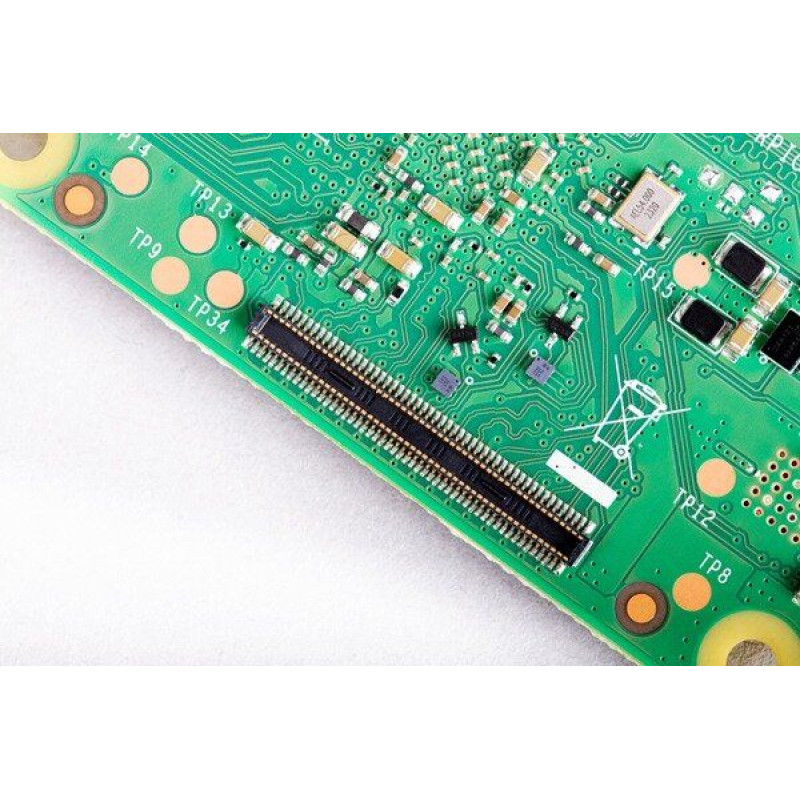

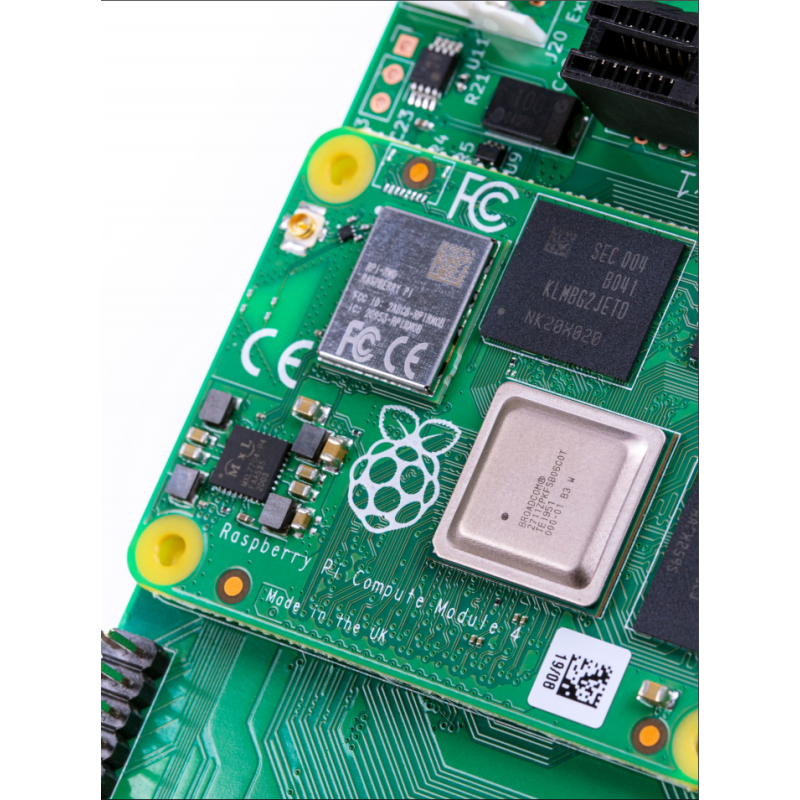

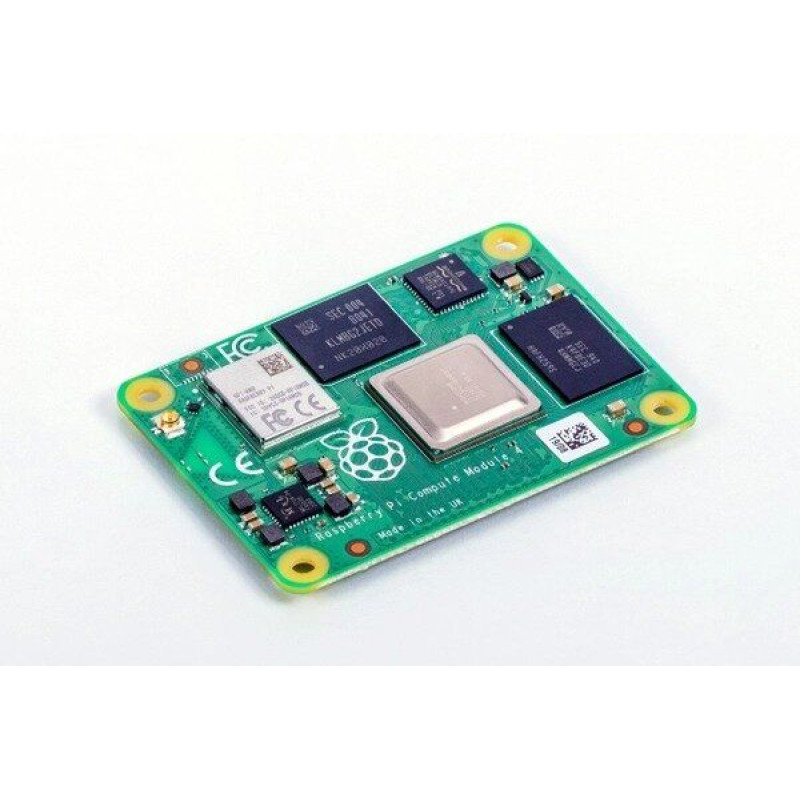

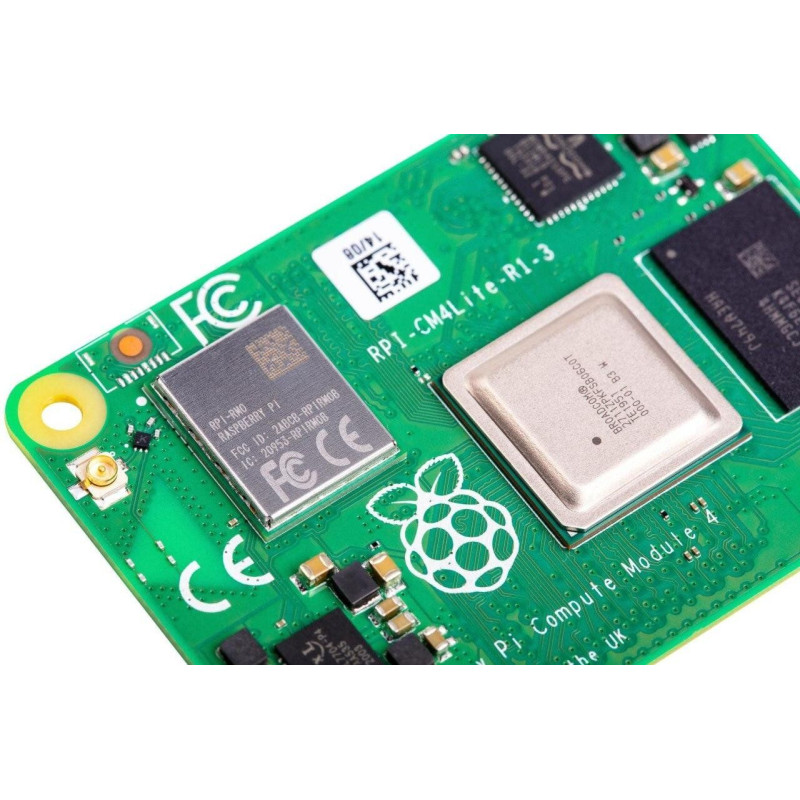

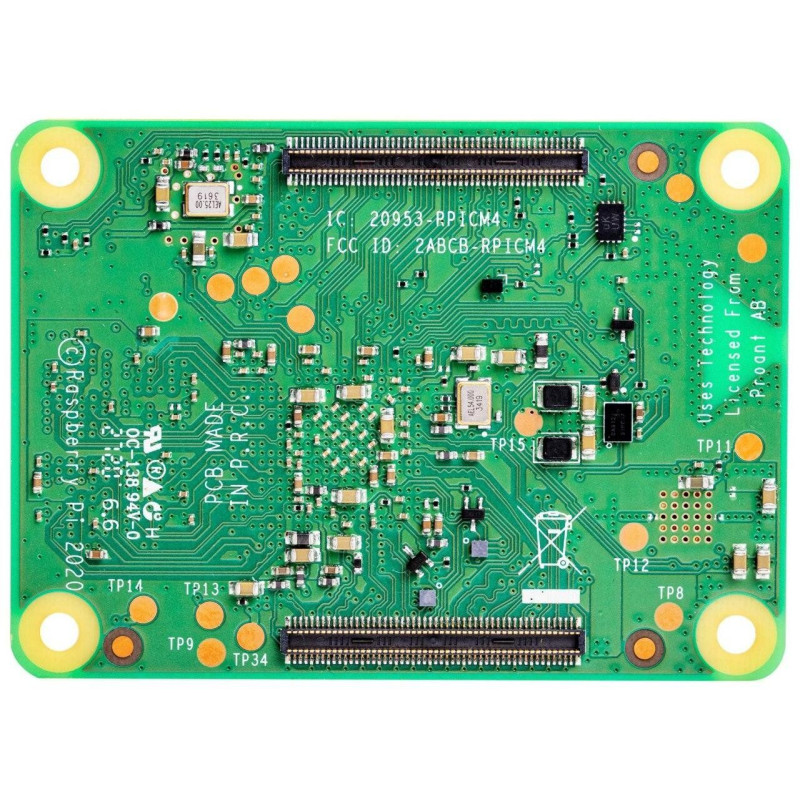

Raspberry Pi Compute Module 4 (CM4) 4GB RAM, 16GB eMMC / CM4004016

The Raspberry Pi Compute Module 4 is a microcomputer with a micro-module form factor from Raspberry Pi, which opens up a wide range of possibilities for using it in user applications of various performance. The model range consists of 32 modifications, which differ in the amount of RAM and eMMC Flash memory, the presence or absence of built-in wireless communication. All computing modules are based on a 64-bit quad-core ARM Cortex-A72 processor operating at 1.5 GHz. By default, dual HDMI video output is available (support for two displays with up to 4K resolution, hardware video decoding with up to 4Kp60 resolution), up to 8GB RAM, Gigabit Ethernet, USB 2.0, interfaces for two cameras, PCIe Gen 2 interface, and others.

For convenient research and prototyping using Raspberry Pi Compute Module 4, a special Raspberry Pi Compute Module 4 I/O Board has been released, which is equipped with all full-size interfaces and facilitates access and work with external devices, as well as expansion cards and additional modules.

For enhanced wireless communication capabilities, the Raspberry Pi Compute Module 4 Antenna Kit is available as an external 2-band antenna.

Specifications:

• Broadcom BCM2711, quad-core Cortex-A72 processor (ARM v8), 64-bit @ 1.5 GHz
• Options for 1 GB, 2 GB, 4 GB or 8 GB LPDDR4-3200 SDRAM (depending on the variant)
• Options for 0 GB ("Lite"), 8 GB, 16 GB or 32 GB eMMC flash memory (depending on variant)
• Connectivity options:
  - 2.4 and 5.0 GHz IEEE 2-band wireless. 802.11b / g / n / ac, Bluetooth 5.0, BLE with the option of switching and working from a built-in or external antenna
  - built-in Gigabit Ethernet PHY with IEEE1588 support
  - 1 USB 2.0 interface
  - 1 PCIe Gen 2 interface
  - GPIO interface
  - SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
• Video:
  - Dual HDMI interface (up to 4Kp60 supported)
  - 2-lane MIPI DSI display interface
  - 2-lane MIPI CSI camera interface
  - 4-band MIPI DSI display interface
  - 4-band MIPI CSI camera interface
• Multimedia: H.265 (4Kp60 decoding); H.264 (1080p60 decoding, 1080p30 encoding); OpenGL ES 3.0 graphics
• Power supply: 5 V DC
• Operating temperature range: -20°C to +85°C
• Overall dimensions: 55 mm × 40 mm
