Raspberry Pi Compute Module 4 Antenna Kit (SC0480)

Brand: Raspberry Pi Product Code: SC0480
0
All about product
Description
Reviews 0
Questions0
new
Popular
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
In Stock
£4.80
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Raspberry Pi Compute Module 4 Antenna Kit (SC0480)
£4.80
Description

Raspberry Pi Compute Module Antenna Kit (SC0480 ) is an antenna kit for providing wireless communication functions of the Raspberry Pi Compute Module 4 computer module.

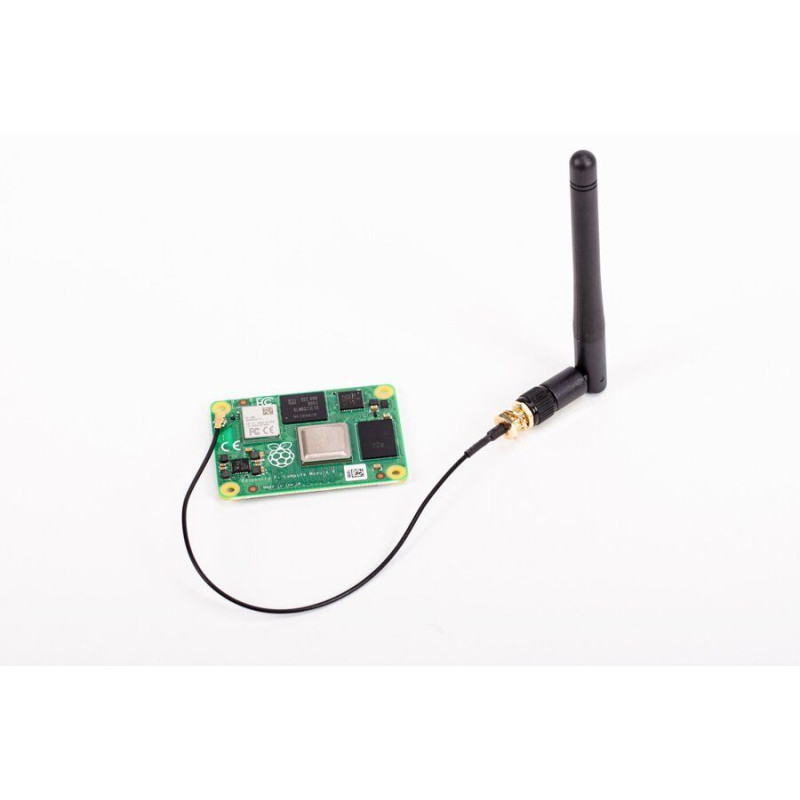

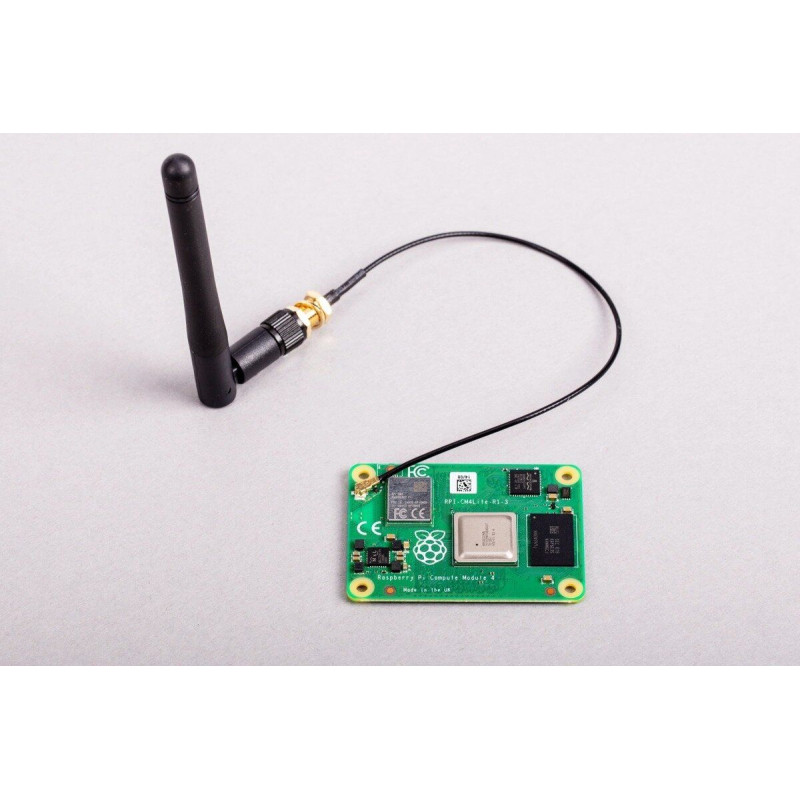

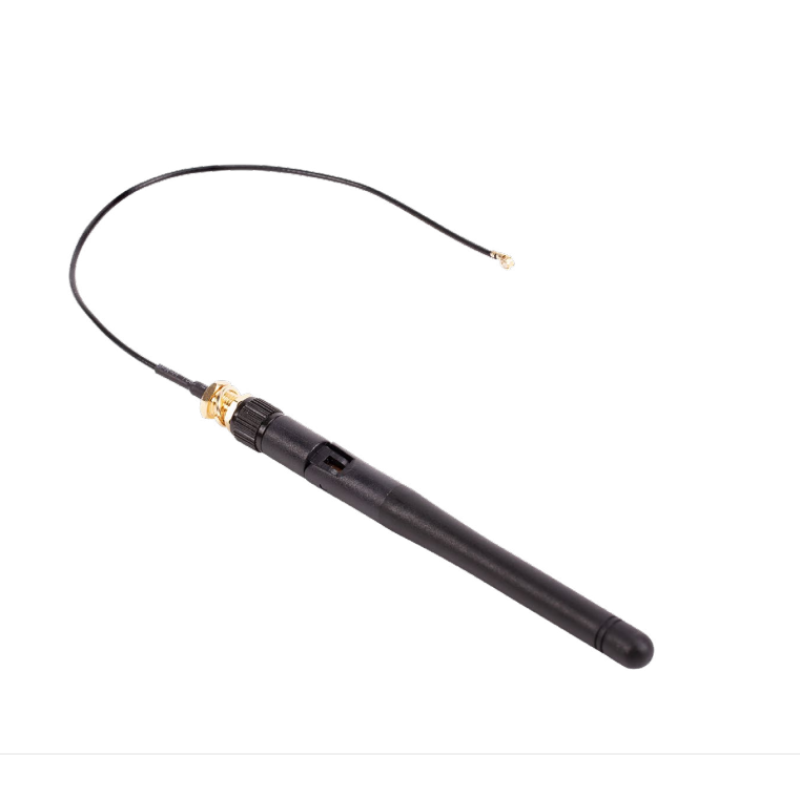

The antenna kit consists of the radiating part of the antenna in a plastic ABS case and a connecting cable.

The computing module itself is not included in the package!

Specifications:

  • Frequency range: 2400-2500 / 5100-5800 MHz
  • Bandwidth: 100-700 MHz
  • VSWR: ≤ 2,0
  • Gain: 2 dBi
  • Resistance: 50 ohms
  • Polarization: Vertical
  • Radiation: omnidirectional
  • Maximum power: 10 watts
  • Antenna dimensions: 108 mm × 10 mm
  • Operating temperature range: -35 to +75 ° C

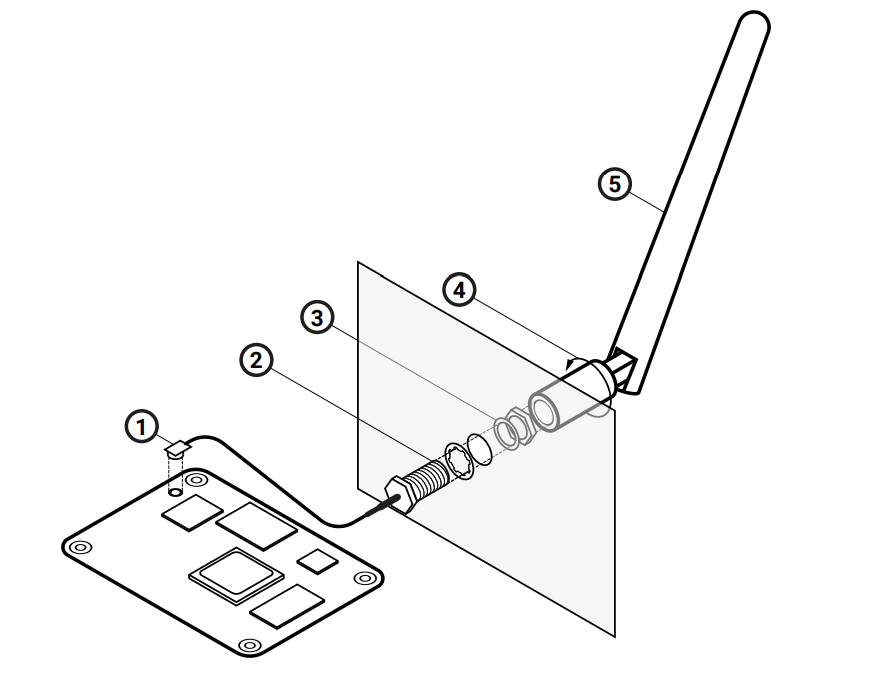

Installation procedure:

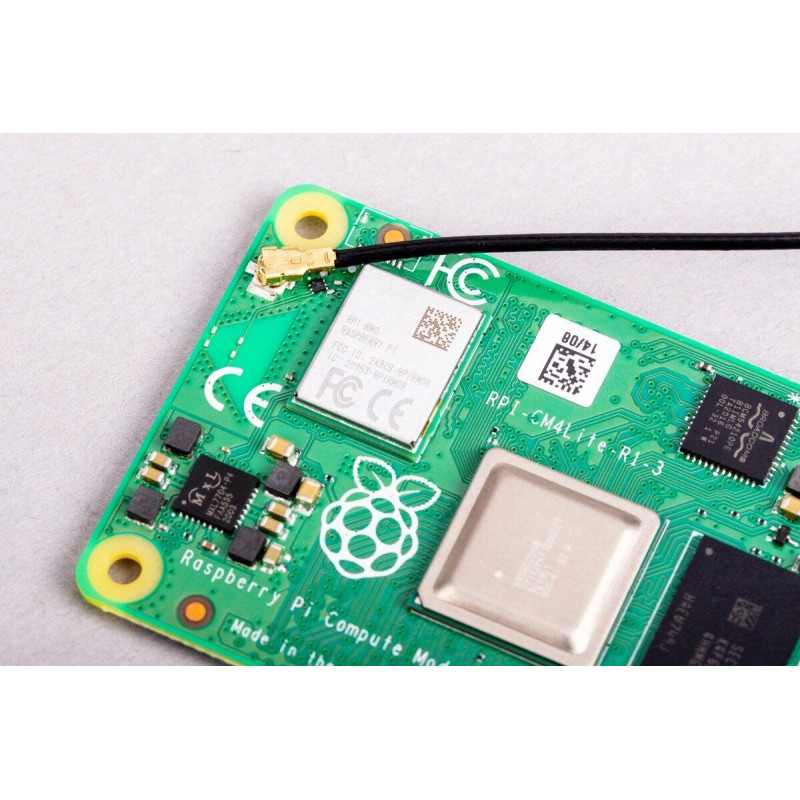

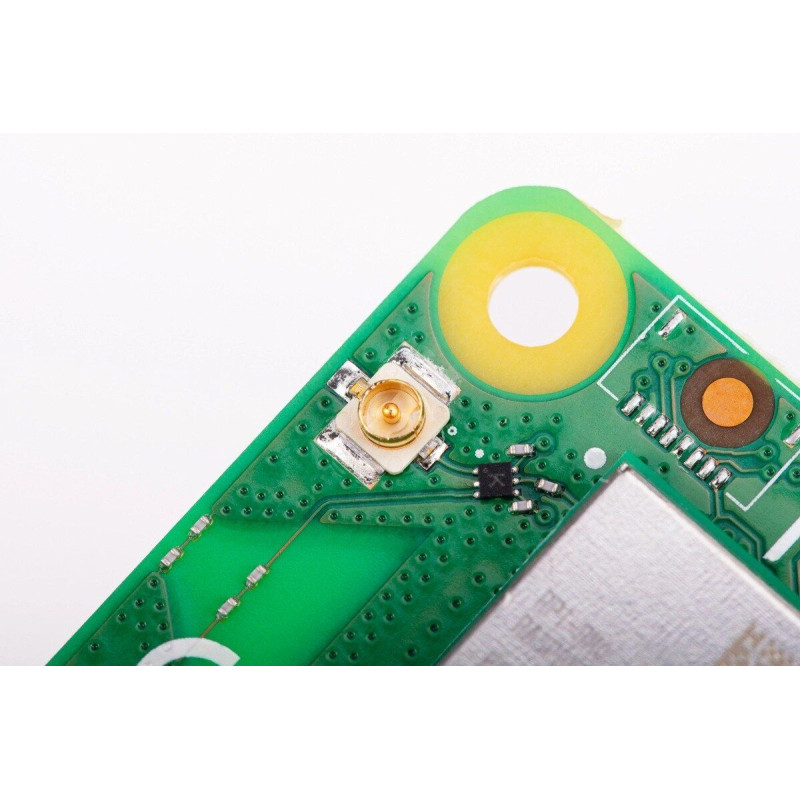

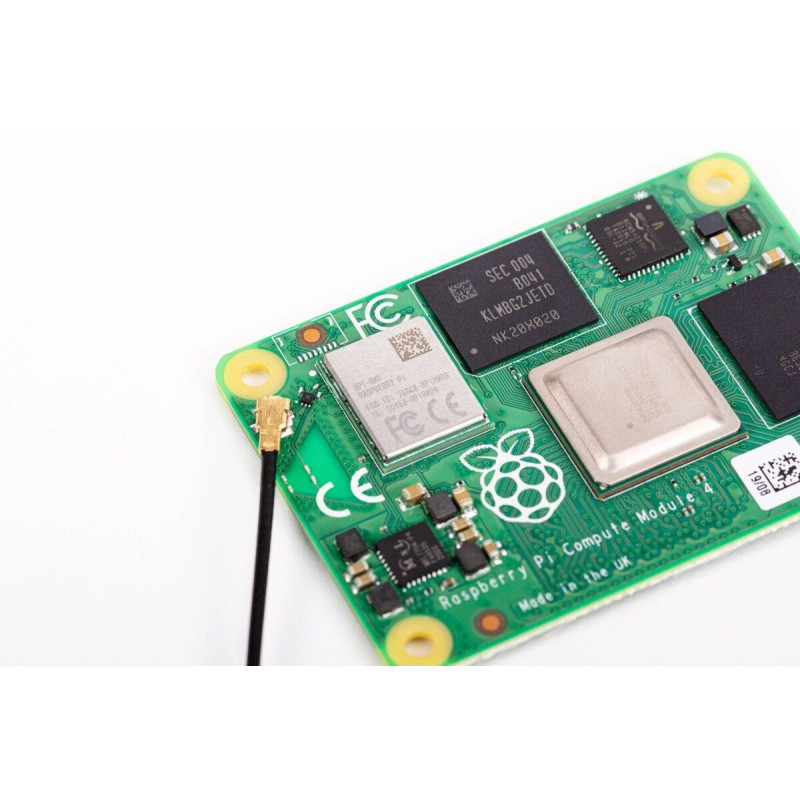

1. Connect the U.FL connector on the antenna module cable to the corresponding connector on the computer module board.

2. Put the ribbed washer on the connector and insert it into the hole on the panel.

3. Tighten the nuts and washers according to the picture on the outside, and tighten the nut.

4. Screw the antenna onto the protruding part of the thread.

5. Turn the antenna to the working condition (up to 90 degrees)

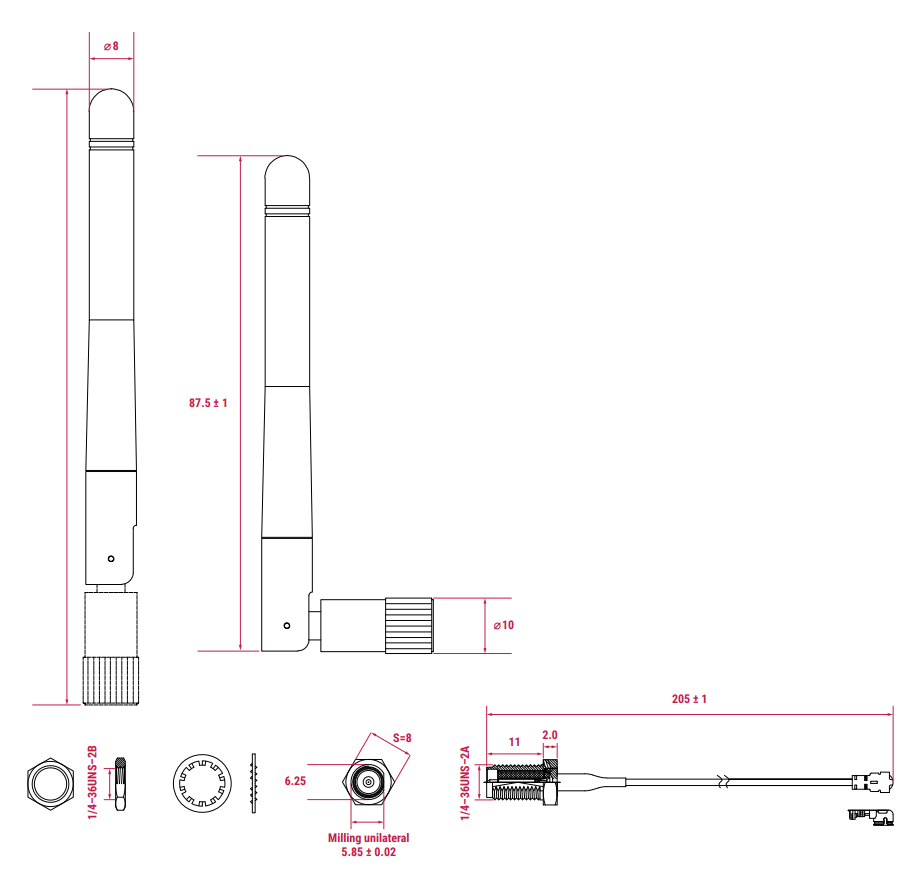

Overall and connection dimensions:
