Raspberry Pi Compute Module 4 I/O Board

Name: Raspberry Pi Compute Module 4 I/O Board
Brand: Raspberry Pi
SKU: V95394
Price: 39.20 GBP
Availability: OutOfStock

Brand: Raspberry Pi Product Code: V95394

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Out Of Stock

£39.20

Country of origin:Made in UK

Ethernet:10/100/1000 Ethernet

Form factor:Carrier board CM4

HDMI:2 x HDMI

USB:2 x USB 2.0

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Raspberry Pi Compute Module 4 I/O Board

£39.20

Description

TheRaspberry Pi Compute Module 4 I/O Board is a specially designed board for researching the operation of the Raspberry Pi Compute Module 4. The board is equipped with all physical interfaces and full-size connectors for connecting peripherals, a GPIO interface for connecting expansion cards, additional modules and external devices, and has a special place for mounting and connecting the most high-performance RPi Compute Module 4. This board is designed primarily to get you started quickly with the RPi Compute Module and provides developers with a turnkey solution for prototyping and exploring the capabilities of the compute module in a boxed design.

ATTENTION! The package includes only the Compute Module 4 I/O Board. The computing module is supplied separately!

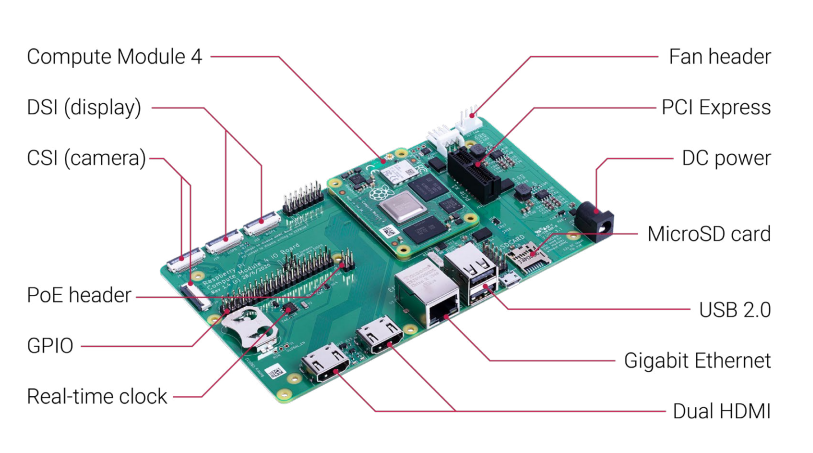

Technical specifications:

External power connector (+12 V, +5 V)
2 full-size HDMI 2.0 connectors
2 x USB 2.0 connectors, with a connector for two additional connectors
Gigabit Ethernet RJ45 with PoE support
Micro USB connector for Compute Module 4 upgrade
MicroSD card slot for Compute Module 4 Lite variants (without eMMC)
PCIe Gen 2 connector
Standard fan connector
2 x MIPI DSI Display FPC display connectors (22-pin cable with 0.5 mm pitch)
2 x MIPI CSI - 2 FPC camera connectors (22-pin cable with 0.5 mm pitch)
Standard Raspberry Pi connector for connecting HAT expansion boards - 40pin GPIO
Built-in clock with battery compartment and wake-up option for Compute Module 4
Various jumpers to disable certain functions, such as wireless communication, EEPROM writing, etc.
