Waveshare Pico-DALI2 expansion card

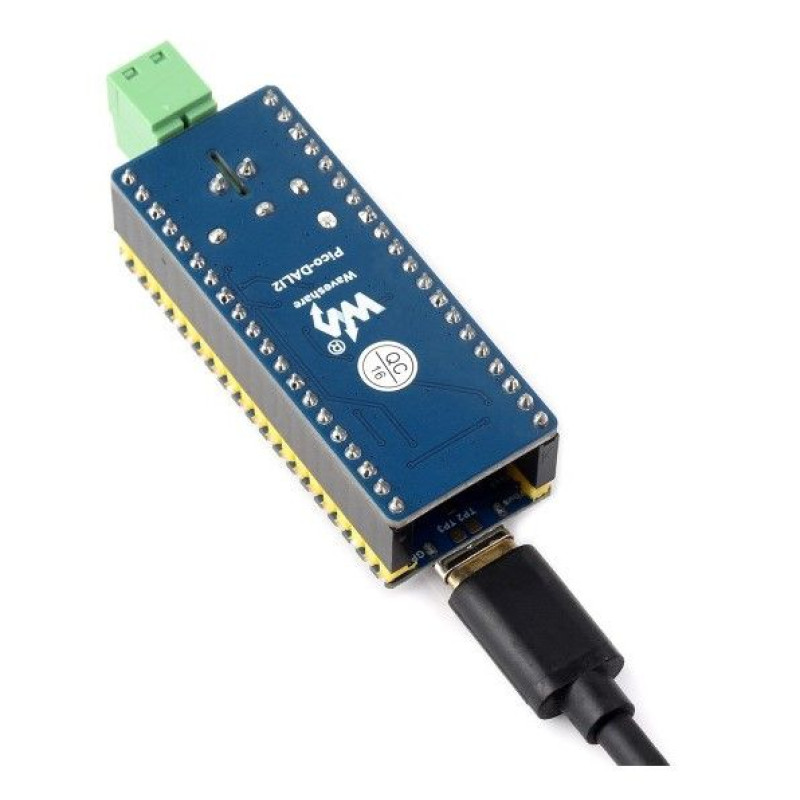

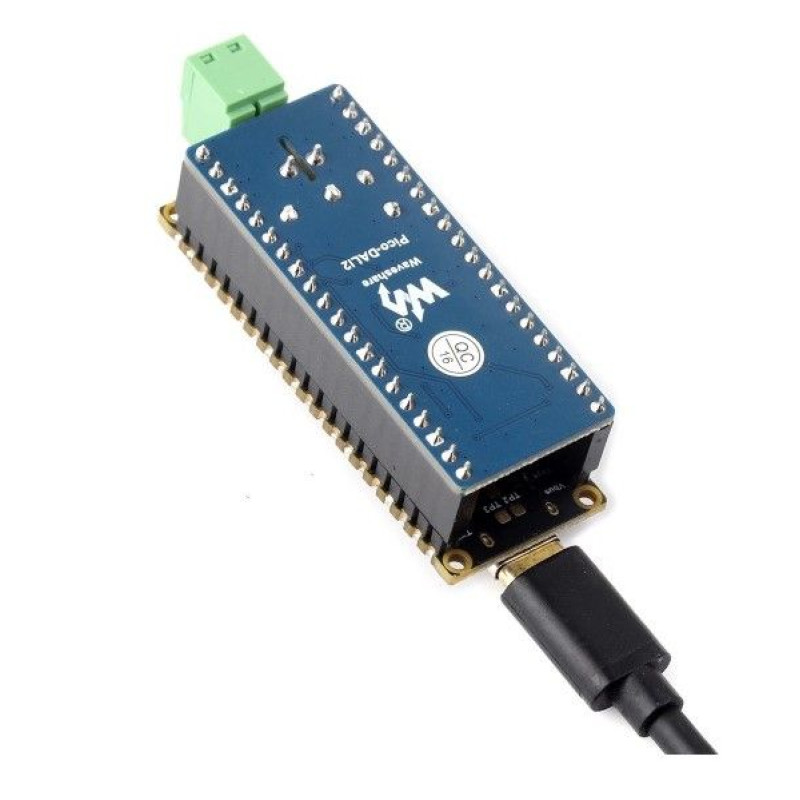

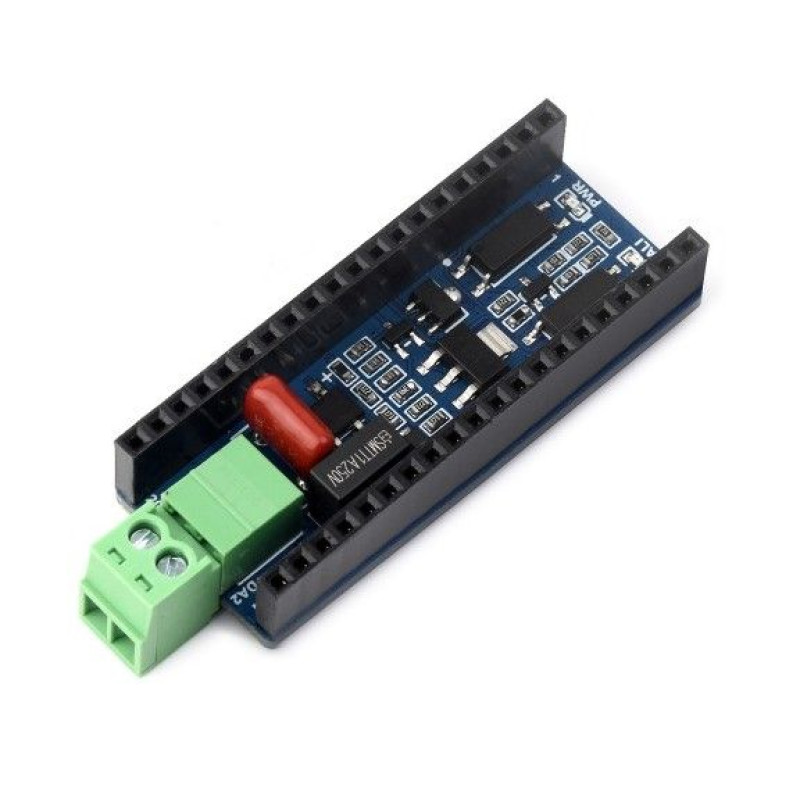

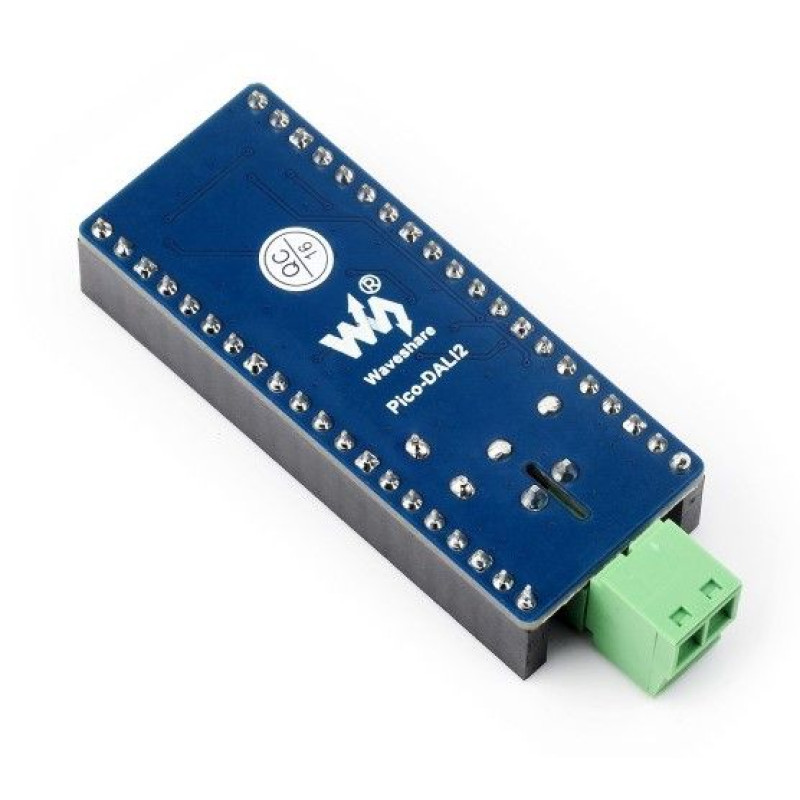

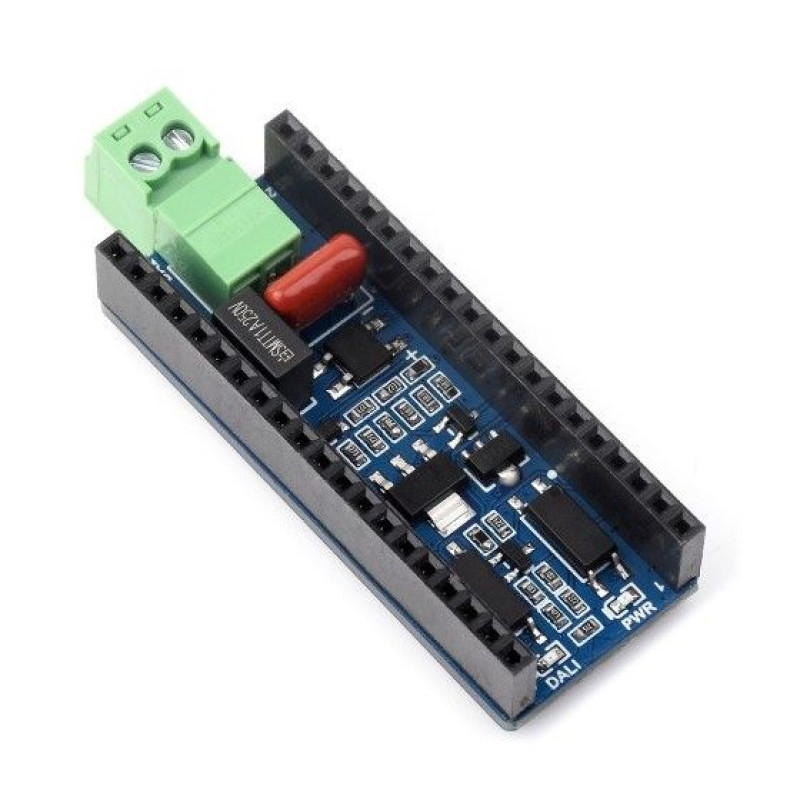

The Waveshare Pico-DALI2 expansion board is an expansion board designed to integrate the DALI (Digital Addressable Lighting Interface) protocol into Raspberry Pi Pico-based projects. It allows you to easily implement lighting control in industrial, commercial, or home automation systems using the DALI2 standard for flexibility and reliability.

Key features:

• It is compatible with the Raspberry Pi Pico, easily connects to the Pico through a simple interface that simplifies project development. The interface is compatible with most Pico boards.
• Suitable for ESP32-C6-Pico/ESP32-S3-Pico development boards, supports sending DALI signals to light source controllers and achieving individual control of multiple lighting groups
• Built-in DALI communication screw terminal for connecting external DALI devices
• Supplied with examples for the ESP32-S3 / ESP32-C6, allowing for personalized control with simple modifications
• Pico interface compatible, based on the ESP32-C6-Pico connector, suitable for ESP32-C6-Pico / ESP32-S3-Pico
• Easy setup and intuitive design speeds up development.
• Reliability and stability are ensured by high-quality components, which guarantees stable operation in a variety of operating conditions.
• The compact size allows the board to be integrated into small devices.

Overview of board connections:

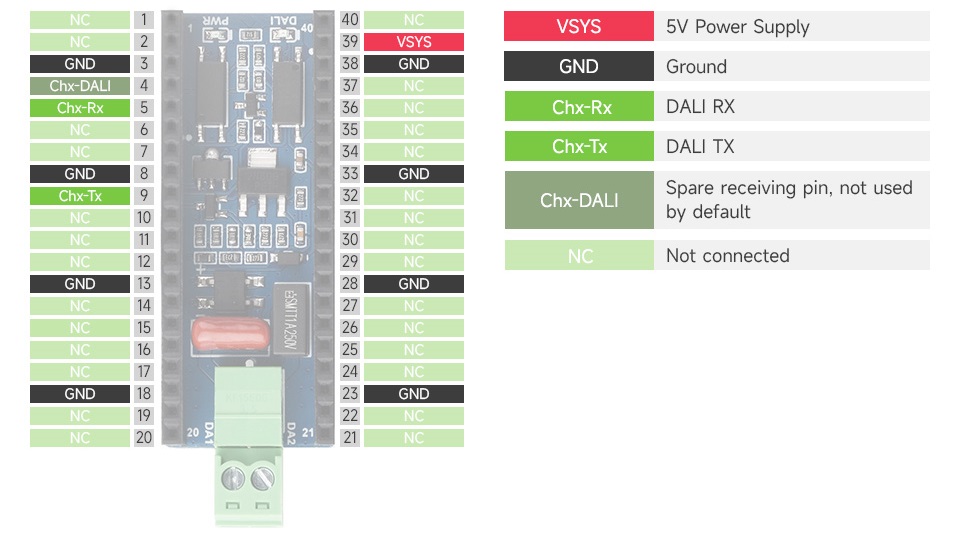

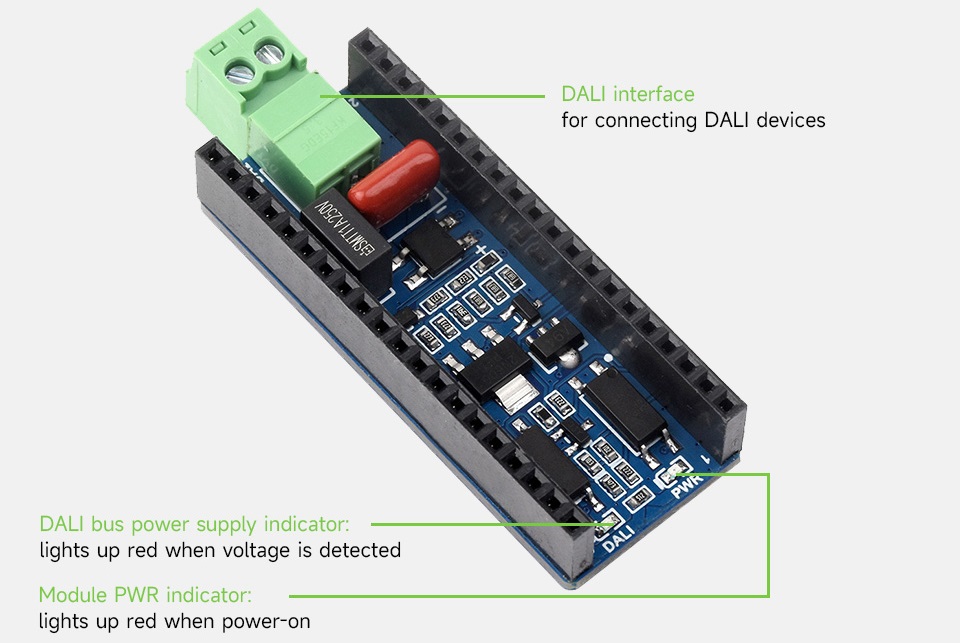

Description of the board pins:

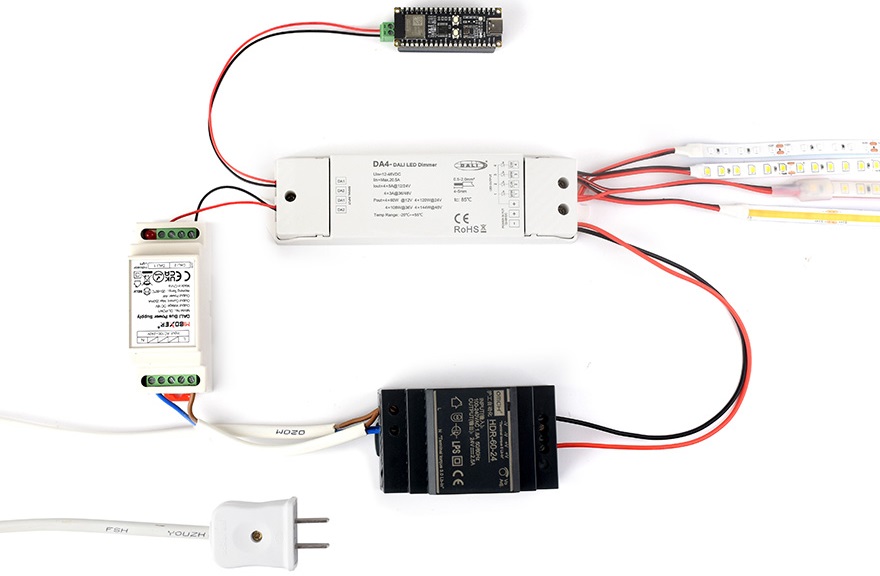

Application scenarios:

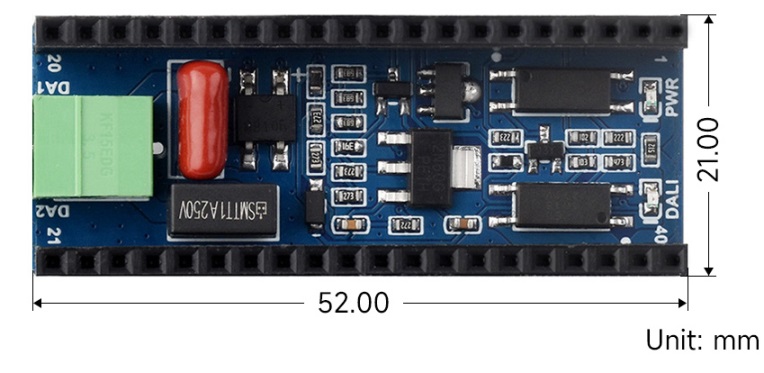

Overall dimensions: 52.0 mm × 21.0 mm

Wiki: http://www.waveshare.com/wiki/Pico-DALI2

Weight: 0.156 kg

Scope of delivery:

1. Pico-DALI2 board x1
