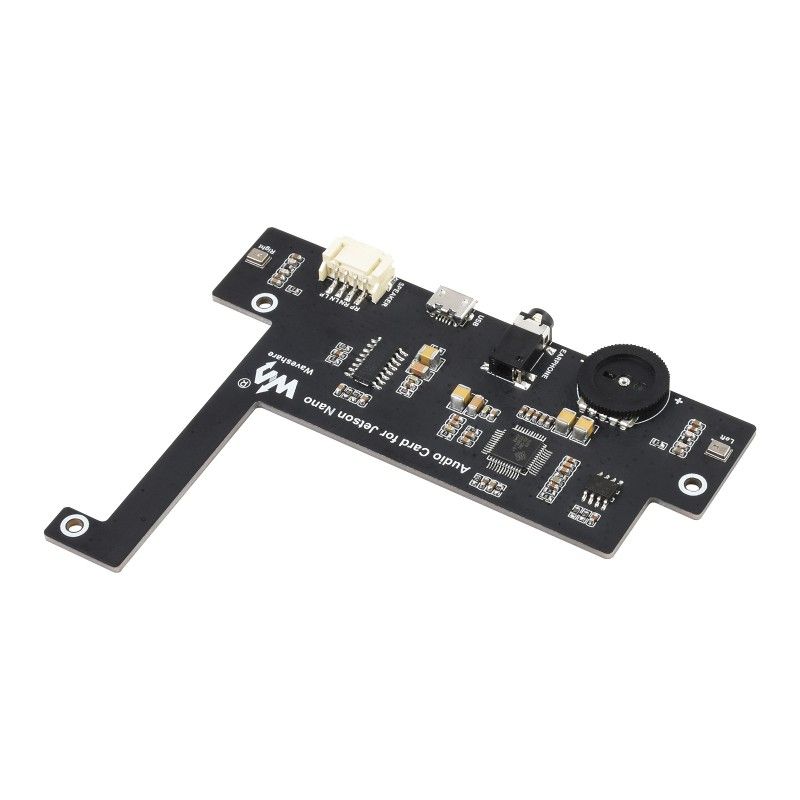

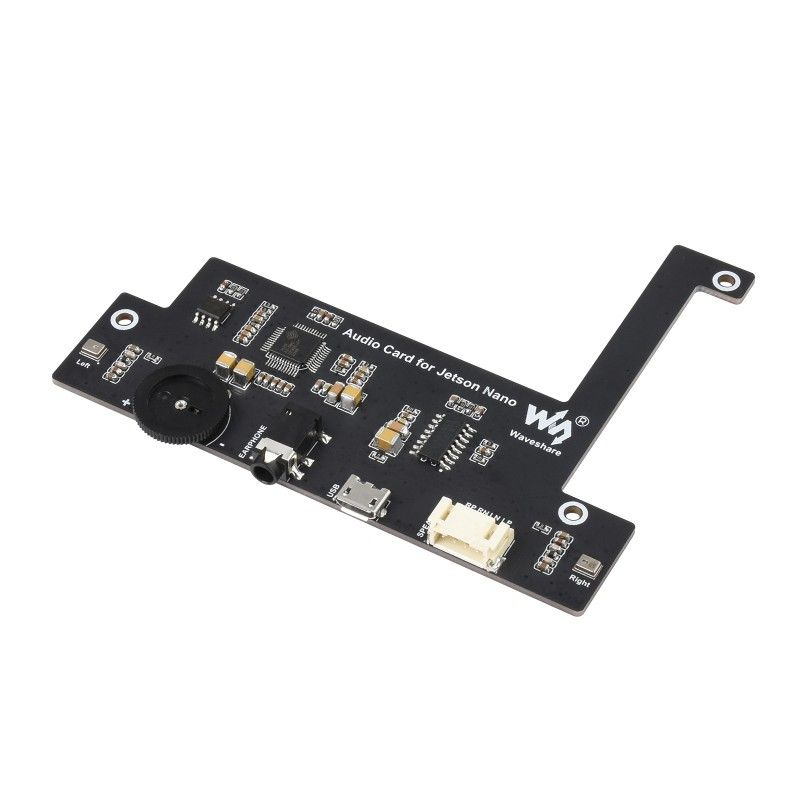

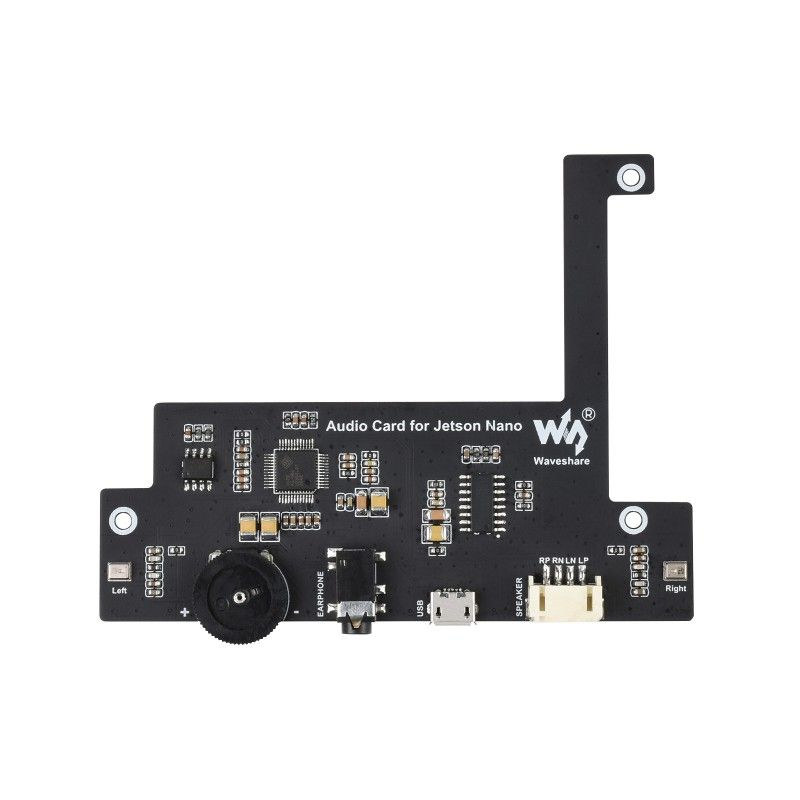

NVIDIA Jetson Nano Audio Card HAT expansion card (19491)

Name: NVIDIA Jetson Nano Audio Card HAT expansion card (19491)
Brand: Waveshare
SKU: V102268
Price: 16.60 GBP
Availability: OutOfStock

Brand: Waveshare Product Code: 19491

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

NVIDIA Jetson Nano Audio Card HAT expansion card (19491)

Out Of Stock

£16.60

Country of origin:Made in China

Form factor:Expansion board

Series of modules:Jetson Nano

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

NVIDIA Jetson Nano Audio Card HAT expansion card (19491)

£16.60

Description

NVIDIA Jetson Nano Audio Card HAT (19491 ) - extends the capabilities of the NVIDIA Jetson Nano microcomputer by adding audio recording and playback functionality. This card is a Plug And Play device and does not require any drivers for operation. The board connects to the microcomputer via a USB port. There are 2 microphones built into the board, as well as a speaker output jack and a 3.5mm headphone jack.

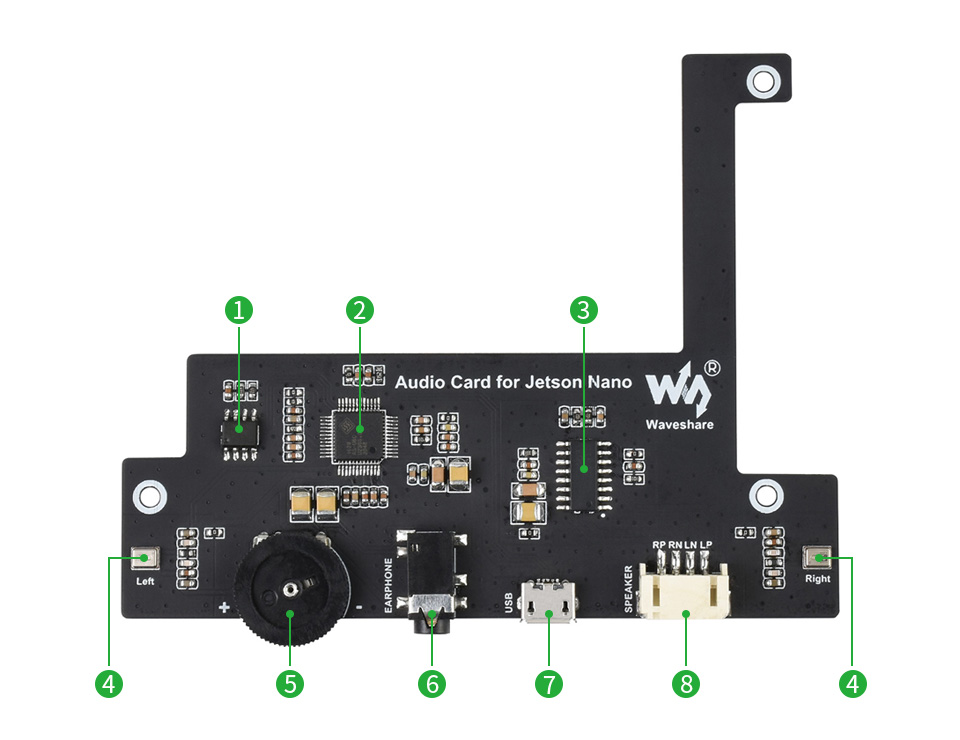

Main features:

USB connector, suitable for Jetson Nano Developer Kit series, compatible with multiple systems
Includes SSS1629 audio chip, uses USB bus, no drivers, Plug And Play
2 high-quality MEMS si-microphone, stereo recording
Standard 3.5 mm audio jack for headphones

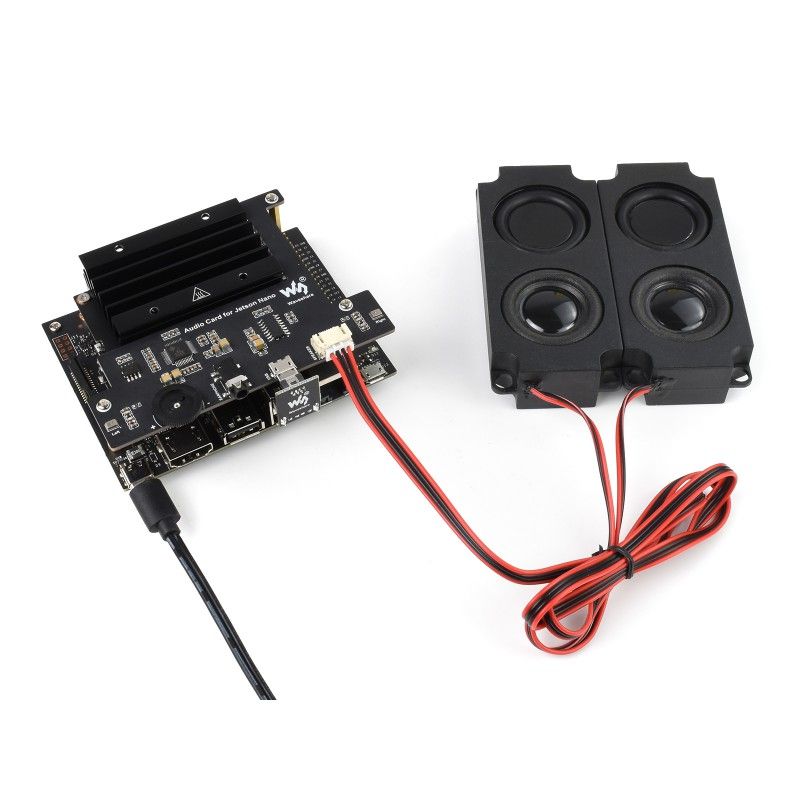

Two-channel speaker jack for direct connection, with volume control knob
Provides demo codes for speech synthesis, speech dictation, speech wake-up, and speech dialog
Comes with development resources and user guide

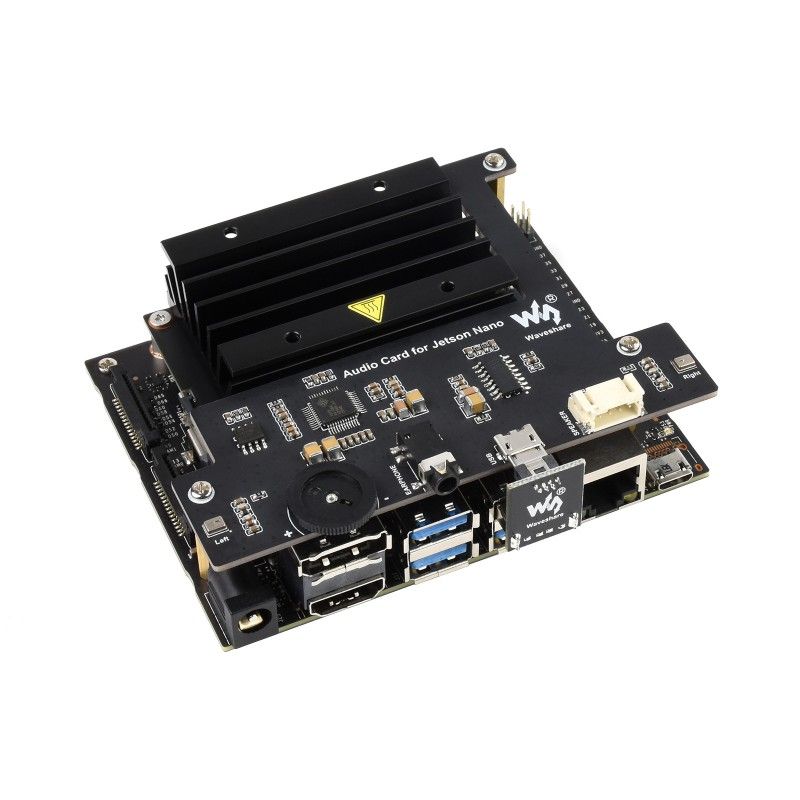

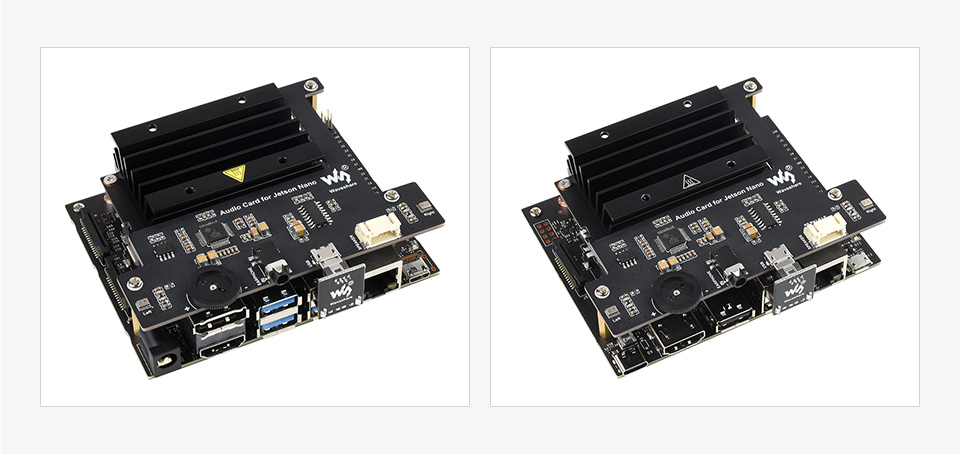

Connection to Jetson Nano B01 (left) and Jetson Nano 2GB (right)
