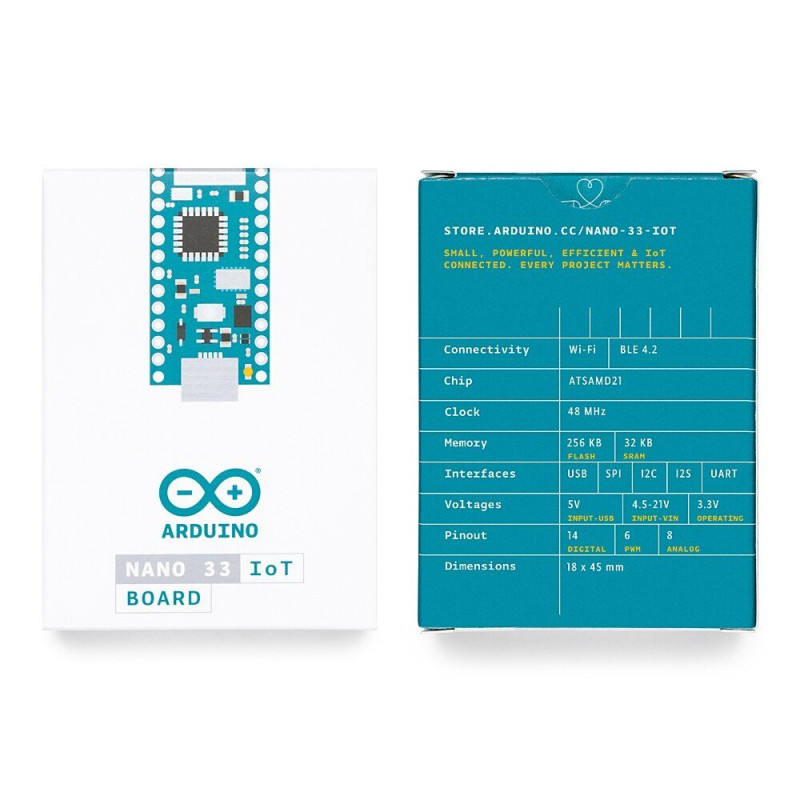

Arduino Nano 33 IoT Without Headers / ABX00027

Name: Arduino Nano 33 IoT Without Headers / ABX00027
Brand: Arduino
SKU: V80231
Price: 22.00 GBP
Availability: OutOfStock

Brand: Arduino Product Code: ABX00027

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Arduino Nano 33 IoT Without Headers / ABX00027

Out Of Stock

£22.00

Country of origin:Made in Italy

Series:Nano Family

Type:Boards & Modules

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Arduino Nano 33 IoT Without Headers / ABX00027

£22.00

Description

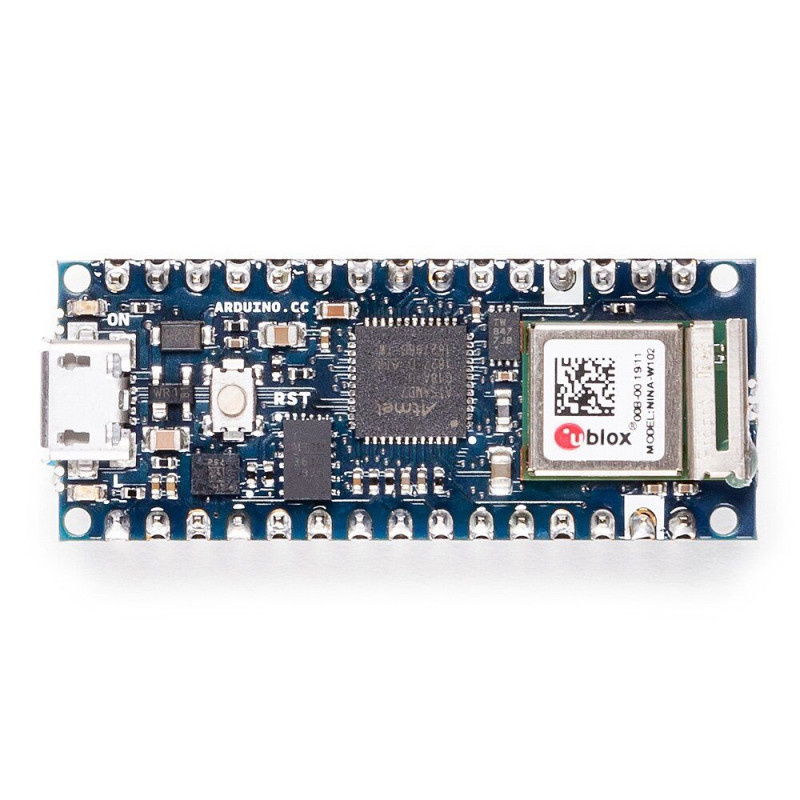

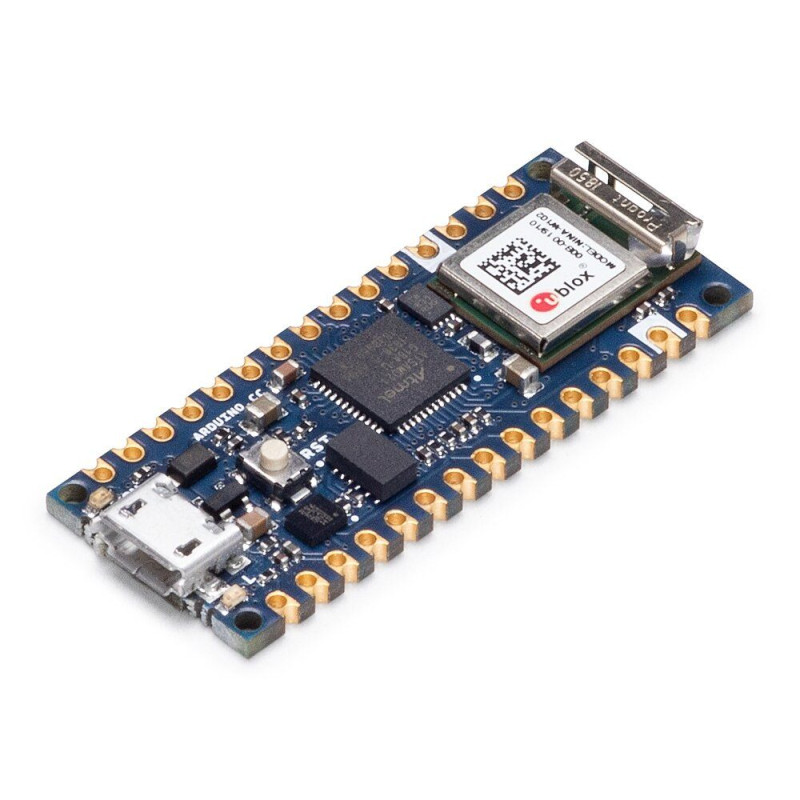

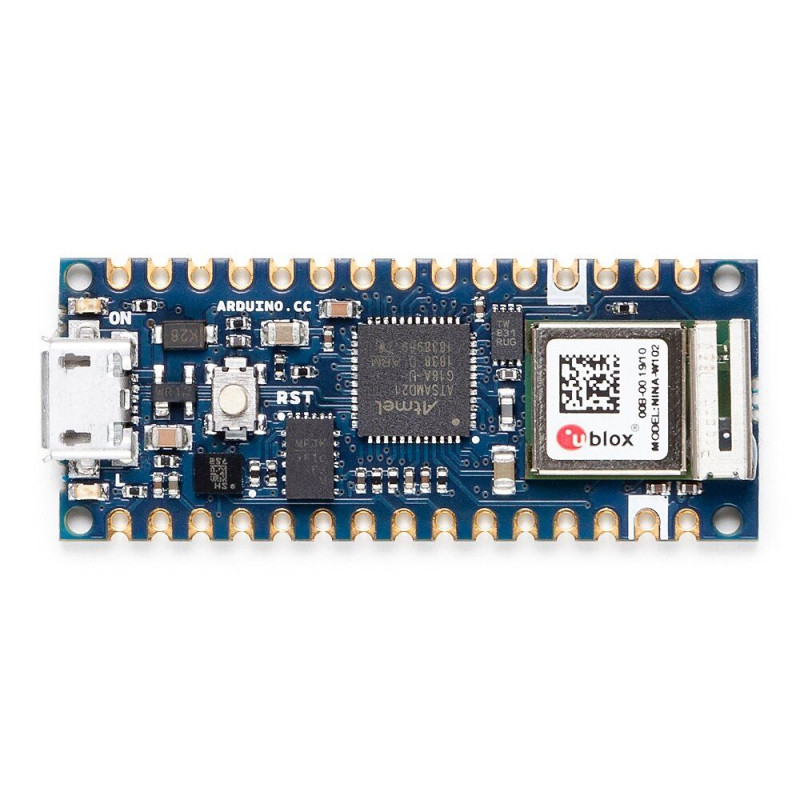

Arduino Nano 33 IoT is a modern and versatile solution for building projects using wireless technologies. Despite the fact that the main microcontroller on the board is SAMD21 (based on the Arm Cortex-M0 architecture), the real power is hidden in the u-blox NINA-W102 module built on ESP-32. The module provides Wi-Fi and Bluetooth connectivity for this board, and the security of this connection is ensured by the ECC608 cryptographic coprocessor from Microchip. The icing on the cake is the accelerometer and gyroscope (6-axis IMU), which allow you to create and launch your first project without additional components for simple vibration alarm systems, pedometers, robot positioning, etc.

The developers provide examples of connecting this platform to various cloud services, from Arduino's IoT Cloud to Azure (from Microsoft) to Firebase (from Google). And the developers can completely untie their hands by flashing the NINA-W102 module, which will not only allow them to use Wi-Fi and Bluetooth simultaneously, but also make it possible to install a minimal Linux image.

The communication chipset in the Nano 33 IoT can be both a client and a host device for BLE and Bluetooth®, which is quite unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth® central or peripheral device, explore the examples in the provided ArduinoBLE library.

Technical specifications:

Microcontroller.	SAMD21 Cortex®-M0+ microcontroller
Radio module	u-blox NINA-W102
Cryptographic coprocessor	ATECC608A
Accelerometer/gyroscope	LSM6DS3
Operating voltage	3.3В
Input voltage of the board (limit)	21В
Direct current on GPIO	7 mA
Clock frequency	48MHz
Flash memory memory	256 KB
SRAM	32 KB
Number of GPIO contacts	14
Number of PWM channels	11 (2, 3, 5, 6, 9, 10, 11, 12, 16 / A2, 17 / A3, 19 / A5)
UART	1
SPI	1
I2C	1
Number of ADC channels	8 (8/10/12 bits)
Number of DAC channels	1 (10 bits)
Number of EXTI channels	all digital contacts
USB-UART controller	Internal peripheral unit MK
Length	45 mm
Width	18 mm
Weight	5 g (with connector)

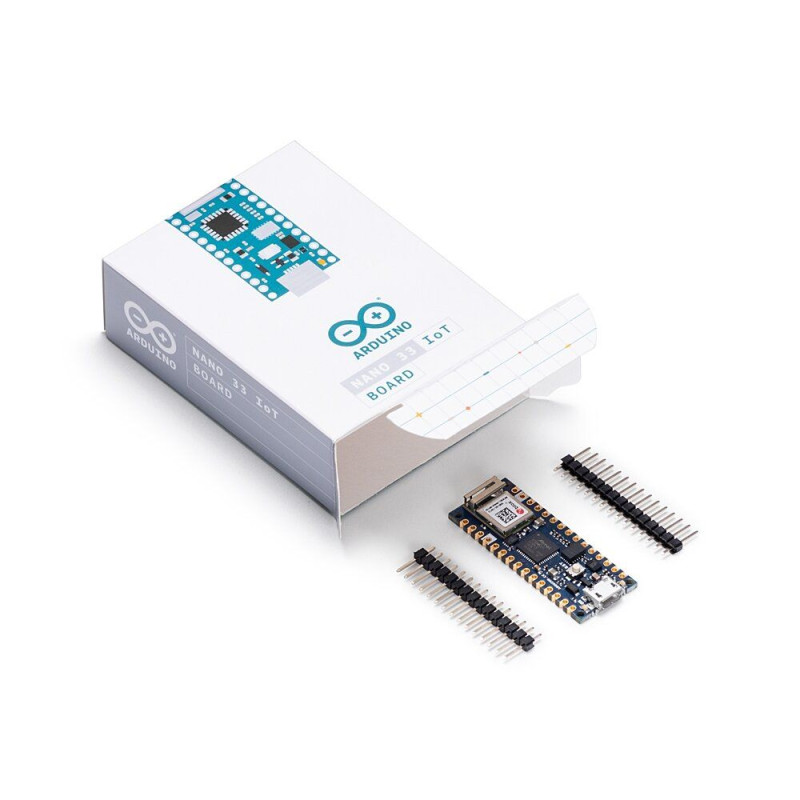

The board is available in two versions:

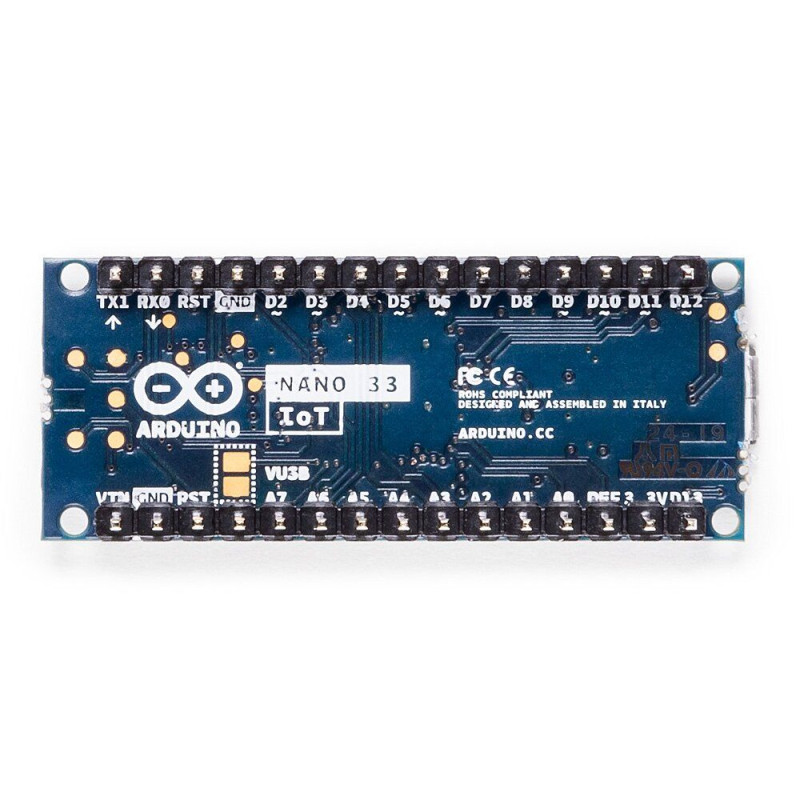

with a soldered GPIO connector (Arduino Nano 33 IoT With Headers / ABX00032)

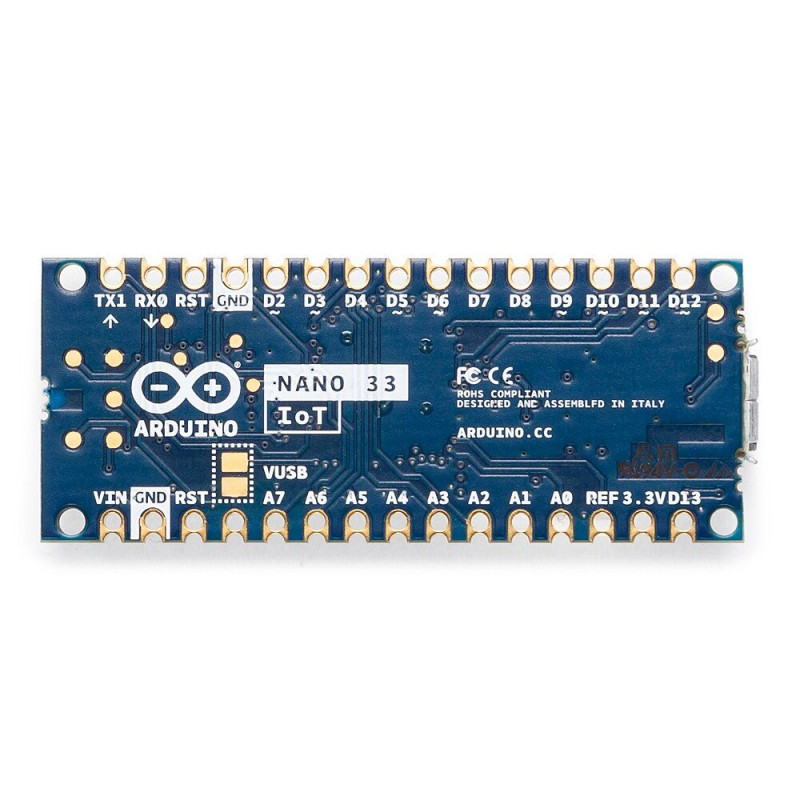

and without it(Arduino Nano 33 IoT Without Headers / ABX00027). This makes it possible to embed the Arduino Nano 33 IoT in ready-made projects by soldering directly onto another board, since its underside has no components.

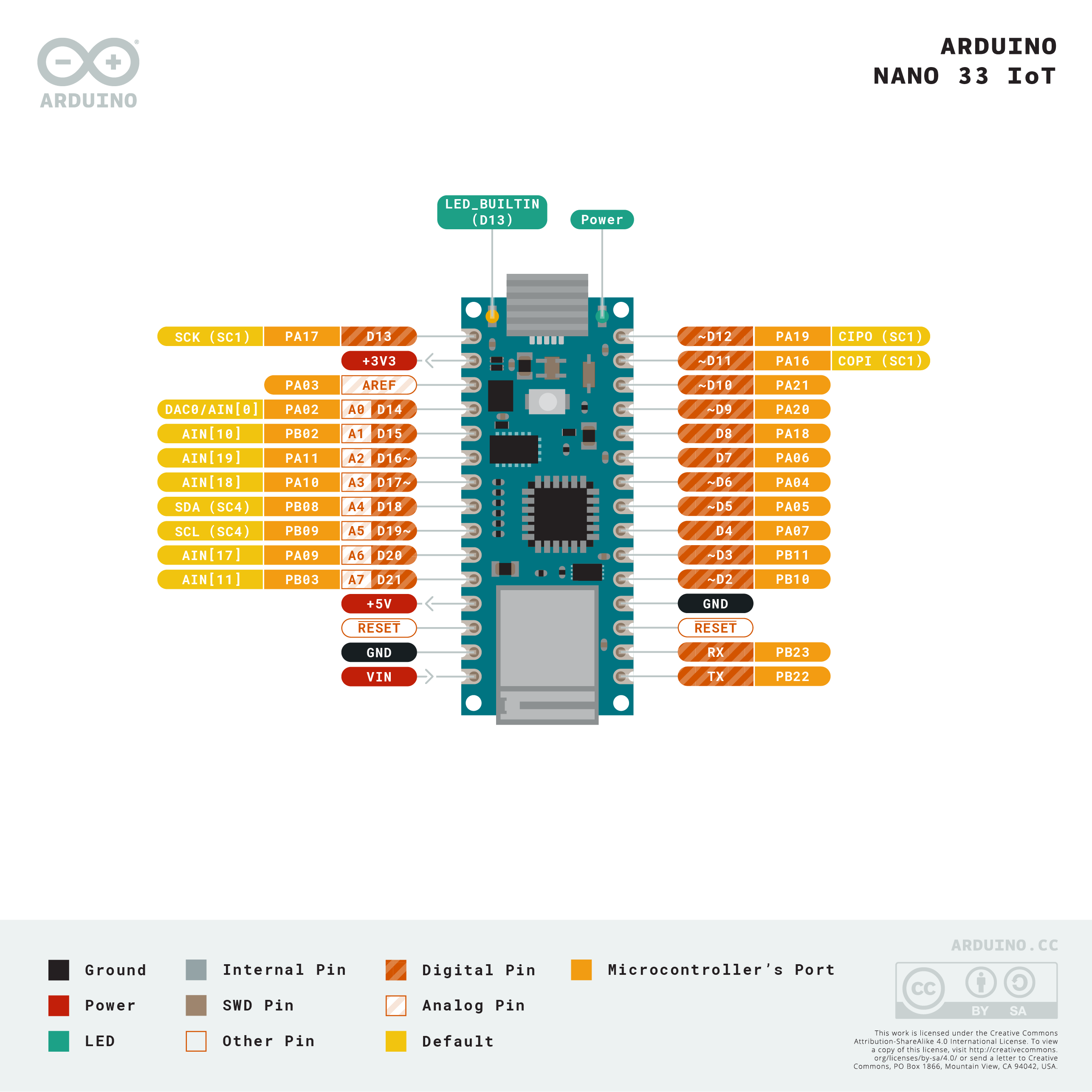

Board connectors:
