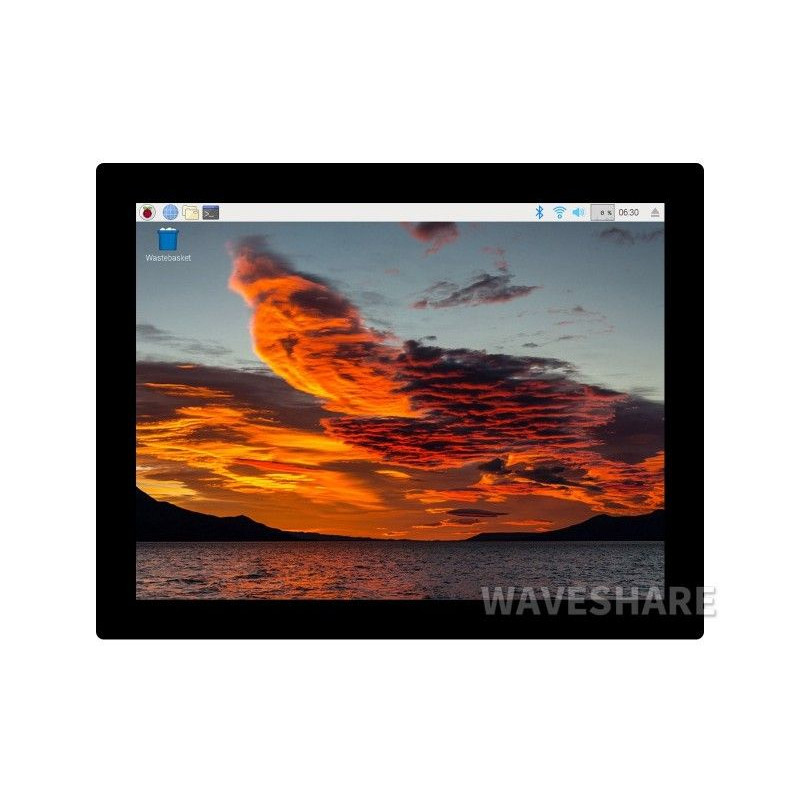

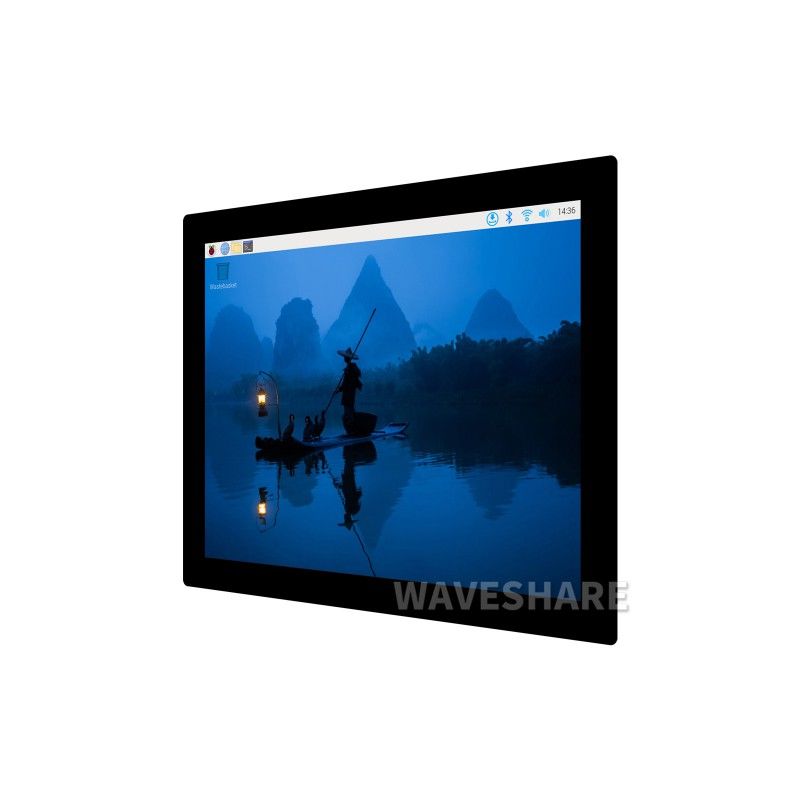

Display 9.7inch 768x1024 LCD (26698)

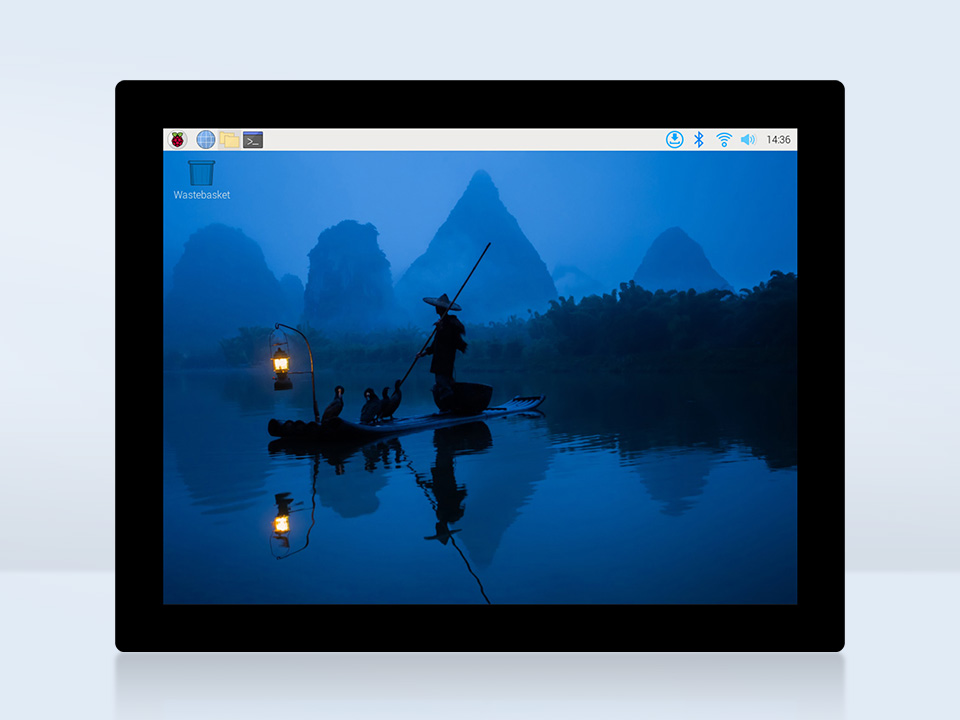

The9.7inch 768x1024 LCD monitor is a 9.7-inch capacitive touchscreen display that is ideal for visualizing and interacting with your projects. This display has a resolution of 768x1024 pixels, which provides a clear and detailed image.

Key features:

• The display has a tempered glass front panel that provides scratch and wear resistance, making it durable and reliable to use.

• For easy connection to various devices, this display uses a standard HDMI interface, making it compatible with many devices and microcomputers.

• The use of IPS technology allows for wide viewing angles and excellent color reproduction, making the display image crisp and vivid even from different viewing angles.

• The capacitive touchscreen supports 10-point touch control, which allows you to conveniently interact with the device using gestures and taps.

• Versatile Applications: This display is ideal for use in a variety of applications including robotics, media centers, interactive gaming, and more.

Features:

• Size: 9,7″
• Resolution: 768×1024 (By default, the display orientation is portrait, with a resolution of 768×1024 (H×V). Change the software configuration for horizontal display).
• Display interface: HDMI
• Display panel: IPS
• Viewing angle: 178°
• Type of touch: capacitive
• Touch points: 10 points
• Touch port: USB Type-C
• Touch panel: tempered glass
• On-screen menu: Brightness / Contrast
• Audio output 1: 3.5 mm jack
• Audio output 2: 4PIN connector

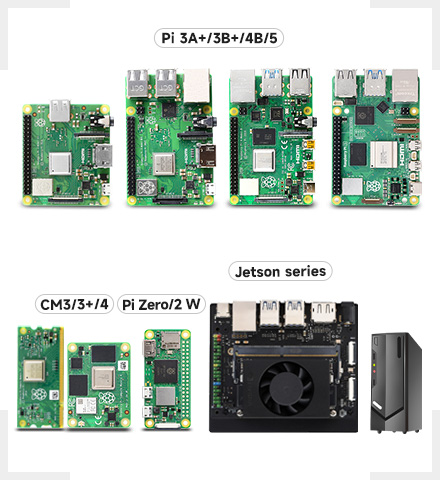

Supported devices and systems

Raspberry Pi

• Supports Raspberry Pi OS, 10-point touch screen, no drivers
• Supports Ubuntu / Kali / WIN10 IoT, single touch, no drivers
• Supports Retropie, no drivers required
• Supports all versions of Raspberry Pi

Jetson series board

• Supports Ubuntu, single point touch, no drivers required

PC

• Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, no drivers

An example of connection:

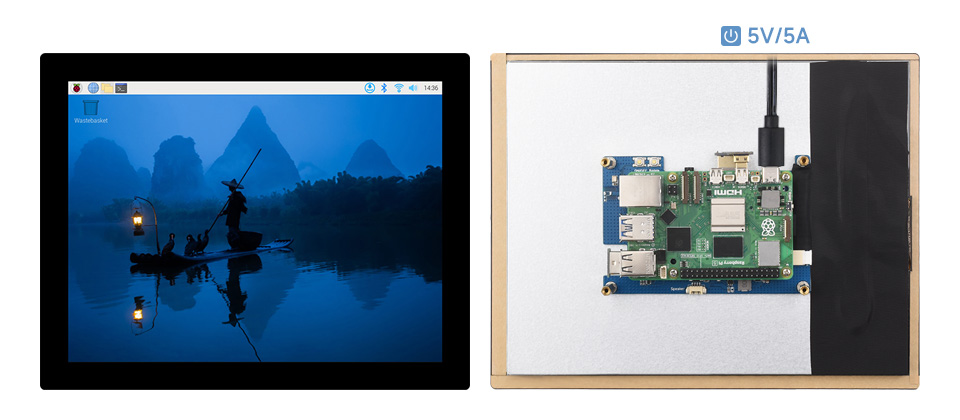

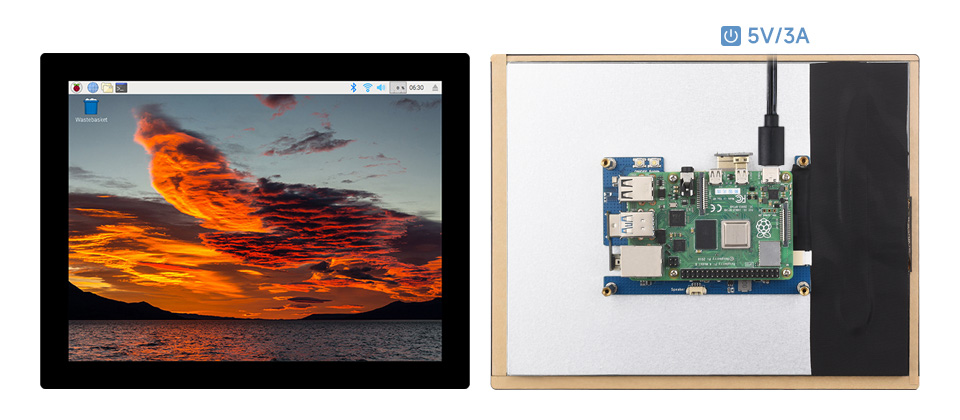

Working with a Raspberry Pi 5

Working with Raspberry Pi 4B

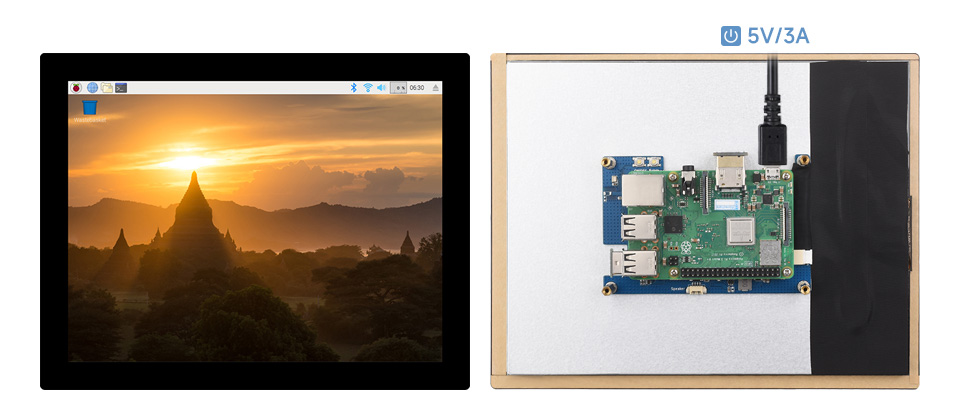

Working with Raspberry Pi 3B+

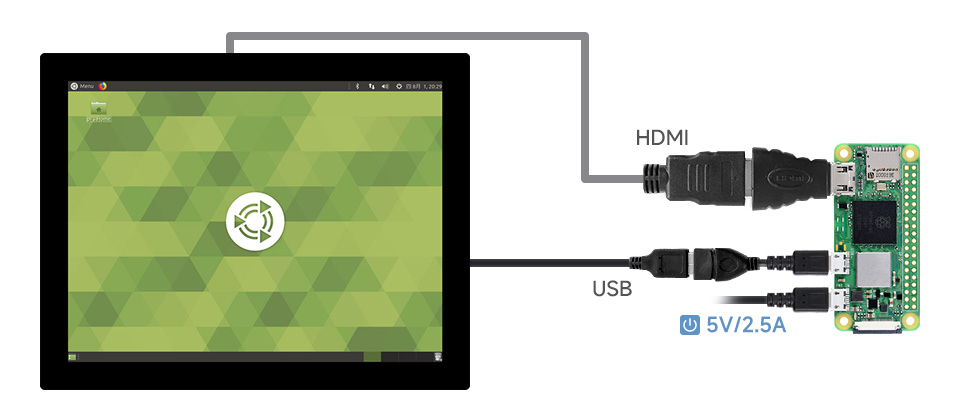

Working with Raspberry Pi Zero 2 W

Note: To connect to Raspberry Pi Zero, you need to purchase a USB cable and a mini-HDMI adapter separately.

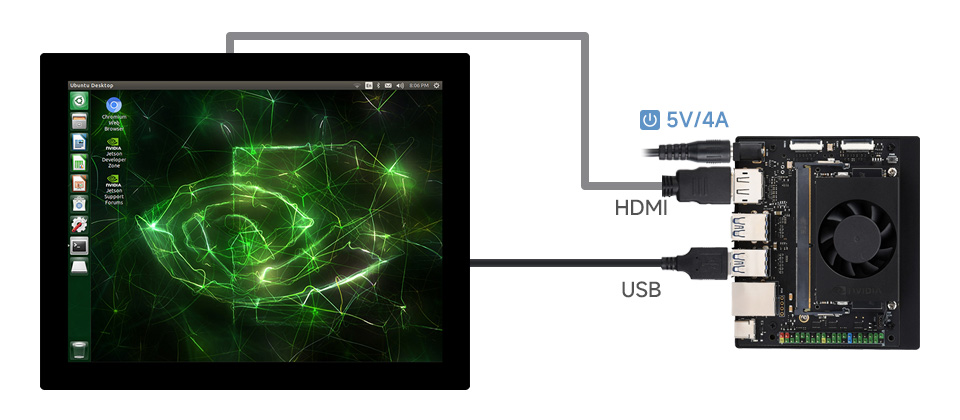

Working with Jetson series boards

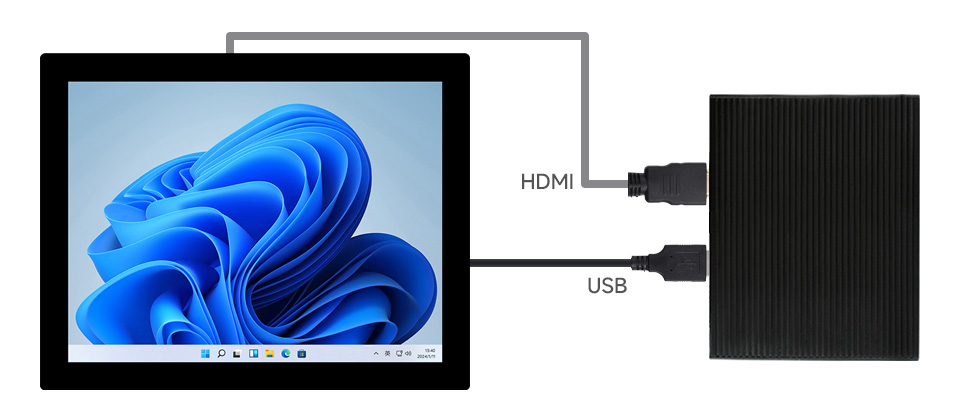

Working with a PC

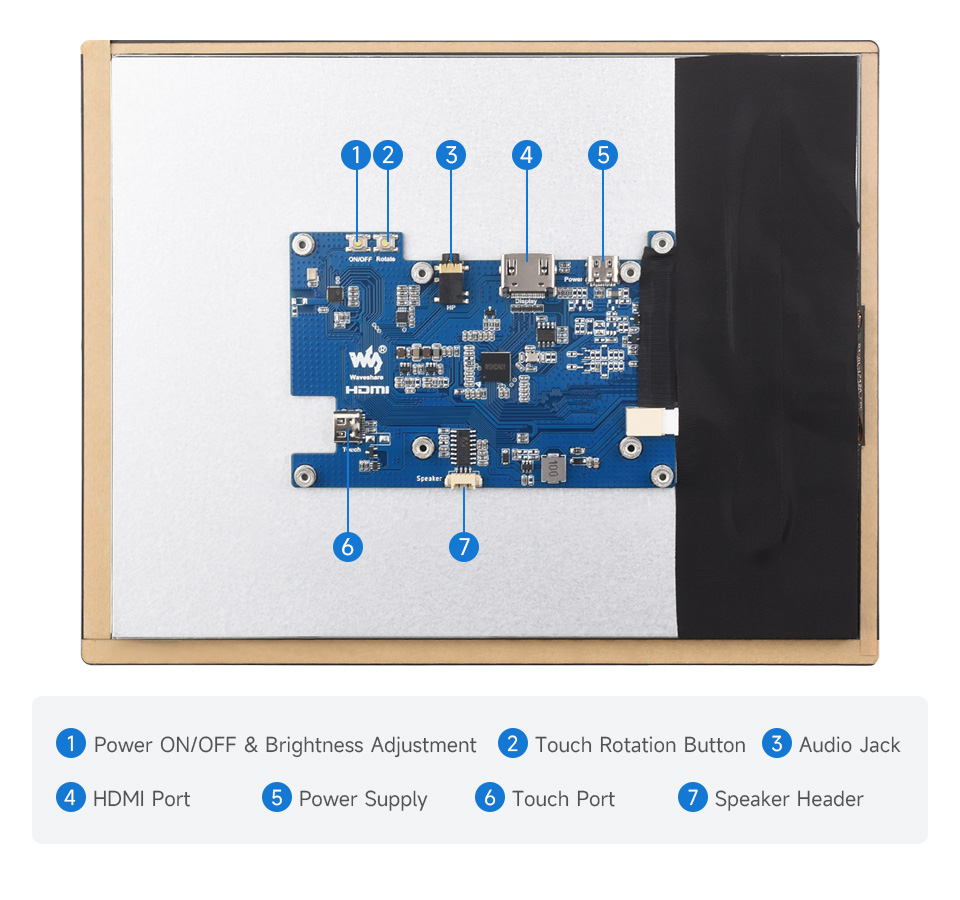

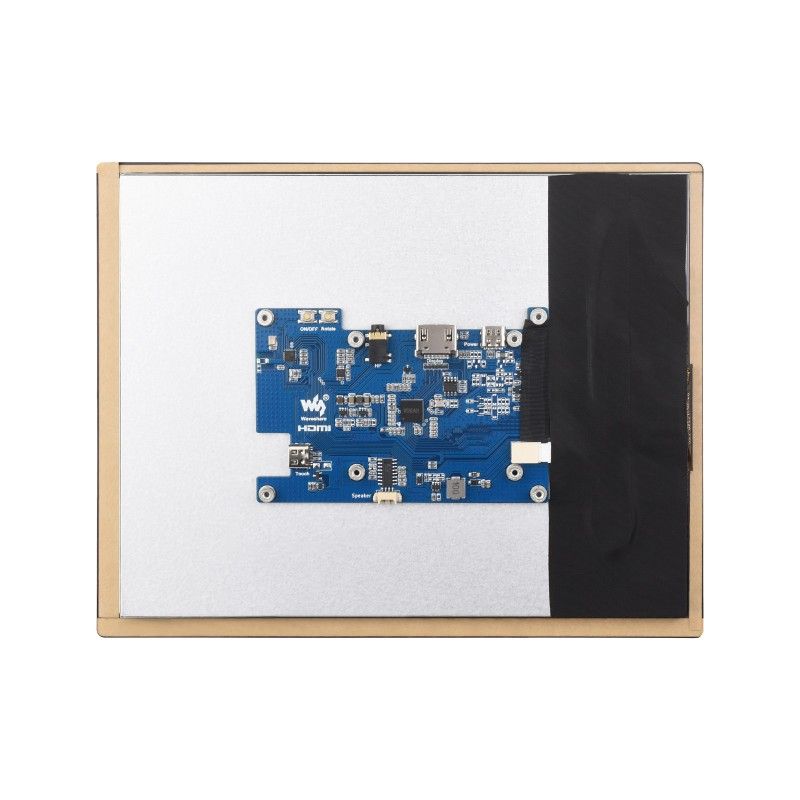

Device interfaces:

Power ON/OFF - power switch

Touch Rotation Button - rotation button

Audio Jack - audio jack 1

HDMI Port - HDMI port

Power Suply - power input

TouchPort - touch screen connector

Speaker Header - audio jack 2

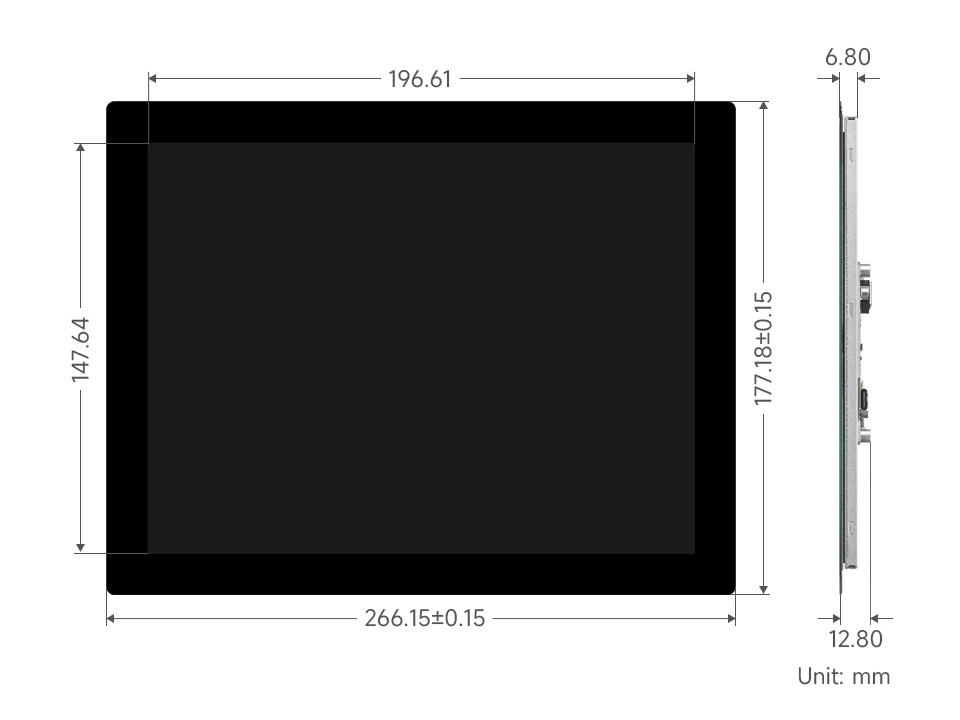

Overall dimensions: 266.15 mm x 177.18 mm x 12.8 mm

Wiki: www.waveshare.com/wiki/9.7inch_768x1024_LCD

Weight: 0.570 kg

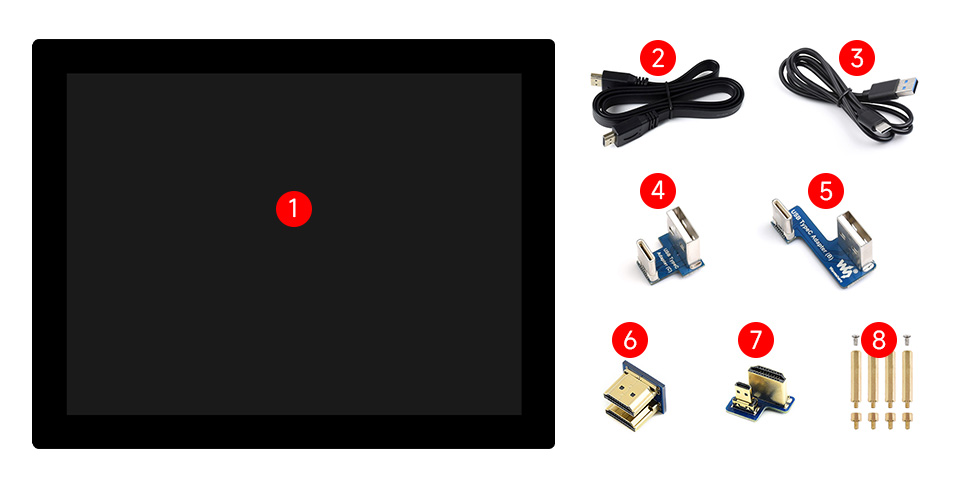

Package contents:

1. 9.7" 768x1024 LCD ×1
2. HDMI flat cable 1 m × 1
3. USB-A to Type-C cable 1 m × 1
4. USB to Type-C (C) adapter ×1
5. USB to Type-C (B) adapter ×1
6. HDMI adapter ×1
7. HDMI to Micro HDMI adapter × 1
8. Package of screws × 1 pc
