Arduino Nano Every With Headers / ABX00033

Name: Arduino Nano Every With Headers / ABX00033
Brand: Arduino
SKU: V80240
Price: 13.10 GBP
Availability: OutOfStock

Brand: Arduino Product Code: ABX00033

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Arduino Nano Every With Headers / ABX00033

Out Of Stock

£13.10

Country of origin:Made in Italy

Series:Nano Family

Type:Boards & Modules

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Arduino Nano Every With Headers / ABX00033

£13.10

Description

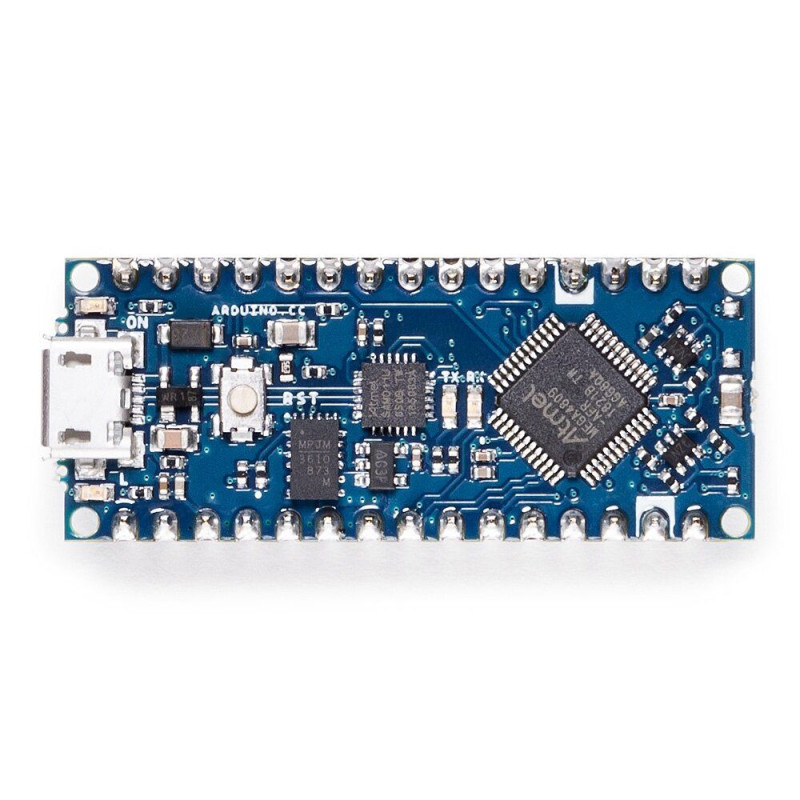

Arduino Nano Every is an evolution of the traditional Arduino Nano platform, but with a more powerful ATMega4809 microcontroller.

If you have already used Arduino Nano in your projects before, then Nano Every will be a complete replacement for the previous platform. The code written earlier will work on this board, and the pin-to-pin compatibility of the platforms will allow you to expand the functionality of previous projects without changes at the hardware level.

The small size and low price make the Nano Every a suitable platform for portable projects, building low-cost robotic control, electronic musical instruments, or general use, in the form of controlling small electronics units in larger projects.

Technical specifications:

Microcontroller	ATMega4809
Operating voltage	5В
Input voltage of the board (limit)	21В
Direct current on GPIO	20 mA
Constant current for 3.3V	50 mA
Clock frequency	20MHz
Flash memory memory	48 KB
SRAM	6 KB
EEPROM	256 bytes
Number of PWM channels	5 (D3, D5, D6, D9, D10)
UART	1
SPI	1
I2C	1
Number of ADC channels	8 (10 bits)
Number of DAC channels	0
Number of EXTI channels	all digital contacts
USB-UART controller	ATSAMD11D14A
Length	45 mm
Width	18 mm
Weight	5 g (with connector)

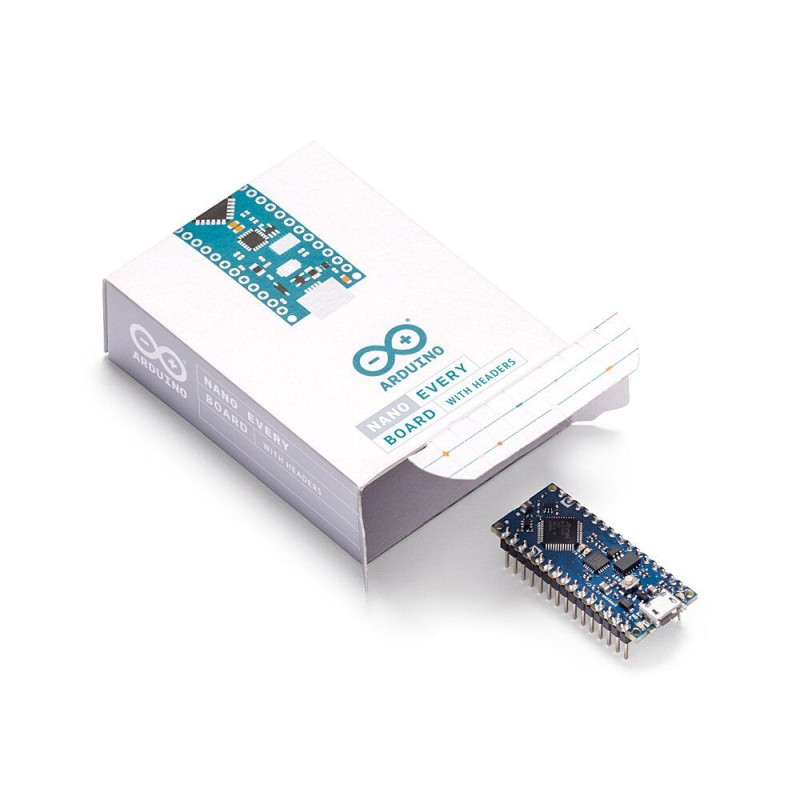

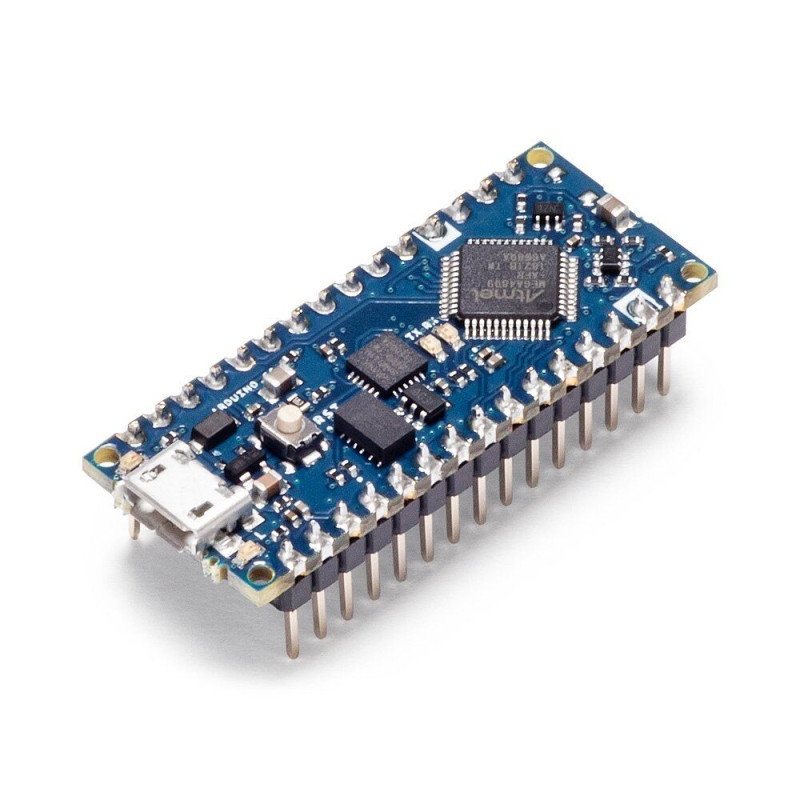

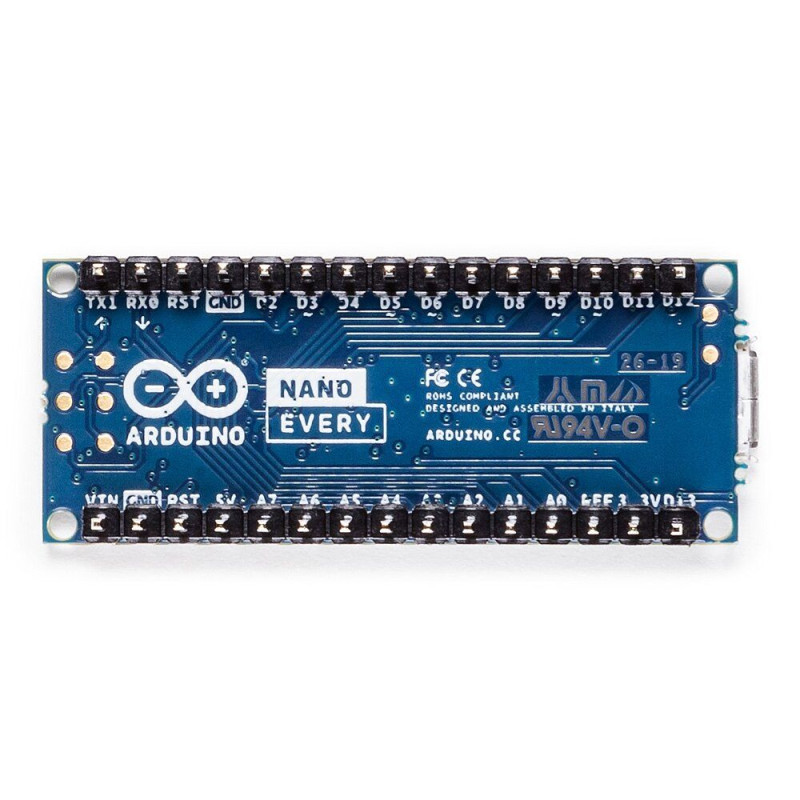

The board is available in two versions: with a soldered GPIO connector(Arduino Nano Every With Headers / ABX00033) and without it(Arduino Nano Every Without Headers / ABX00028). This makes it possible to build the Nano Every into ready-made projects by soldering directly onto another board, since its underside has no components.

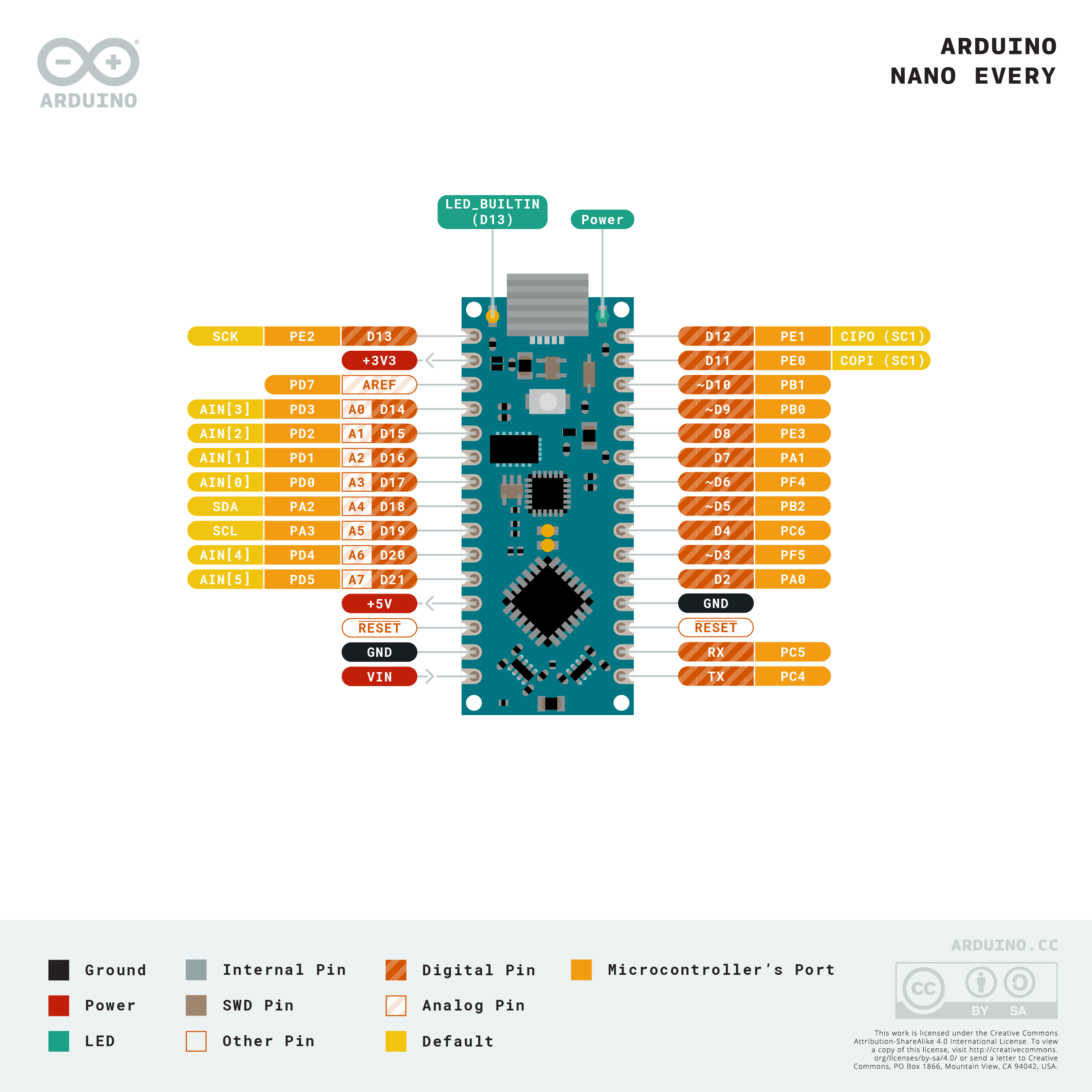

Board connectors:
