Arducam 12MP IMX708 Fixed Focus HDR High SNR Camera

The Arducam 12MP IMX708 Fixed Focus HDR High SNR Camera is a high quality fixed focus camera that features a Sony IMX708 sensor that delivers an excellent 12 megapixel resolution. This camera offers advanced features such as HDR (High Dynamic Range) and High SNR (High Signal to Noise Ratio), making it an ideal choice for shooting in high contrast and low light conditions. The camera is equipped with a fixed focus lens with a built-in IR filter, which is more stable and faster during focusing than an autofocus lens. Due to its stable performance, the camera is suitable for use in video surveillance systems, smart homes, robotics, and other projects where high image quality is required.

Key features:

• The Raspberry Pi IMX708 fixed focusadd-on to theRPI V3 camera module 3 and autofocus is designed for many use cases where autofocus lenses are not suitable or safe.
• Thecamera image is based on a 12-megapixel, back-illuminated, high-resolution CMOS image sensor (Sony IMX708) with HDR mode for up to 3 megapixel output.
• High-quality images are provided by a 66° fixed-focus (HFOV) lens with a maximum resolution of 4608 × 2592. Compared to an autofocus lens, it provides faster focusing speeds for steadier images. Along with the built-in 2D DPC and QBC function, Re-mosaic provides a high signal-to-noise ratio (SNR). The camera's high resolution and sensor performance enable it to capture ultra-high quality images.
• Built-in support for Raspberry Pi. No additional driver is required to use the camera on a Raspberry Pi. You just need to make some changes to the configuration file.

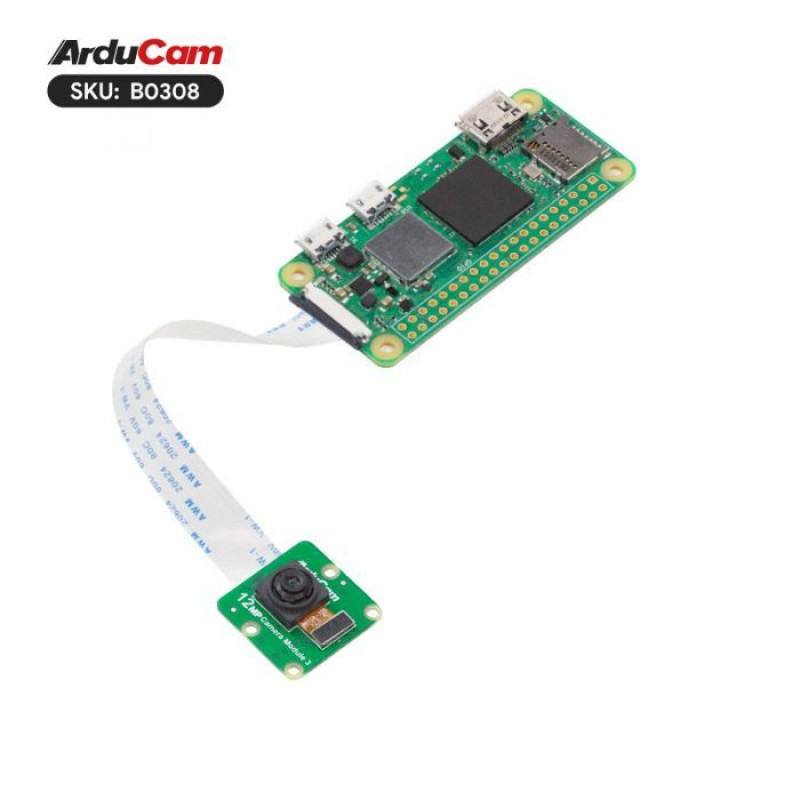

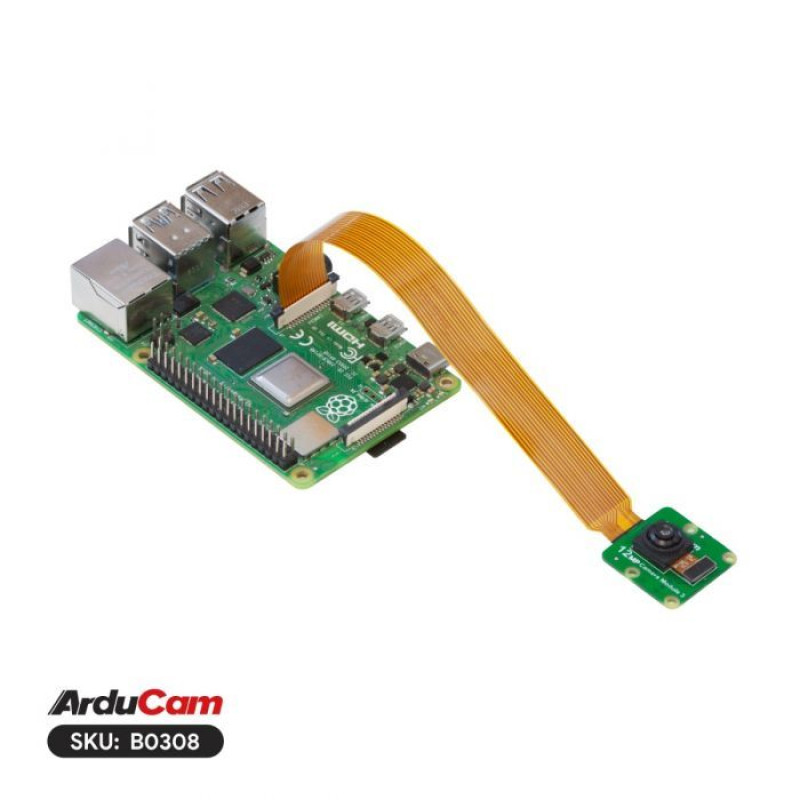

• Platform compatibility: supports Raspberry Pi 3, 4 A/B, equipped with flexible FPC 15-22 and 22-22pin cables. Supports applications on Raspberry Pi Zero

Specifications:

• Image sensor: IMX708
• Resolution: 11.9 megapixels
• Video modes: 2304 × 1296p56, 2304 × 1296p30 HDR, 1536 × 864p120
• Sensor resolution: 4608 x 2592 pixels
• Sensor image area: 6.45 x 3.63 mm (7.4 mm diagonal)
• Pixel size: 1.4 µm × 1.4 µm
• Optical size: 1/2,43"
• IR sensitivity: Integrated IR filter, visible light only
• Supported platform: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W
• Lens focus type: Fixed focus
• Lens focal length: 4.74 mm F.NO F1.8
• Lens field of view (FOV) 75°(D)x66°(H)x41°(V)

Overall dimensions of the camera board: 25mm x 24mm

Wiki: https://docs.arducam.com/Raspberry-Pi-Camera/Native-camera/12MP-IMX708/

Scope of delivery:

1. Arducam 12MP IMX708 fixed focus camera module 3 x1

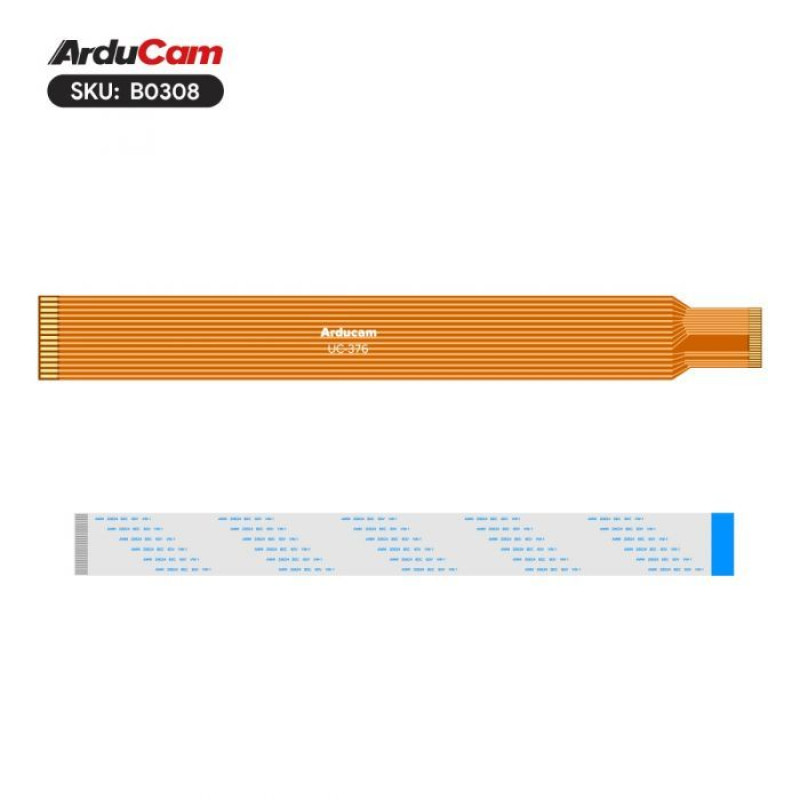

2. FPC cable 150 mm 15-22 contacts x1
3. FPC 22pin-22pin 150 mm cable x1
