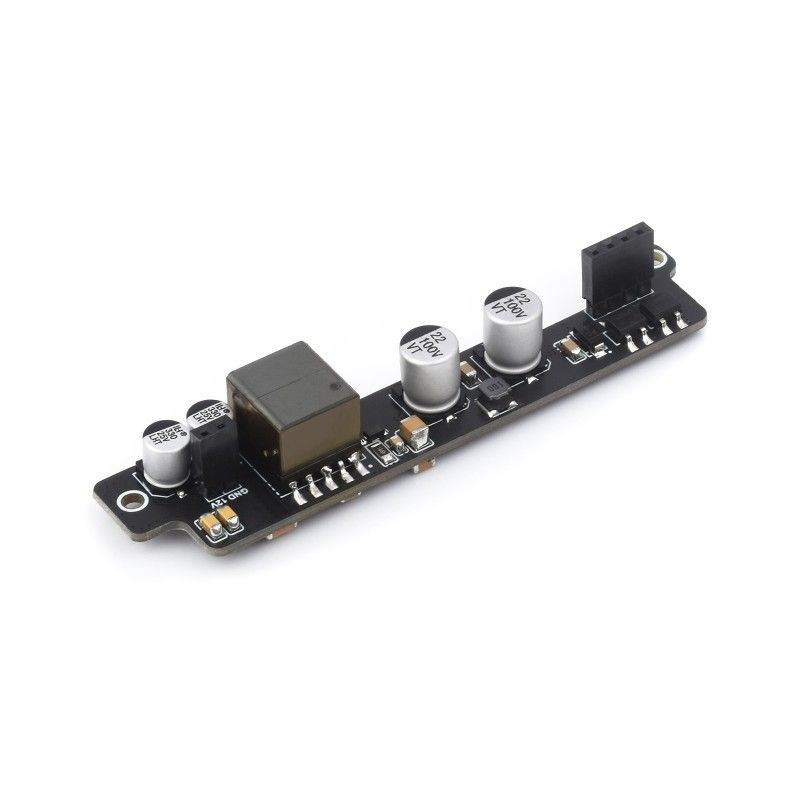

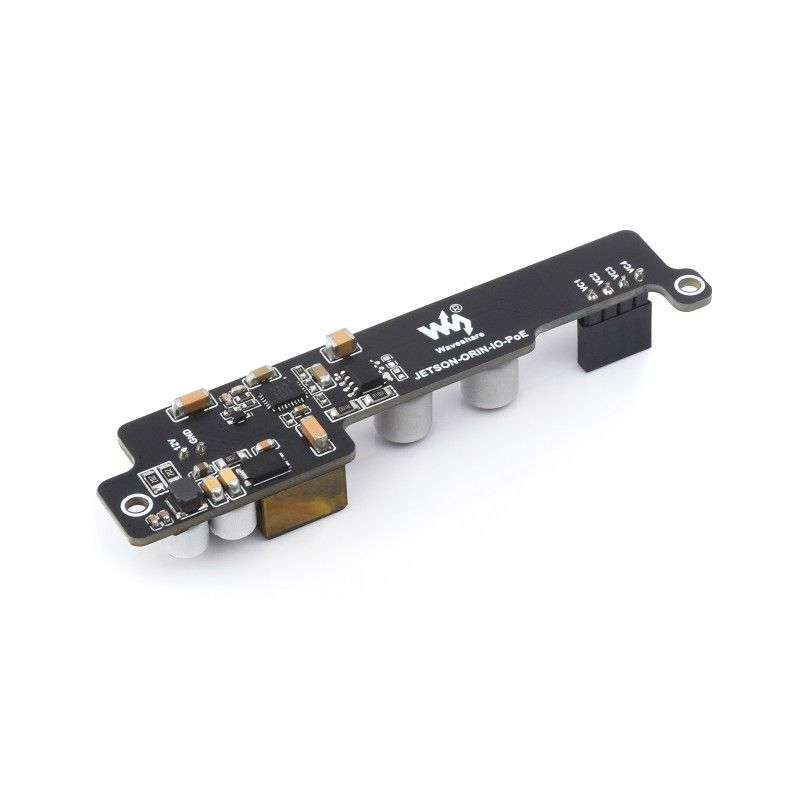

NVIDIA Jetson Orin Nano/NX PoE Expansion Board

TheNVIDIA Jetson Orin Nano/NX PoE Expansion Board is an expansion board that provides Power over Ethernet (PoE) support for the NVIDIA Jetson Orin Nano/Jetson Orin NX modules. This board allows you to use a single cable for both data and power, which greatly simplifies installation and reduces the number of cables required. By using this small module and a suitable 802.3af-compliant power supply, it is possible to provide network connectivity and power for your Orin board with just one Ethernet cable. Application examples:

• Intelligent cameras and surveillance systems
• Autonomous robots and drones
• Industrial IoT solutions
• AI application development

Key Features:

• Compatibility: Suitable for NVIDIA Jetson Orin Nano and NX.
• Power over Ethernet (PoE): Provides reliable power over a standard Ethernet cable.
• Standards support: Complies with IEEE 802.3af/at standards for stable operation.
• Features a fully isolated switching power supply (SMPS)
• Specially designed with a compact component layout
• Easily integrates with your existing systems without requiring additional power.
• Energy efficiency: Optimized power consumption for long-lasting operation.

Benefits:

• Reduced cabling: A single cable for data and power simplifies installation and connectivity.
• Reliability: Provides consistent power even in harsh environments.
• Flexibility: Ideal for projects where compactness and ease of connection are important.

Specifications:

• POE POWER INPUT: 37 V 57 V DC
• OUTPUT POWER: 12 V 2.1 A DC output
• NETWORK STANDARD: supports IEEE 802.3af/at PoE


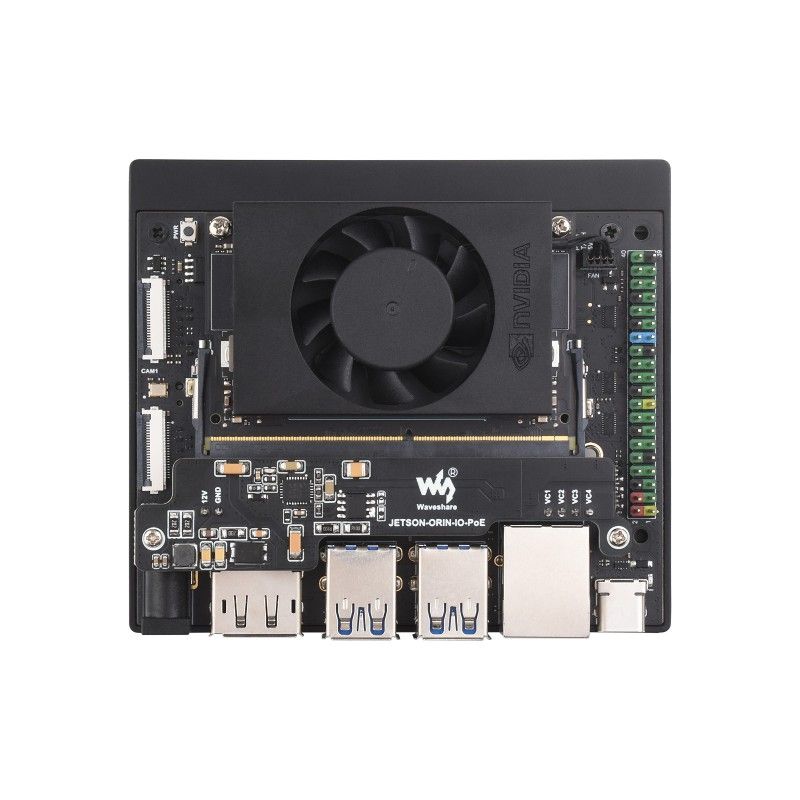

Suitable for Jetson boards
Suitable for Jetson Orin PoE, suitable for Jetson Orin Nano/Jetson Orin NX

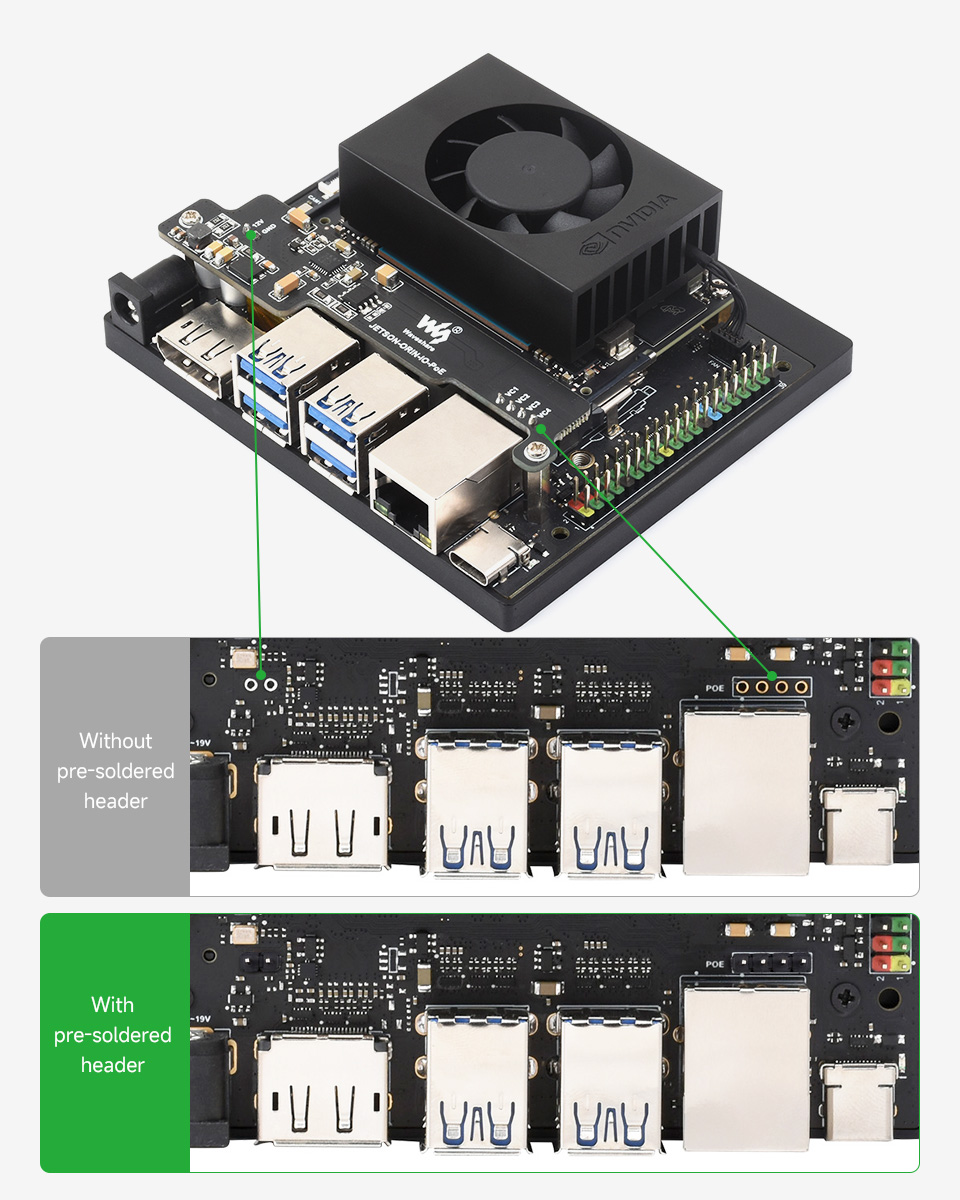

Note: Before connecting the PoE module, you must first solder the PoE connector of the Orin Nano/NX main board.

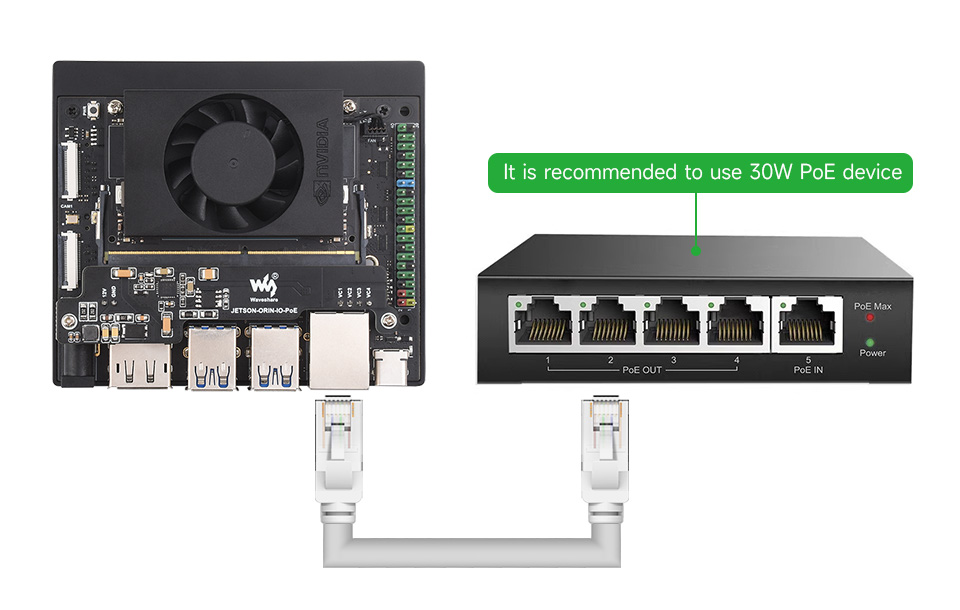

Power supply via Ethernet
Providing network connectivity and power for your Jetson Orin in one cable

Note: For reference only, the Jetson Orin Nano board and switch are NOT included.

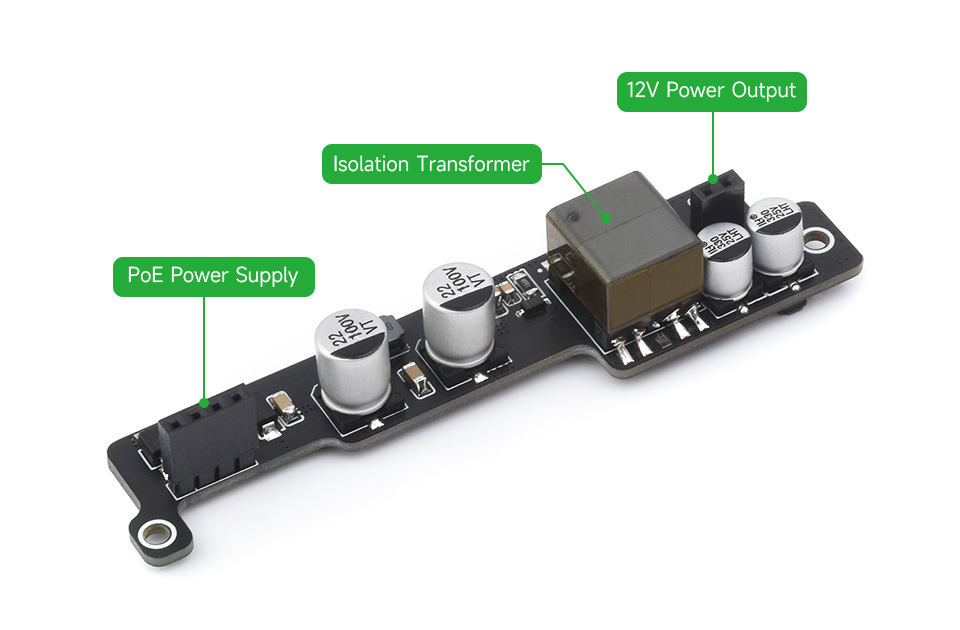

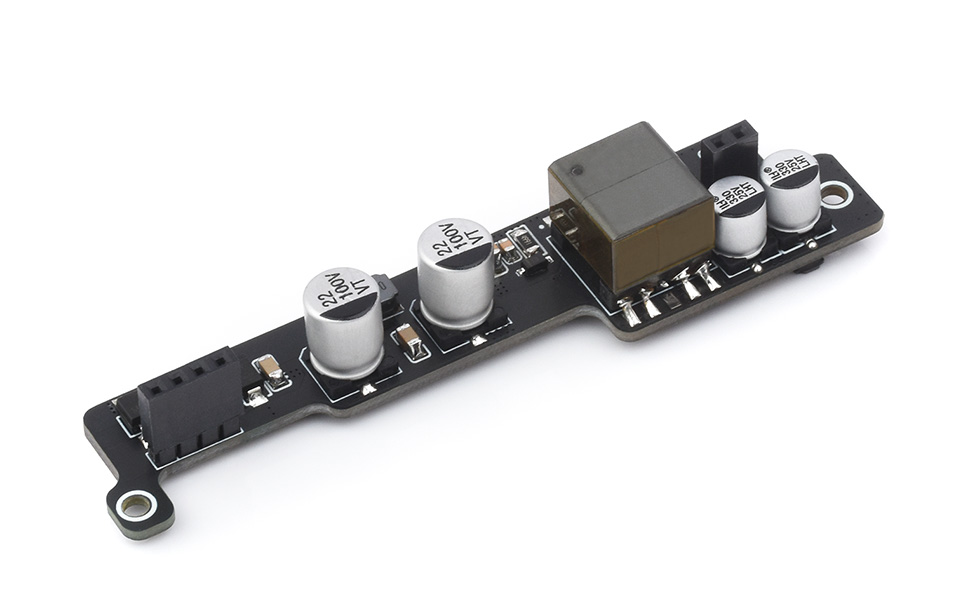

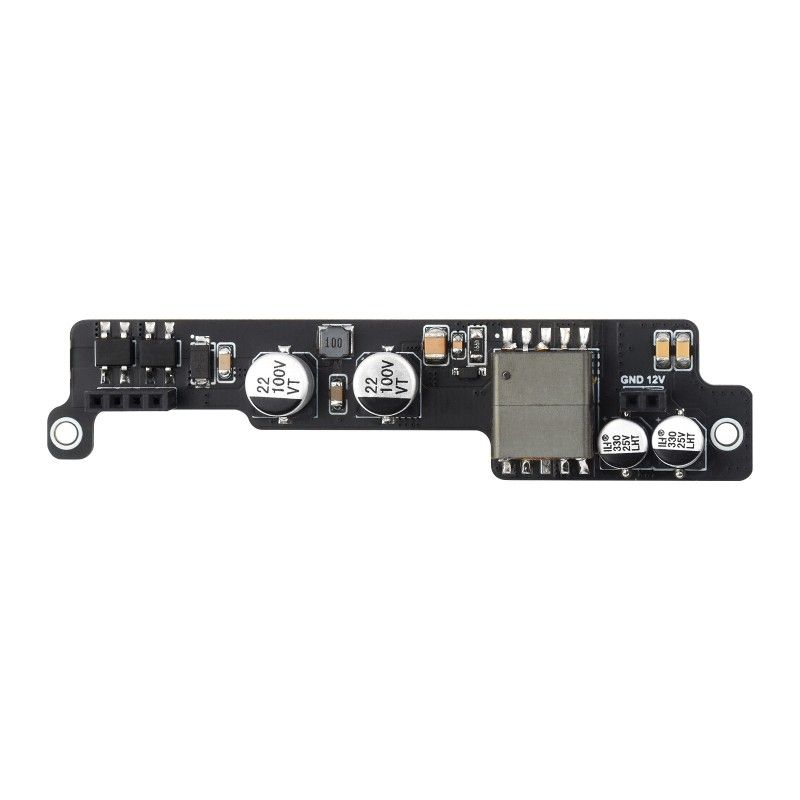

Elements of the board
Note: since the PoE board is small and the temperature of the transformer will be high during operation, please do not touch the transformer and consider adding an additional cooling solution when using this module.

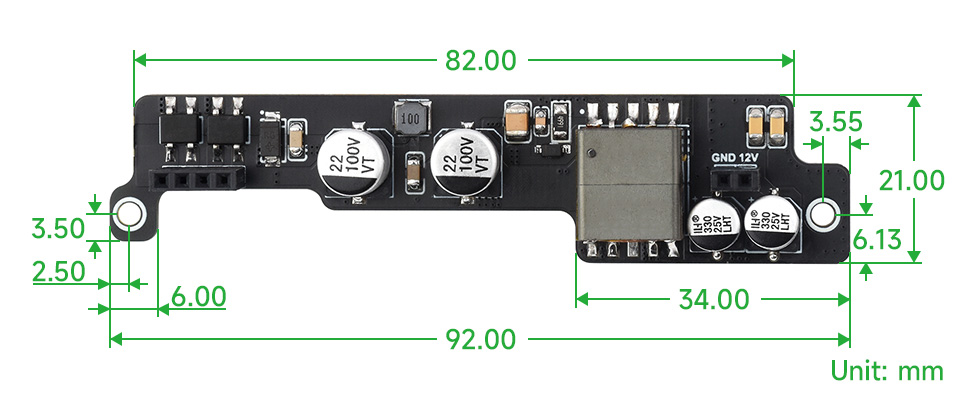

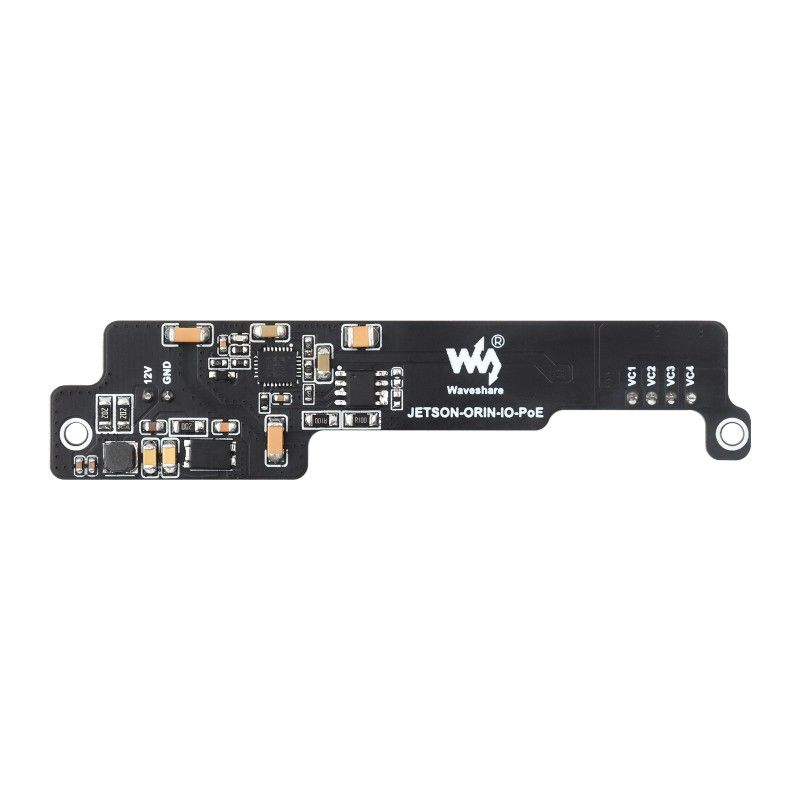

Overall dimensions: 92mm x 21mm

Wiki: www.waveshare.com/wiki/JETSON-ORIN-POE-MODULE

Weight: 0.014 kg

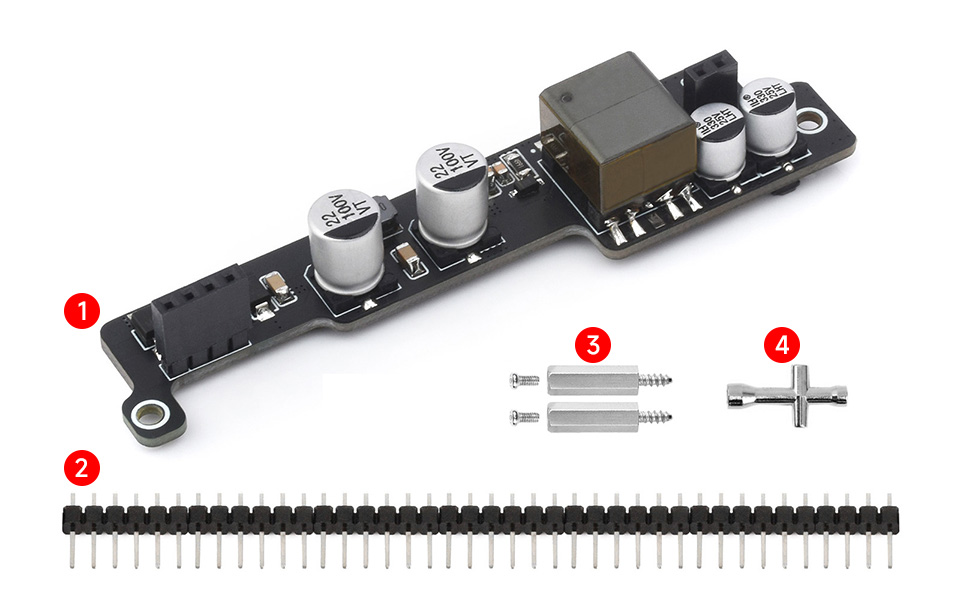

Scope of delivery:

1. JETSON-ORIN-POE-MODULE x1
2. 40PIN pin head x1
3. Package of screws x1 pc
4. Mini cross wrench bushing x1
