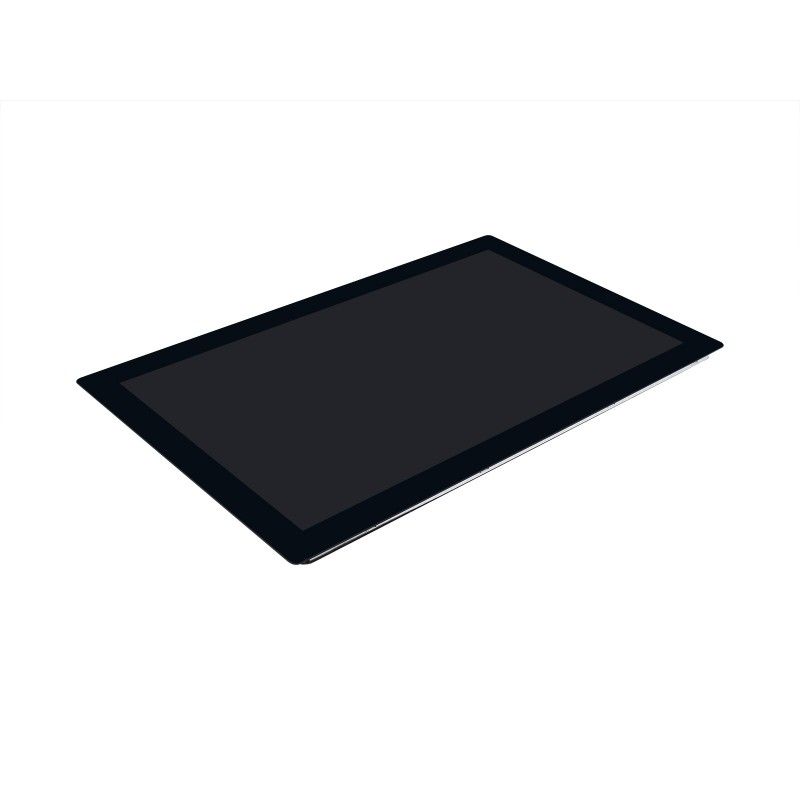

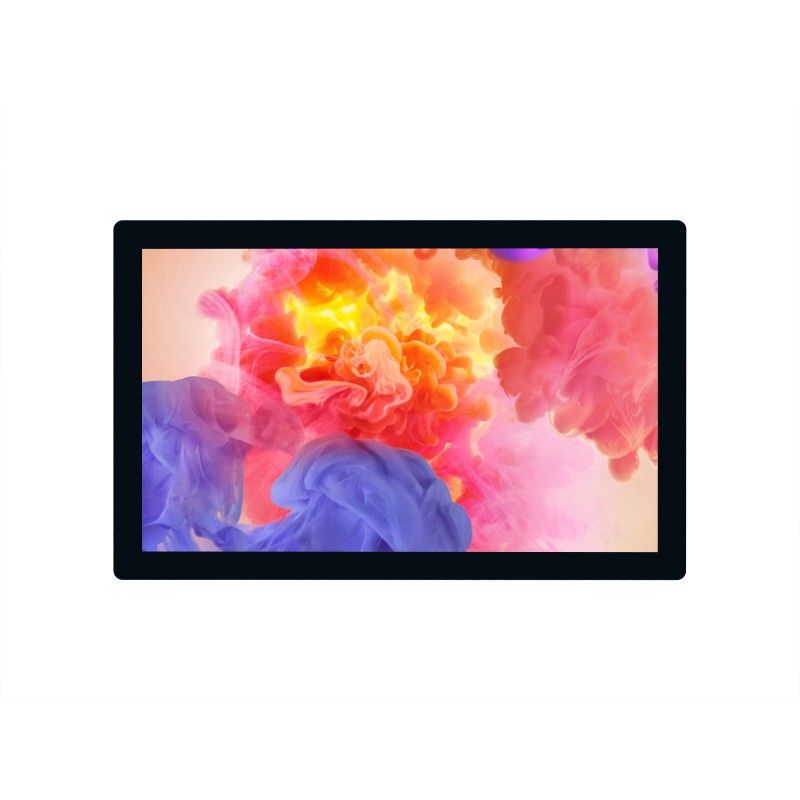

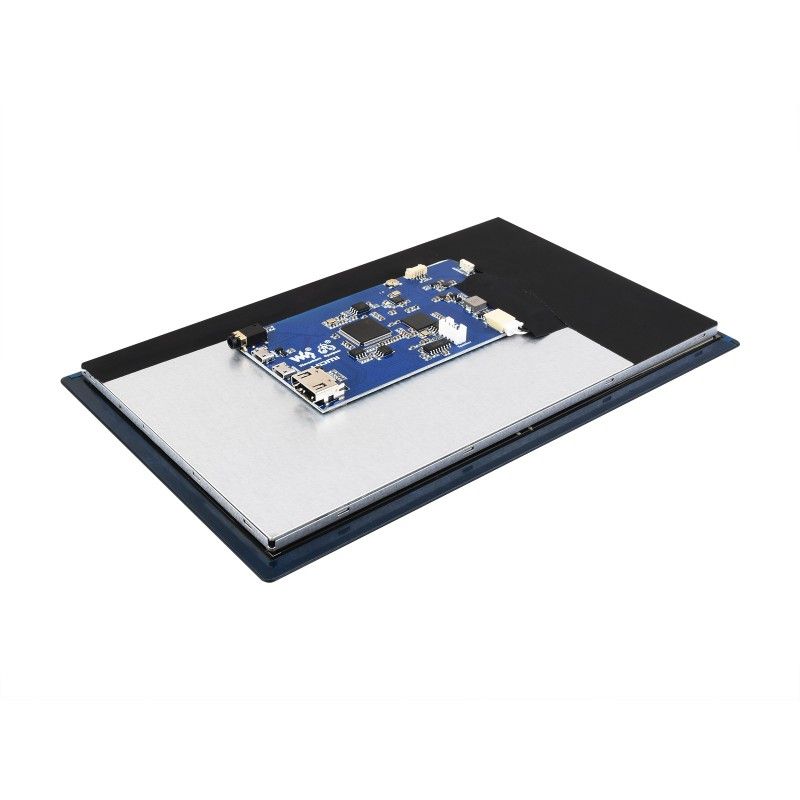

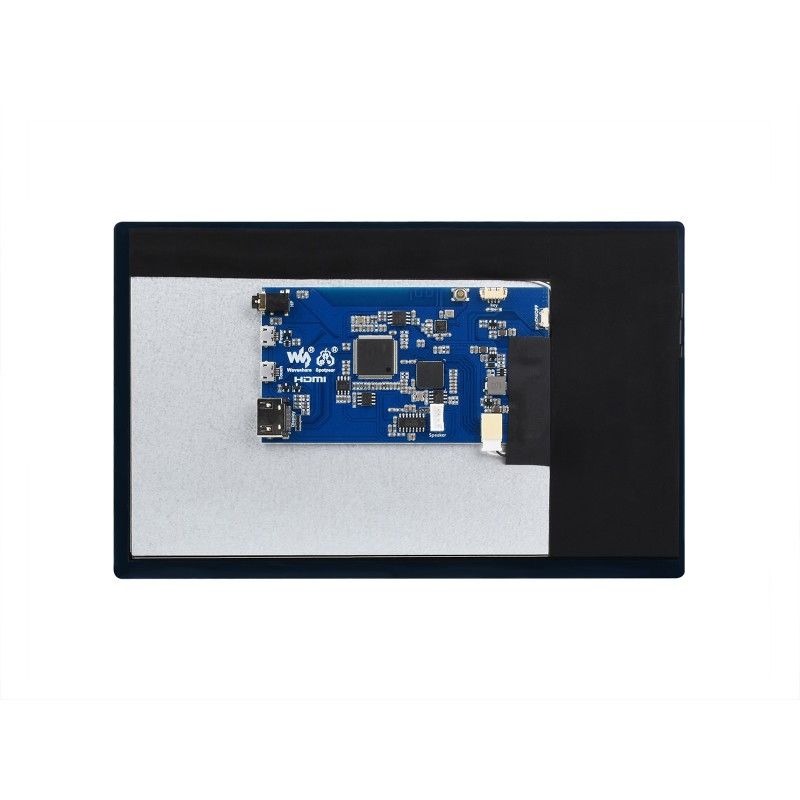

Raspberry Pi 9inch QLED Quantum Dot Display 1280x720 HDMI (24922)

TheRaspberry Pi 9inch QLED Quantum Dot Display 1280x720 HDMI (24922 ) - is a large display designed for use with the Raspberry Pi single board computer or other HDMI capable devices. This display features high image quality through the use of QLED Quantum Dot technology and has a resolution of 1280x720 pixels.

Key features and specifications of the display:

1. Size and resolution: The display has a 9-inch diagonal and a resolution of 1280x720 pixels. This allows you to get a clear and high-quality image.

2. QLED Quantum Dot: QLED is a screen technology that uses quantum dots to improve brightness and color gamut. It delivers richer, more accurate colors than traditional screen technologies.

3. HDMI connection: The display connects to a device, such as a Raspberry Pi, using an HDMI interface. This makes it compatible with many devices that support HDMI output.

4. High image quality: Featuring QLED Quantum Dot technology, this display delivers high quality visuals with vivid and rich colors.

5. Variety of applications: The display can be used for a variety of projects, including media centers, gaming systems, information boards, communication projects, and many others.

This display can be used for a variety of purposes, from simple text display to high quality visual reproduction. It is important to pay attention to the compatibility of the display with the selected platform and its capabilities before purchasing.

The display has the following specifications:

• Size: 9 inches
• Resolution: 1280x720
• Display interface: HDMI
• Display panel: QLED Quantum Dot
• Viewing angle: 178°
• Type of touch: capacitive
• Touch points: 10 points
• Touch interface: USB
• Touch panel: tempered glass
• On-screen menu: Brightness/Contrast
• Brightness: supports DCC/CI control
• Brightness: 450 cd/m²
• Audio output 1: 3.5 mm jack
• Audio output 2: 4PIN connector

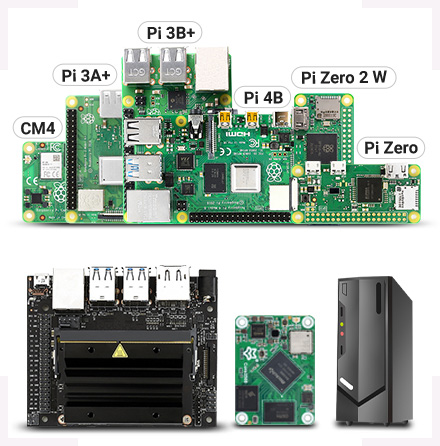

Supported devices and systems

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch screen, no drivers
Supports Ubuntu/Kali/WIN10 IoT, single touch, no drivers
Supports Retropie, no drivers required
Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, no drivers required

Core3566
Supports Linux, 10-point touch screen, no drivers required

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, no drivers

Connection example:

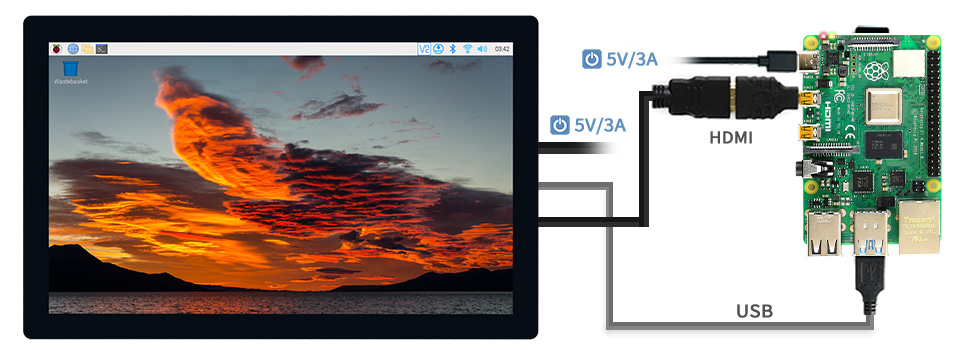

Working with a Raspberry Pi 4B

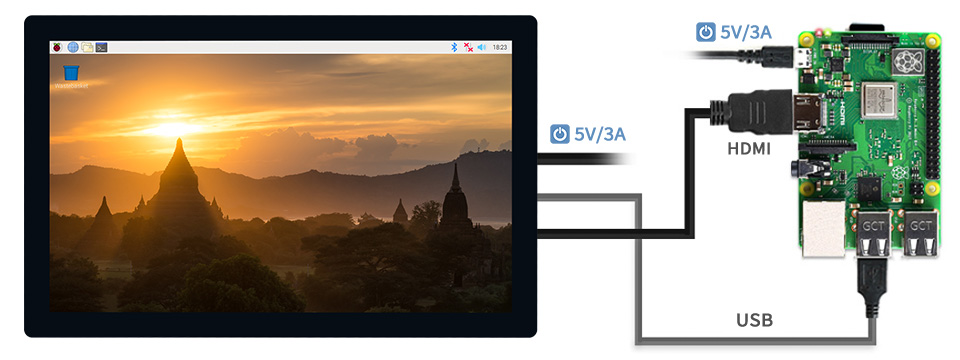

Working with Raspberry Pi 3B+

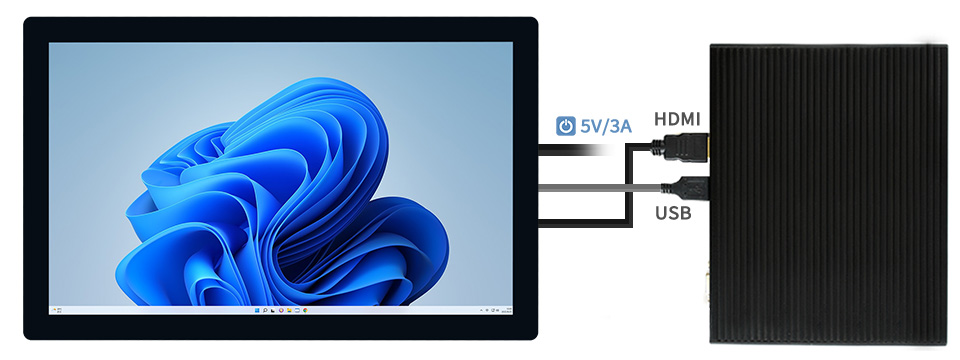

Working with a PC

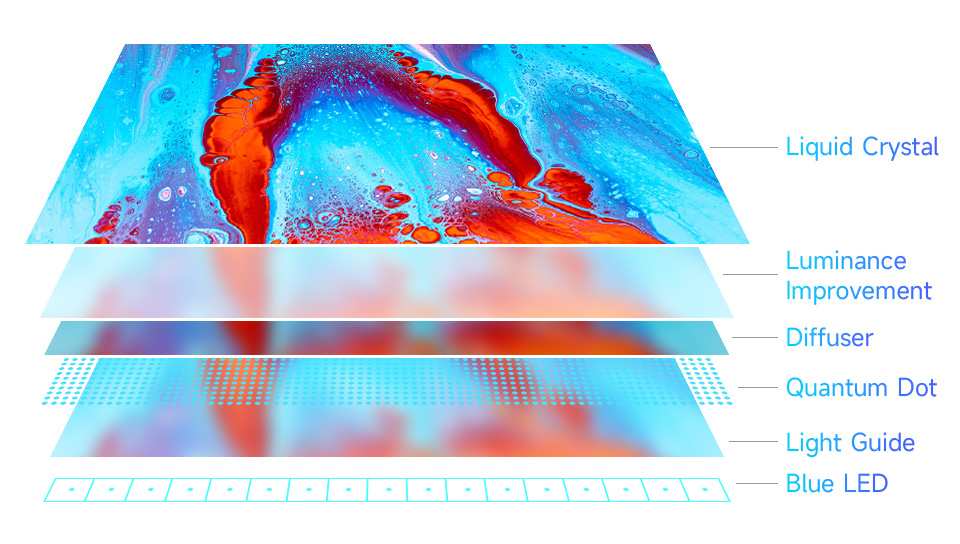

QLED Quantum Dot Technology (QLED Quantum Dot Technology)

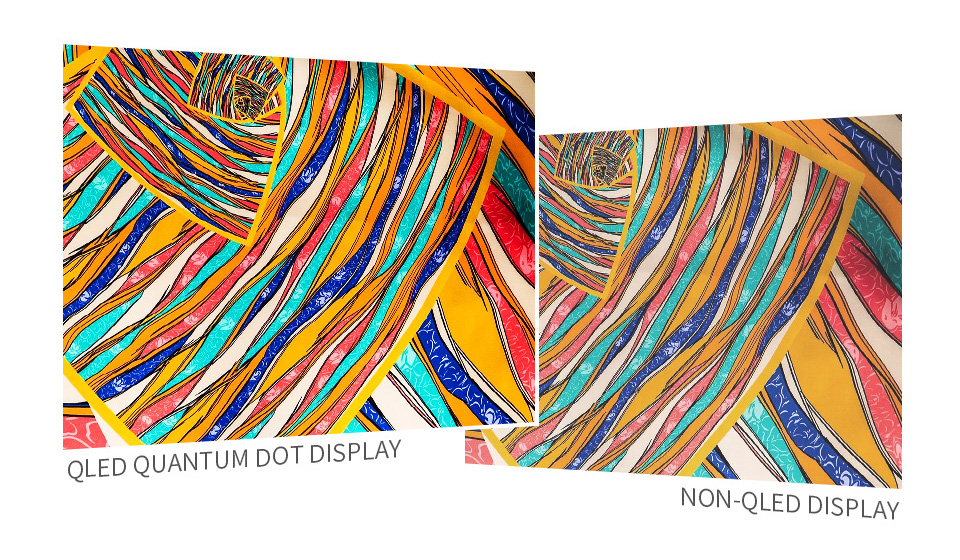

Extended gamut: The color gamut of this QLED display is up to: NTSC 78%, SRGB 90%.

Improved color reproduction: QLED colors are increased by 58.3%, makes the color more pure, vivid

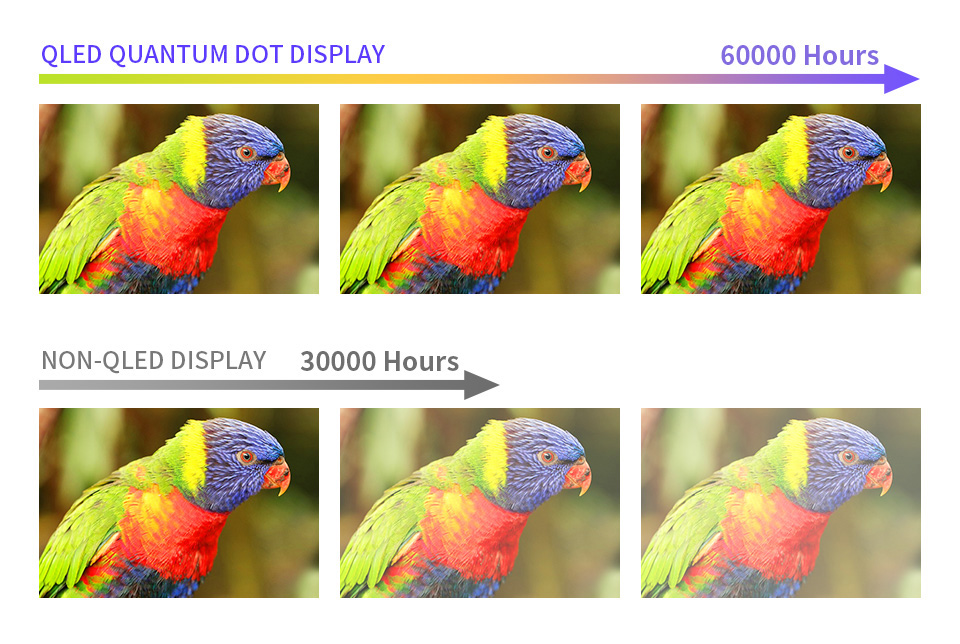

EXTENDED SERVICE LIFE: Due to the inorganic characteristics, the life of QLED LED can be up to 60,000 hours without color degradation.

Touch control (capacitive sensor). Up to 10 control points. Tempered glass front panel.

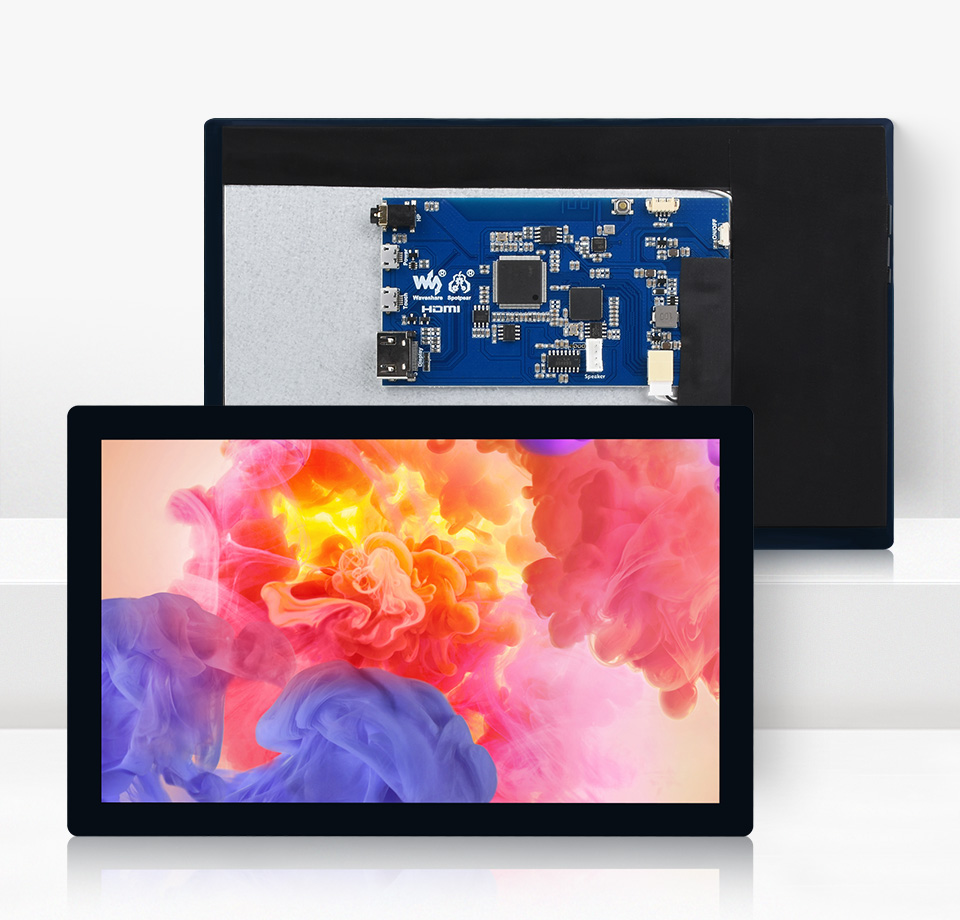

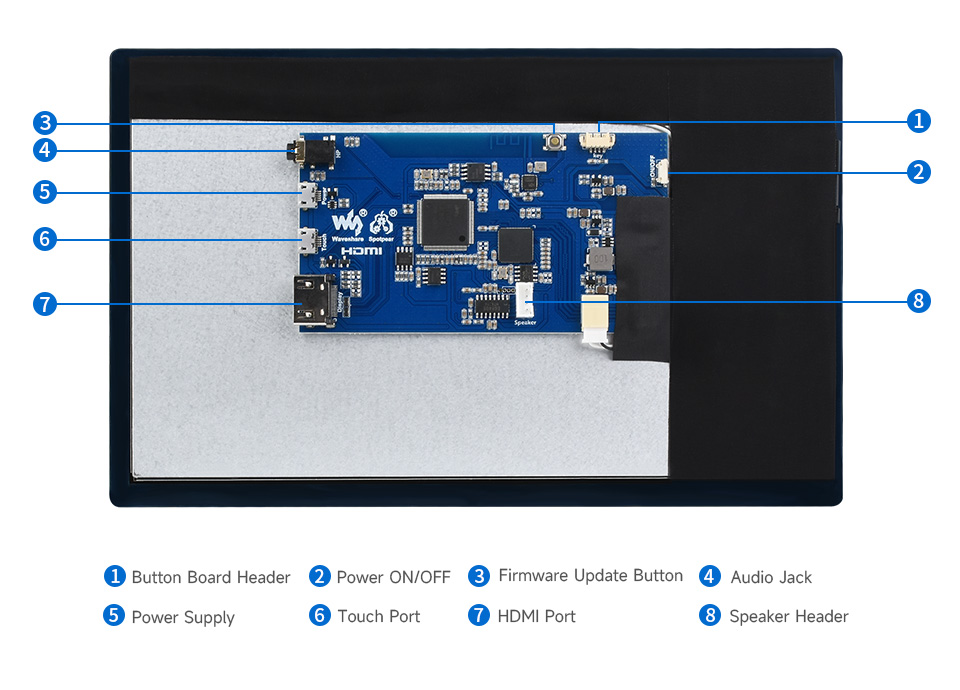

Interfaces:

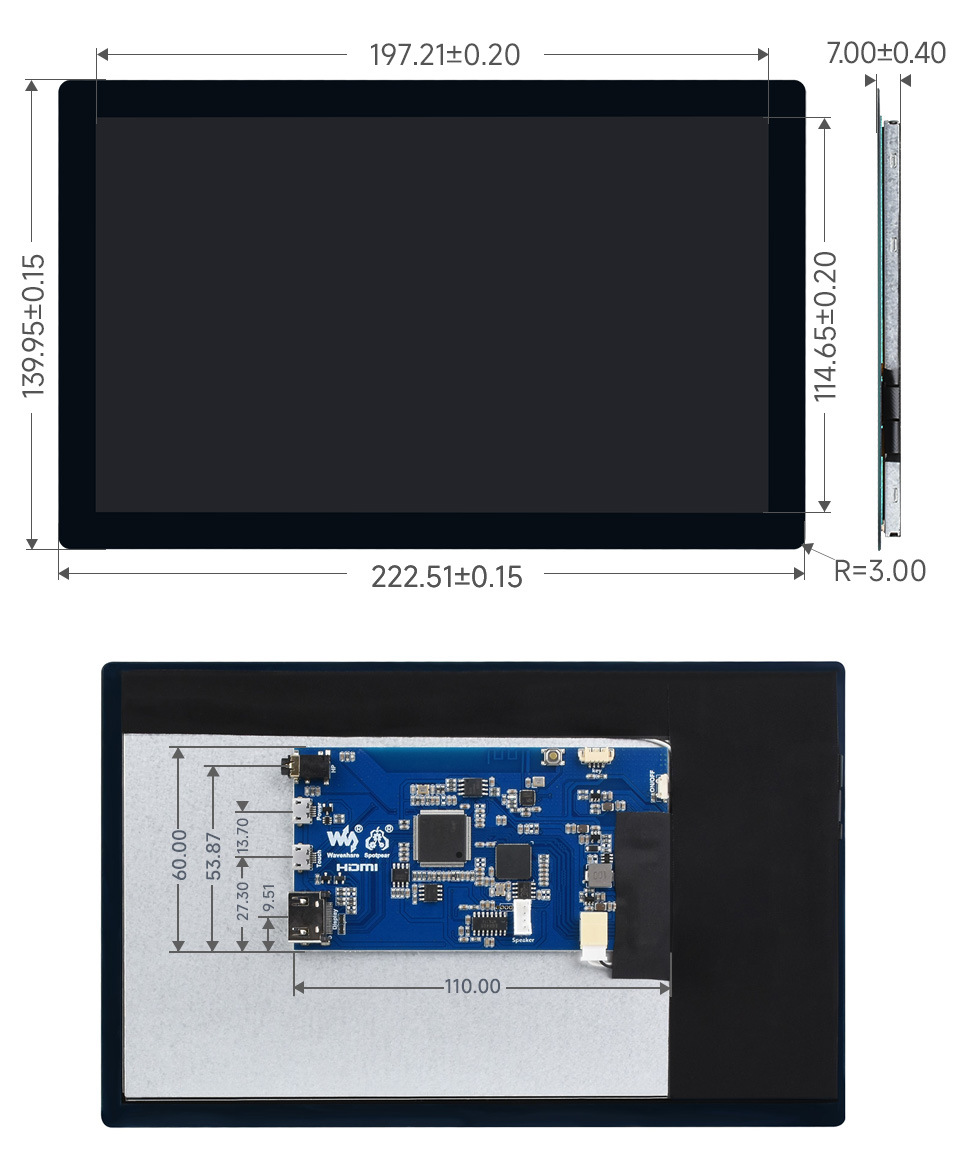

Overall dimensions: 140mm x 222.5mm x 7mm.

Wiki: www.waveshare.com/wiki/9HP-CAPQLED-B

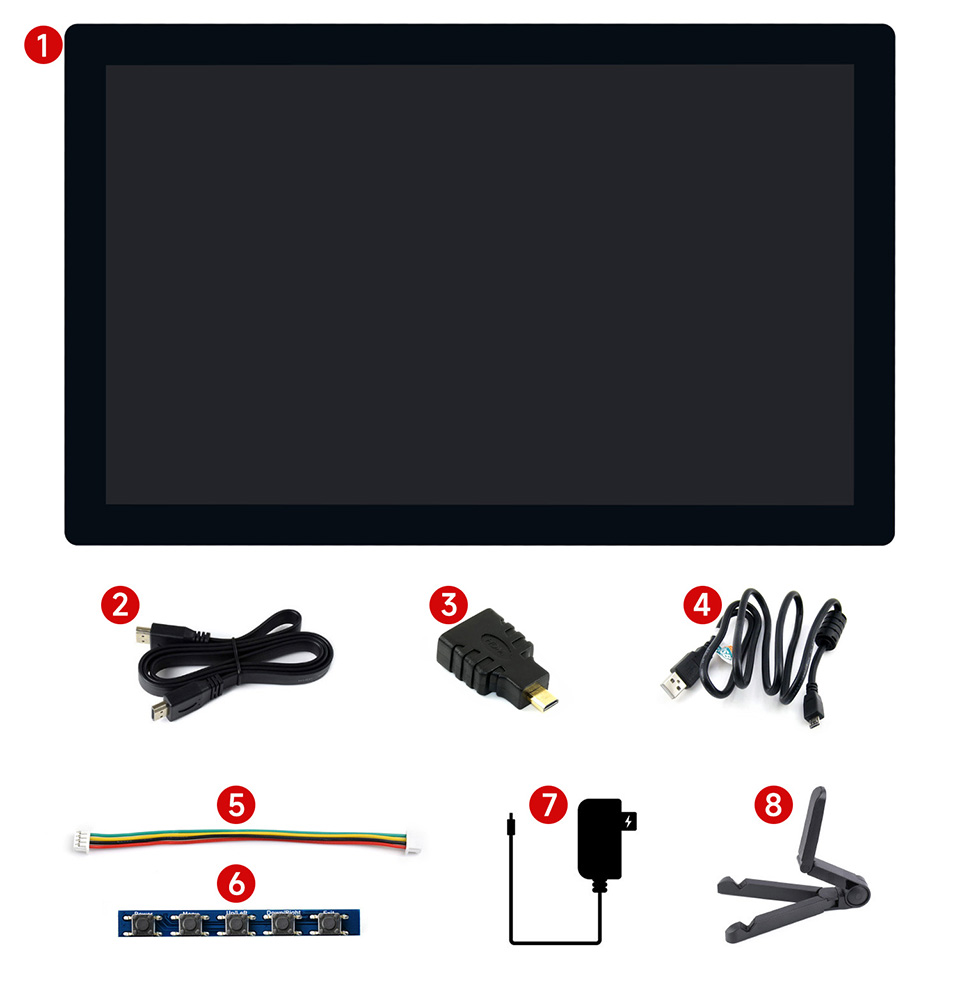

Scope of delivery:

1. 9HP-CAPQLED-B ×1
2. Flat HDMI cable 1 m × 1
3. HDMI to Micro HDMI adapter × 1
4. USB-A to Micro-B cable 1.2 m × 1
5. Button board cable × 1
6. Button board ×1
7. 5V 3A power supply ×1
8. Triangular stand ×1

Weight: 0.825 kg
