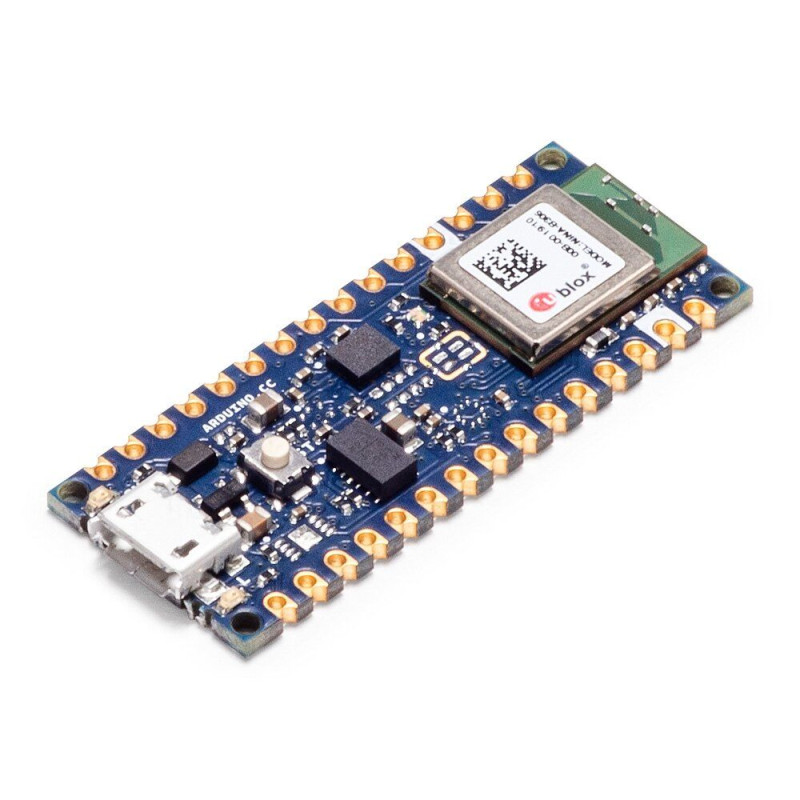

Arduino Nano 33 BLE Without Headers / ABX00030

Name: Arduino Nano 33 BLE Without Headers / ABX00030
Brand: Arduino
SKU: V80236
Price: 23.00 GBP
Availability: OutOfStock

Brand: Arduino Product Code: ABX00030

All about product

Description

Specification

Reviews 0

Questions0

new

Popular

Sold Out

Arduino Nano 33 BLE Without Headers / ABX00030

Out Of Stock

£23.00

Country of origin:Made in Italy

Series:Nano Family

Type:Boards & Modules

Delivery

Royal Mail 1st Class

£3.50

DHL Express

£9.99

Payment

ApplePay

Google Pay

bank transfer

Secure Payment

Your payment information is processed securely.
We do not store credit card details.

Arduino Nano 33 BLE Without Headers / ABX00030

£23.00

Description

The Arduino Nano 33 BLE is an evolution of the traditional Arduino Nano, but with a much more powerful nRF52840 processor from Nordic Semiconductors and a 9-axis inertial measurement unit that includes an accelerometer, gyroscope and magnetometer.
The microcontroller, based on the ARM® Cortex M4F architecture, impresses not only with its power and memory, but also with built-in Bluetooth 5 and NFC modules that are fully supported by the Arduino environment.
BLE mesh, ZigBee, Thread, and ANT are supported by Nordic's original SDK.
The board was developed for use in wearable devices, as well as for a wide range of scientific experiments where wireless communication over short distances is required. The 9-axis inertial sensor allows this board to be used in complex robotics projects, training trackers, digital compasses, vibration sensing systems, etc.

Specifications:

Microcontroller	nRF52840
Operating voltage	3.3В
Input voltage of the board (limit)	21В
Constant current on GPIO	15 mA
Clock frequency	64 MHz
Flash memory memory	1 MB
SRAM	256 KB
Number of GPIO contacts	14
Number of PWM channels	14
UART CHANNELS	1
SPI	1
I2C	1
Number of ADC channels	8 (12 bits, 200 kHz)
Number of DAC channels	0
Number of EXTI channels	all digital contacts
USB-UART controller	Internal peripheral unit MK
Accelerometer / gyroscope / magnetometer	LSM9DS1
Length	45 mm
Width	18 mm
Weight	5 g (with connector)

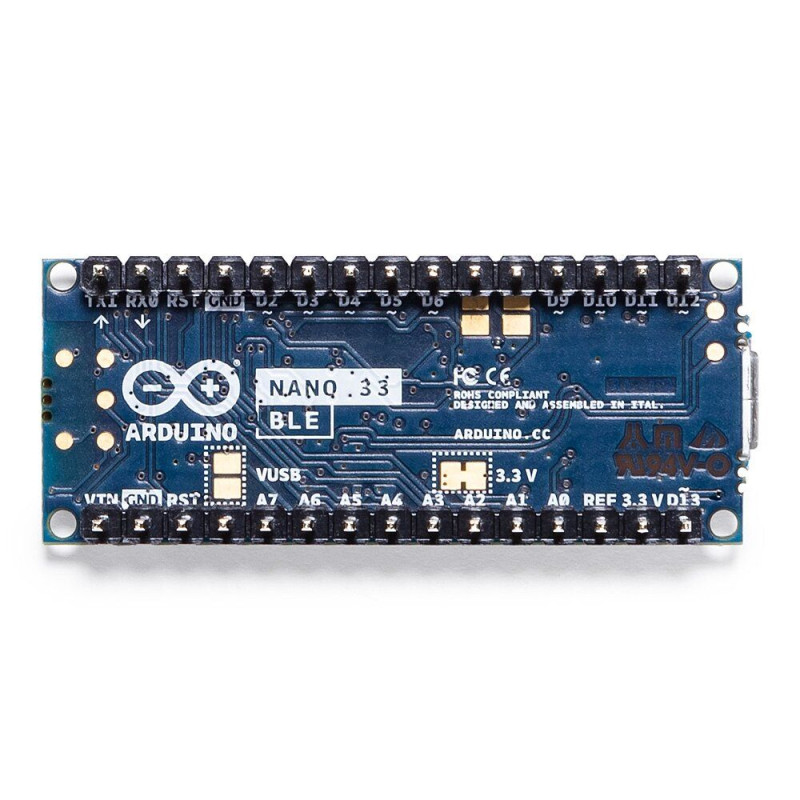

The board is available in two versions: with a soldered GPIO connector(ArduinoNano 33 BLE With Headers / ABX00034) and without it(Arduino Nano 33 BLE Without Headers / ABX00030). This makes it possible to embed the Arduino Nano 33 BLE in ready-made projects by soldering directly onto another board, since its underside has no components.

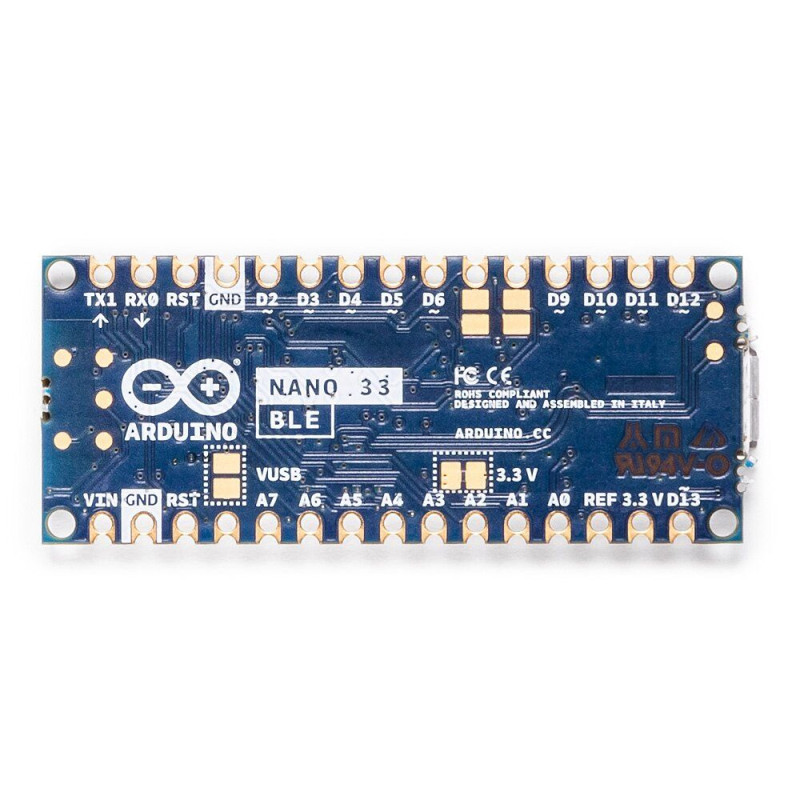

Board connectors:
