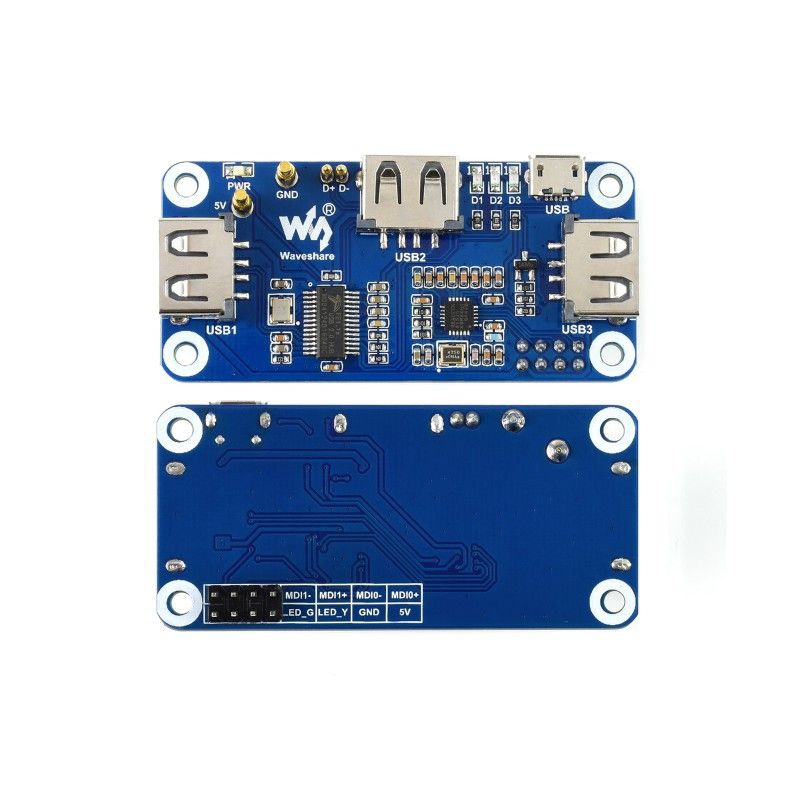

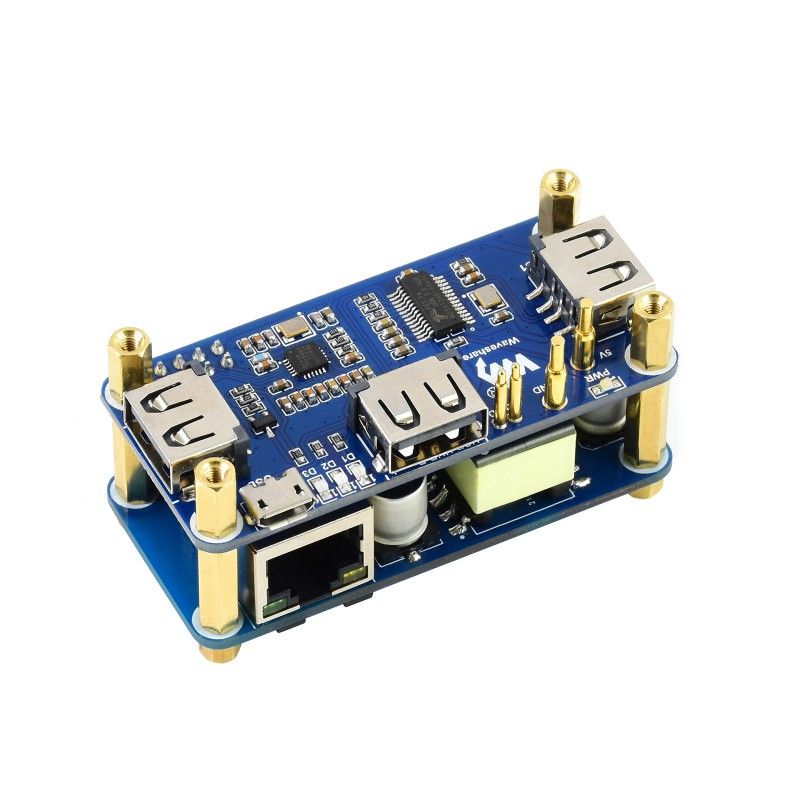

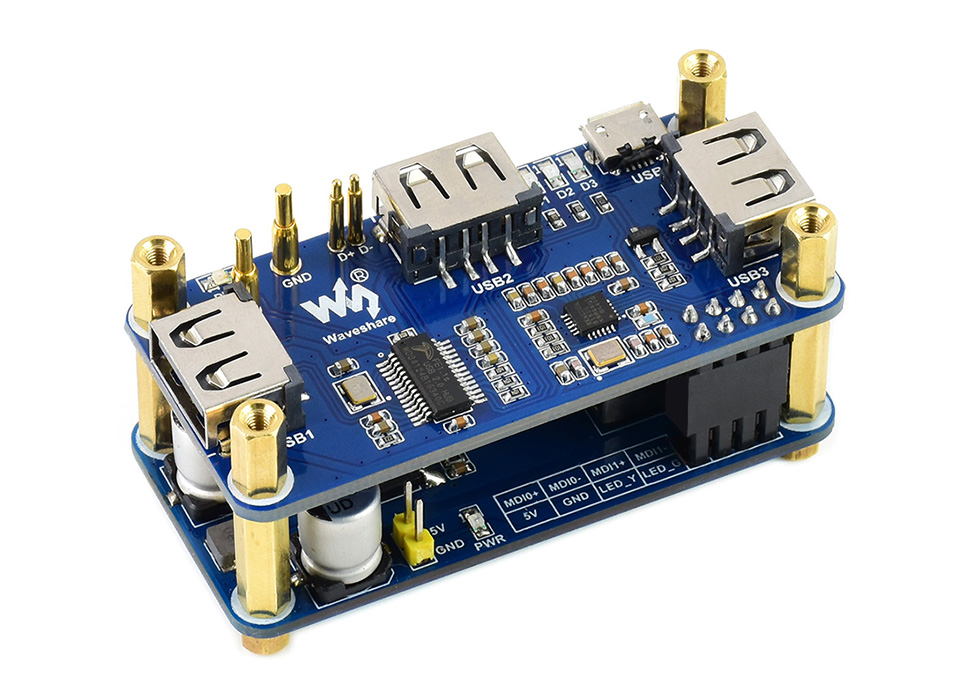

Raspberry Pi Zero Power over Ethernet (PoE) HAT expansion board (19635)

The Raspberry Pi Zero Power over Ethernet (PoE) HAT (19635) expansion board allows you to get rid of unnecessary wires and power supply and provide power to Raspberry Pi Zero/Zero W/Zero WH microcomputers via an 802.3af-compliant Ethernet network port.

Main features:

• Designed for Raspberry Pi Zero, compatible with Zero series boards
• Includes RTL8152B Ethernet chip with 10M/100M auto-negotiating RJ45 port
• PoE (Power over Ethernet) function, compatible with 802.3af

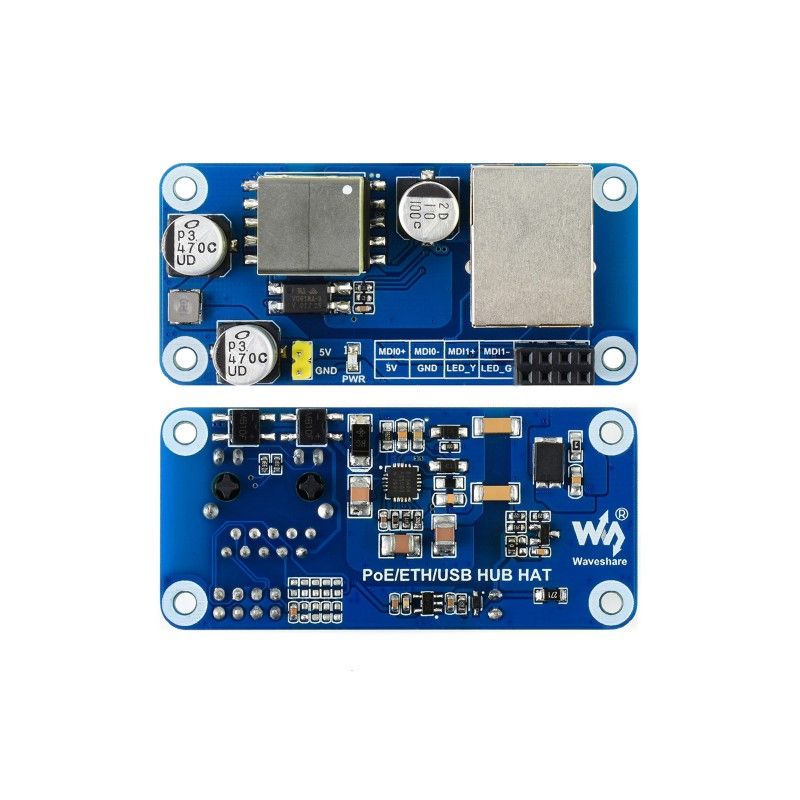

• Fully isolated SMPS (switching power supply)

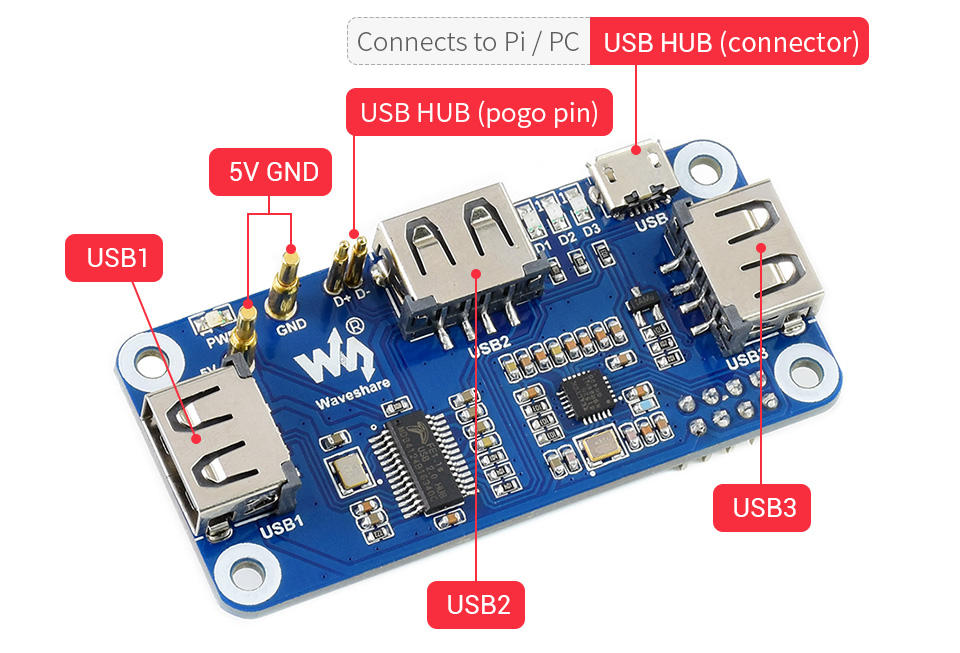

• 3x expanded USB ports, compatible with USB 2.0/1.1

Specifications:

PoE power input: 37V 57V DC

Power output: 5V 2.5A DC

Network standard: IEEE 802.3af-compliant PoE

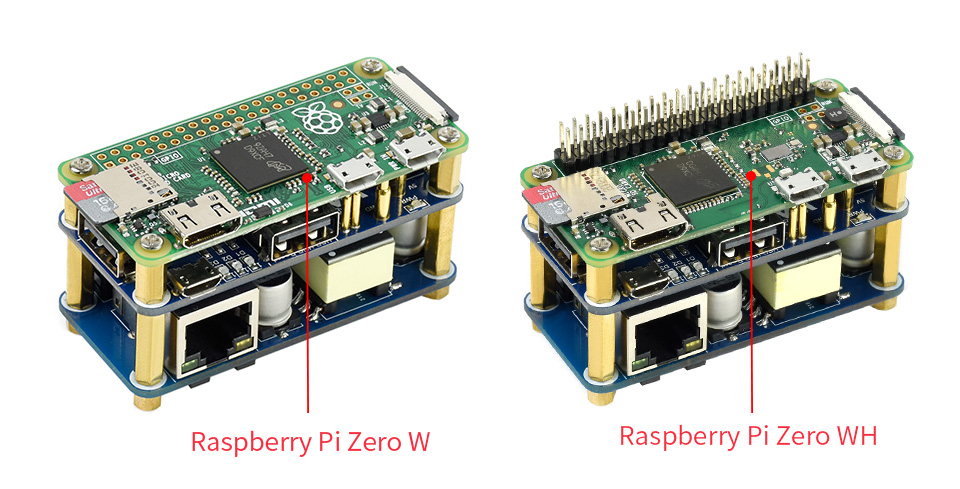

The device is compatible with all series of the Raspberry Pi Zero microcomputer: Zero W, Zero WH

It has 3 USB2.0-compatible ports.

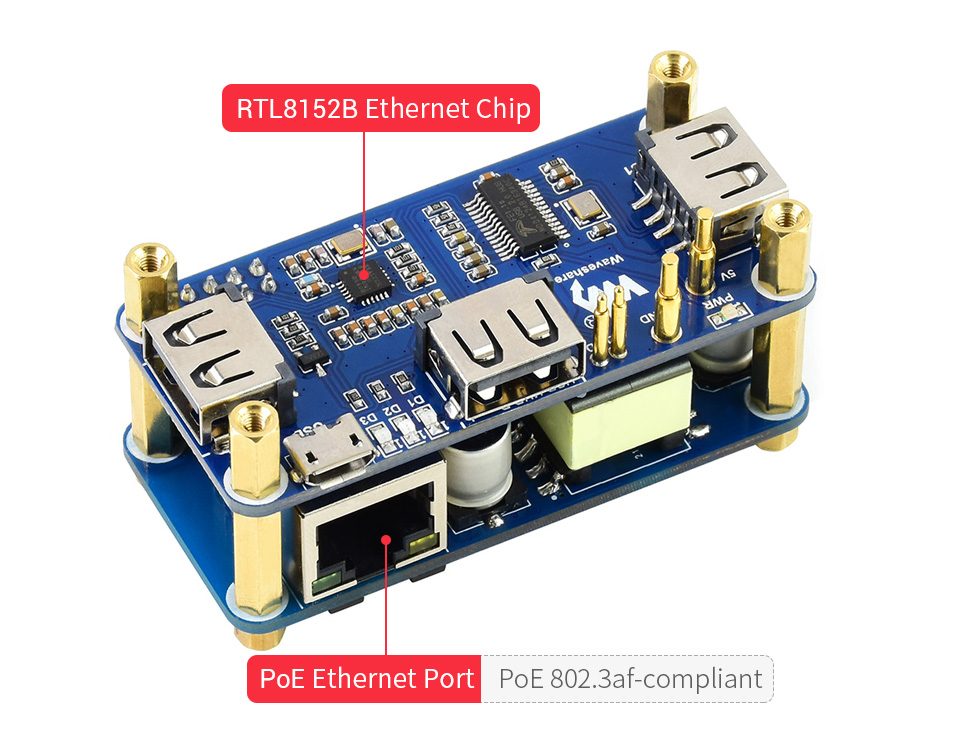

Advanced Ethernet port provides USB to Ethernet conversion using RTL8152B chip, auto-negotiation 10M/100M

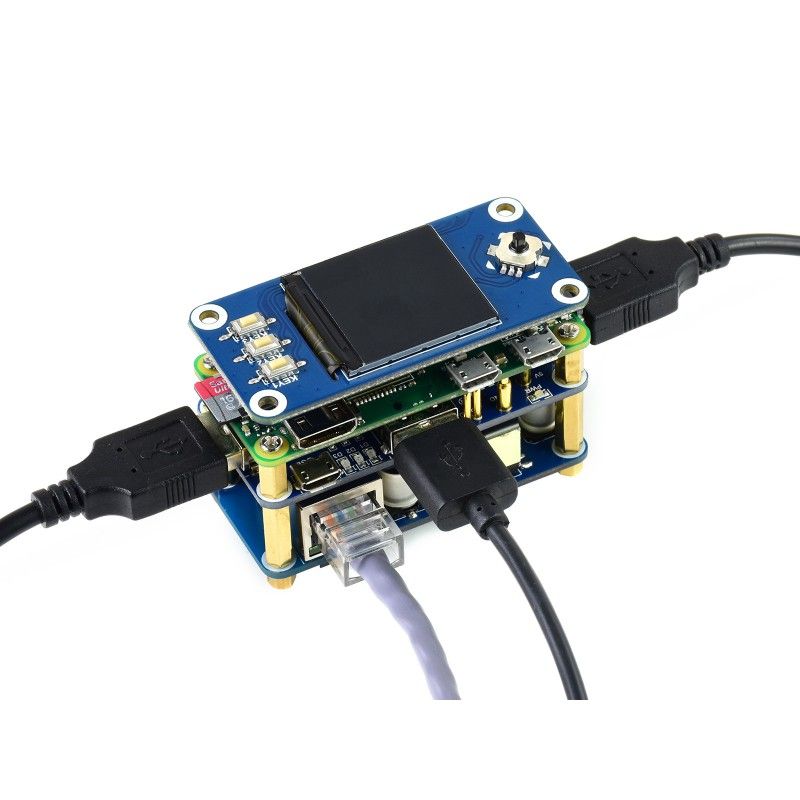

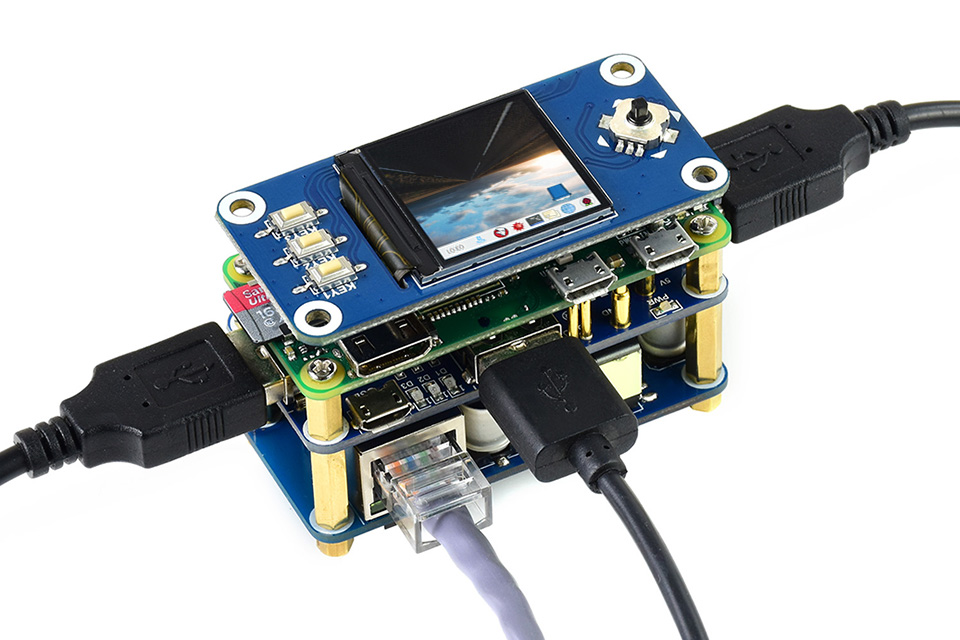

Example of use:

Please note: Raspberry Pi Zero, LCD display and MicroSD card are NOT included in the board package.

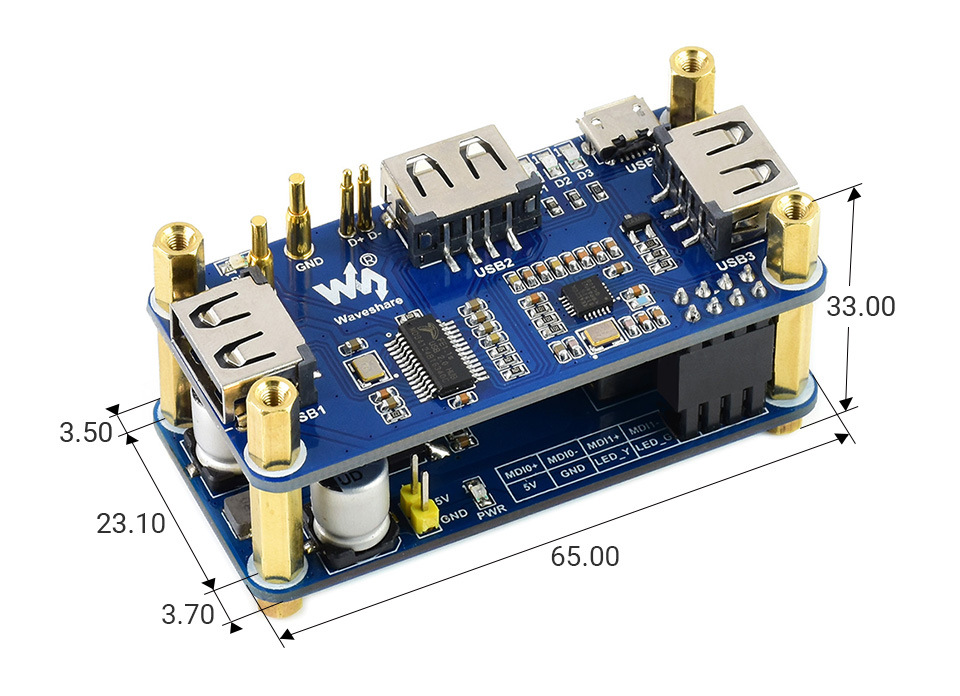

Overall dimensions: 65mm x 23.10mm x 30.30mm

Information for developers (Wiki): PoE/ETH/USB_HUB_HAT

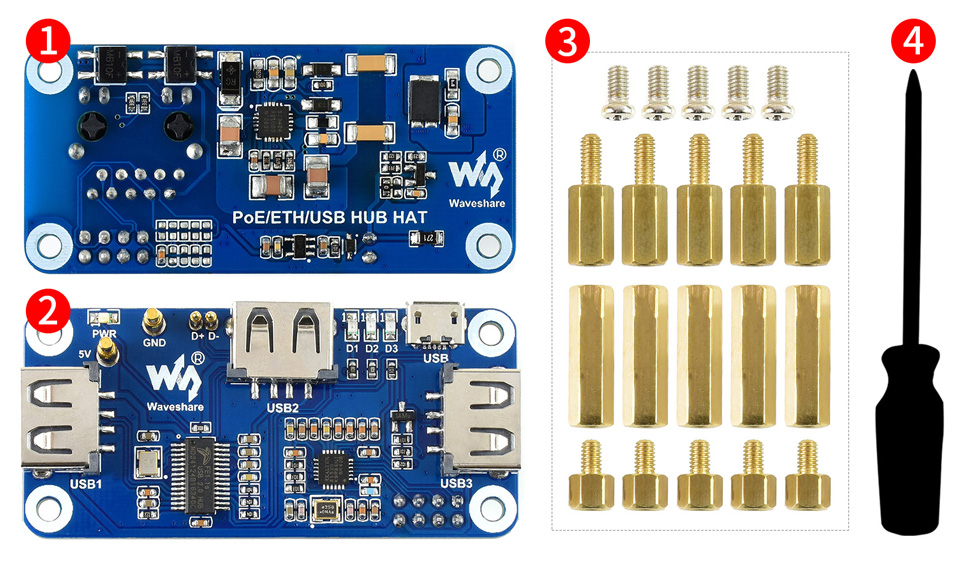

The package includes:

1. PoE/ETH/USB HUB HAT base board x1
2. USB HUB Board x1
3. Mounting kit x1
4. Screwdriver x1

Weight: 0.063 kg
