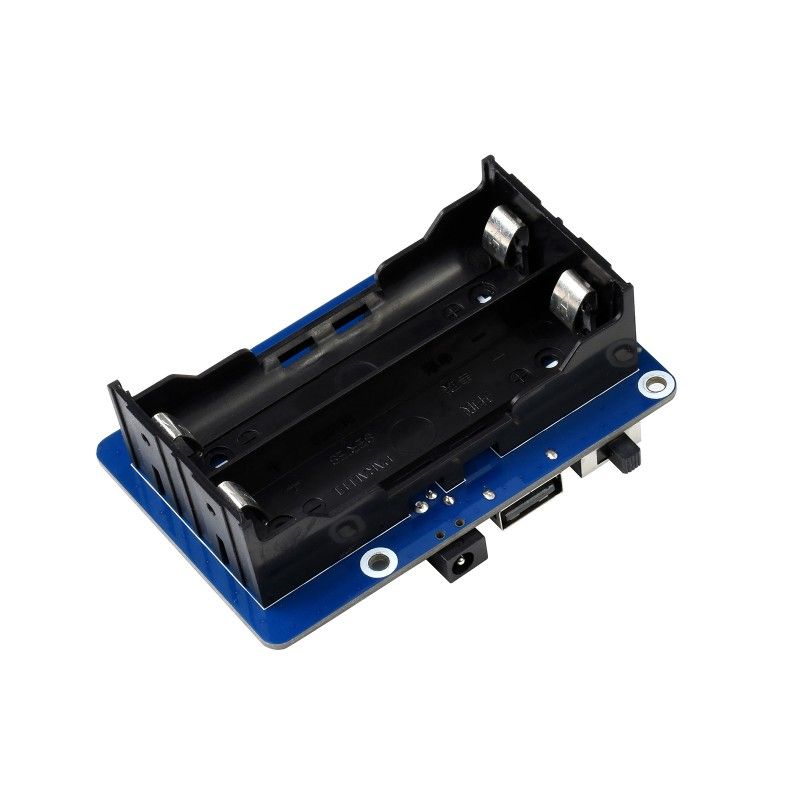

Raspberry Pi UPS HAT Pogo Pins Connector expansion card (20568)

The Raspberry Pi UPS HAT Pogo Pins Connector (20568) expansion board provides the functionality of a 5V, 5A uninterruptible power supply for the Raspberry Pi. The device operates from both the power connector on the board and rechargeable batteries, automatically switching to the available power source, this board will keep your Raspberry Pi running smoothly

Main features:

• Designed for the Raspberry Pi series, compatible with Raspberry Pi 3/3B+/4B etc.
• I2C bus communication, real-time monitoring of voltage, current, power and remaining battery capacity
• Multiple battery protection circuits: overcharge/discharge protection, overcurrent protection, short circuit protection and reverse protection, and equalizing charge function
• Built-in 5 V regulator, constant output current up to 5 A
• USB 5V output, convenient for powering other boards
• Battery warning indicators, easy to check if the battery is connected correctly
• Comes with development resources and manual

Specifications:

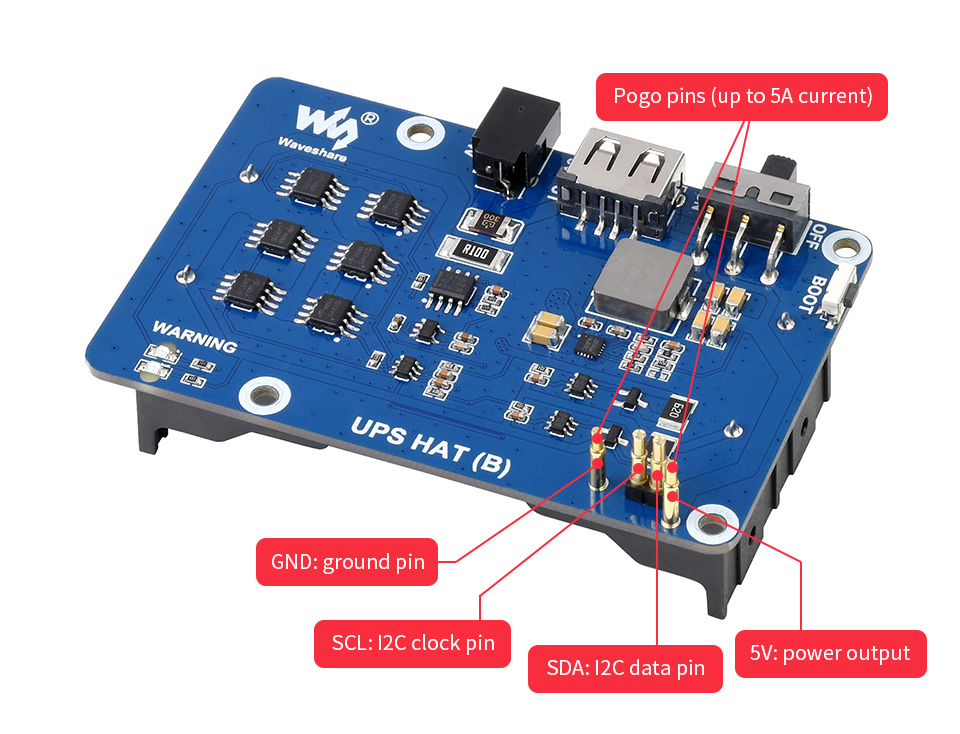

Pogo Pins connector

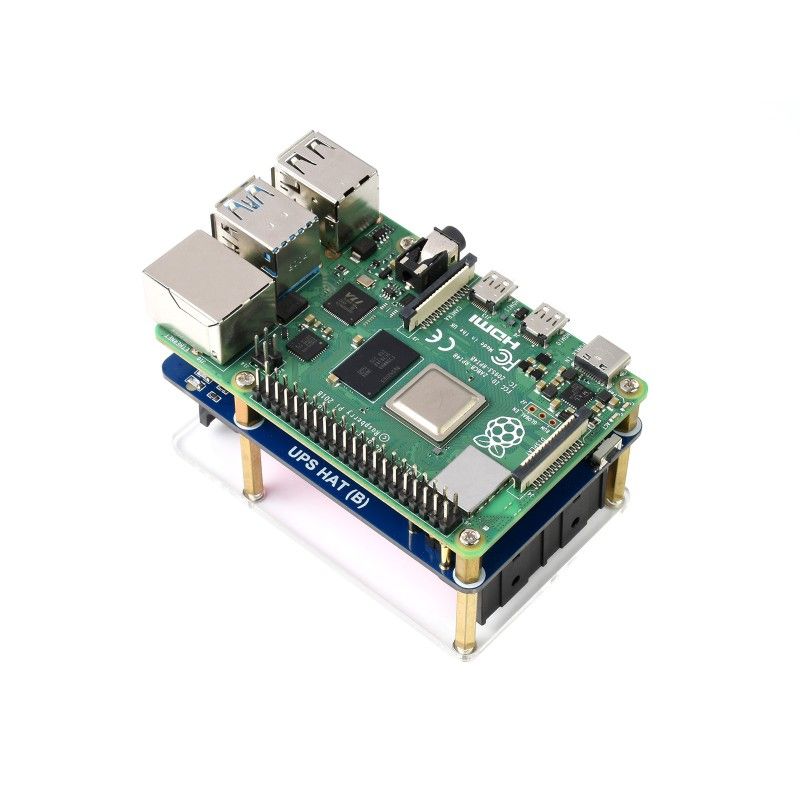

It is possible to power the Raspberry Pi through the Pogo pins, without using any GPIO resources. This power supply method is compatible with Raspberry Pi 3 / 3B + / 4B, etc.

Real-time monitoring

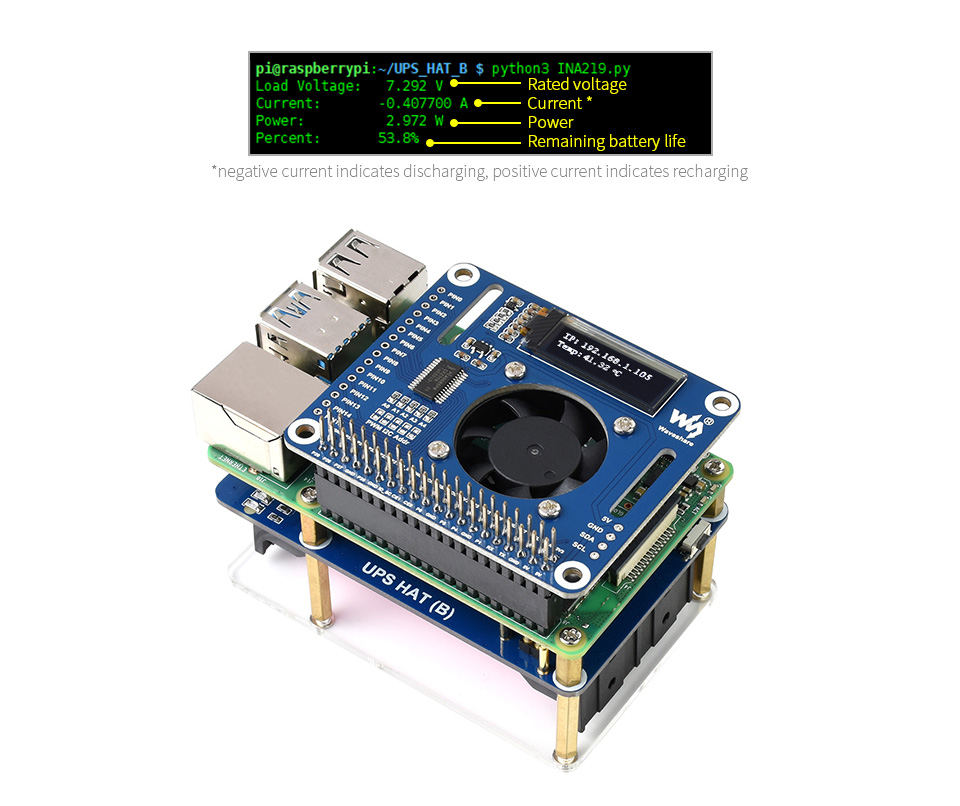

Monitor the voltage, current, power and remaining capacity of the batteries via I2C. When the voltage drops too low, you can save the files correctly and then shut down the system via software to avoid data loss.

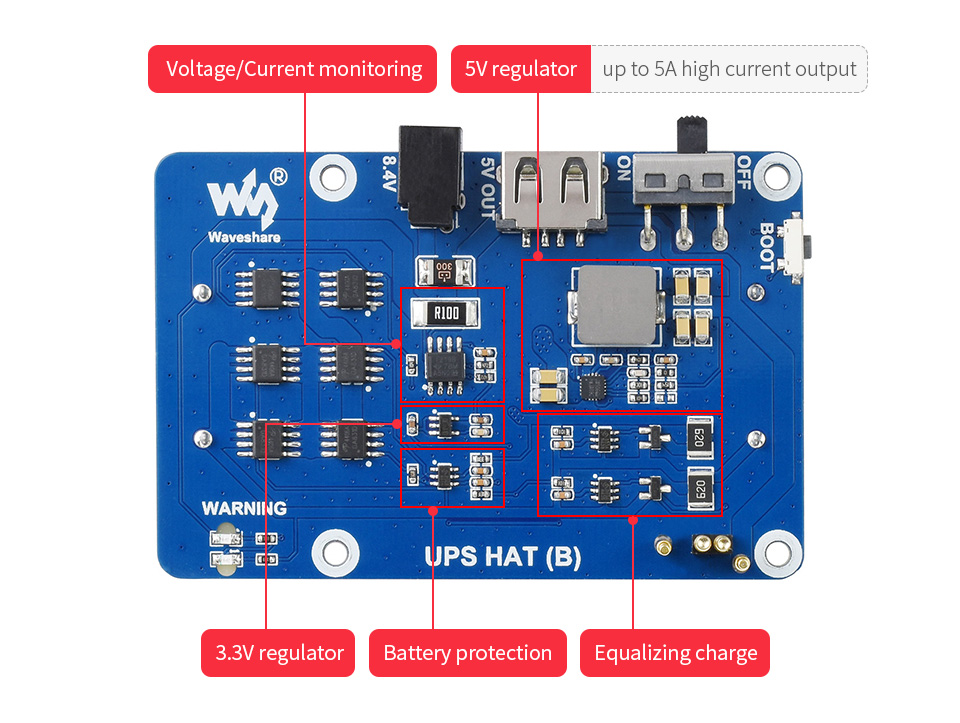

Safe and stable circuitry
Overcharge/discharge, overcurrent, short circuit and reverse polarity protection circuits.

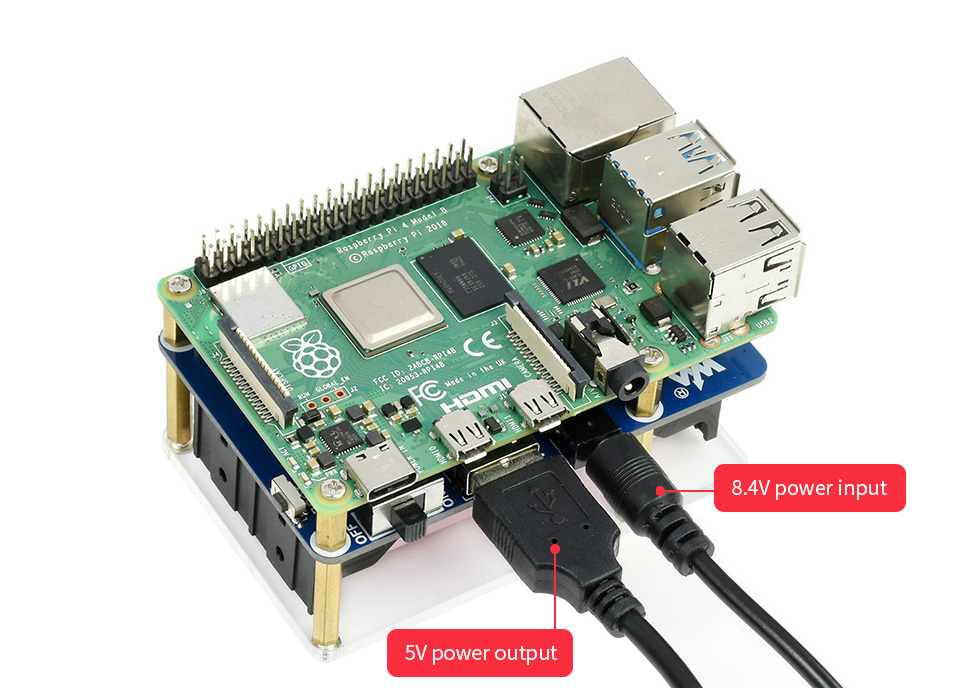

Convenient 5V USB output for powering other boards

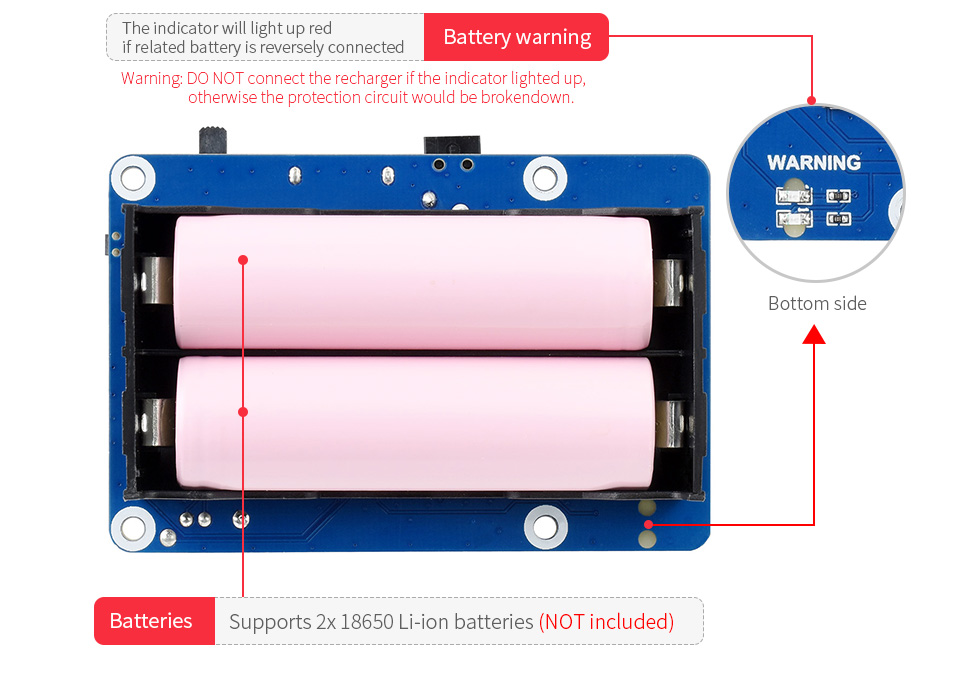

Low charge warning indicators make it easy to check if the battery is connected correctly

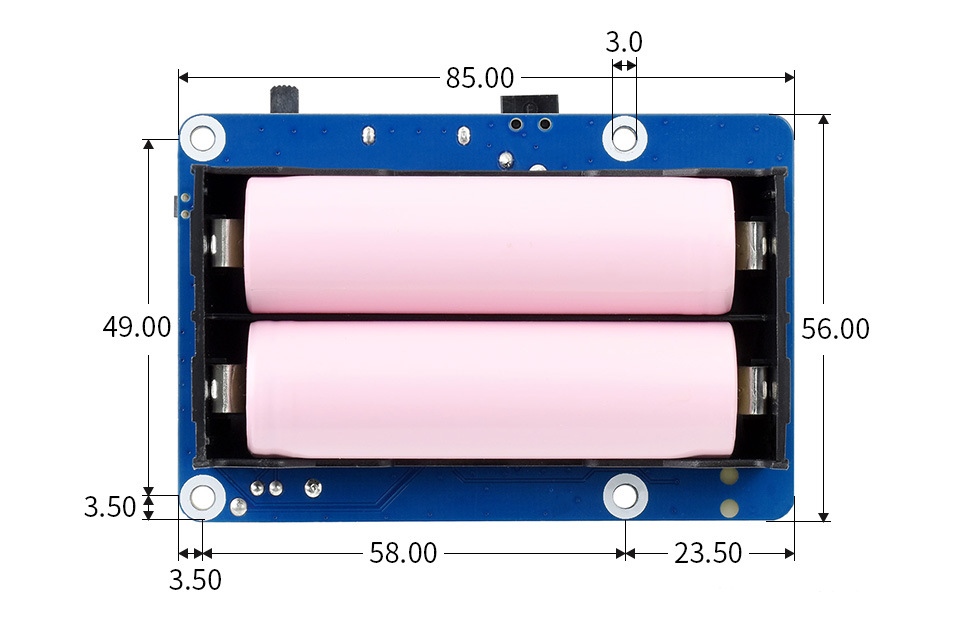

Overall dimensions: 85mm x 56mm

Information for developers (Wiki): UPS_HAT_(B)

Scope of delivery:

1. UPS HAT (B) board x1
2. 8.4V battery charger x1

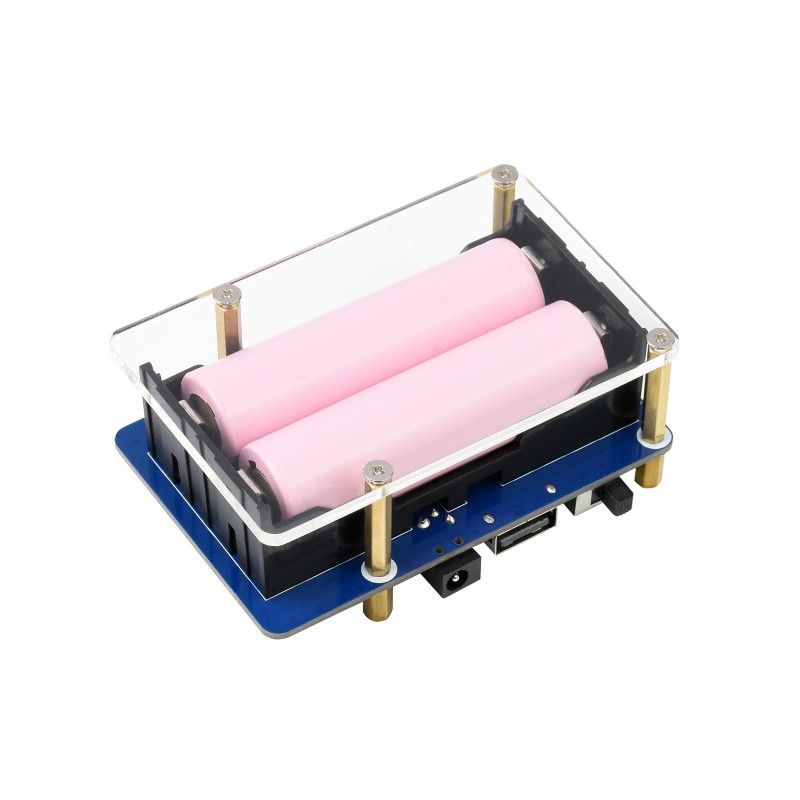

3. Acrylic protective panel x1
4. Mounting kit x1

1. 2. 3. 4.
