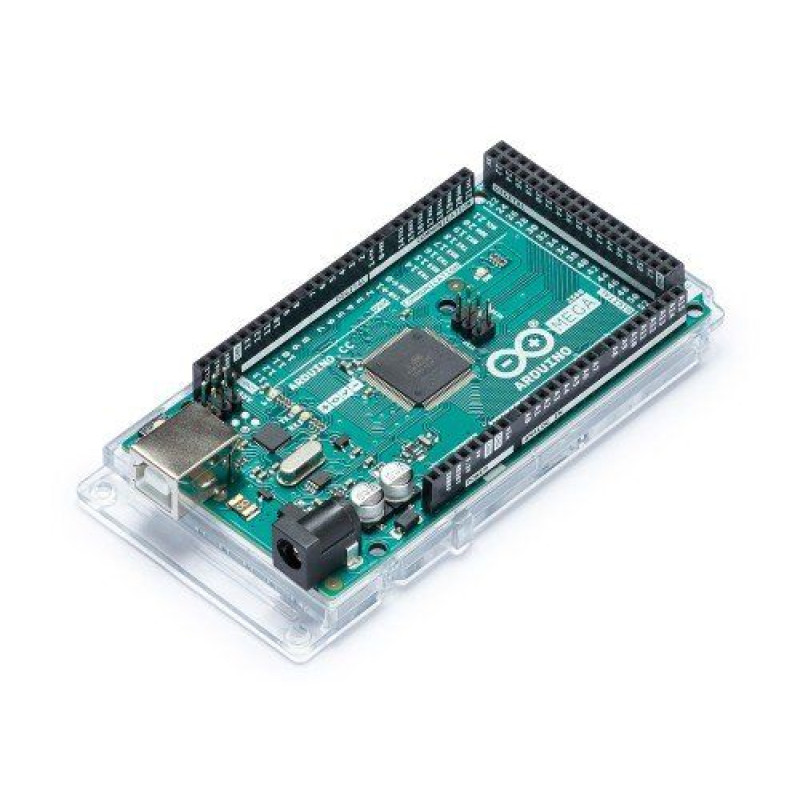

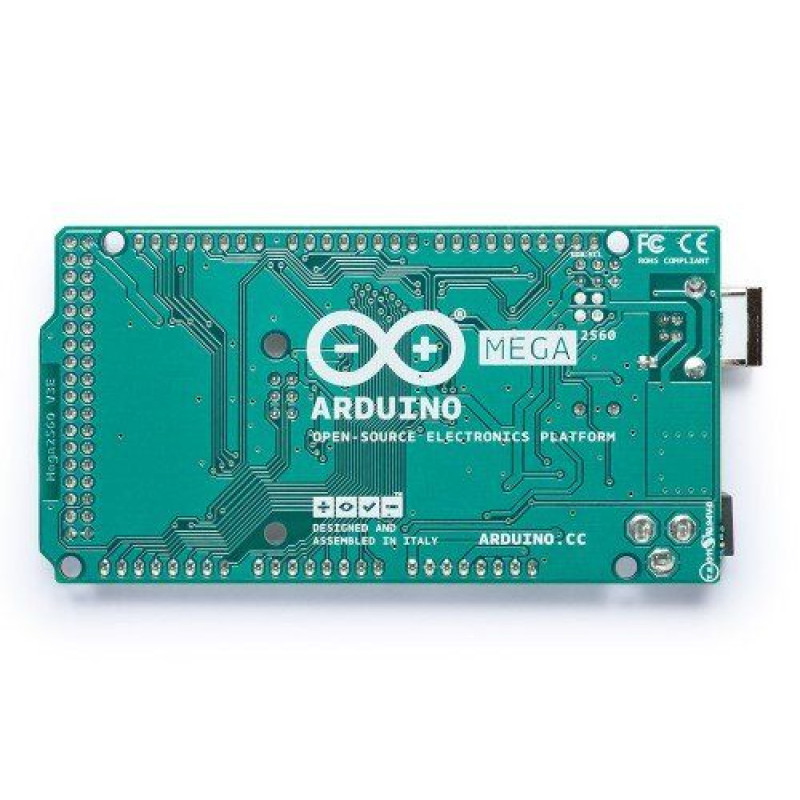

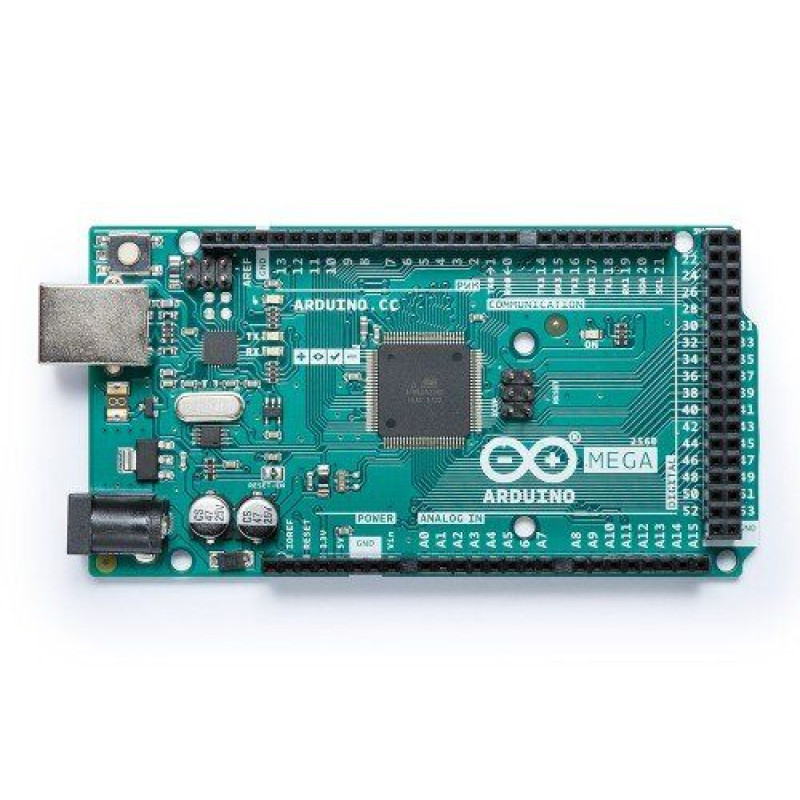

Arduino Mega 2560 Rev3 / A000067

TheArduino Mega 2560 Rev3 / A000067 is a microcontroller designed for more complex and advanced projects. This board is ideal for use in robotics or for 3D printing.

Arduino Mega 2560 is designed on the ATmega2560 microcontroller with a frequency of 16MHz. It has 54 digital inputs / outputs, 15 of which can operate in PWM mode, 16 analog inputs, 4 hardware serial UART ports for communication with a computer and other devices, a USB connector, an external power connector, an ICSP header and a Reset button. The board has a built-in ATmega16U2 USB serial port microcontroller at a frequency of 16 MHz. To start working with the Mega, it is enough to simply supply power from an AC/DC adapter or battery, or connect it to a computer using a USB cable. Mega 2560 is compatible with almost all expansion cards designed for Uno and Duemilanove.

The Mega 2560 is an improved version of the Arduino Mega.

Main features:

• Built on the high-performance 8-bit AVR® ATmega2560 microcontroller.
• It has the ability to connect to multiple devices via 4 hardware serial ports (UART).
• The Mega 2560 has 54 digital pins, 16 of which can be used as analog pins and 15 support PWM.
• EEPROM: The ATmega2560 has 4 KB (4096 bytes) of EEPROM, a memory that is not erased when the power is turned off.

Technical characteristics:

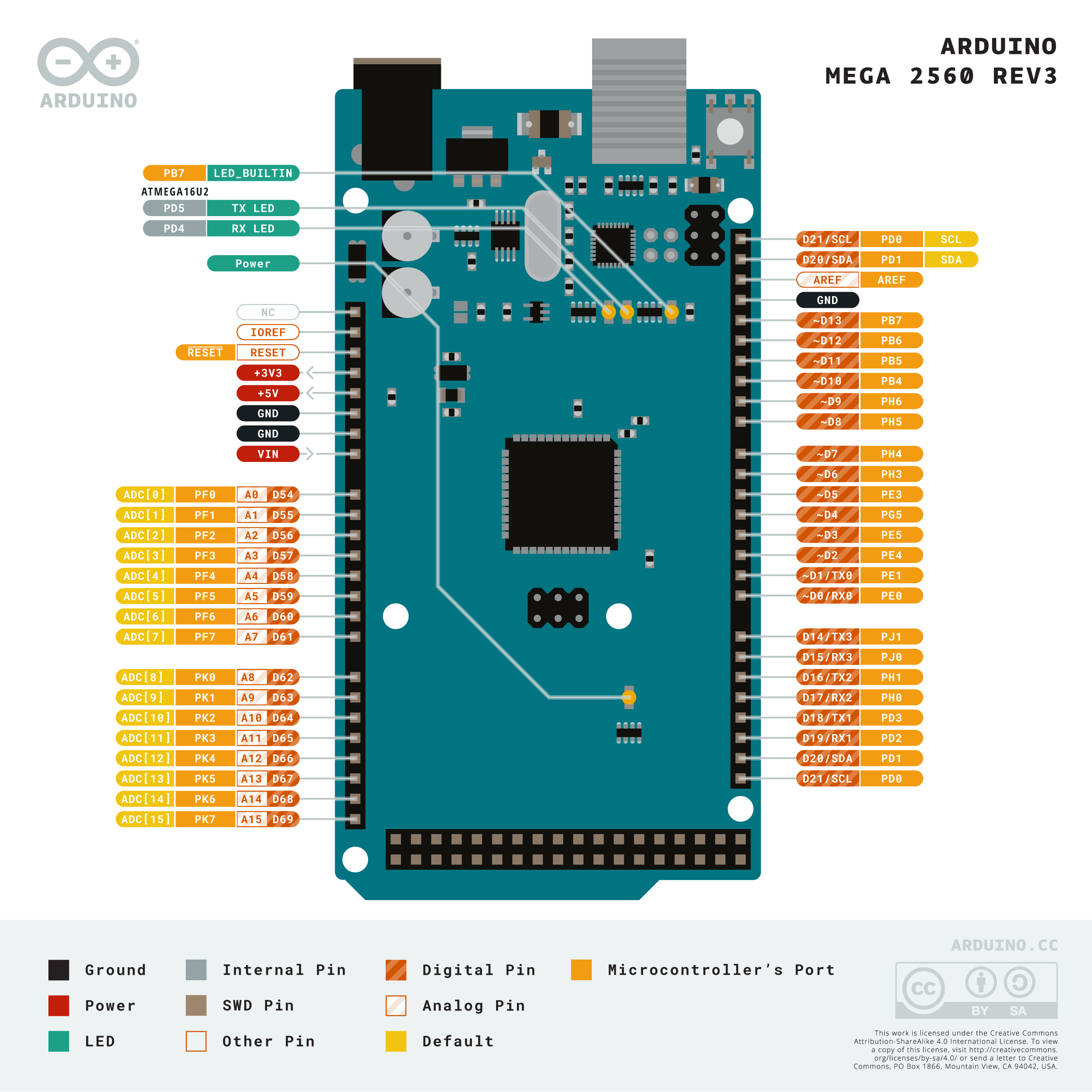

Assignment of board pins:

Overall dimensions: 101.5mm x 53.3mm

Weight: 0.037 kg
