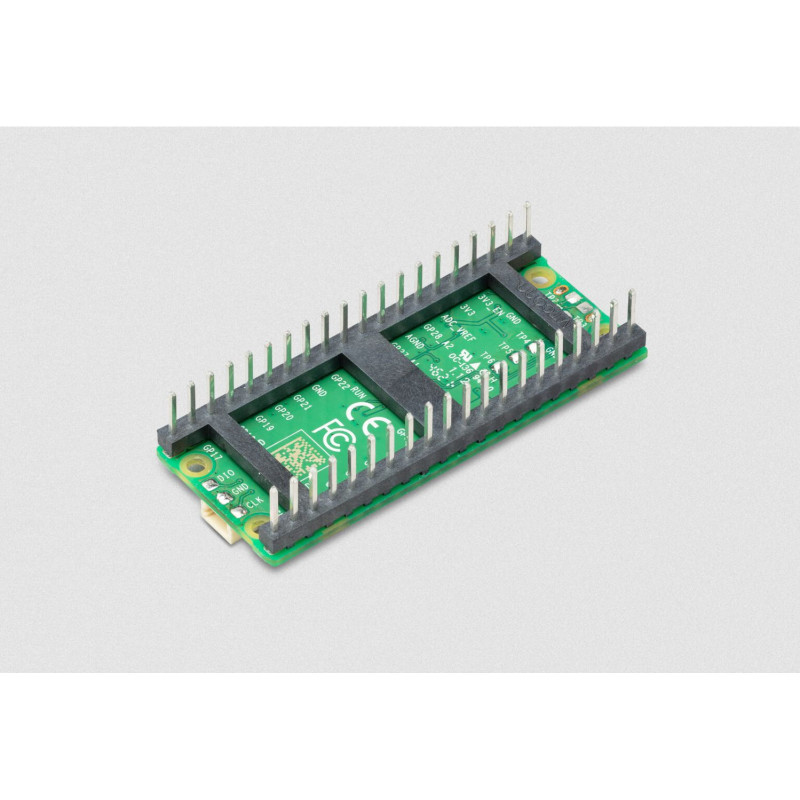

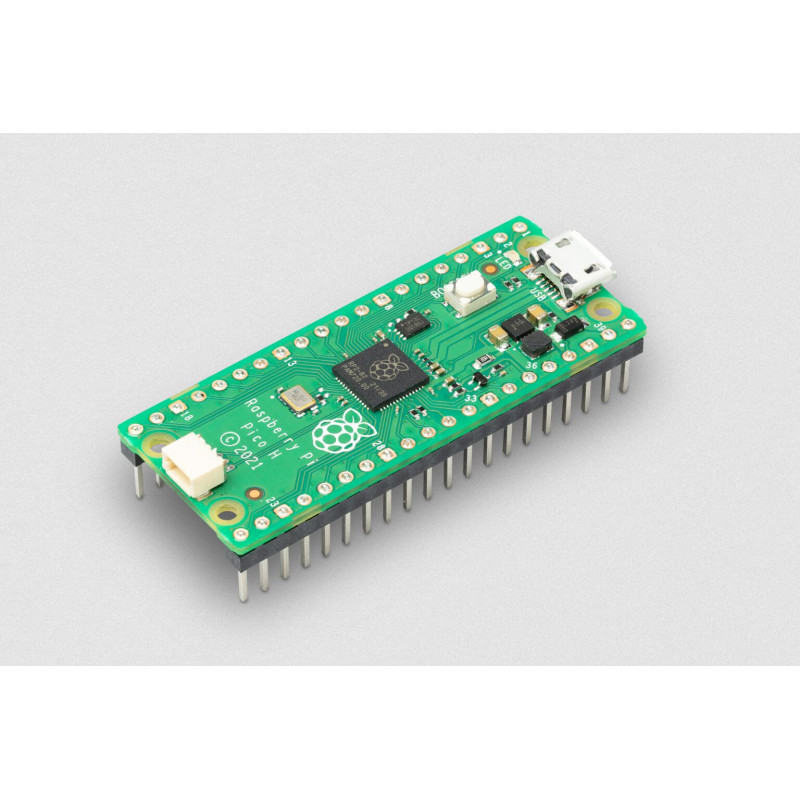

Raspberry Pi Pico H

TheRaspberry Pi Pico H microcontroller (with pre-installed connector and new 3-pin debugging connector) is a high-performance, low-cost microcontroller board from Raspberry Pi based on the RP2040 chip.

It features massive on-chip memory, a symmetrical dual-core processor, a deterministic bus structure, and a rich set of peripherals complemented by a unique programmable input/output (PIO) subsystem, The RP2040 provides professional users with unparalleled power and flexibility, and with its detailed documentation, polished MicroPython port and UF2 bootloader in ROM, it has the lowest possible barrier to entry for novice and hobbyists.

The RP2040 is manufactured on a state-of-the-art 40-nanometer process node to provide high performance, low dynamic power consumption and low leakage, as well as a variety of low power modes to support long battery life.

The Raspberry Pi Pico combines the RP2040 with 2 MB of flash memory and a power supply chip that supports input voltages from 1.8-5.5 V. It has 26 GPIO pins, three of which can function as analog inputs.

The Raspberry Pi Pico is available as a single unit or in drums of 600 units for automated assembly.

Key Features:

• Form factor: 21 mm × 51 mm
• CPU: 133 MHz dual-core Arm Cortex-M0+
• Memory: 264 KB built-in SRAM; 2 MB built-in QSPI flash memory
• Interface: 26 GPIO pins, including 3 analog inputs
• Peripherals:

- 2 × UARTS

- 2 × SPI controllers

- 2 × I2C controllers

- 16 × PWM channels

- 1 × USB 1.1 controller and PHY with host and device support

- 8 × PIO finite state machines

• Input voltage: 1.8-5.5 V DC
• Operating temperature: -20°C to +85°C
• Lifetime: Raspberry Pi Pico will remain in production until at least January 2028

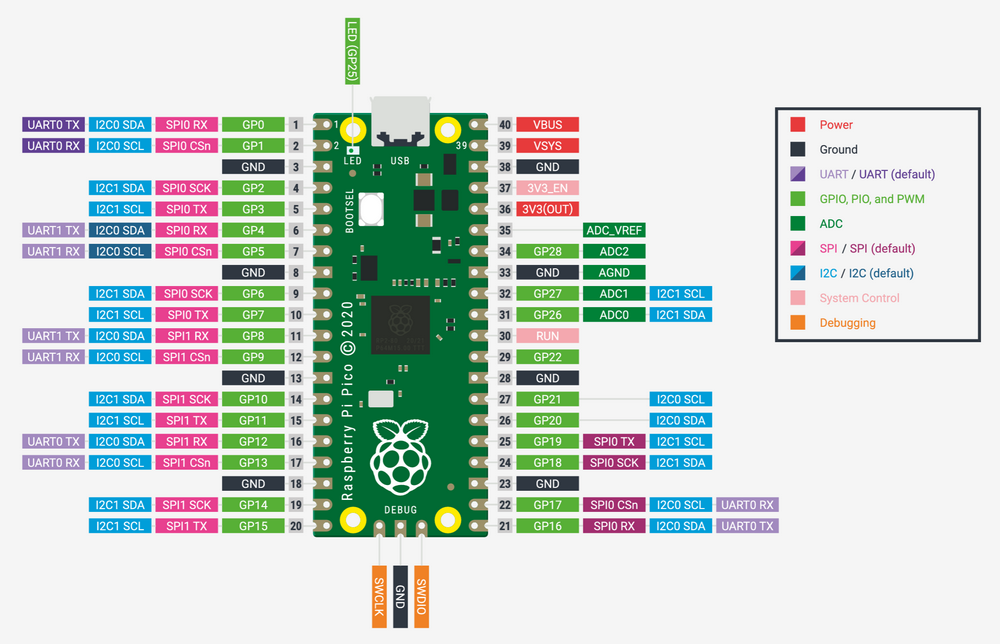

There are 26 multifunctional pins on the board as part of 40 GPIO pins:

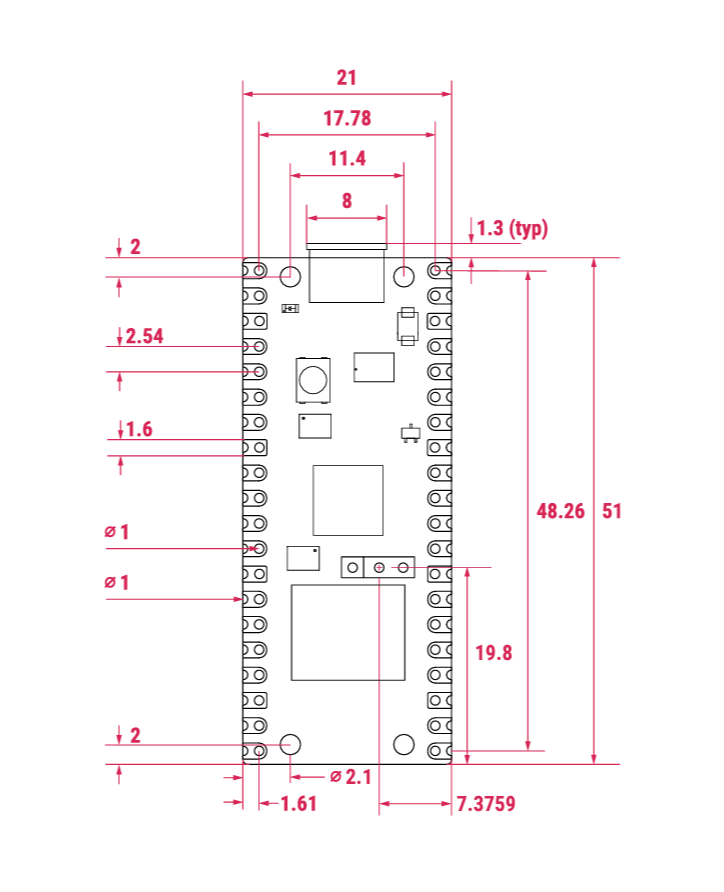

Overall dimensions (mm): 51 х 21

Information for developers Wiki: Raspberry_Pi_Pico

The package includes:

1. Raspberry Pi Pico H board - 1 pc.

Weight: 0.005 kg
