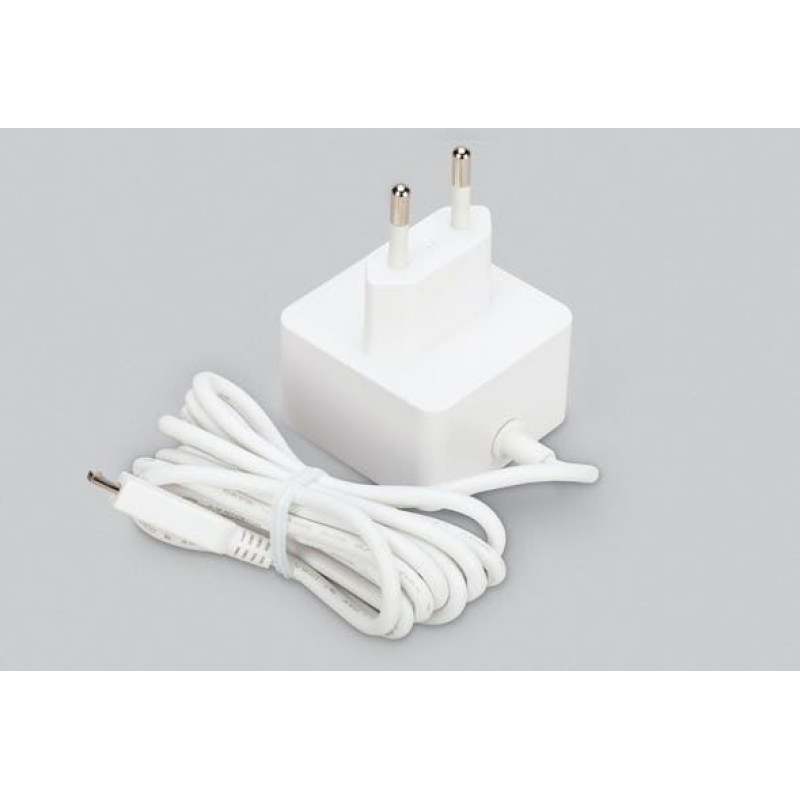

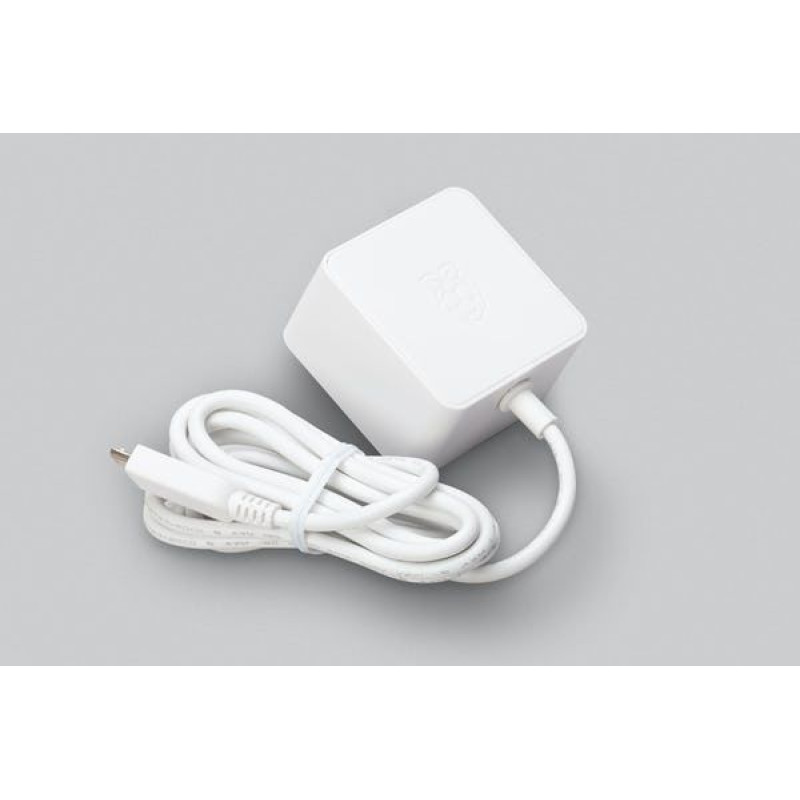

Power supply Raspberry Pi 12.5W Micro USB Power Supply White

TheRaspberry Pi 12.5W Micro USB Power Supply White is the official and recommended power supply for all Raspberry Pi computers with a micro USB connector.

Technical specifications:

Output.

• Output voltage: + 5.1 V DC
• Minimum load current: 0,0 А
• Rated load current: 2,5 А
• Maximum power consumption: 12.5 W
• Load regulation: ±5%
• Line regulation: ±2%
• Pulsation and noise: 120 mV (swing)
• Rise time: max. 100 ms to control limits for DC outputs
• Turn-on delay: maximum 3000 ms at rated AC input voltage and full load
• Protection:
  • Short-circuit protection
  • Overcurrent protection
• Efficiency: minimum 80.73% (output current from 100%, 75%, 50%, 25%)
• Output cable: 1.5 m 18AWG
• Output connector: micro USB

Input.

• Voltage range:
  • 100-240VAC (nominal)
  • 96-264V (operating)
• Frequency: 50/60 Hz ± 3 Hz
• Current strength: maximum 0.5 A
• Power (no load): maximum 0.075 W
