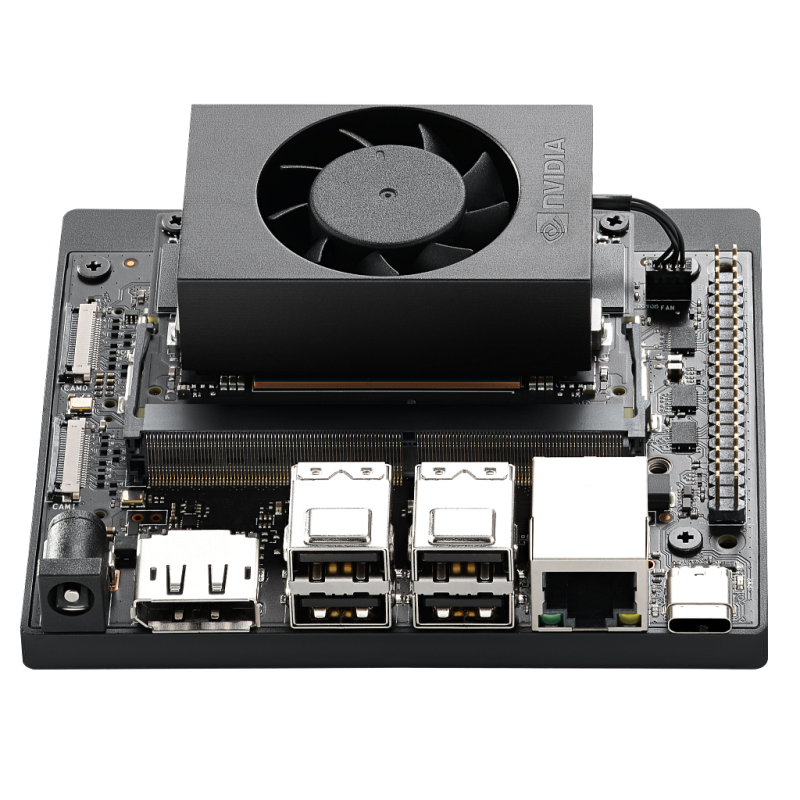

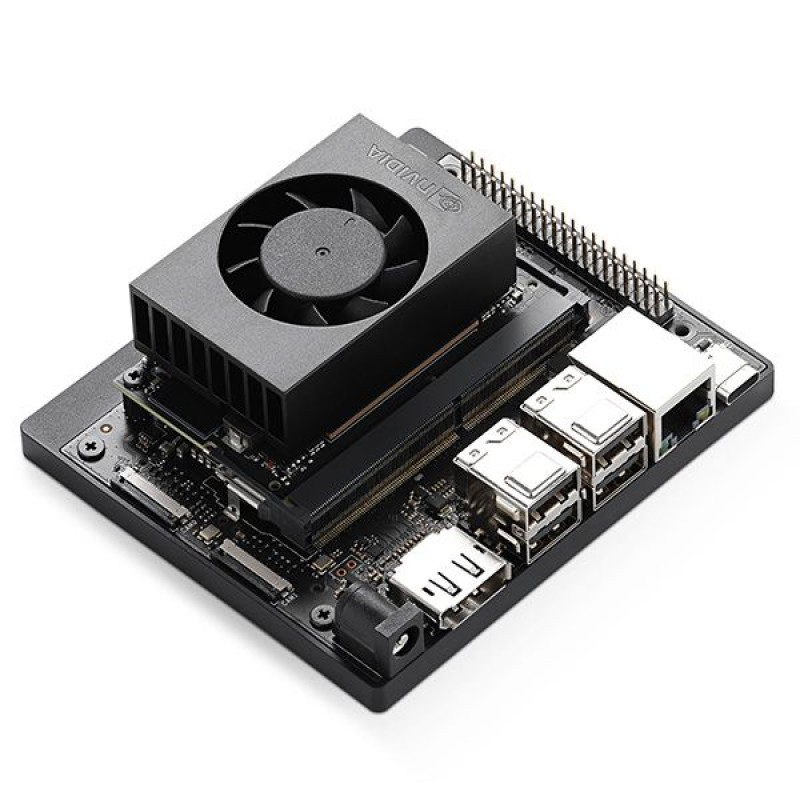

NVIDIA Jetson Orin Nano Developer Kit

TheNVIDIA Jetson Orin Nano Developer Kit is a system-on-chip (SoC) computer with artificial intelligence support. It has a small form factor and is designed for developers who create artificial intelligence systems, video analytics, robots, and other innovative projects.

The Jetson Orin Nano has a 6-core AI processor that includes 6 Arm Cortex-A78AE cores. In addition, it contains a 1024-core NVIDIA Ampere GPU with 32 Tensor cores, which allows developers to use machine learning and neural networks to develop products that require high computing power.

The computer has 8 GB of LPDDR5 RAM with speeds up to 2133 MHz, as well as a 128-bit memory bus. It also has built-in video based on NVIDIA GPU with the ability to output 4K video to a monitor or TV.

The Jetson Orin Nano Developer Kit supports popular I/O interfaces such as Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0, USB 3.1 Gen1 Type-A and Type-C, and HDMI 2.0b. It has a built-in MicroSD card slot with support for up to 256 GB, and supports PCIe Gen 4 and CSI-2.

The NVIDIA Jetson Orin Nano Developer Kit is a tool for developing products that require high computing power and artificial intelligence support. It can be used to develop a variety of applications, from intelligent embedded systems to robotics and video analytics applications, and enables the development of AI-powered robots, smart drones, and smart cameras.

Key features:

• AI performance: 40 TOPS.
• GPU: 1024-core NVIDIA Ampere GPU with 32 tensor cores
• Maximum GPU frequency: 625 MHz

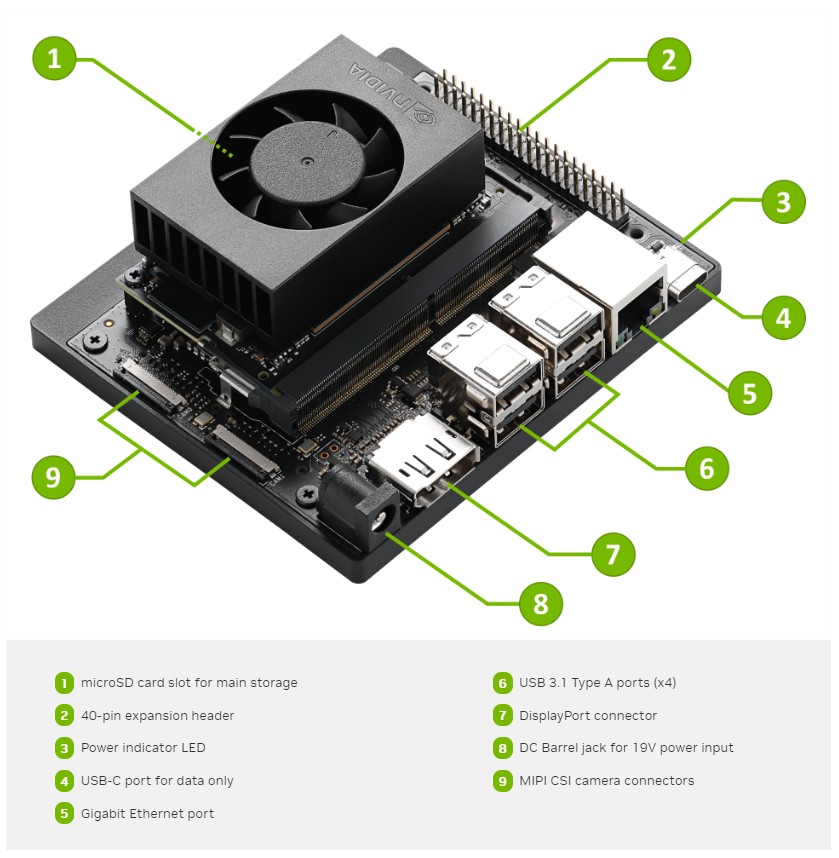

Interfaces:

Package contents:

1. Jetson Orin Nano module with microSD card slot
2. Carrier reference board (includes 802.11 WLAN and BT module with pre-installed antenna)
3. 19V power supply(Includes cables with UK and CN plug) - an adapter for EU socket is provided by the seller
4. Small paper card with quick start and support information

Not included in the package:

• microSD card (64 GB UHS-1 or larger recommended)
• USB keyboard and mouse
• Computer display
• USB cable
