Raspberry Pi 7inch 1024x600 Touch Display Kit For Pi Zero (24693)

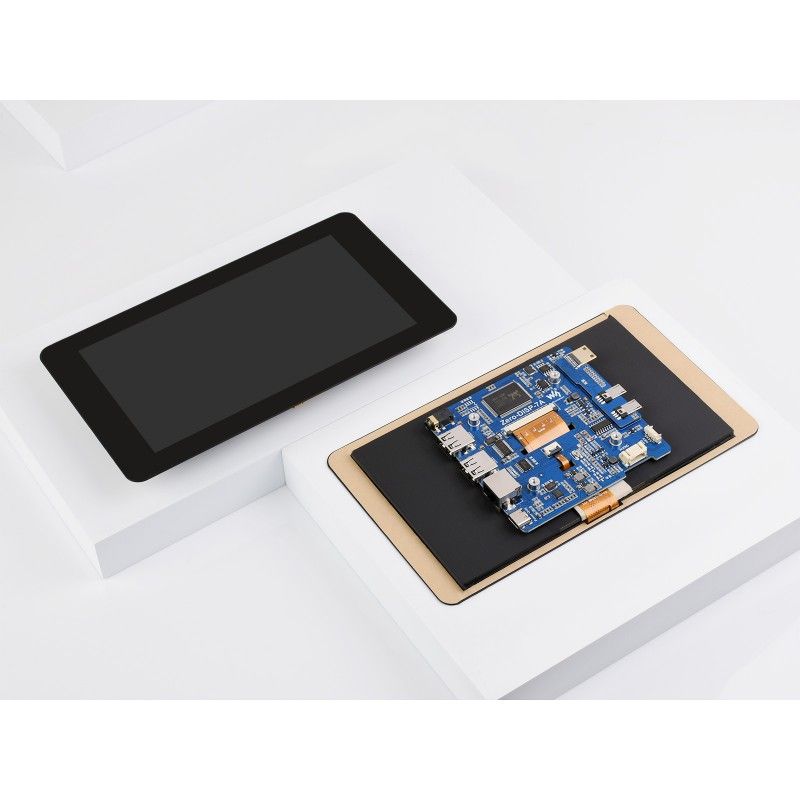

TheRaspberry Pi 7inch 1024×600 Touch Display Kit For Pi Zero (24693 ) is a kit that contains a 1024×600 pixel IPS screen, a five-thread capacitive touch panel, and an expansion board for connecting to the Raspberry Pi Zero (not included).

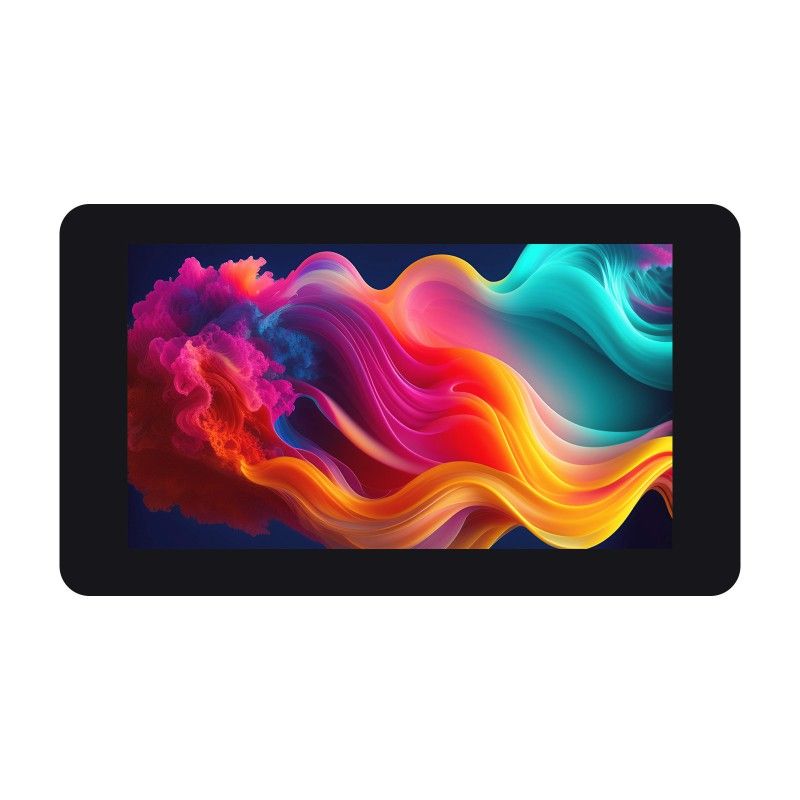

The main part of the kit is a 7-inch IPS screen that provides high image quality with good viewing angles and clarity. The screen resolution is 1024×600 pixels, which allows you to display detailed images and text.

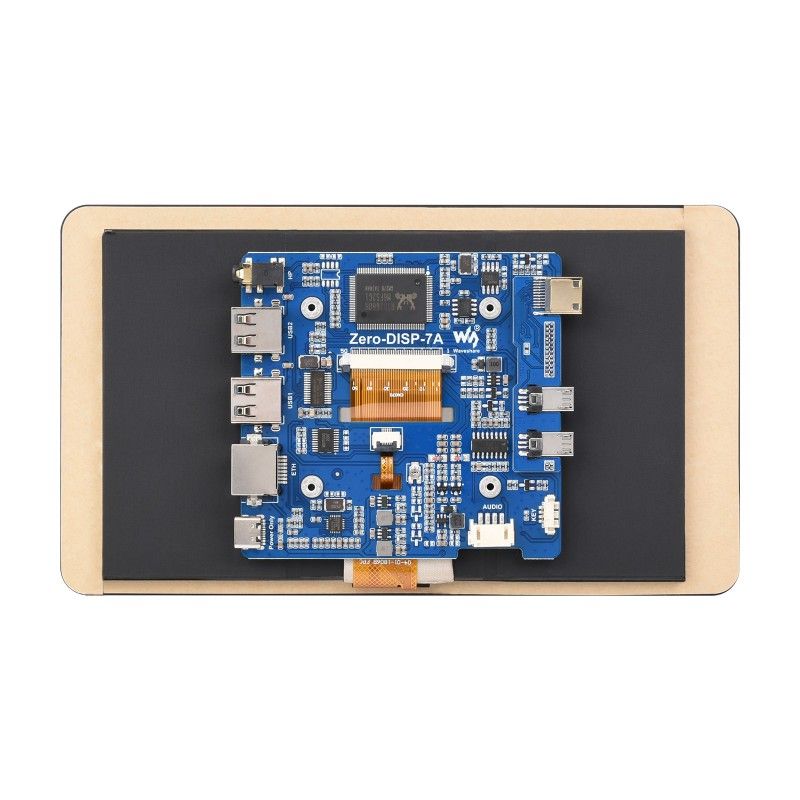

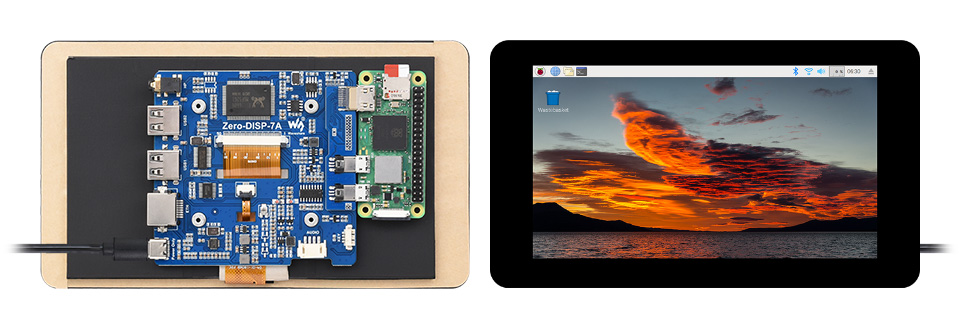

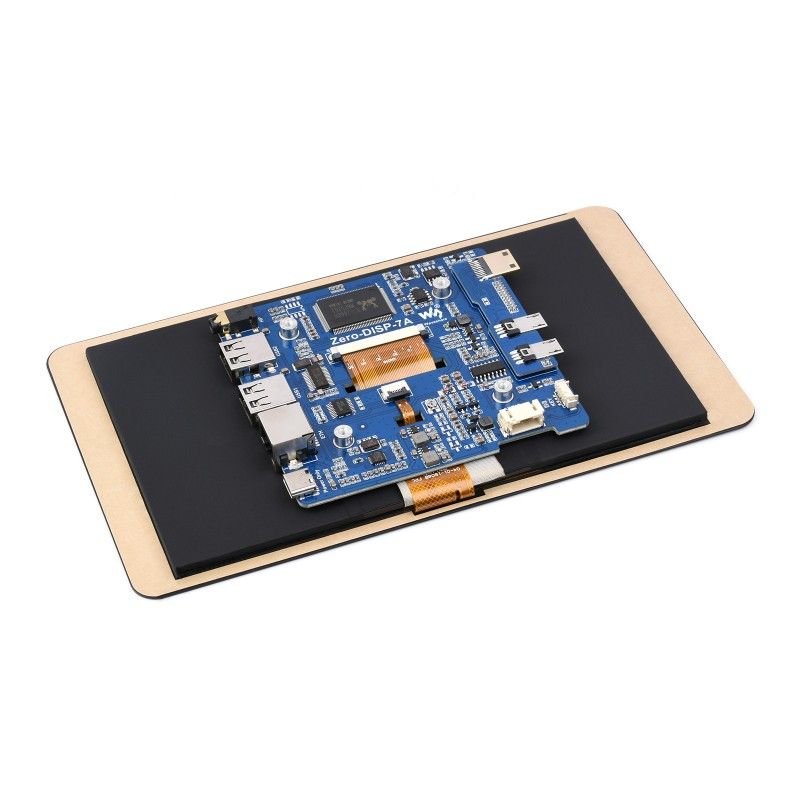

The kit also includes an expansion board that allows you to connect the screen to the Raspberry Pi Zero, one of the versions of the popular Raspberry Pi single-board computer. This allows you to use the screen as a display for the Raspberry Pi Zero and create various projects that require touch control or data visualization.

An additional feature is the presence of a five-threaded capacitive touch panel, which allows you to detect the simultaneous touch of five points on the screen. This allows you to implement various gestures and multi-touch operations on the touch screen.

The 7-inch Touch Display Kit for Raspberry Pi Zero is a complete kit that allows you to connect a high-quality touchscreen to the Raspberry Pi Zero and use it to display and interact with the device.

Specifications:

• CONNECTORS FOR ZERO: HDMI mini port, Micro "dad" USB connector × 2 (1 × hub, 1 × power supply)
• DISPLAY: 7 inches 1024 × 600 pixels, 5-point capacitive touchscreen
• NETWORKING: 100M Ethernet RJ45 port
• USB: USB 2.0 × 2 port
• AUDIO: headphone jack, 4-pin speaker jack
• POWER INPUT: USB Type-C interface, 5V

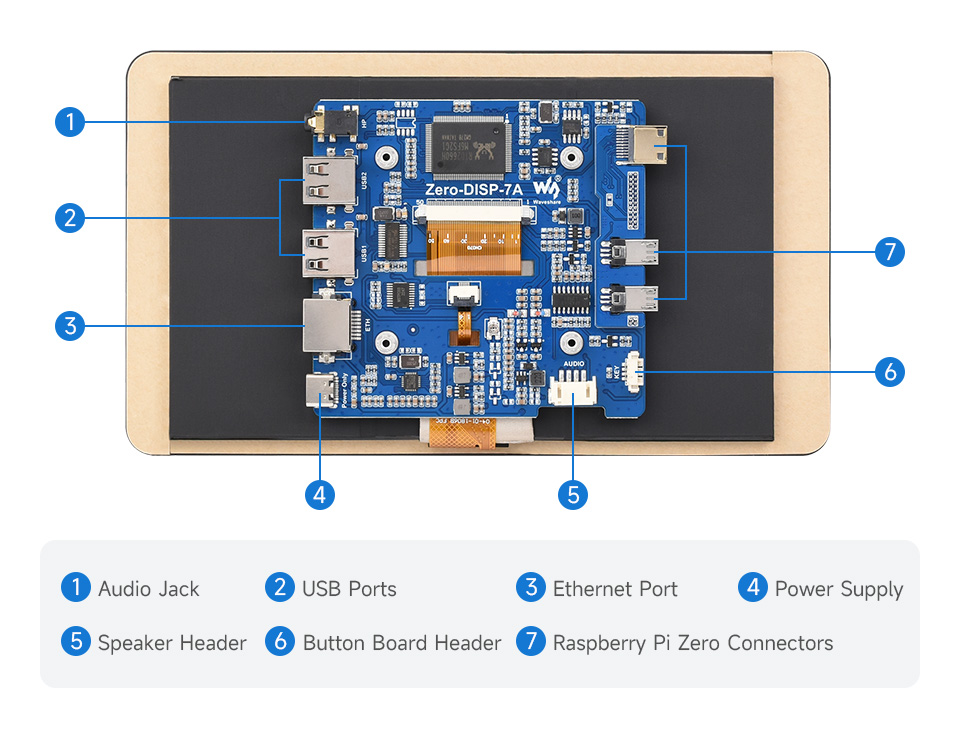

Interfaces:

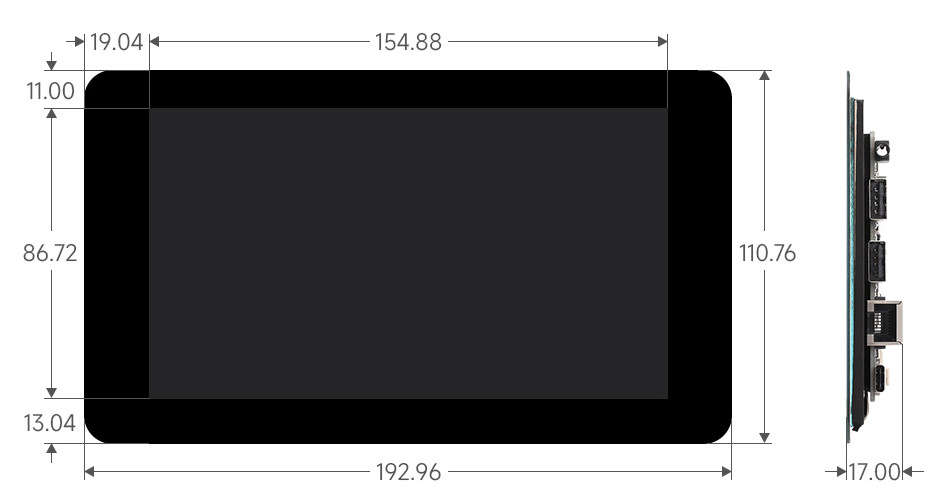

Overall dimensions: 192.96mm x 110.76mm x 17mm

Wiki: www.waveshare.com/wiki/Zero-DISP-7A

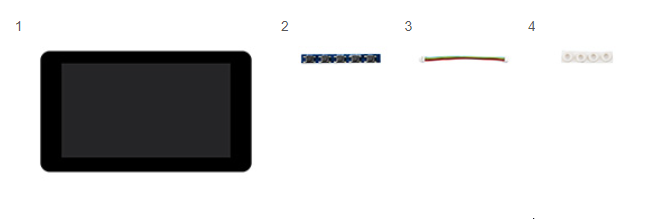

Scope of delivery:

1. Zero-DISP-7A ×1
2. Button panel ×1
3. Button panel cable 9 cm × 1
4. White nylon gasket (4 pcs.) ×1

Weight: 0.227 kg
