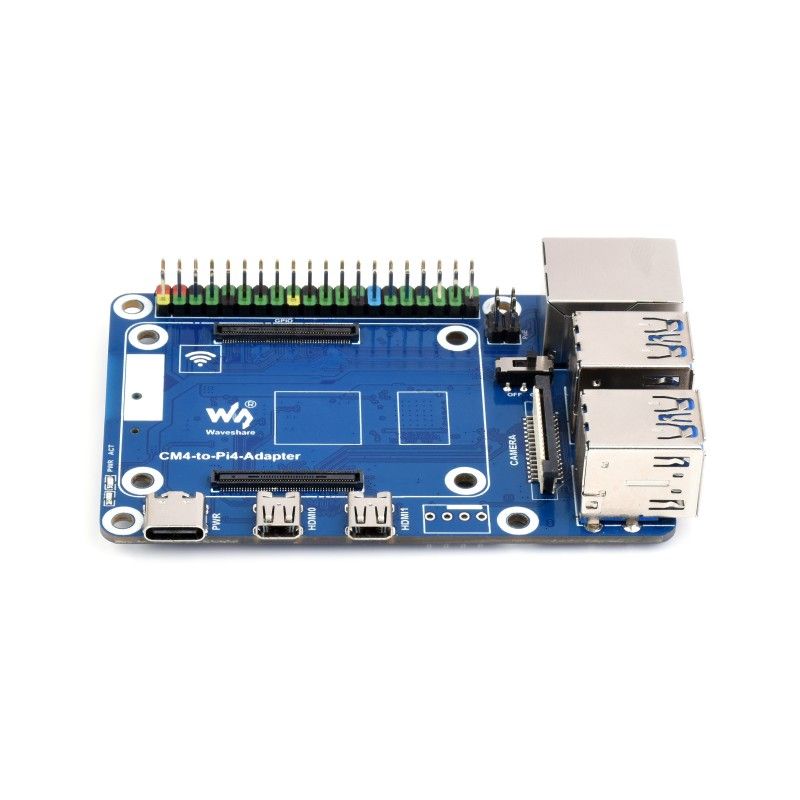

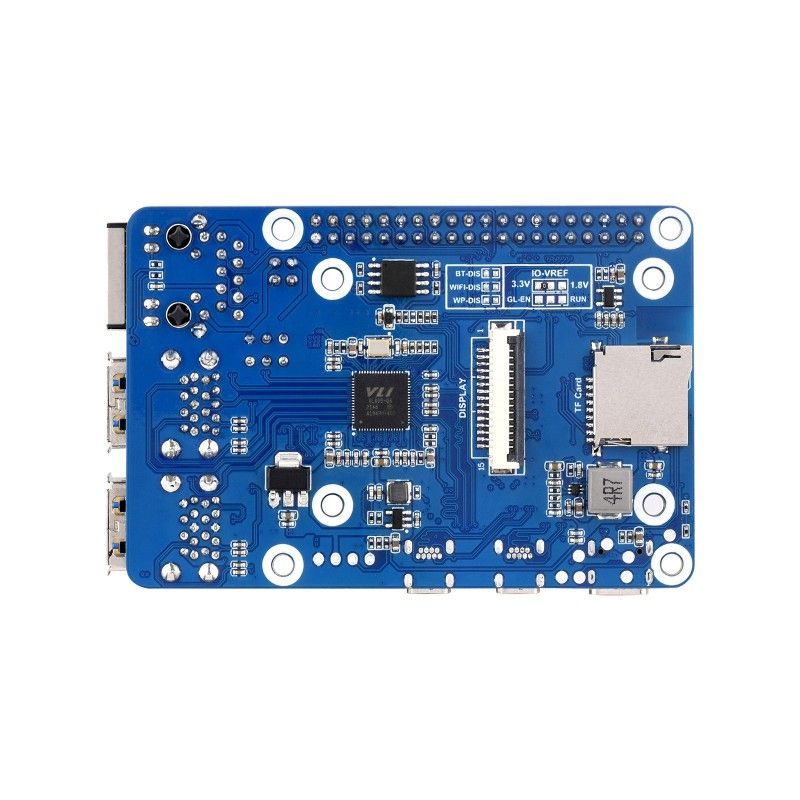

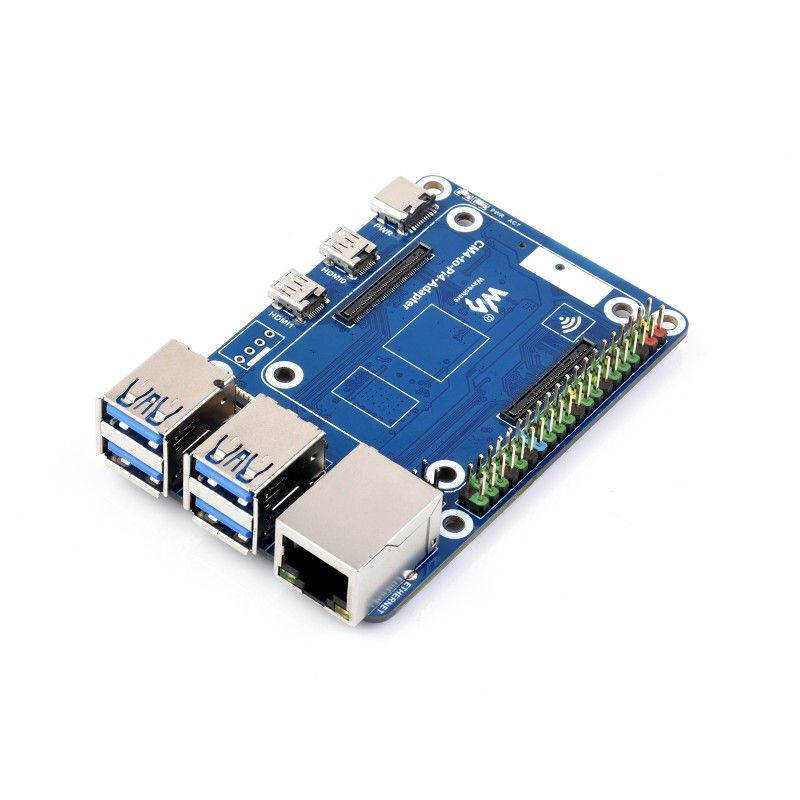

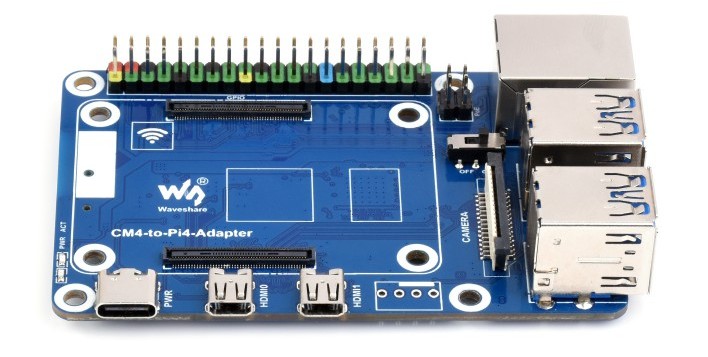

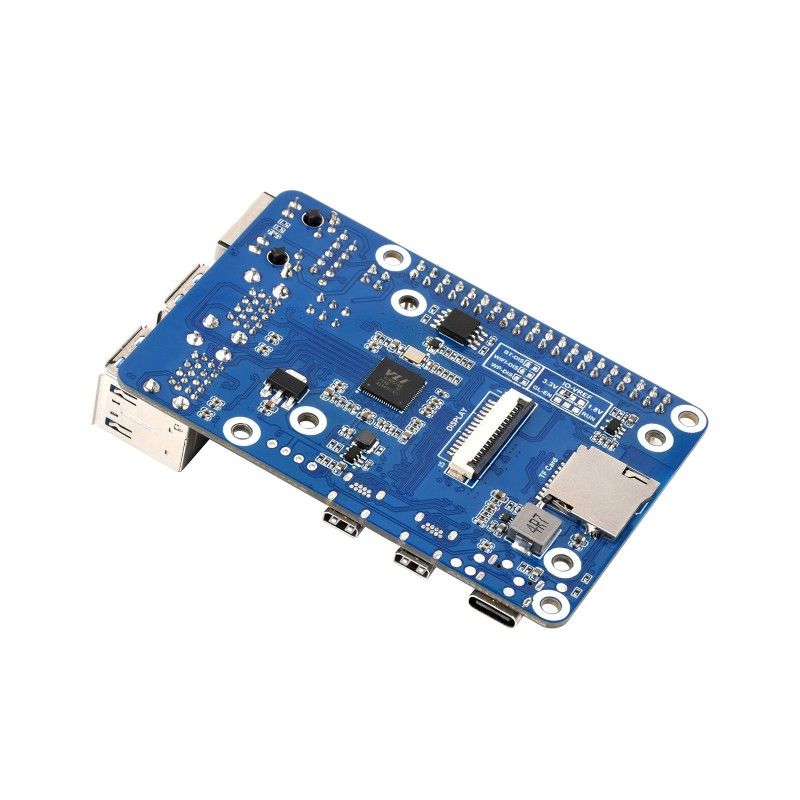

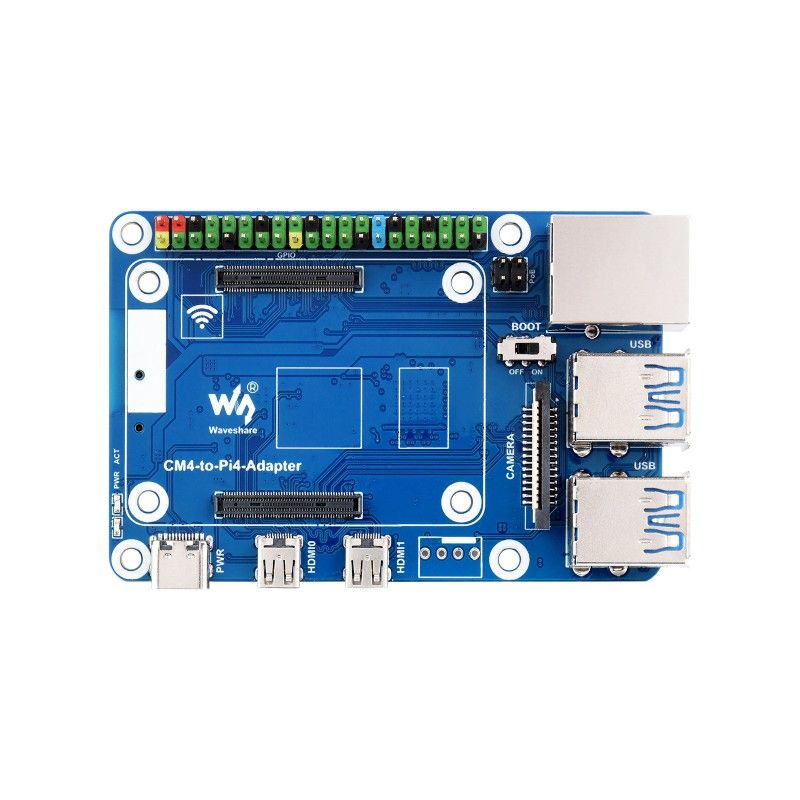

Raspberry Pi Compute Module 4 I/O Adapter for Raspberry Pi expansion card (23508)

The Raspberry Pi Compute Module 4 I/O Adapter for Raspberry Pi (23508 ) is an adapter that allows you to connect the Raspberry Pi Compute Module 4 (CM4) module to the Raspberry Pi 4B base board. This is an alternative solution for using the CM4 module instead of the traditional Raspberry Pi 4B.

The CM4 module is an advanced version of the Raspberry Pi that contains the main components, such as the processor, memory, and connectivity, on a separate board. This allows more flexibility when using Raspberry Pi integration in specialized projects or embedded systems.

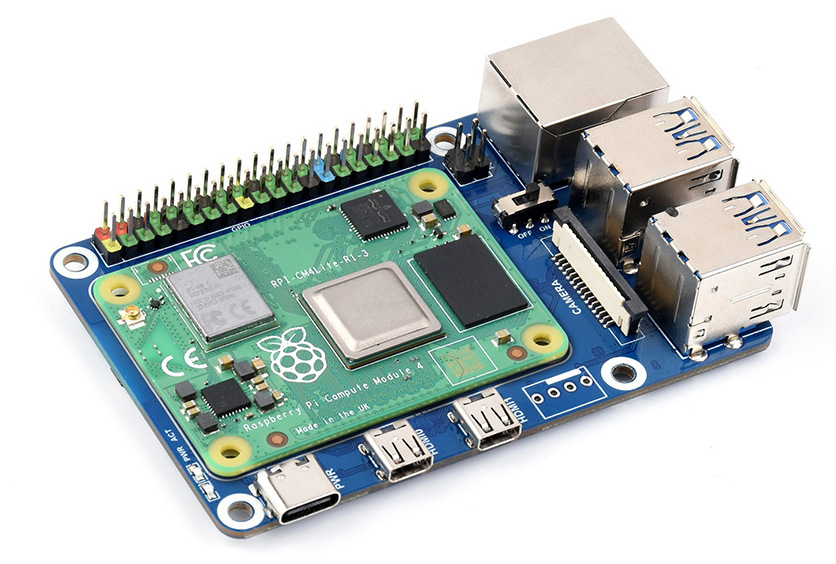

The CM4 To Pi 4B adapter allows the CM4 module to be mounted on the Raspberry Pi 4B base board, providing connections for various interfaces such as HDMI, USB, Ethernet, GPIO, and others. This allows you to leverage the power of the CM4 module with the functionality of the Raspberry Pi 4B, providing more computing power and enhanced communication capabilities.

The CM4 To Pi 4B adapter is a convenient tool for developers who want to use the CM4 module with its advanced features while maintaining compatibility with the Raspberry Pi 4B ecosystem. It provides an alternative path for using the CM4 in projects where more flexibility and customization is required.

Key features:

• Has a built-in standard CM4 connector that provides support for CM4 Lite/eMMc series boards with quad-core 64-bit Cortex A72 processor
• Easily compatible with Raspberry Pi 4B board interfaces
• Has built-in 4-channel USB 3.0 ports compatible with USB 2.0 / 1.1 transfer
• There is a built-in Gigabit Ethernet RJ45 port, adaptive 10/100/1000 M
• There is a built-in PoE connector for connecting a PoE HAT expansion card

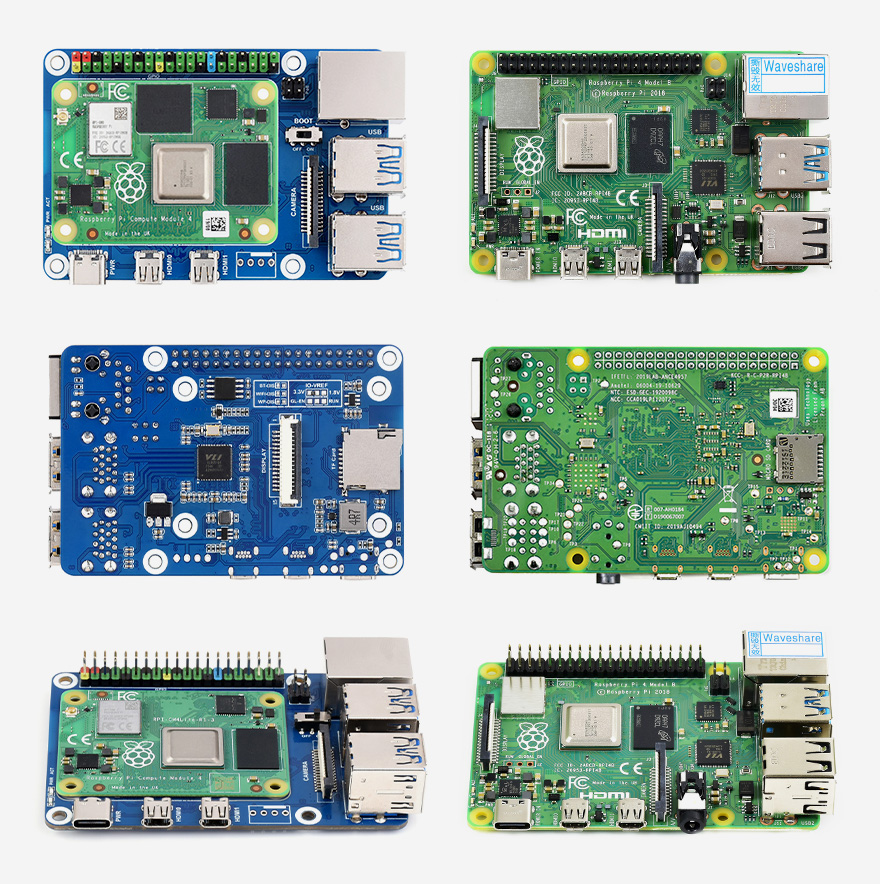

The physical interfaces (except for the audio jack and the dongle port) are located as on the original Raspberry Pi 4B board (the camera port is slightly shifted)

Built-in standard CM4 connector supports all Compute Module 4 Lite / EMMC series boards

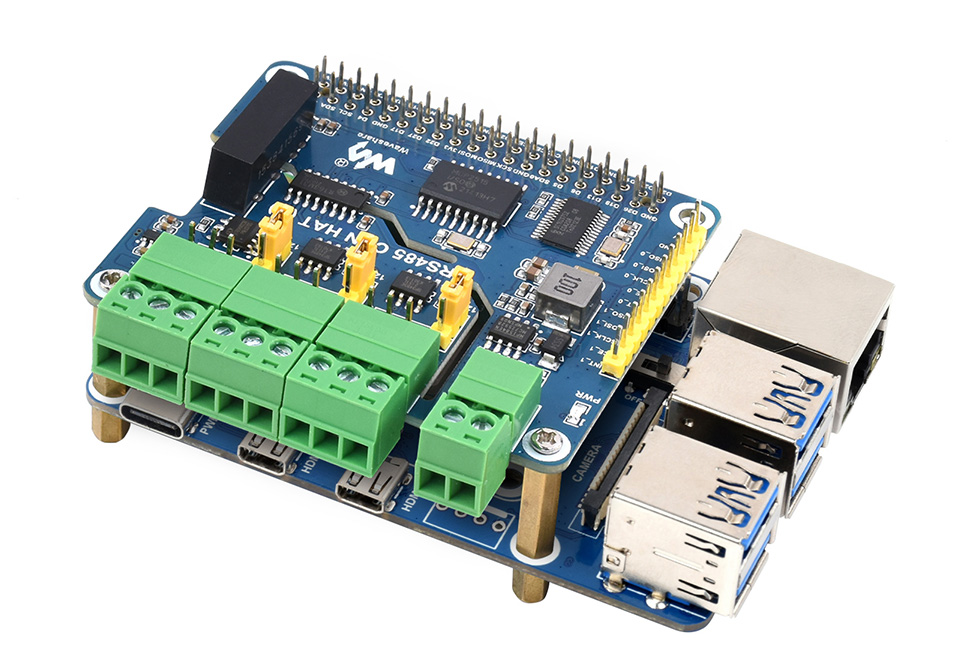

Compatible with expansion boards for Raspberry Pi 4B

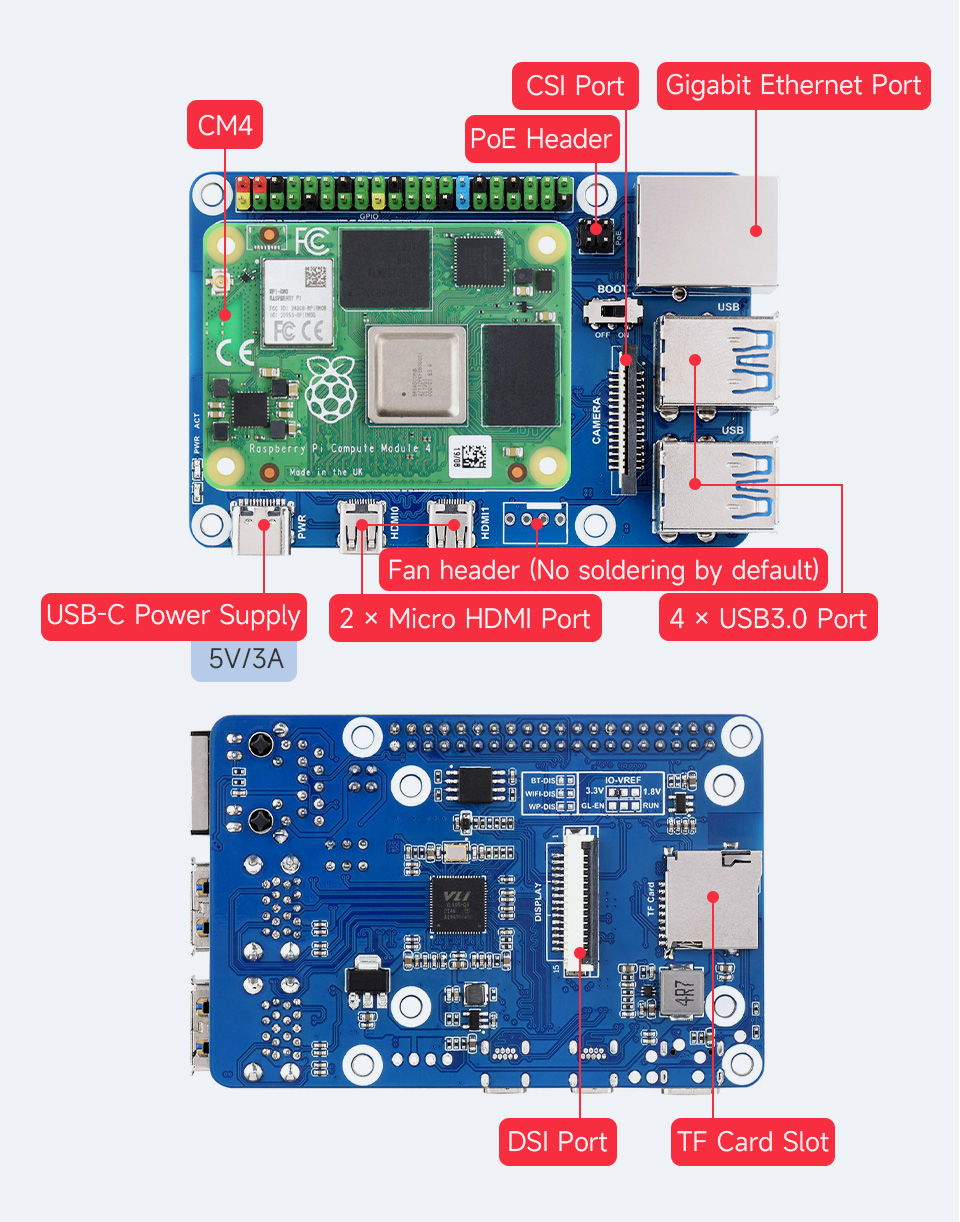

Interfaces:

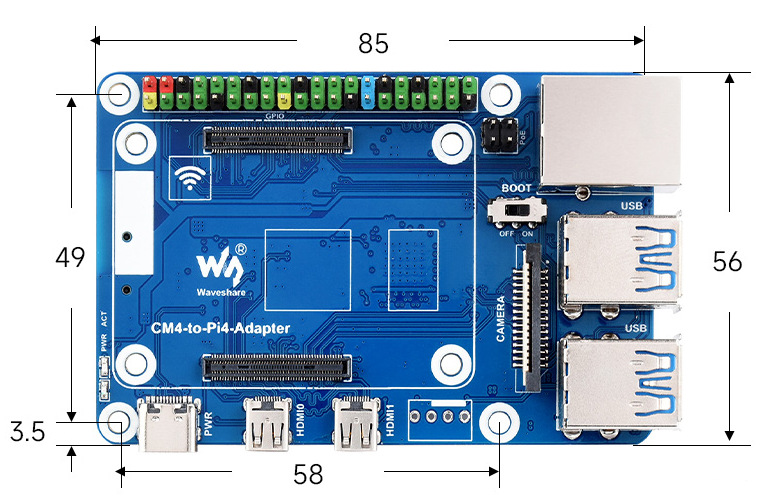

Overall dimensions: 85mm x 56mm

Wiki: www.waveshare.com/wiki/CM4-to-Pi4-Adapter

Package contents:

1. CM4-to-Pi4 adapter x1
2. Package of screws (attached to the board) x1 pc

Weight: 0.244 kg
