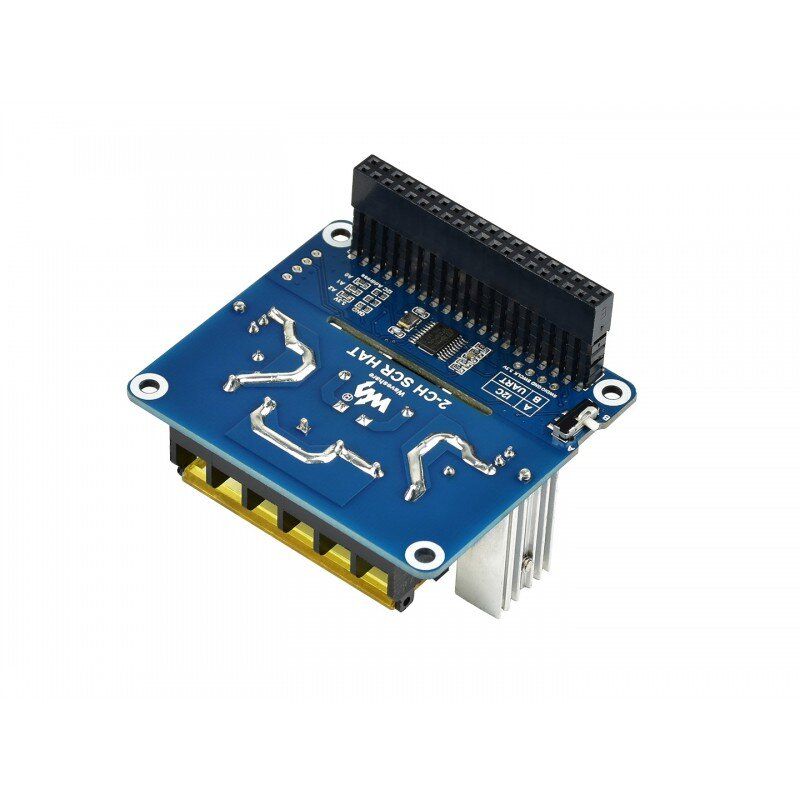

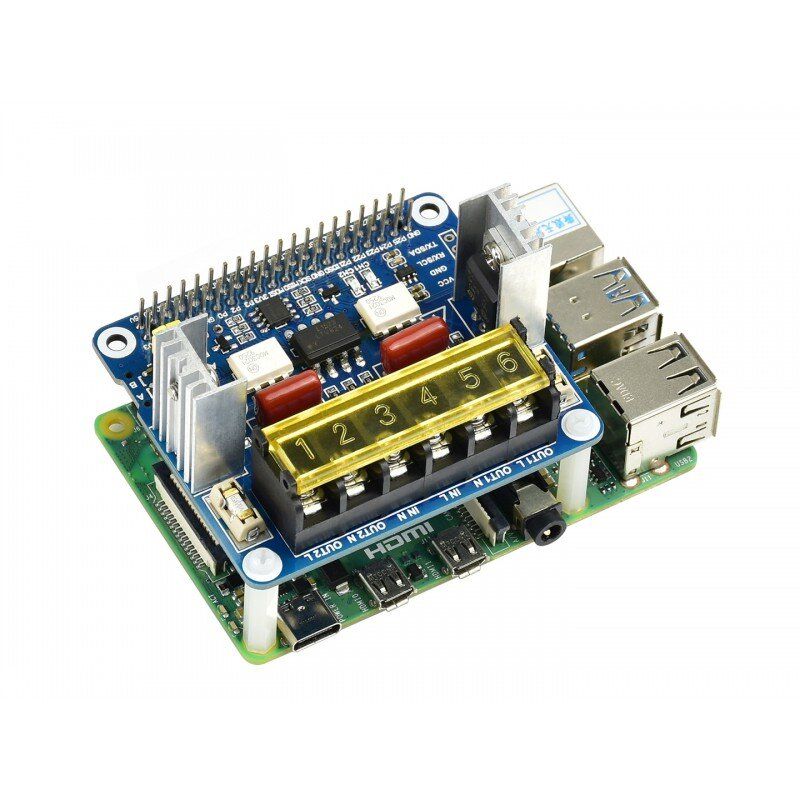

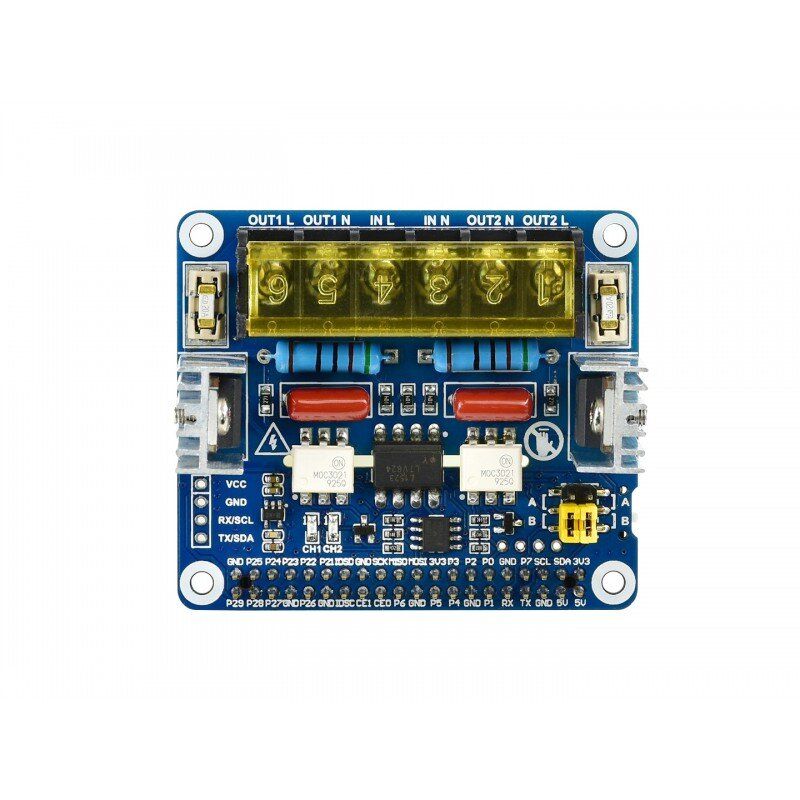

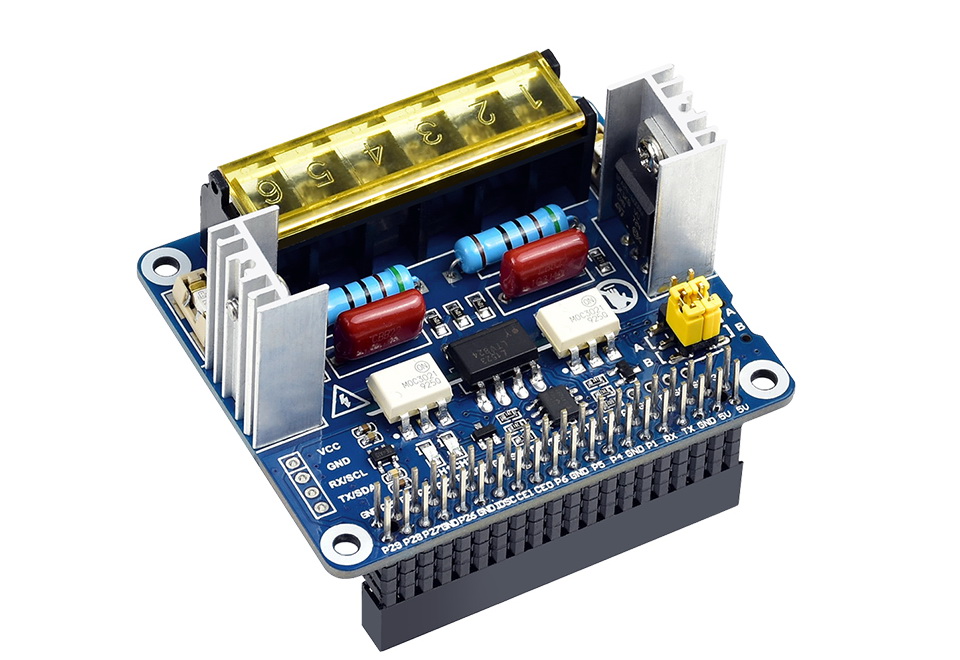

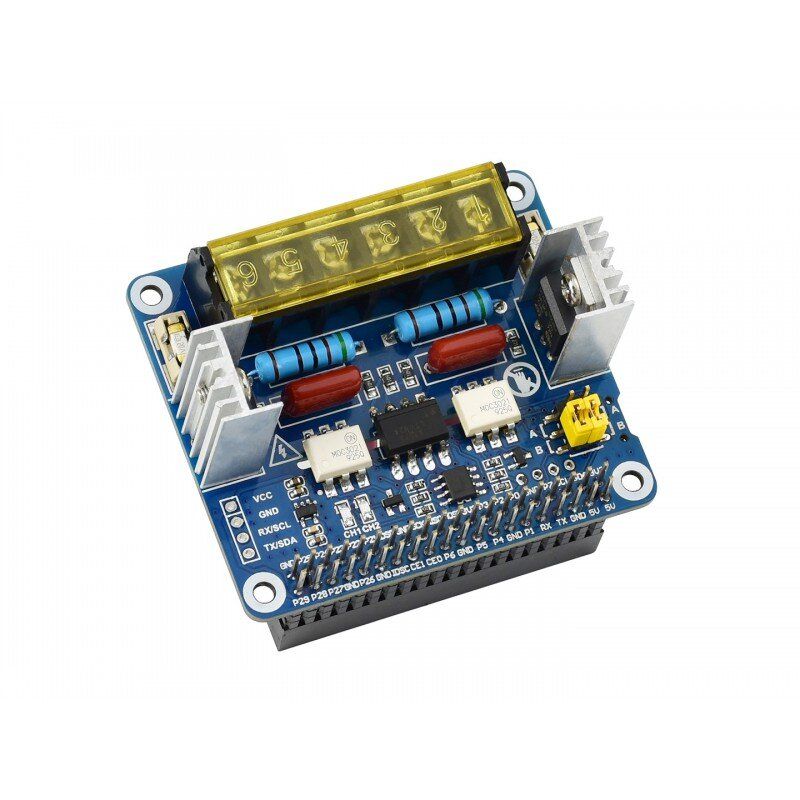

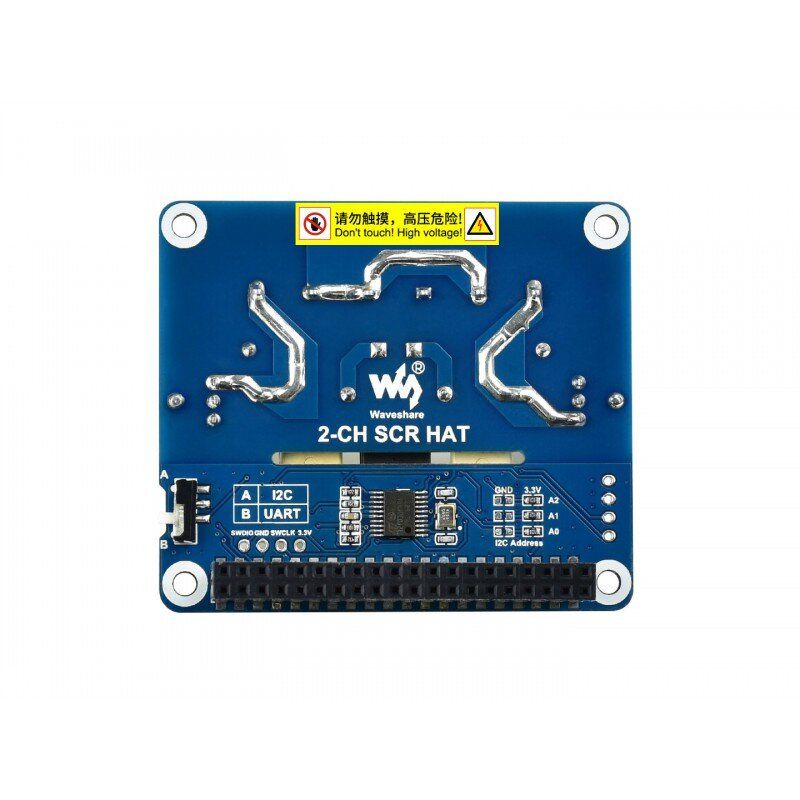

Raspberry Pi 2-CH Triac HAT expansion board (17852)

Dual Channels Bidirectional Triac HAT for Raspberry Pi, Integrated MCU, Commands Control, UART / I2C - a two-channel expansion board designed for Raspberry Pi and intended for industrial control systems (control of pumps, valves, etc. industrial systems), in smart agricultural and livestock systems (control of ventilation of greenhouses and barns, control of light, water supply, feeding systems, drives of other systems, etc.

This board has the following advantages over relays:

high efficiency + no noise or wear + fast response + contactless switching + adjustable power

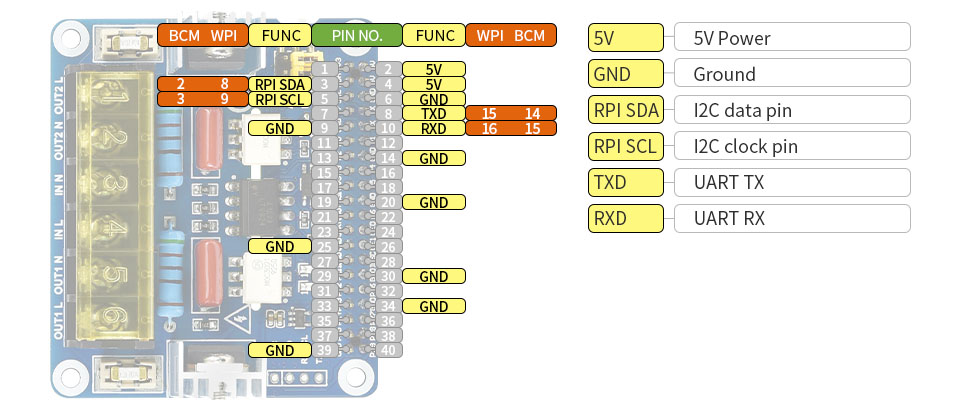

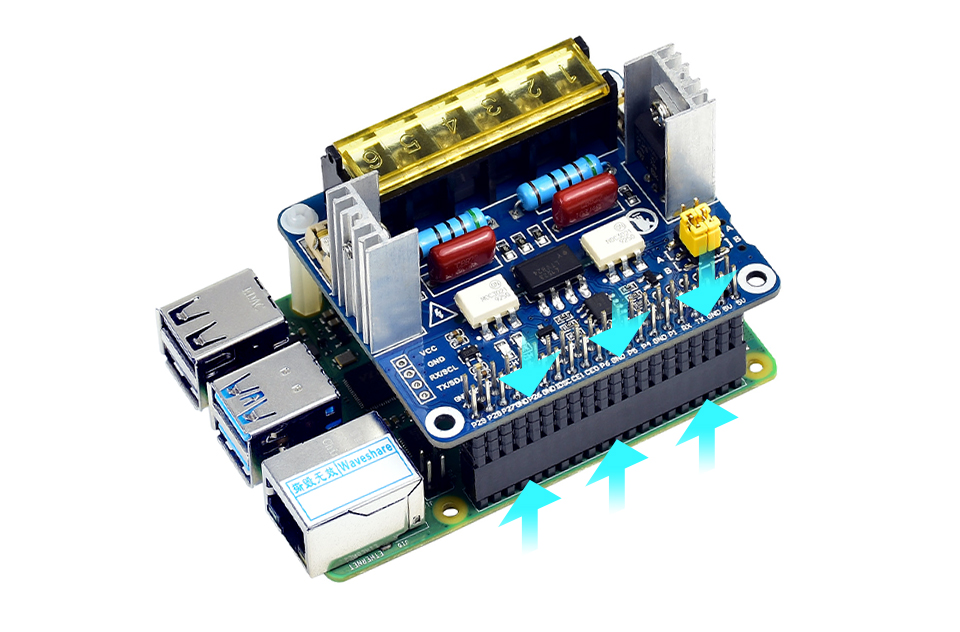

Designed for the Raspberry Pi and has a standard Raspberry Pi 40PIN GPIO connector customized for the Raspberry Pi series boards:

FEATURES:

• STM32F0 MCU controller requires minimal Raspberry Pi resource, UART/I2C communication
• RC damping circuit protects the triac from power fluctuations
• Output power up to 4400 W under ideal heat dissipation conditions
• Optocoupler isolation to prevent interference from high-voltage circuit
• Indicator for easy checking of the triac status
• Reserved UART and I2C interface for work with other control boards
• Data transfer rate: up to 921.6 kbps for UART, up to 1024 kbps for I2C
• Comes with development resources and manual (C and Python examples)

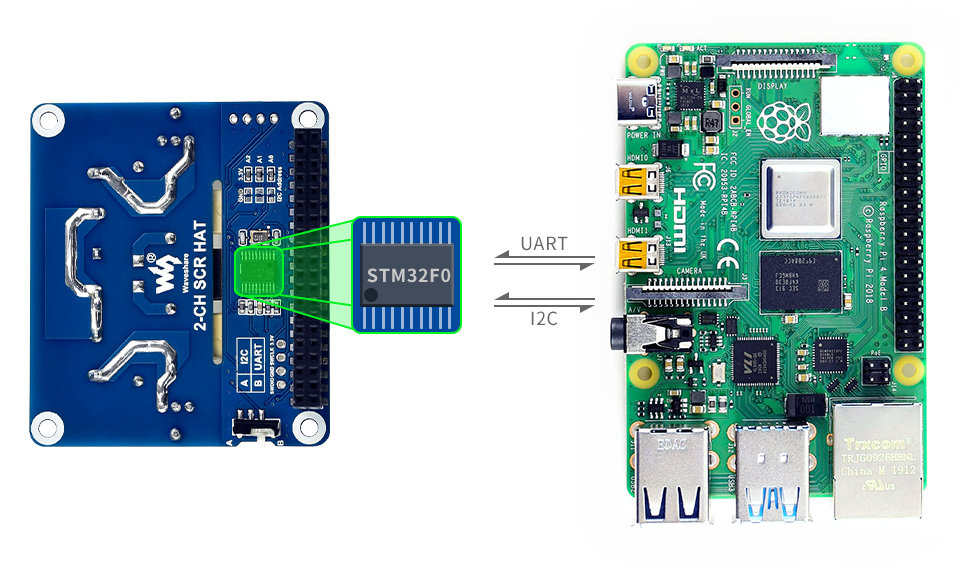

The built-in STM32F030 microcontroller supports direct command control, is easy to develop, has a fast response and requires minimal resources from the Raspberry Pi:

High data transfer rate: up to 921.6 kbps for UART, up to 1024 kbps for I2C:

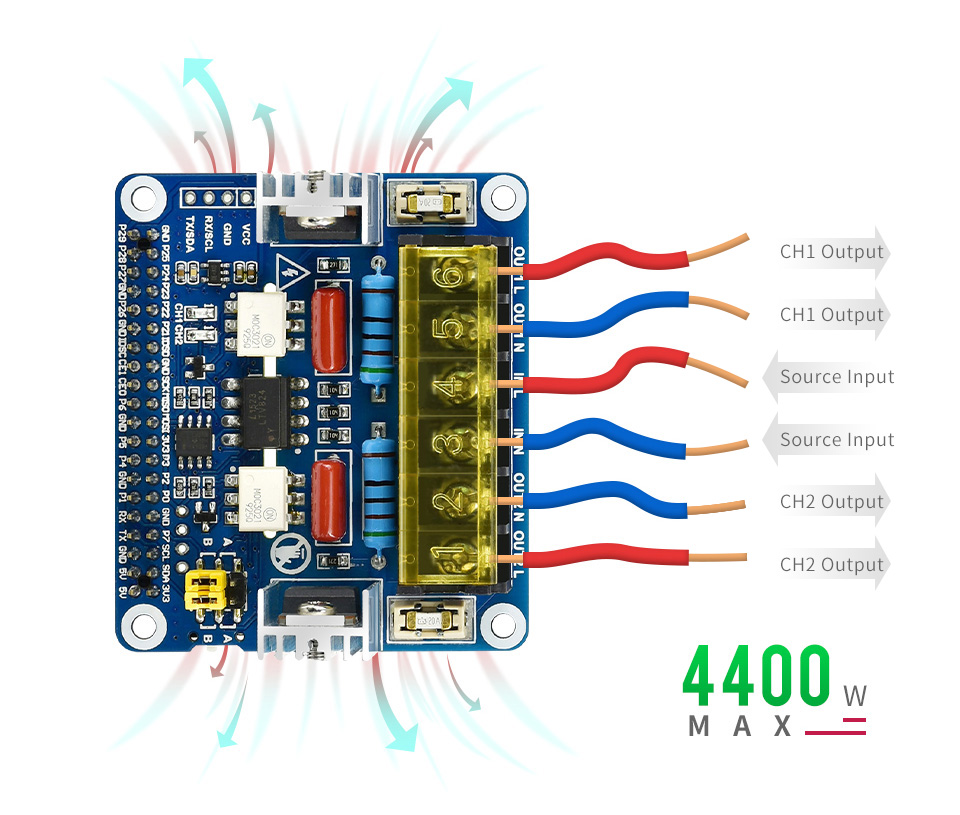

Output power up to 4400 W under ideal heat dissipation conditions:

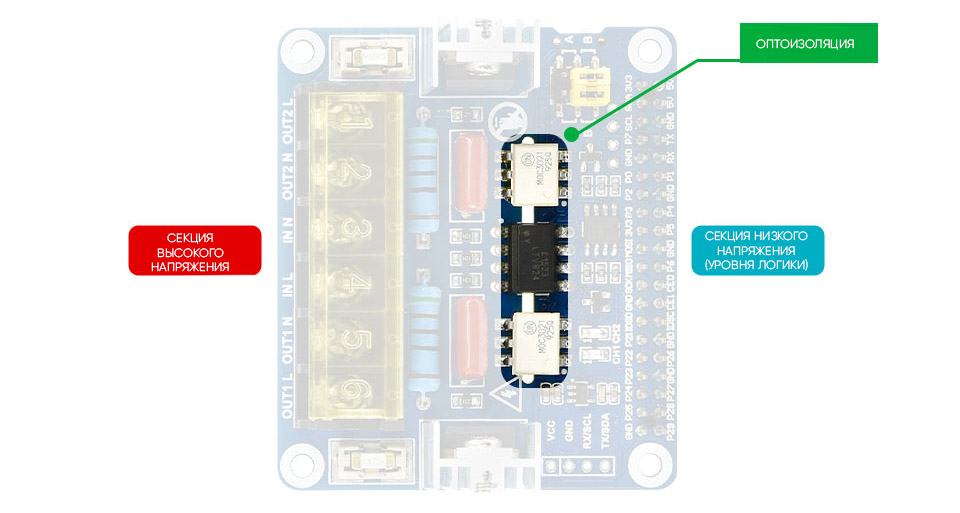

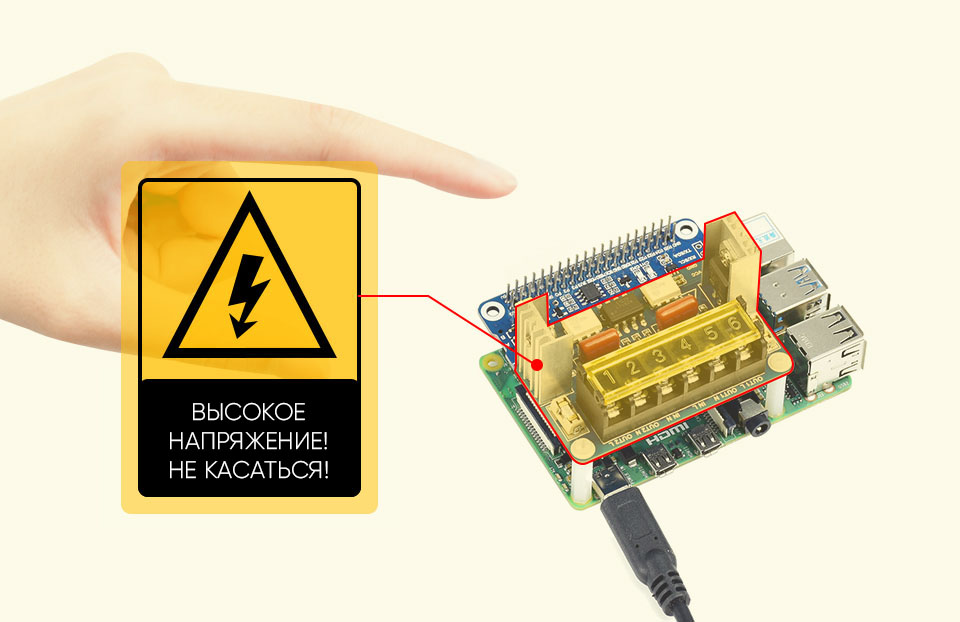

Opto-isolated solution that prevents interference in the high voltage circuit:

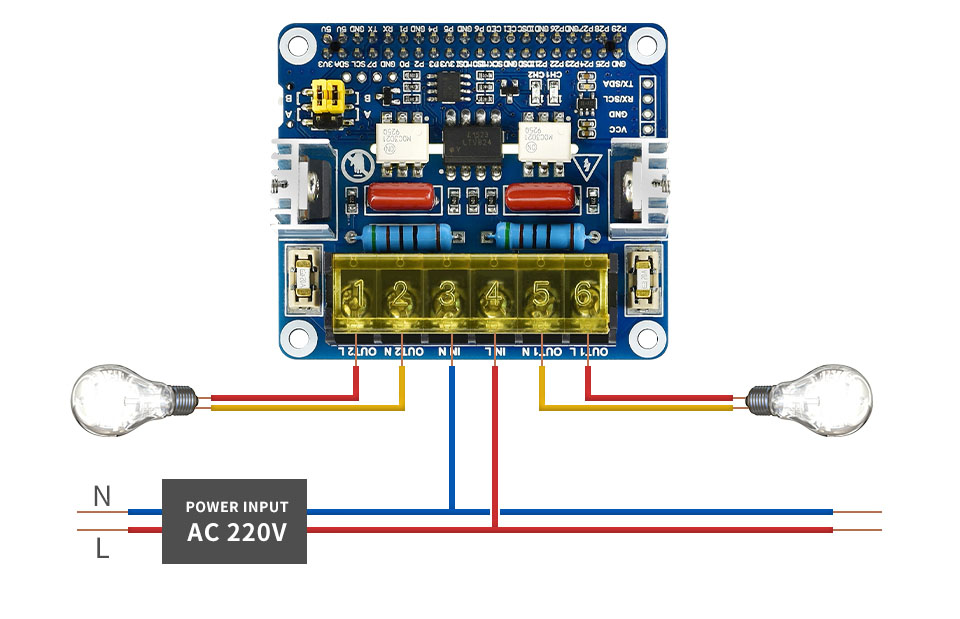

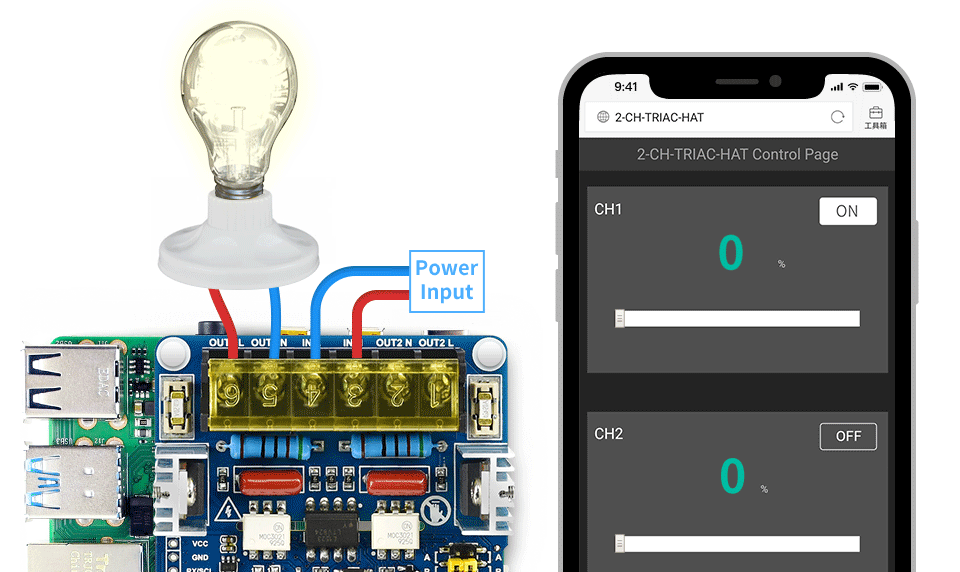

Example of controlling the operation of 220VAC household appliances:

CHARACTERISTICS

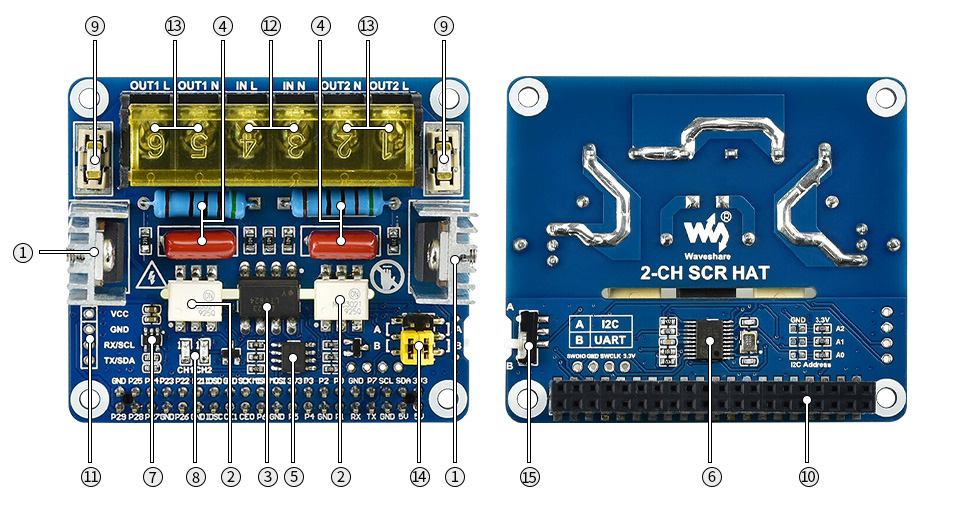

elements:

1. BTA24-600 high power bidirectional triac (TRIAC)
2. MOC3021S camera, triac driver
3. LTV-824S AC camera
4. RC damper
5. LM358DR OP amplifier
6. The main controller STM32F030F4P6
7. RT9193-33PB power chip
8. output indicator
9. Fuse for 20A
10. Standard Raspberry Pi 40PIN GPIO connector
11. MCU control interface, for use with other host control boards such as Arduino
12. AC input
13. AC output
14. Data bus selection
    A: use the Raspberry Pi I2C bus
    B: use the Raspberry Pi UART bus
15. mode selection
    A: I2C mode
    B: UART mode

Layout:

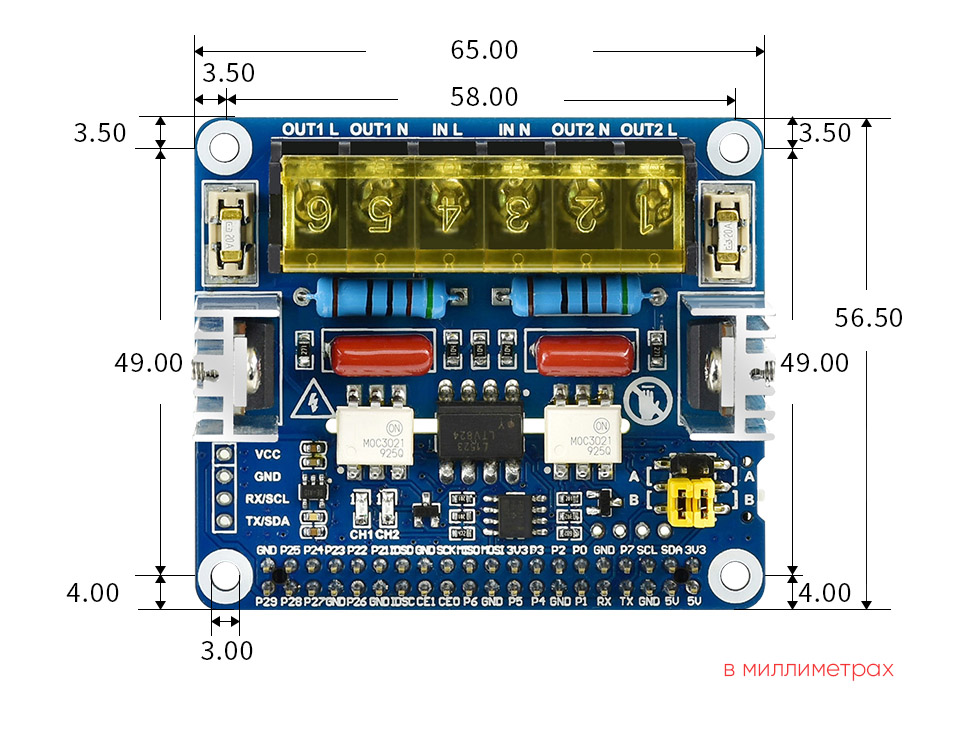

Overall dimensions:

Resources and Services Provided:

Waveshare provides professional technical support, a wide range of resources and instructions, and demonstration data with this product.

Information for developers: demo codes, schematics, data tables, etc.

www.waveshare.com/wiki/2-CH_TRIAC_HAT

* Resources for different products may vary, please check the wiki page to confirm the actual resources provided.

Package includes:

1. 2-CH TRIAC HAT board - 1 pc.
2. mounting kit - 1 pc.
   1. 2.

weight: 0.052 kg
