Raspberry Pi Motor Driver HAT expansion board (15364)

£10.90

Description

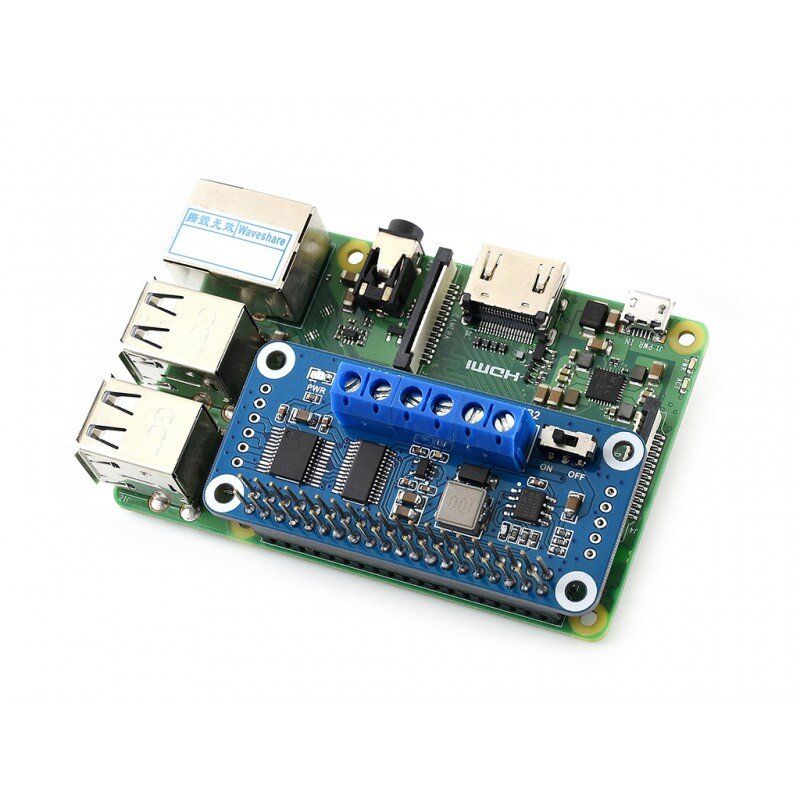

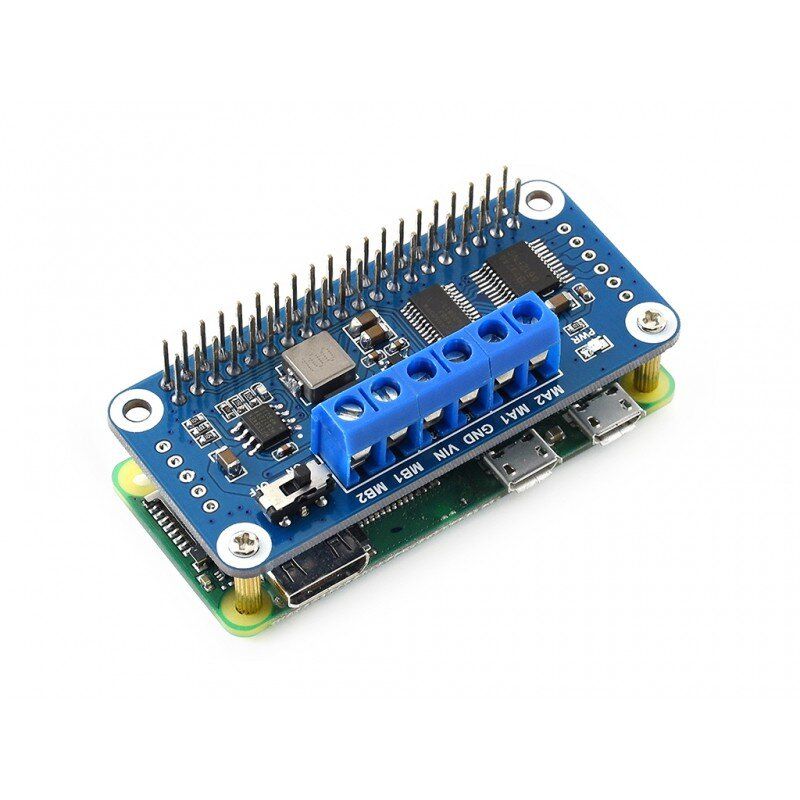

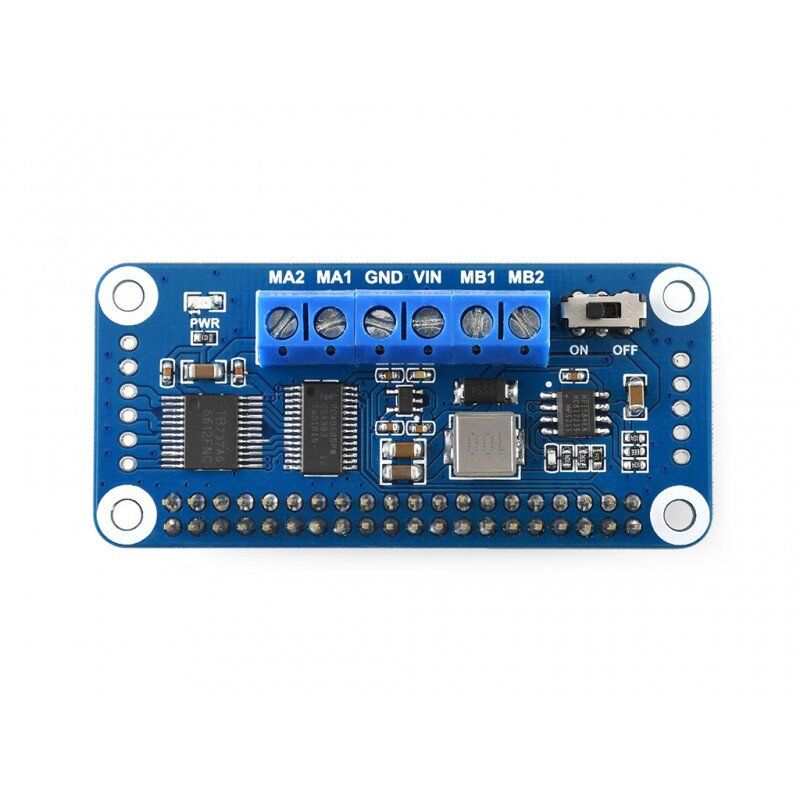

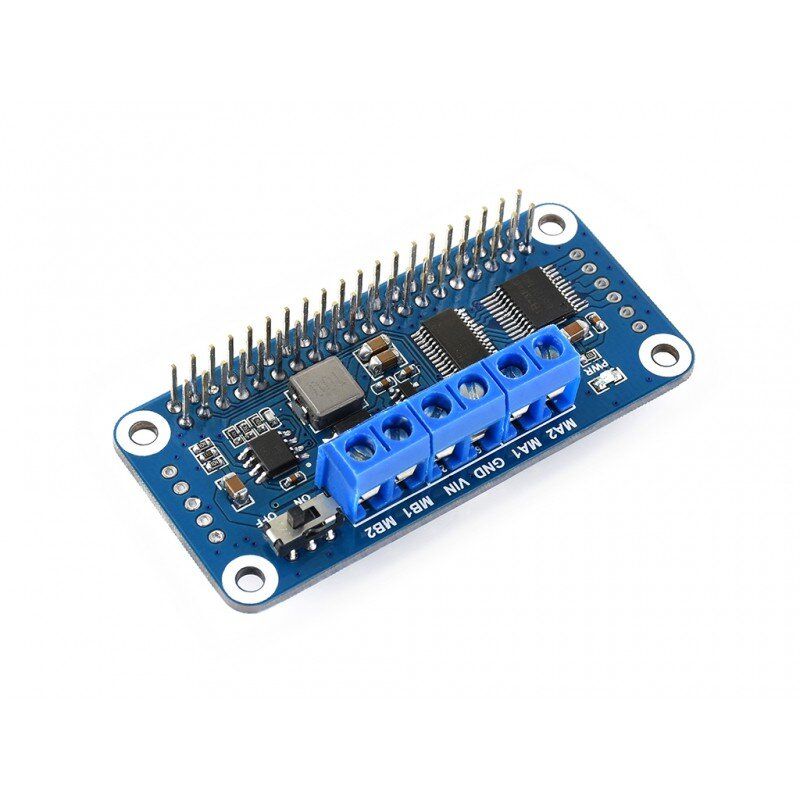

TheRaspberry Pi Motor Driver HAT expansion board (15364 ) is a HAT board with drivers for motor control designed for the Raspberry Pi. The board is controlled via an I2C interface and has the ability to drive two DC motors simultaneously. It is the perfect choice for your mobile robots.

Features:

Standard Raspberry Pi 40PIN GPIO connector, supports Raspberry Pi series boards

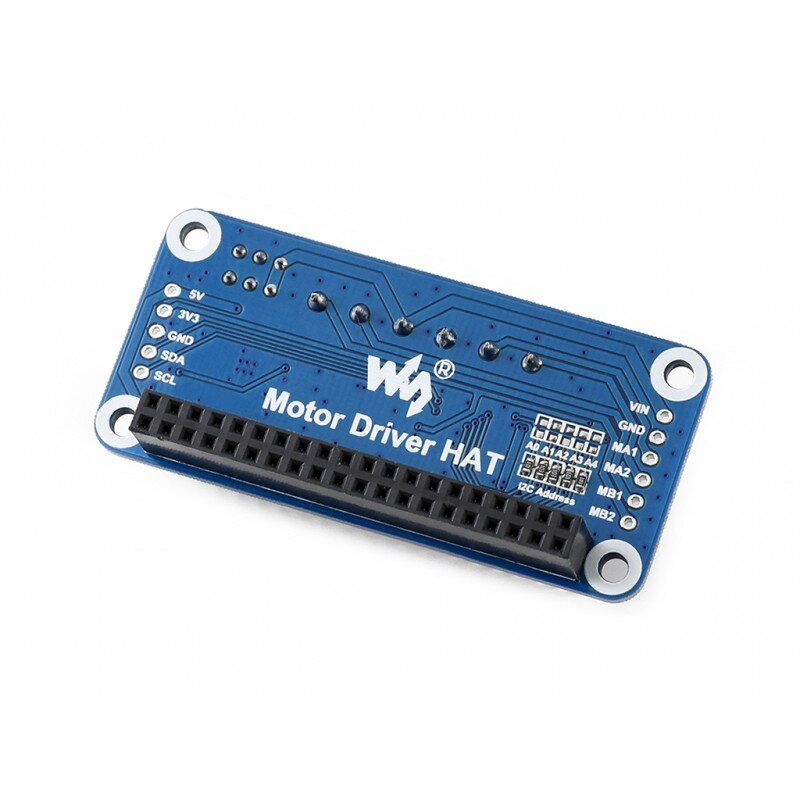

Controlled by I2C, setting 5 address jumpers, it can be expanded up to 32 modules
Embedded PCA9685 chip, provides 12-bit hardware PWM for motor speed control
Built-in TB6612FNG dual H-bridge motor driver provides high efficiency with low heat
Built-in 5V regulator, output current up to 3A, has the ability to be powered by battery via VIN terminal
Has reserved I2C control pins that allow for interfacing with other control boards
Comes with development resources and guidance (examples in BCM2835, wiringPi and python)

Specifications:

Power supply: 6 VAC 12 V (VIN terminal)
Logic voltage: 3.3 V
PWM driver: PCA9685
Control Interface: I2C
Motor Driver: TB6612FNG
Size: 65mm x 30mm
Mounting hole diameter: 3.0 mm

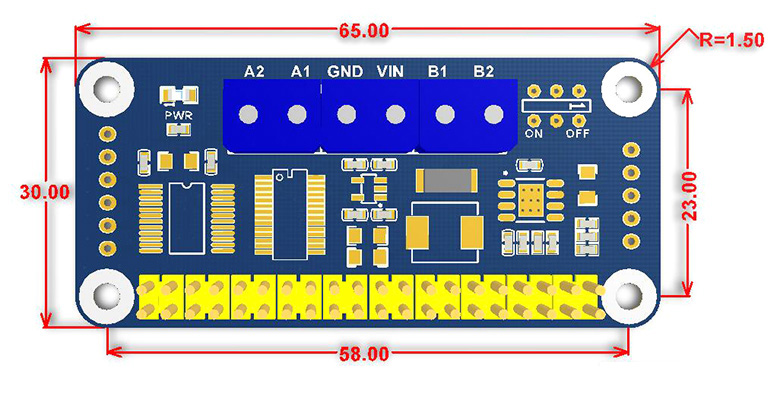

Overall dimensions (in mm):
