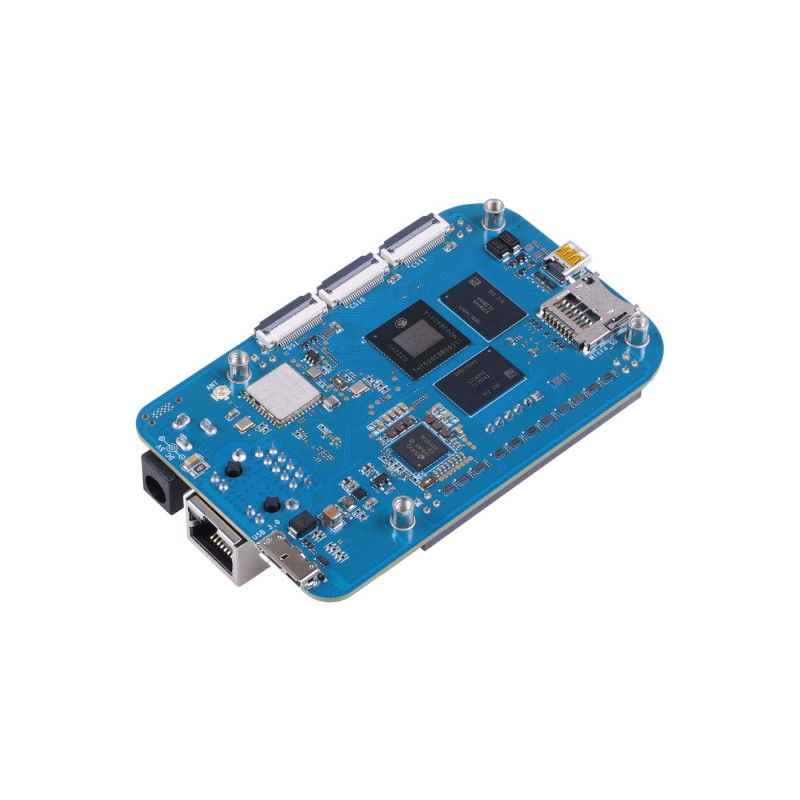

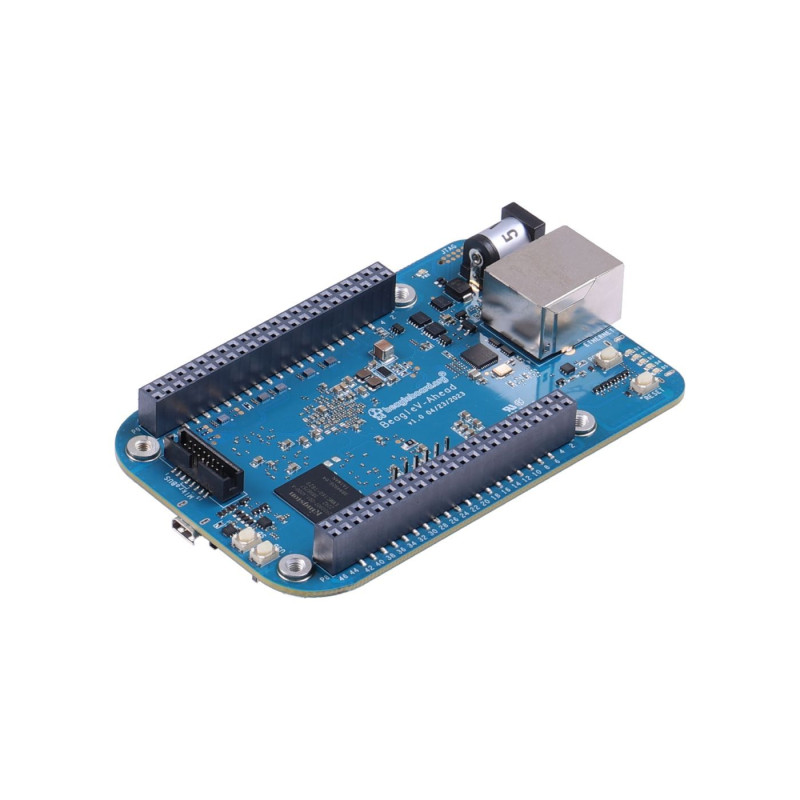

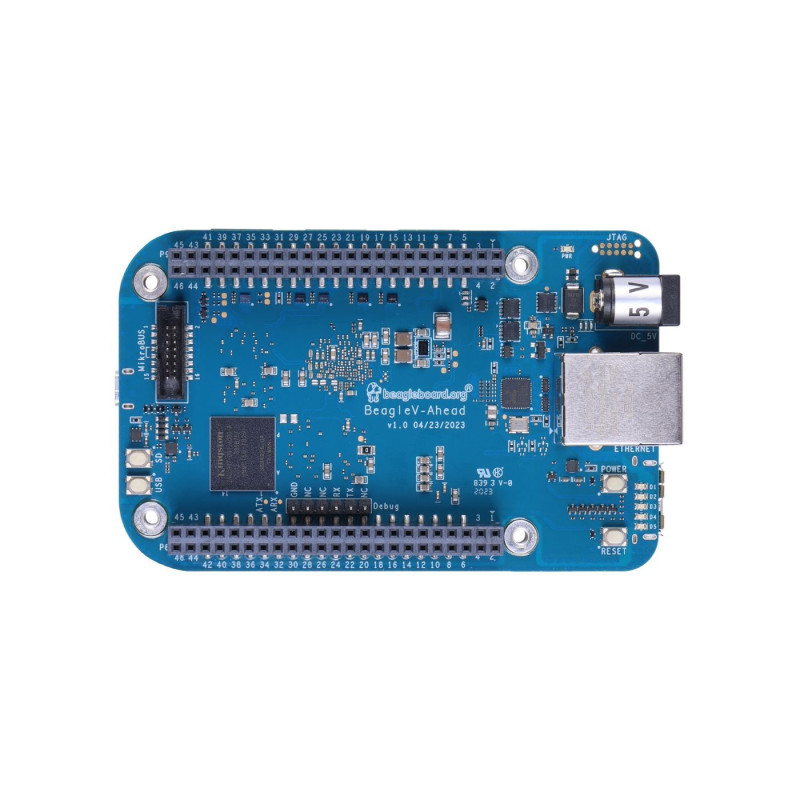

BeagleV Ahead microcomputer

TheBeagleV Ahead is an innovative platform based on the RISC-V processor core and offers a number of impressive features and capabilities. The BeagleV® - Ahead is a state-of-the-art single board computer powered by the Xuantie C910 TH1520 RISC-V quad-core IP processor, which can run at up to 1.85 GHz. This board is designed for high-performance computing and provides significant AI acceleration with 4 TOPS NPU @ INT8 1GHz processing power. It supports popular AI frameworks such as TensorFlow, ONNX, and Caffe.

The board is equipped with hybrid network connectivity, integrating 2.4G Wi-Fi and Bluetooth 5.2 wireless technology, and providing a 1 Gigabit Ethernet network interface. It can offer mobility and flexibility to the stage, while also providing stability and security scenarios.

It includes a unified mikroBUS™ connection interface, allowing 1000+ click boards to be instantly connected to the main development board. It also contains rich extensions and interfaces, with 2x CSI, 1x HDMI, 1x DSI multimedia ports, 2x 46pin BeagleBone® Header, 1x microSD and 1x microUSB 3.0, this board offers a wide range of options for different projects.

The board supports multiple operating systems, including Yocto and Linux distributions such as Ubuntu and Fedora (the latter is currently under development), making it an ideal choice for developers and enthusiasts alike. Whether you are building a complex AI system or a simple embedded project, this single board computer has the power and versatility to meet your needs.

Key Features:

1. RISC-V Processor IP: RISC-V is an open and modular processor core that is different from traditional architectures such as ARM or x86. This means that the BeagleV® - Ahead platform uses a RISC-V processor core (based on the Xuantie C910 TH1520 RISC-V quad-core IP processor running at up to 1.85 GHz) that can be customized and expanded to meet specific needs.

2. 4 TOPS AI Acceleration: This platform is equipped with an artificial intelligence accelerator with 4 TOPS (trillion operations per second) @ INT8 1GHz performance, which allows you to perform various tasks using artificial intelligence and machine learning. Supports Tensor Flow, ONNX, Caffe framework

3. 2.4G Wi-Fi & Bluetooth 5.2: The ability to connect to 2.4G GHz Wi-Fi and Bluetooth 5.2 wireless networks provides easy connectivity to and communication with other devices.

4. 1 Gagabit Ethernet: The gigabit Ethernet interface allows the platform to connect to wired networks for fast and reliable data exchange.

5. mikroBUS™: The mikroBUS™ interface enables the connection of various modules and sensors using a standardized connector.

6. 2x CSI, 1x HDMI, 1x DSI: This means that the platform supports the connection of two cameras via CSI (Camera Serial Interface), as well as video output via HDMI (High-Definition Multimedia Interface) and DSI (Display Serial Interface), as well as: 2x 46-pin BeagleBone® connector, 1x microSD and 1x microUSB 3.0

7. Multiple OS support: support for Yocto and Linux distributions such as Ubuntu and Fedora

The BeagleV® - Ahead platform is designed to create powerful and flexible solutions in the areas of artificial intelligence, communication, visual output, and many others. It can be used to develop a variety of projects, from small prototypes to complex systems.

Technical specifications:

Processor: T-Head TH1520 (4-core Xuantie C910 processor)
PMIC: DA9063
Memory: 4 GB LPDDR4
Storage: 16 GB eMMC
WiFi/BlueTooth:
- PHY: AP6203BM
- Antennas: 2.4 GHz and 5 GHz
Ethernet:
- PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy
- Connector: integrated RJ-45 magnet
microUSB 3.0:
- Connectivity: USB OTG, Flash support
- Power supply: Input: 5 V @ , Output: 5 В @

HDMI:
- Transmitter: TH1520 video output system
- Connector: Mini HDMI

Other connectors:
- microSD
- MikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO)
- CSI connector compatible with BeagleBone® AI-64, Raspberry Pi Zero / CM4 (22-pin)
- DSI connector

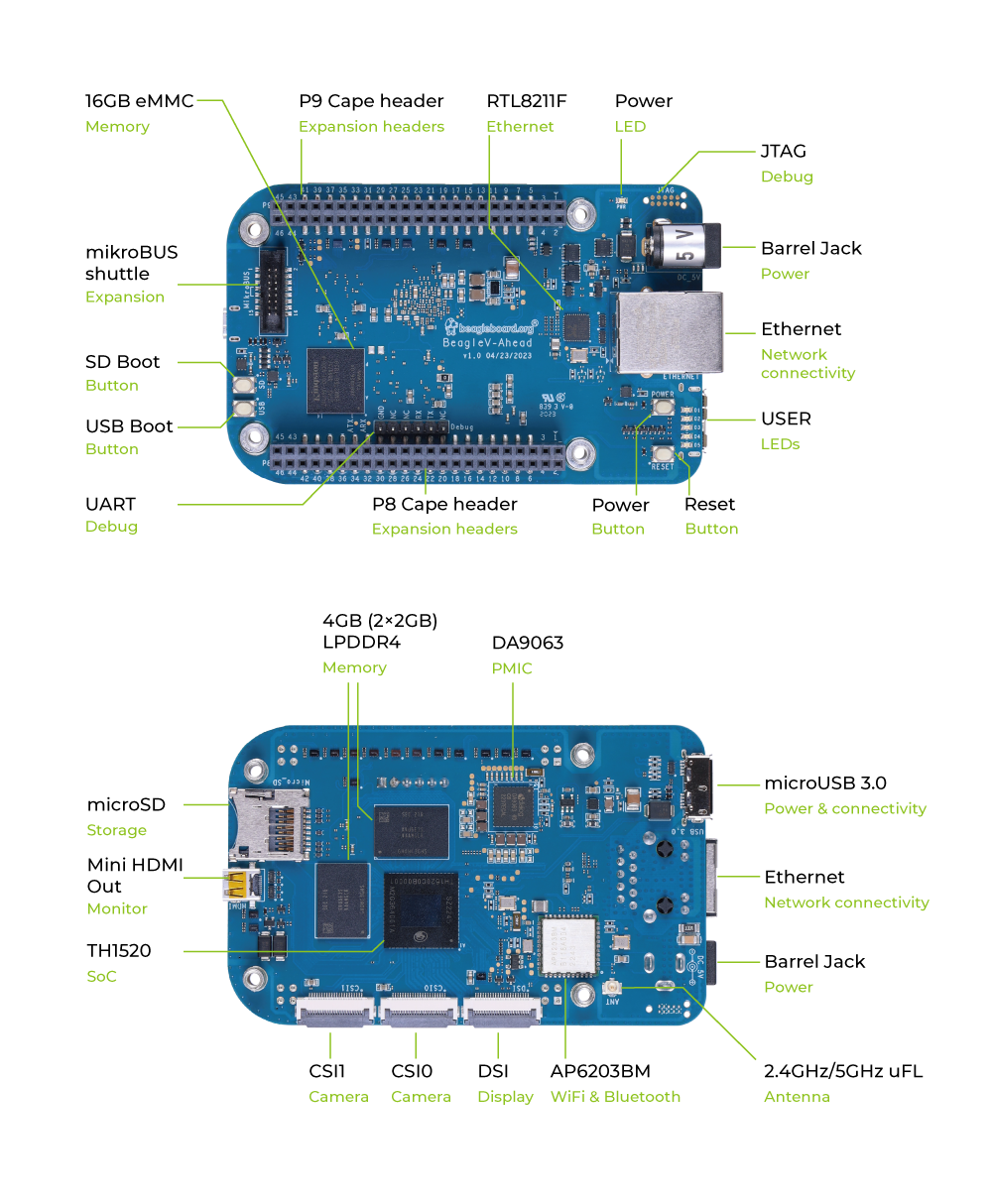

Board elements and interfaces:

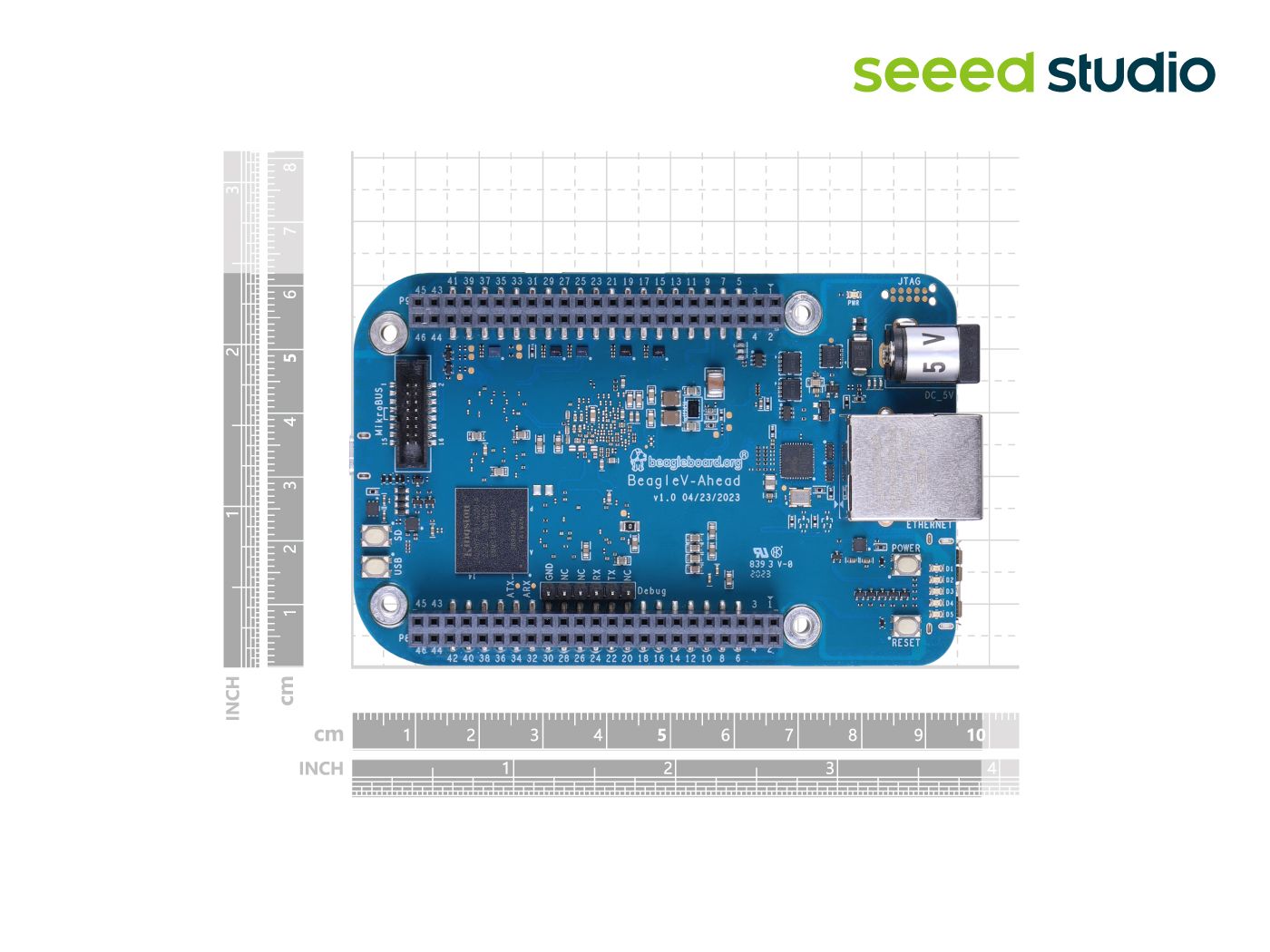

Overall dimensions: 99mm x 62mm

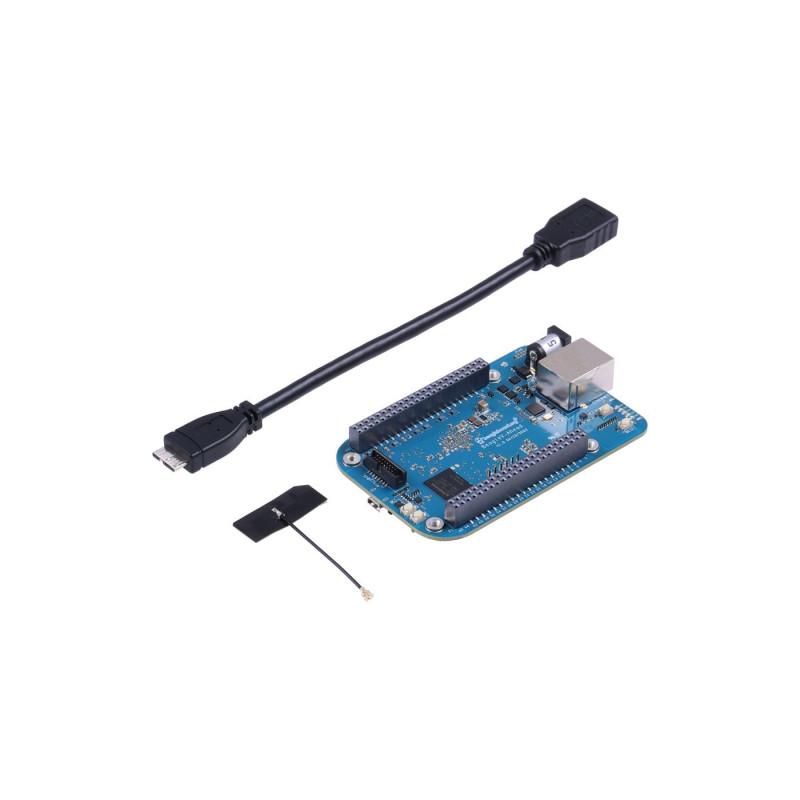

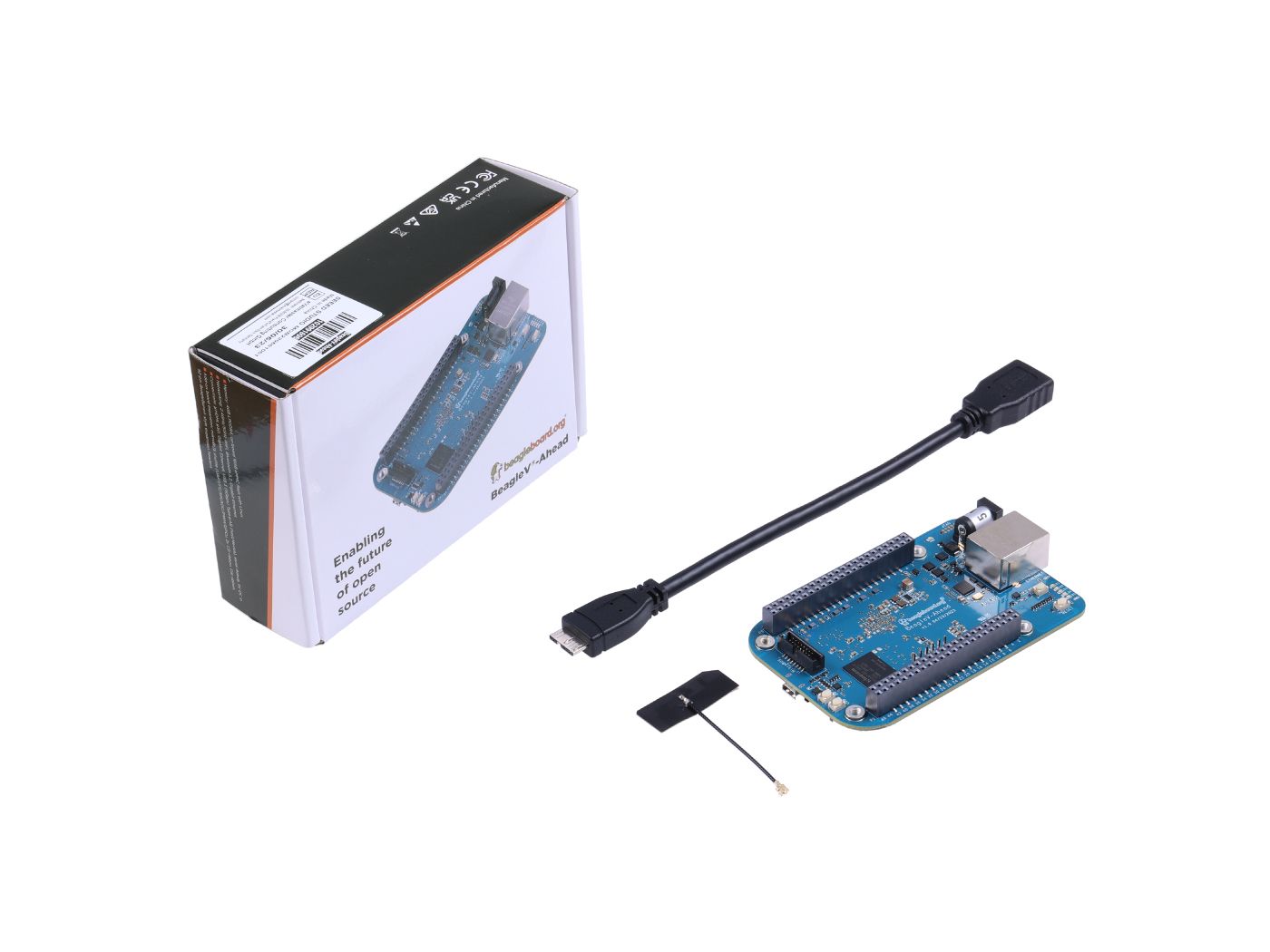

Scope of delivery:

1. BeagleV®-Ahead x1 board
2. One (1) 2.4 GHz/5 GHz antenna x1
3. MicroUSB OTG cable x1
4. Quick start card x1
