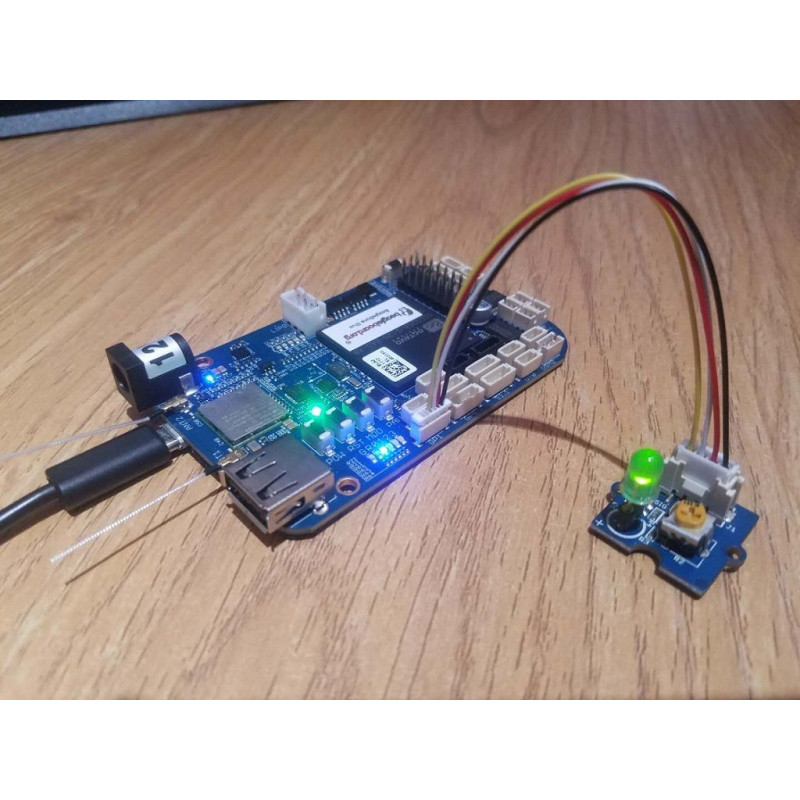

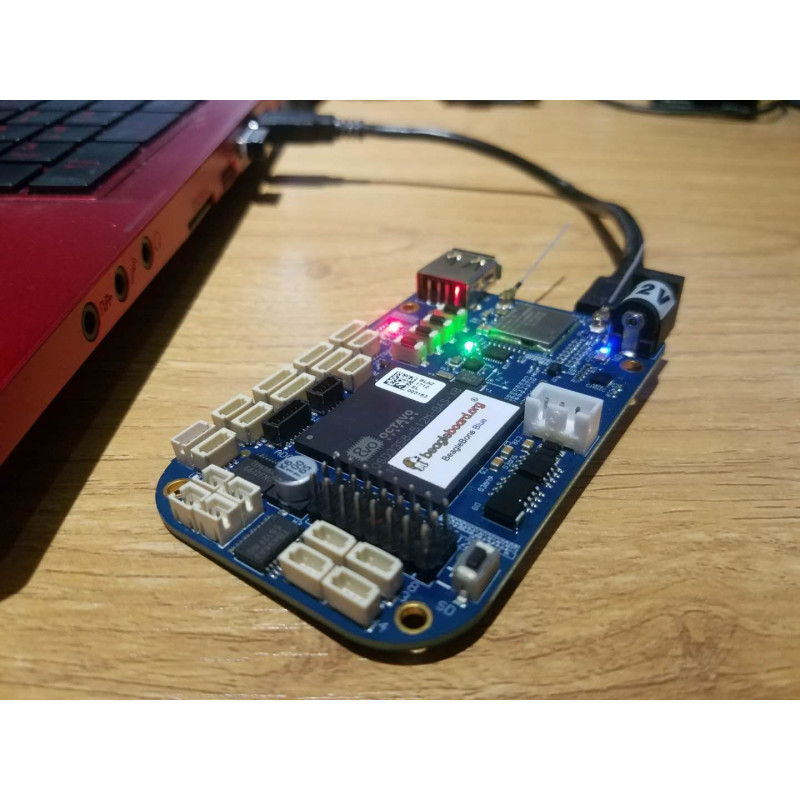

BeagleBone Blue microcomputer
We do not store credit card details.

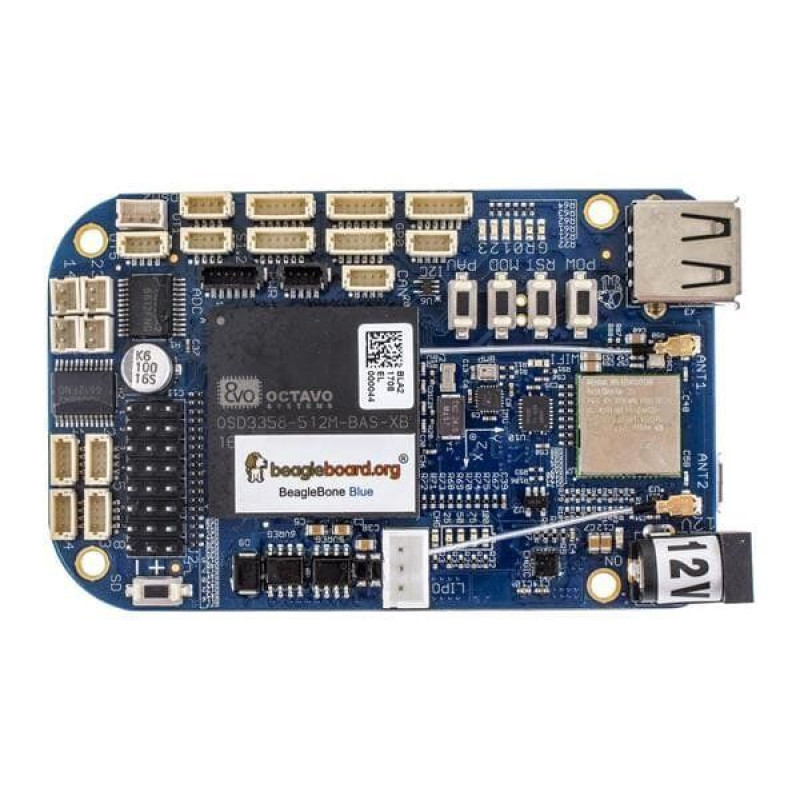

TheBeagleBone® Blue is a Linux-based computer for robotics. It is integrated into a small 3.5" x 2.15" board with an Octavo OSD3358 microprocessor, along with wi-fi/bluetooth, IMU/barometer, power regulator, charging status indicator, H-Bridges, discrete connectors for DC generators, 8 connectors for servos and many other peripherals. Open source code, strong community support, and a wide range of features make building small robots with BeagleBone® Blue very easy, fun, and affordable.
BeagleBone® Blue combines the high-performance flexible WiFi / Bluetooth WiLink ™ BeagleBone® Black Wireless interface with the capabilities of Strawson Design's Robotics Cape. The BeagleBone® Blue features built-in dual-cell (2S) LiPo battery management with charger and battery level LEDs, 8 servo motor outputs, 4 DC motor drivers, 4 quadrature encoder inputs, a wide range of GPIO and serial protocol connectors including CAN, 9-axis IMU and barometer, 4 ADC inputs, USB PC interface, USB 2.0, reset button, power button, two user-configurable buttons and six indicator LEDs.
BeagleBone® Blue is designed for the development of projects in the field of the Internet of Things, smart home, industrial automation and process control, human-machine interface, drive and drone control, as well as a concentrator of various sensors or in other areas of robotics.
Based on Octavo Systems' System-In-Package, which combines a high-performance TI ARM processor with 512 MB of DDR3 memory, the BeagleBone® Blue boots Linux in about 10 seconds and lets you start developing via a web browser in less than 5 minutes with just one single USB cable.
Key Features:
Processor: Octavo Systems OSD3358
- AM335x 1GHz ARM® Cortex-A8 processor
- 512MB DDR3 RAM
- 4GB 8-bit eMMC built-in flash memory
- Built-in power management
- 2 × 32-bit 200-MHz programmable real-time units (PRUs)
- CPU supports NEON floating point accelerator
- ARM Cortex-M3
- USB2 host / client
Connectors and sensors
- Battery: 2-cell LiPo, LED monitor for checking the charge status
- Charger input: 9-18V
- Wireless connection: 802.11bgn, Bluetooth 4.1 and BLE
- Motor control: 8 6V servo outputs, 4 bidirectional DC motor outputs, 4 quadrature encoder inputs
- Sensors: 9-axis IMU (accelerometer, gyroscope, magnetometer), barometer, thermometer
- Interface: 11 programmable LEDs, 2 programmable buttons
- Easy to connect JST interfaces for adding additional connectors and devices such as: GPS, DSM2 radio, UARTs, SPI, I2C, analog 1.8V, 3.3V GPIOs
Compatible software
- ROS, ArduPilot
- MATLAB and Simulink
- LabVIEW
- Cloud9 IDE on Node.js
- Python, OpenCV, ...
Technical specifications:
| Element | Description. | |
|---|---|---|
| Processor (integrated in OSD3358): | ● AM335x 1GHz ARM® Cortex-A8 SGX530 graphics accelerator NEON floating point accelerator 2x 32-bit PRU 200 MHz microcontrollers | |
| Memory capacity: | ● 512 MB DDR3 800 MHz RAM (embedded in OSD3358) ● Built-in 4 GB 8-bit eMMC flash memory ● SD / MMC slot for microSD | |
Communication: | ● High-speed USB 2.0 client port: | USB0 access, client mode via microUSB |
| High-speed USB 2.0 host port: | access to USB1, type A socket, 500 mA LS / FS / HS | |
|
Supports the following modes: | 2x2 MIMO | |
| AP | ||
| SmartConfig | ||
| STA | ||
| Wi-Fi Direct | ||
| Networking via Wi-Fi based on 802.11s | ||
| Serial Port: | UART0, UART1, UART5 are available via 4-pin JST connectors. | |
| UART2 is available via 6-pin JST connector (EM-506 GPS type connector) | ||
| UART4 RX is available via a 3-pin DSM2 connector. | ||
| WiLink 1835 Bluetooth 4.1 with BLE | ||
| I2C1 available via 4-pin JST connector | ||
| SPI1 CS0 (S1.1) and SPI1 CS1 (S1.2) available via 6-pin JST connectors | ||
| CAN is available via 4-pin JST connector (including CAN1051 CAN transceiver) | ||
| 8 GPIOs (GP0 and GPI1) available via 6-pin JST connectors | ||
| ADC ADC inputs 0 to 3 are available via 6-pin JST connector | ||
| 3.3 and 5 VDC power output via 4-pin JST connector | ||
| Power consumption management: | TPS65217C PMIC is used in conjunction with a separate LDO to provide system power (integrated into OSD3358) | |
| Battery charger for 2-cell (2S) LiPo batteries (9 - 18 VDC connector power supply) 4 battery level LEDs 1 charger LED | ||
| 6VDC 4A regulator to control the servo motor outputs | ||
| Support for debugging: | JTAG test points | |
| Power supply: | microUSB USB 2-cell (2S) LiPo battery connector 9 - 18 V DC connector | |
| Power button Reset button Download button 2 user-customizable buttons 6 user-customizable LEDs; Power indicator | ||
| Motor control (Requires power from DC connector or 2S battery): | 4 DC motor drivers 4 quadrature encoder inputs 8 servo motor outputs | |
| Sensors: | 9-axis IMU Barometer. | |

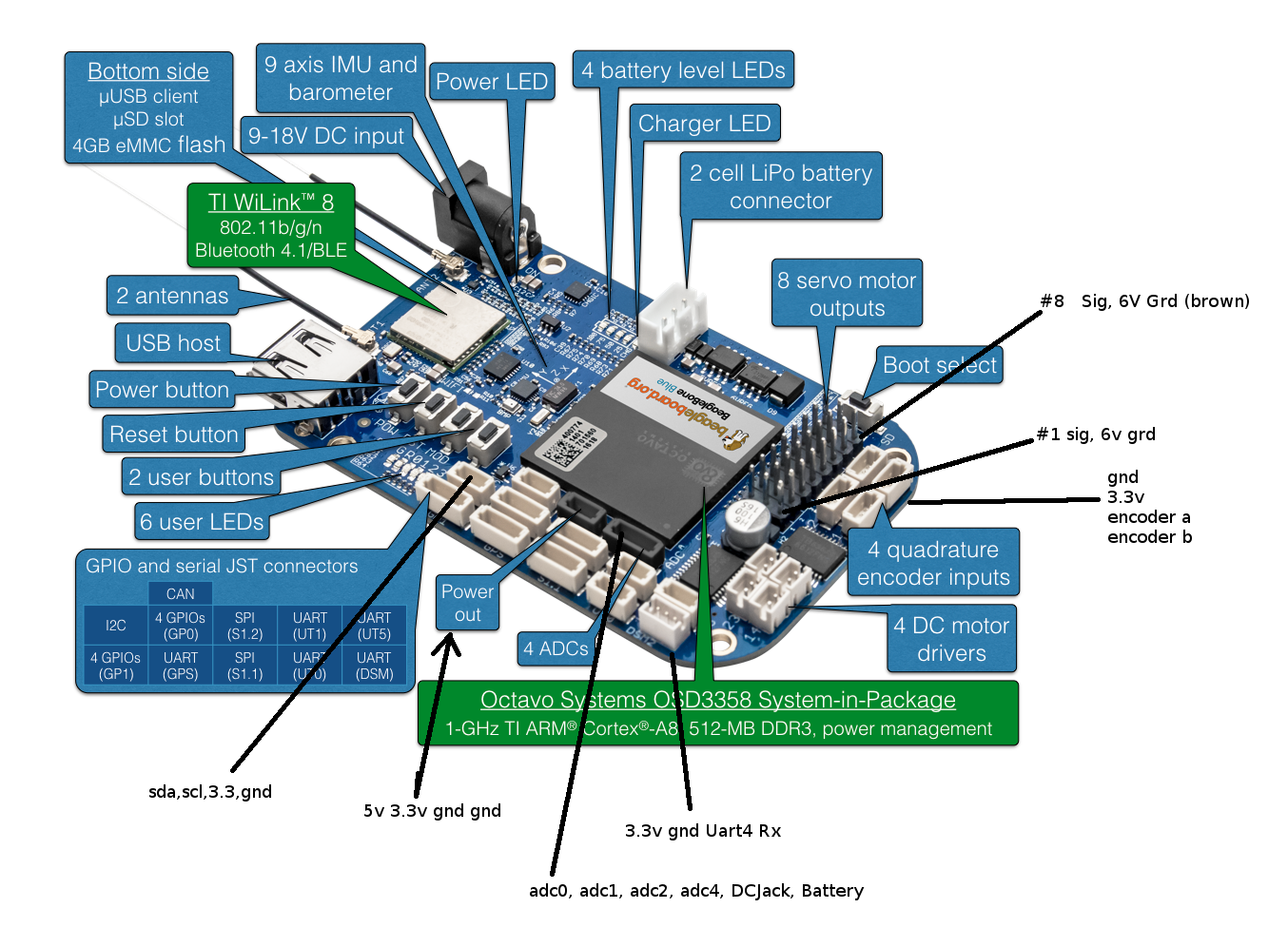

Elements of the board:

Resources for developers Wiki: BeagleBone® Blue Schematic
