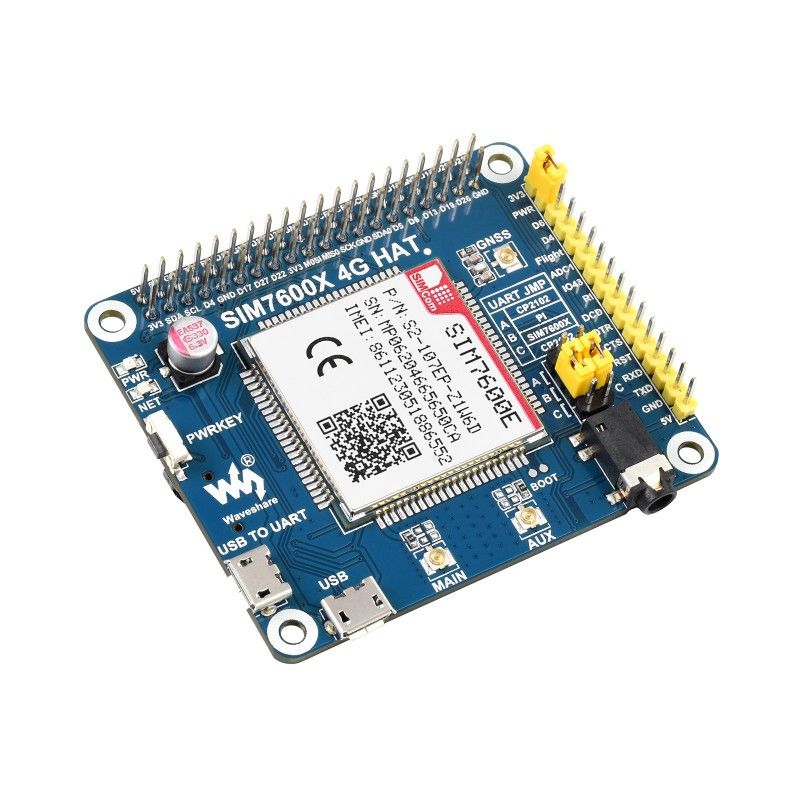

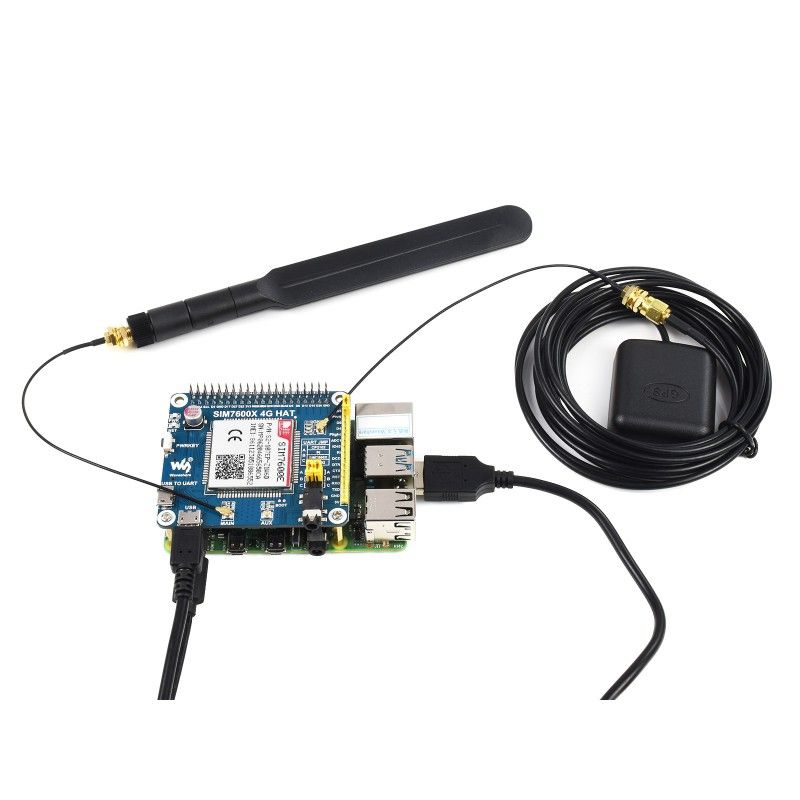

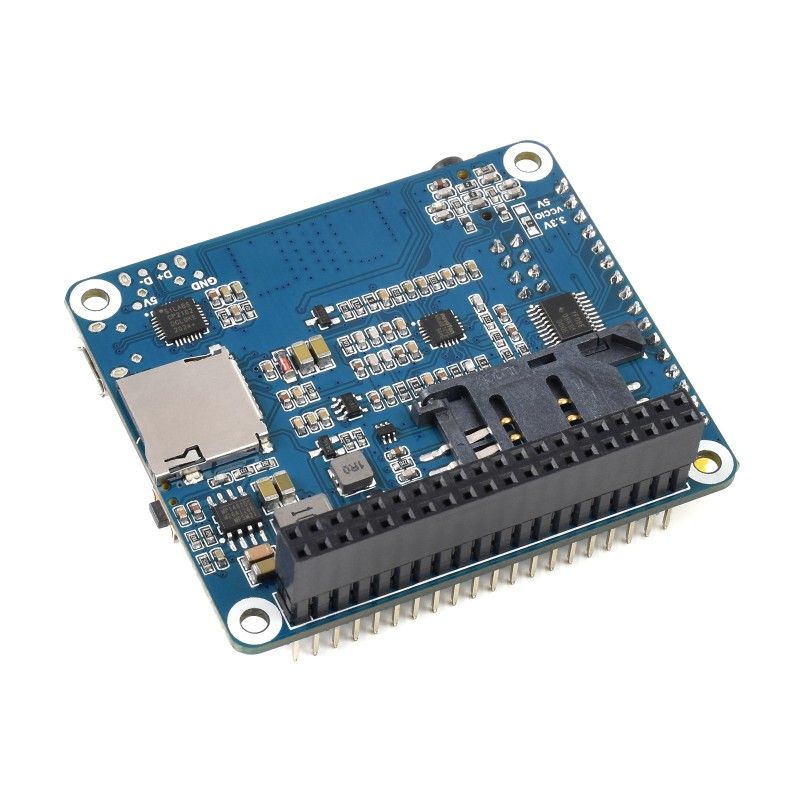

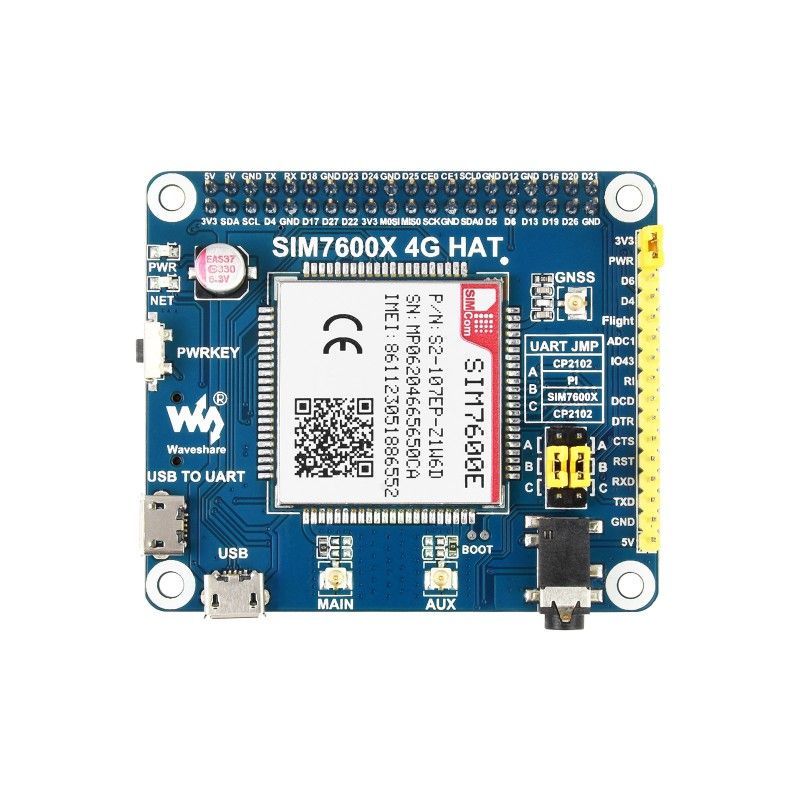

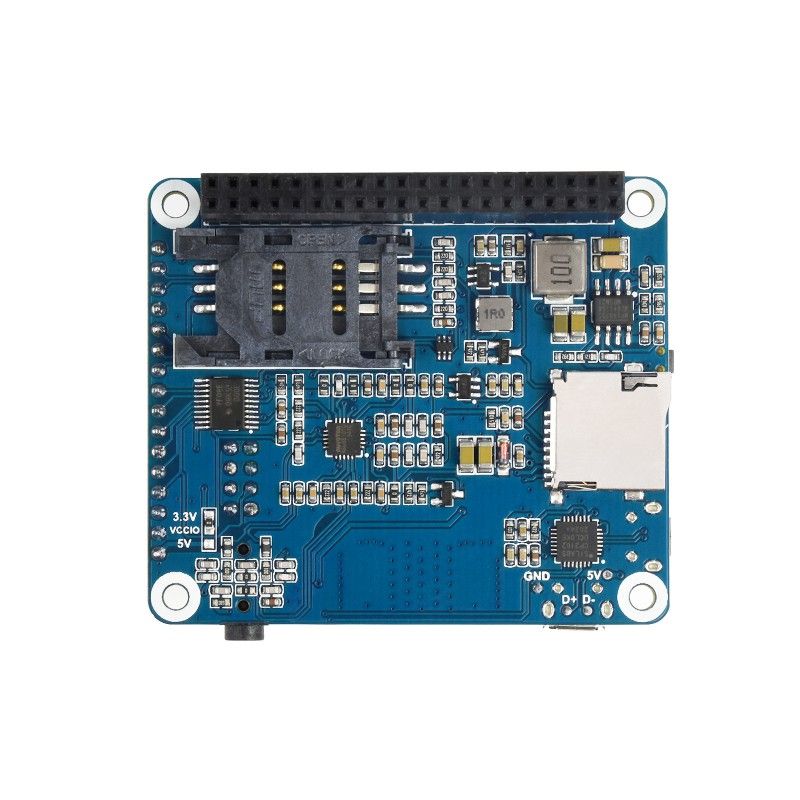

Raspberry Pi SIM7600E LTE Cat-1 HAT expansion board (17954)

The Raspberry Pi SIM7600E LTE Cat-1 HAT Expansion Board (17954 ) is an expansion board for the Raspberry Pi that contains the SIM7600E communication module and provides the Raspberry Pi with LTE Cat-1 3G / 2G communication with global support, as well as GNSS-based positioning (GPS, BeiDou, Glonass, GALILEO, QZSS, LBS). Supports dial-up access, phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

The board has a standard Raspberry Pi 40PIN GPIO connector, which ensures compatibility with Raspberry Pi series boards, as well as Jetson Nano.

Main features:

• Supports dial-up access, phone calls, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS positioning
• Built-in USB interface for checking AT commands, receiving GPS location data, etc.
• Built-in USB to UART converter CP2102 for serial debugging
• UART control pin pinout for connection to host boards such as Arduino/STM32
• SIM card slot, supports 1.8V/3V SIM card
• TF card slot for storing data such as files, messages, etc.
• Built-in audio jack and audio decoders for phone calls
• 2x LED indicator lights, easy to monitor the working status
• Built-in voltage converter, the working voltage can be customized to 3.3V or 5V with a jumper.
• Transmission speed: 300 4Mbps (default: 115200 bps)
• Automatic baud rate: 9600 bps 115200 bps
• Management via AT-commands (set of commands 3GPP TS 27.007, 27.005 and V.25TER)
• Supports a set of applications for SIM cards: SAT Class 3, GSM 11.14 Release 99, USAT

Specifications:

Frequency range.
LTE Cat-1	LTE-TDD: B38 / B40 / B41 LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
3G	UMTS / HSPA+: B1 / B5 / B8
2G	GSM / GPRS / EDGE: 900 / 1800 MHz
GNSS
Satellite system	GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type	16-channel
	C/A code
Audibility.	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
	Cold starts: -148 dBm
Time to first detection (outdoors)	Cold starts: Specifications Main characteristics Country of origin Made in China Form factor Expansion board Reviews There are no reviews for this product. + Add review Write a review Raspberry Pi SIM7600E LTE Cat-1 HAT expansion board (17954) My mark: Continue There are no reviews for this product, be the first to leave your review. Answers & questions Add your question and we will answer as soon as possible. + Ask a question Ask a question Add your question and we will answer as soon as possible. * Your question Continue No questions about this product, be the first and ask your question. you watched new Popular Sold Out BeagleBone Blue microcomputer Model: V69708 Out Of Stock 0 £59.99 new Popular Sold Out Raspberry Pi Compute Module 3+ Lite / Computing computer module (CM3+/LITE) Model: V73455 Out Of Stock 0 £35.80 new Popular Sold Out Raspberry Pi 4 Model B Armor Case Active Cooling (ODS701) Model: V122172 Out Of Stock 0 £14.00 new Popular Sold Out Raspberry Pi 400 Personal Computer Unit UK Model: V96091 Out Of Stock 0 £68.80 new Popular Raspberry Pi 4 Model B 4GB Model: SC0194 In stock 0 £98.40 Add to Cart new Popular Sold Out Industrial Gigabit PoE Splitter (20987) Model: 20987 Out Of Stock 0 £13.00 new Bestseller Popular Sold Out Raspberry Pi 27W USB-C Power Supply, UK Black Model: SC1154 Out Of Stock 0 £11.60 new Popular Sold Out Display 2.9inch NFC-Powered e-Paper (17746) Model: 17746 Out Of Stock 0 £27.99
