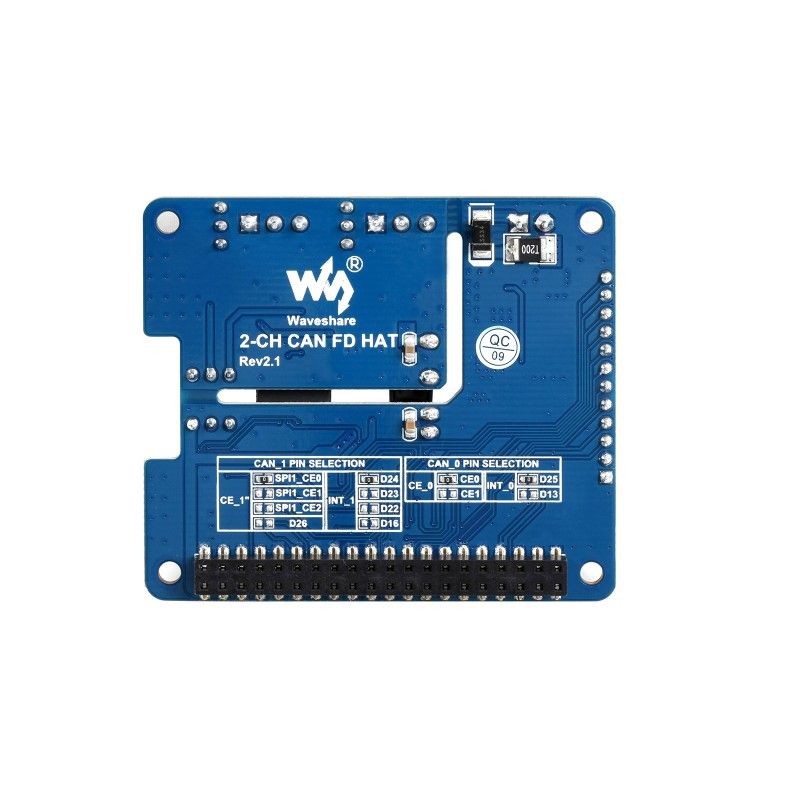

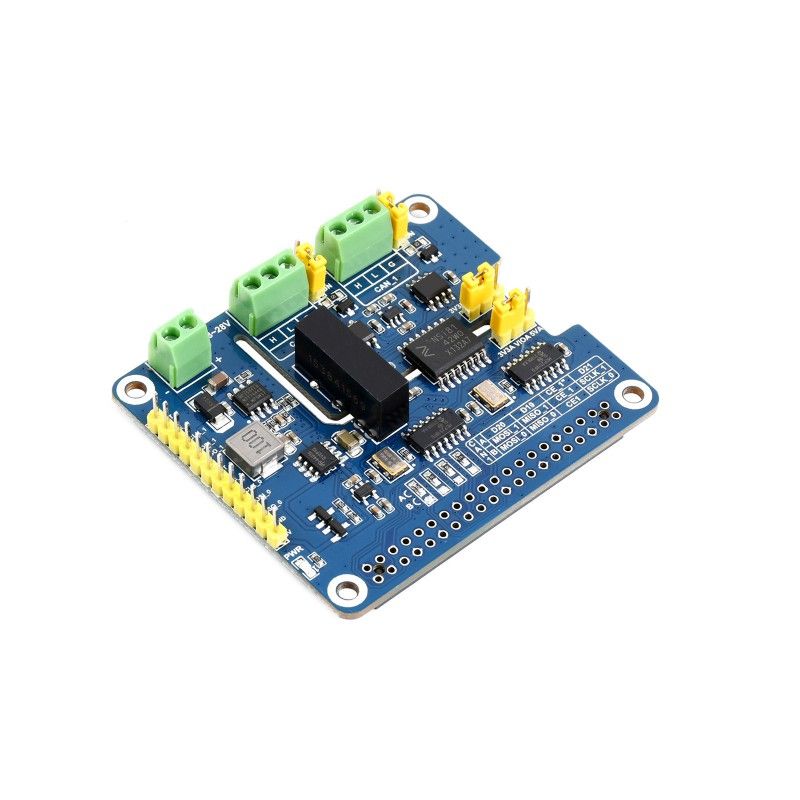

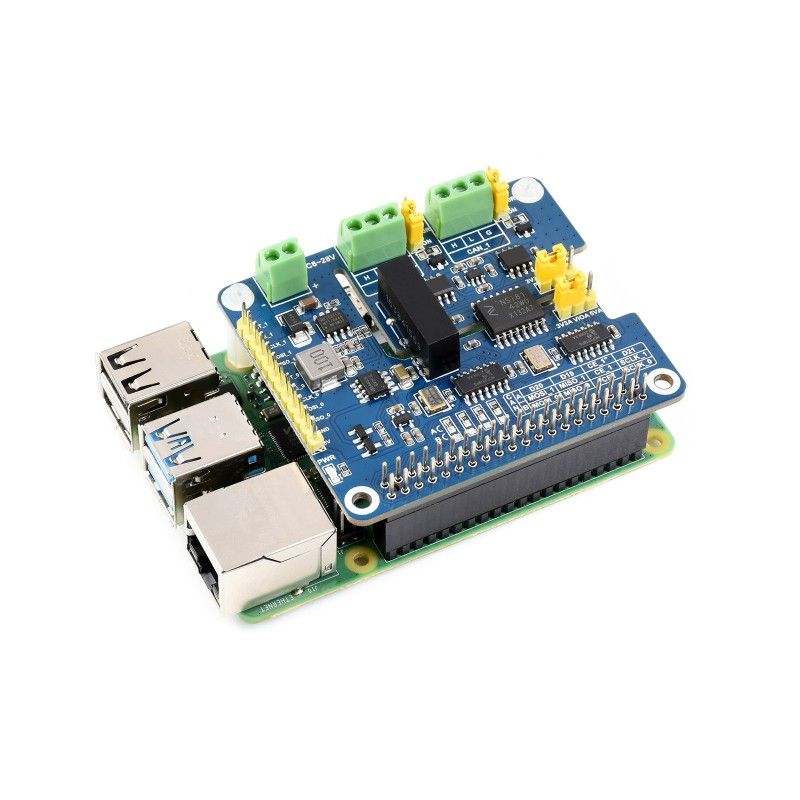

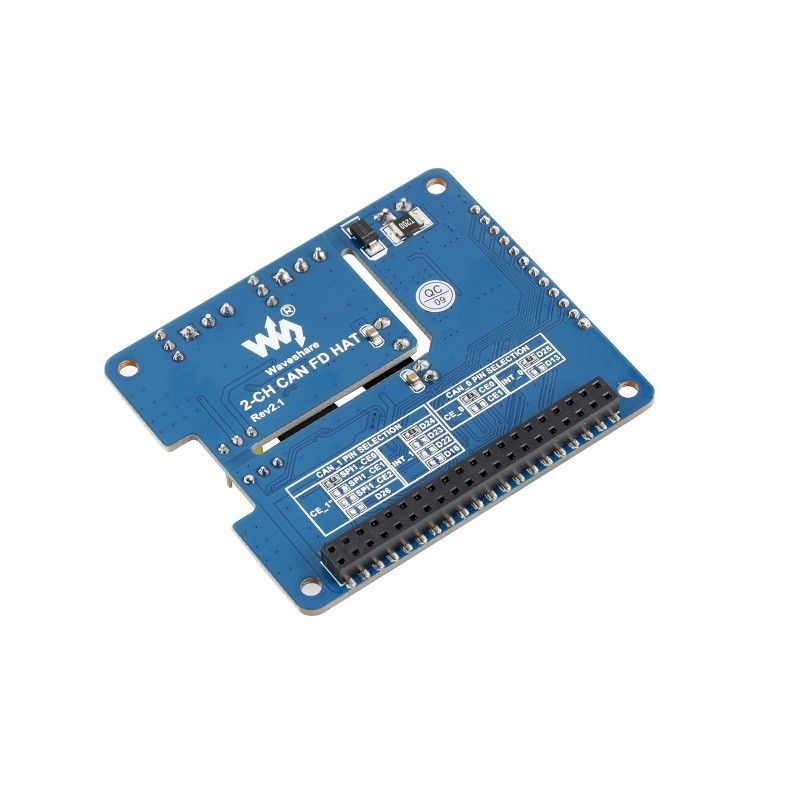

Raspberry Pi 2-CH CAN FD HAT expansion board (17075)

TheRaspberry Pi 2-CH CAN FD HAT Expansion Board (17075 ) is a high performance expansion board (HAT) for the Raspberry Pi that allows you to connect and operate with a CAN interface. It supports CAN FD (CAN with Flexible Data Rate), which enables data transfer not only with the original CAN 2.0 protocol, but also CAN FD with higher data throughput. CAN FD stands for Controller Area Network Flexible Data-Rate. CAN FD is an enhanced version of the CAN protocol that allows for higher data rates and more information.

With many built-in protection circuits, including 500W lightning surge, ESD protection, short circuit protection, and electrical isolation, it makes communication safer and more reliable.

Compatible with Raspberry Pi: This expansion board is specially designed for use with Raspberry Pi, allowing it to be easily connected to the GPIO output connectors on the Raspberry Pi.

This product is a useful addition to the Raspberry Pi for projects that require communication with devices or systems that use the CAN protocol.

Main features:

• Has a standard Raspberry Pi 40PIN GPIO expansion connector, supports Raspberry Pi series boards, Jetson Nano
• Supports both traditional CAN2.0 and CAN FD protocols

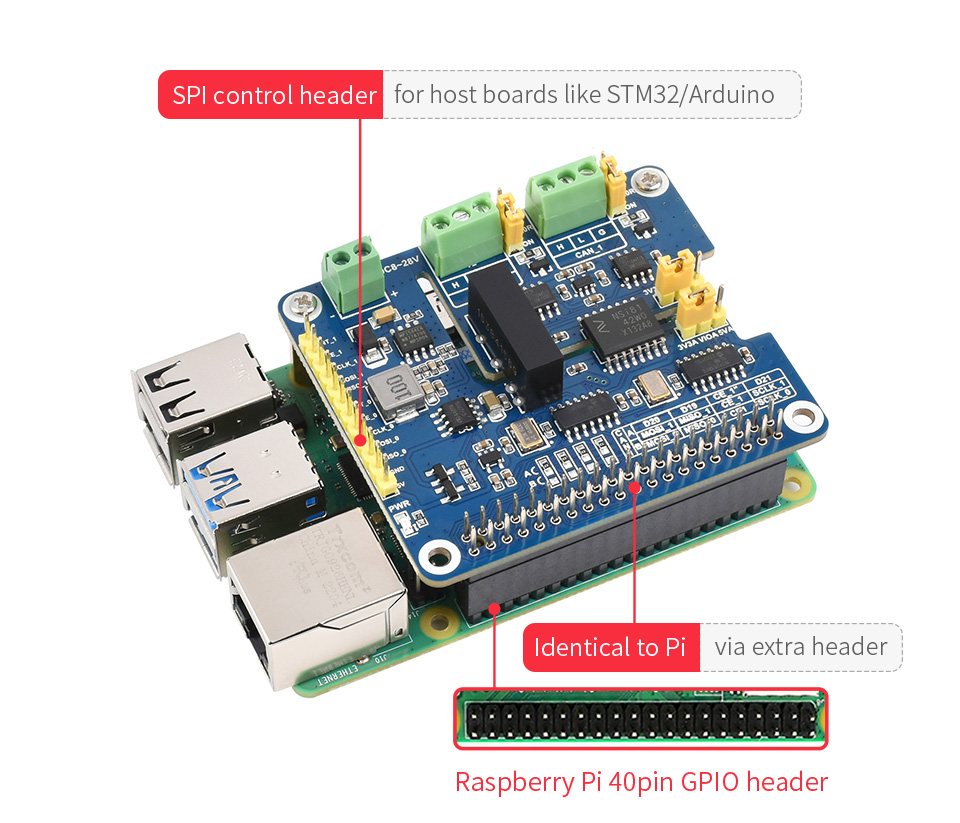

• Features SPI control pins for connection to host control boards such as STM32/Arduino
• Built-in electrical isolation (isolated voltage up to 5kV) ensures stable operation, higher ability to prevent interference
• Has built-in lightning protection, electrostatic discharge protection, short circuit protection, more secure communication
• Has a built-in voltage converter (working voltage is selectable 3.3V/5V by jumper)
• Has a built-in 120 ohm termination resistor (configurable with a jumper)
• Comes with development resources and a manual (examples for Raspberry Pi/Arduino)

Specifications:

• CAN CONTROLLER: MCP2518FD
• CONTROL BUS: SPI
• POWER SUPPLY: External power supply terminal OR Raspberry Pi
• screw terminal: INPUT VOLTAGE DC 828V
• OPERATING VOLTAGE: 5В
• LOGIC LEVEL: 3.3V/5V
• DIMENSIONS: 65.0 × 56.5 mm

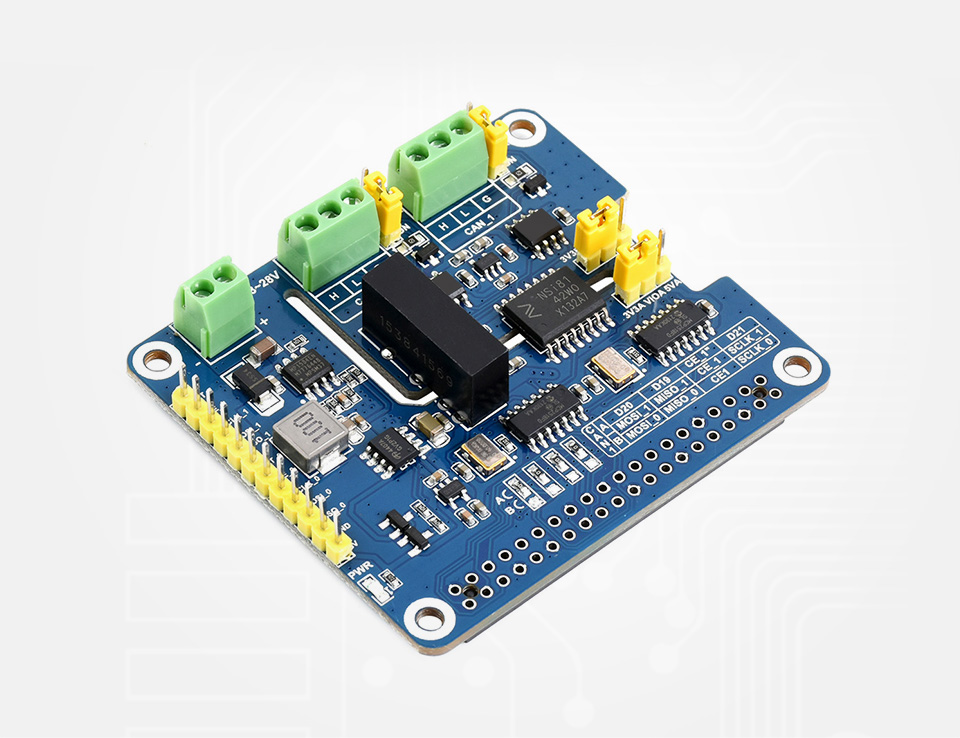

Enable isolated and stable CAN FD function for your Raspberry Pi

Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO connector, customized for Raspberry Pi series boards

Supports 2-channel CAN
CAN controller MCP2518FD + CAN transceiver chip

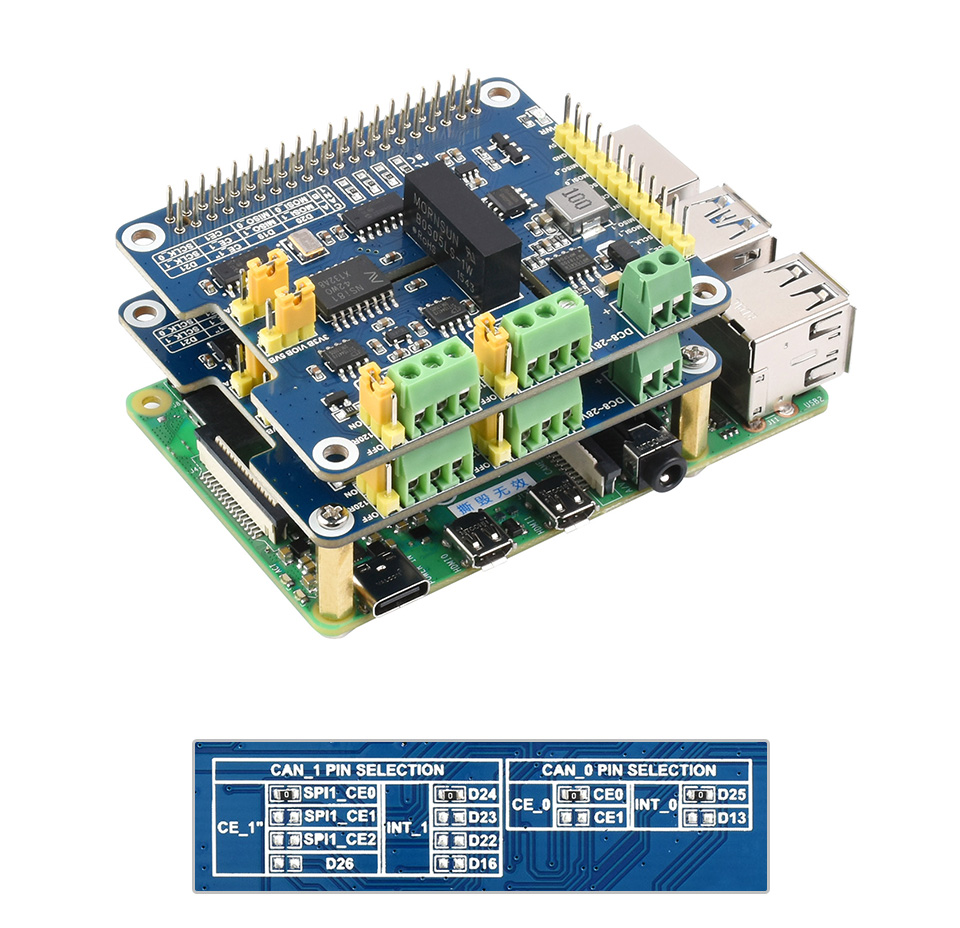

Up to 4-CH CAN through a cascade
Built-in SPI0/SPI1 chip to select and interrupt pin configuration, avoid conflict with other SPI slave devices, also used for cascading to support 4-channel CAN communication
* Multiple HATs are required

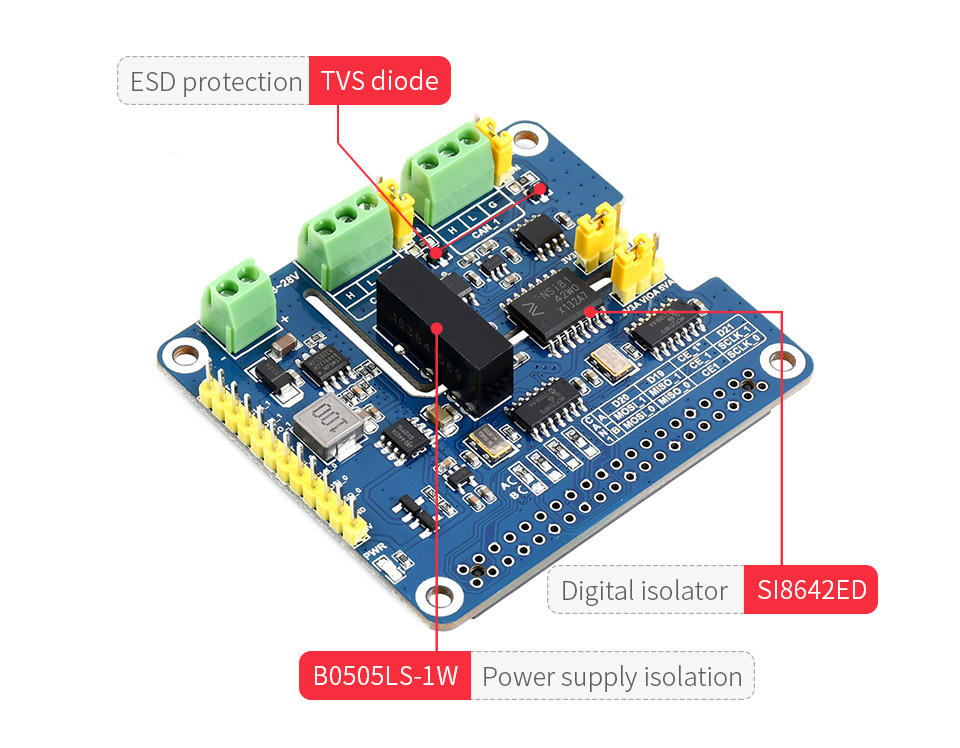

The electrical isolation circuit is safe and stable
SM24CANB TVS diode, ESD protection, transient peak voltage protection

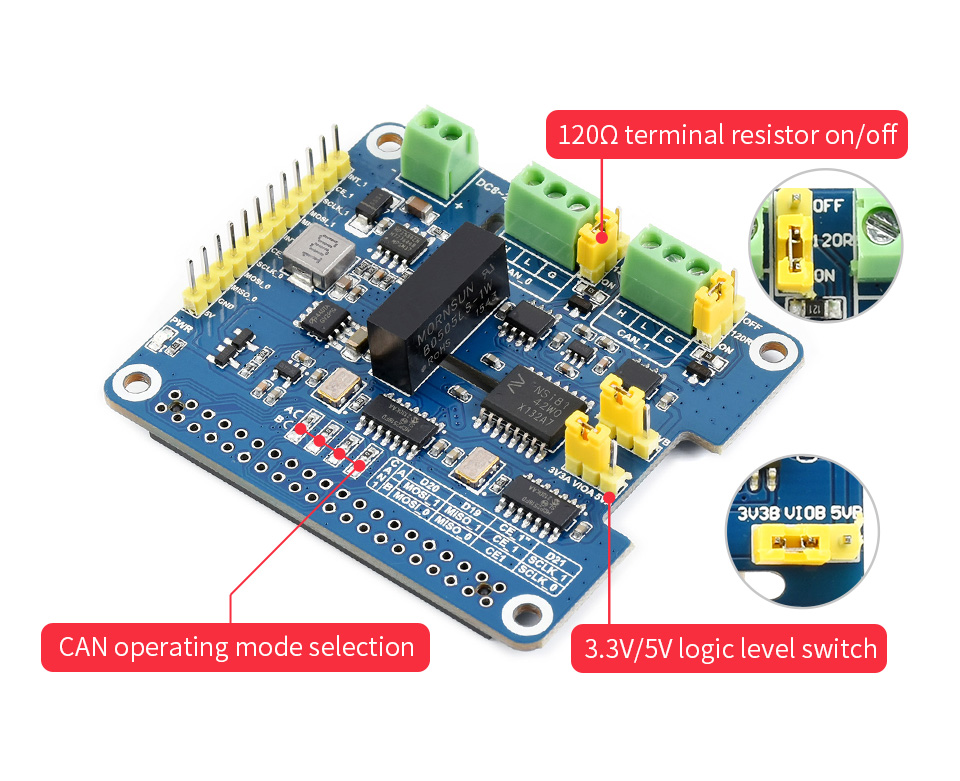

Flexible and convenient jumpers
Easily select 3.3V / 5V operating voltage or enable/disable 120Ω termination resistor with built-in jumpers

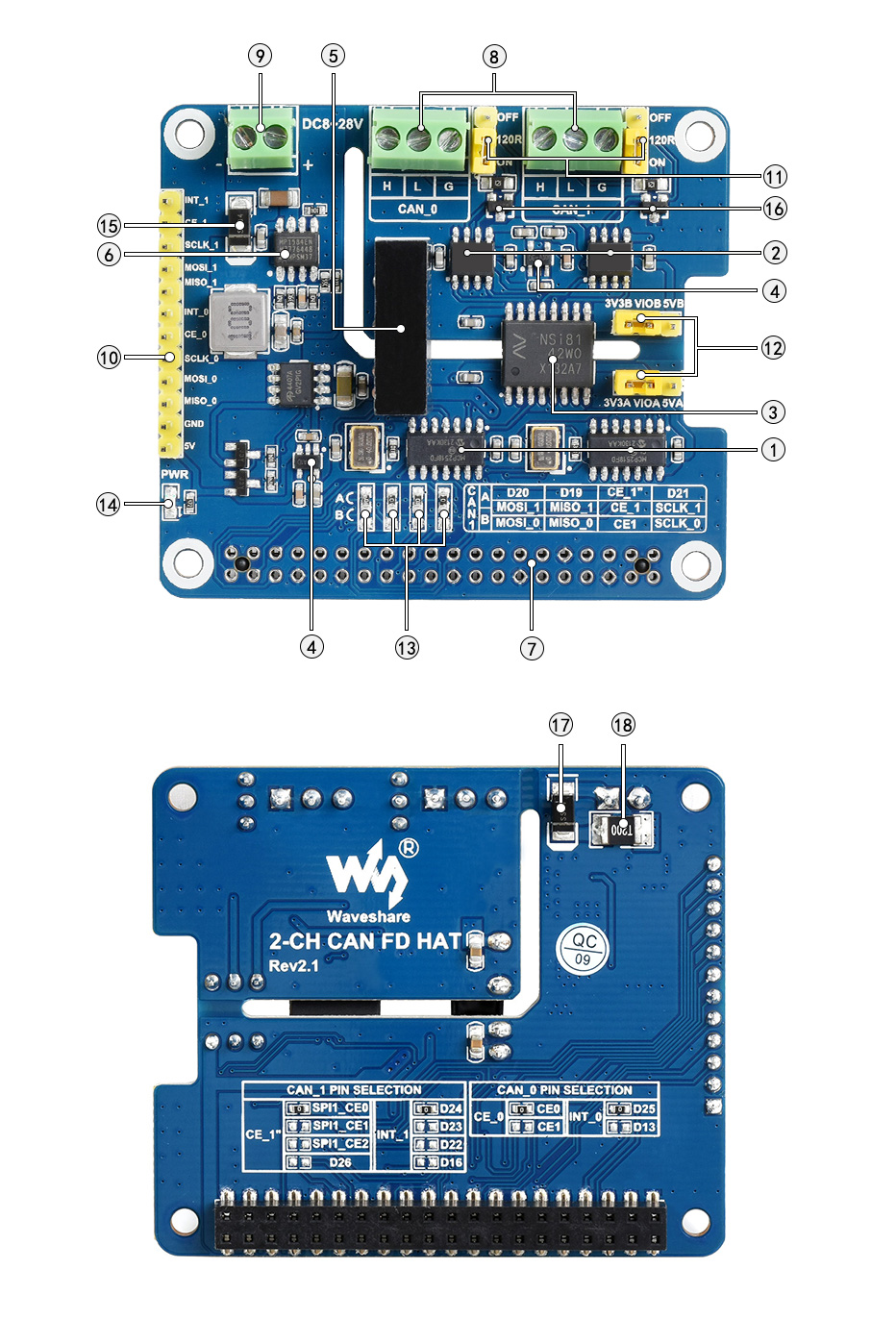

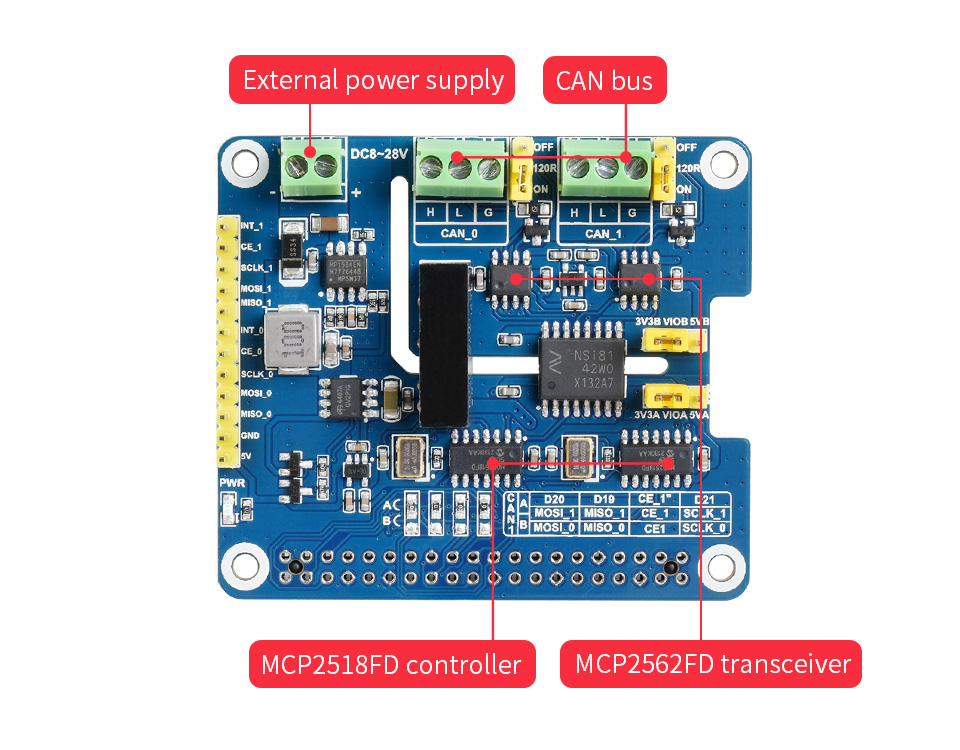

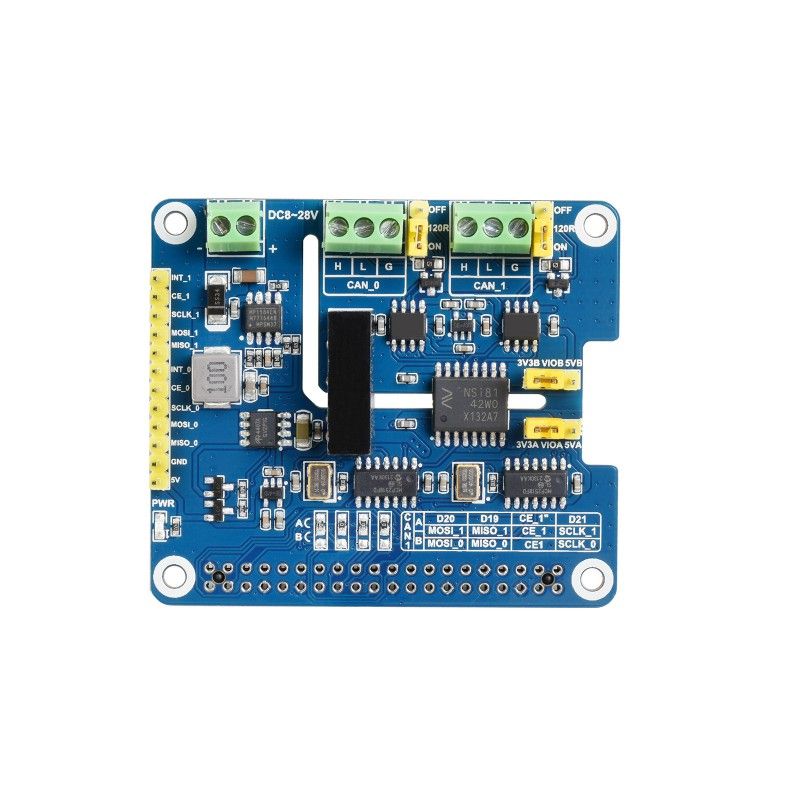

Board elements:

1. MCP2518FD controller
2. Transceiver chip
3. Digital isolator SI8642ED
4. Power supply chip MP1584EN
5. Power supply chip RT9193-33
6. Power supply isolation module B0505LS-1W
7. Standard Raspberry Pi 40PIN GPIO connector

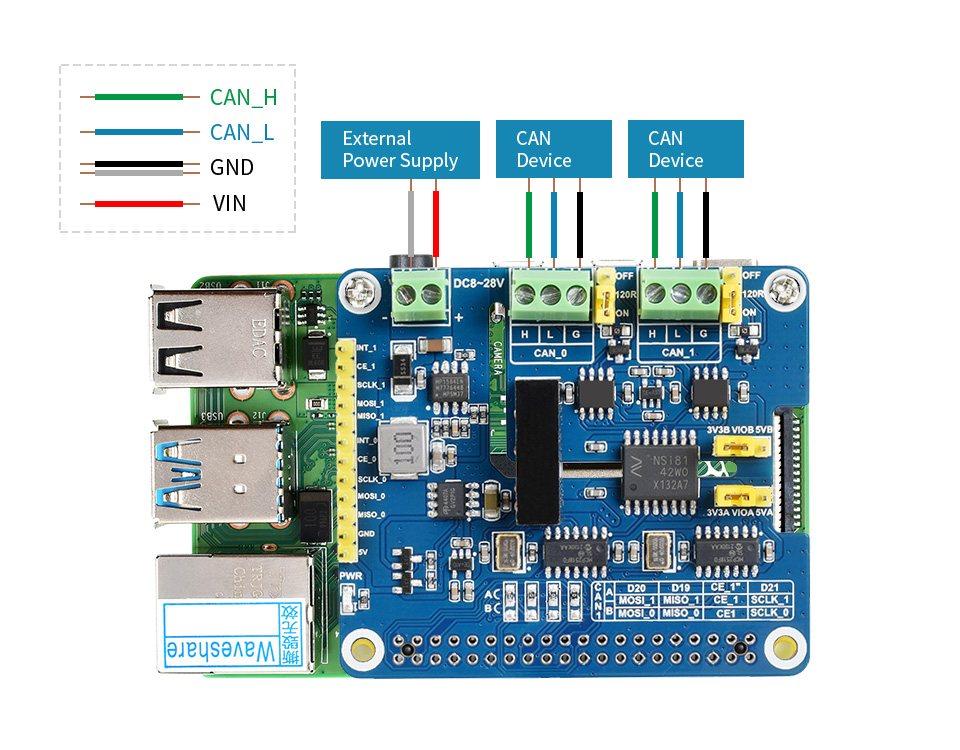

8. CAN bus screw terminal
9. External power supply terminal Input 8 26 V DC
10. MCU control pins for use with host boards such as Arduino
11. 120 ohm terminal resistor switch
12. 3.3 V/5 V logic level switch
13. Selection of CAN operating mode
    1. A: CAN_0 and CAN_1 use two separate SPIs (default)
    2. B: CAN_0 and CAN_1 share a single SPI
14. Power indicator
15. Free-running diode
16. TVS SM24CANB diode matrix
17. Power supply with protected diode
18. Fast fuse for 2 A

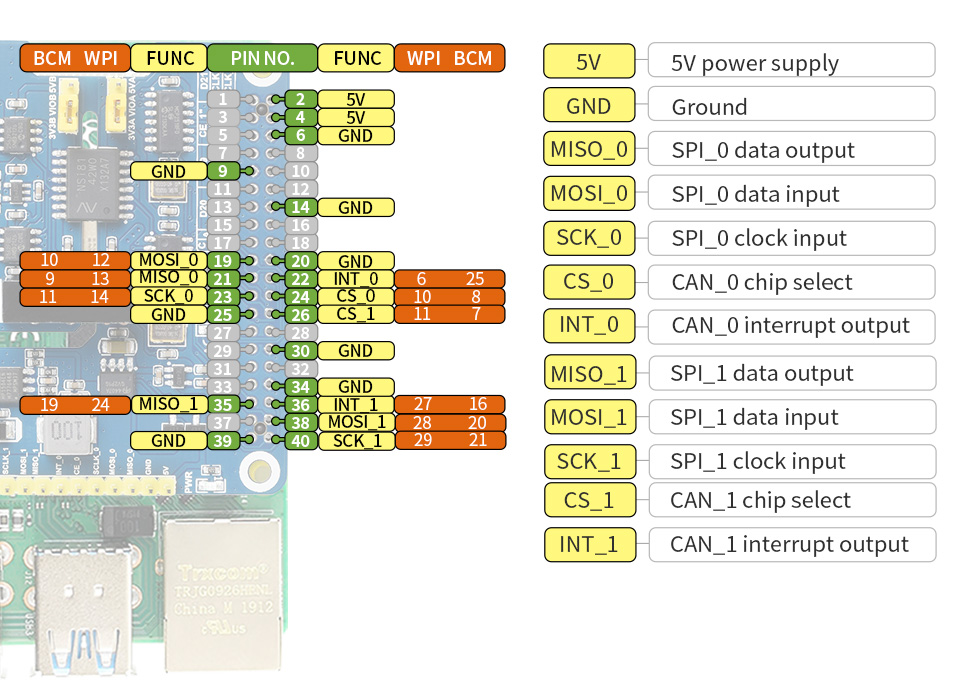

Pinout:

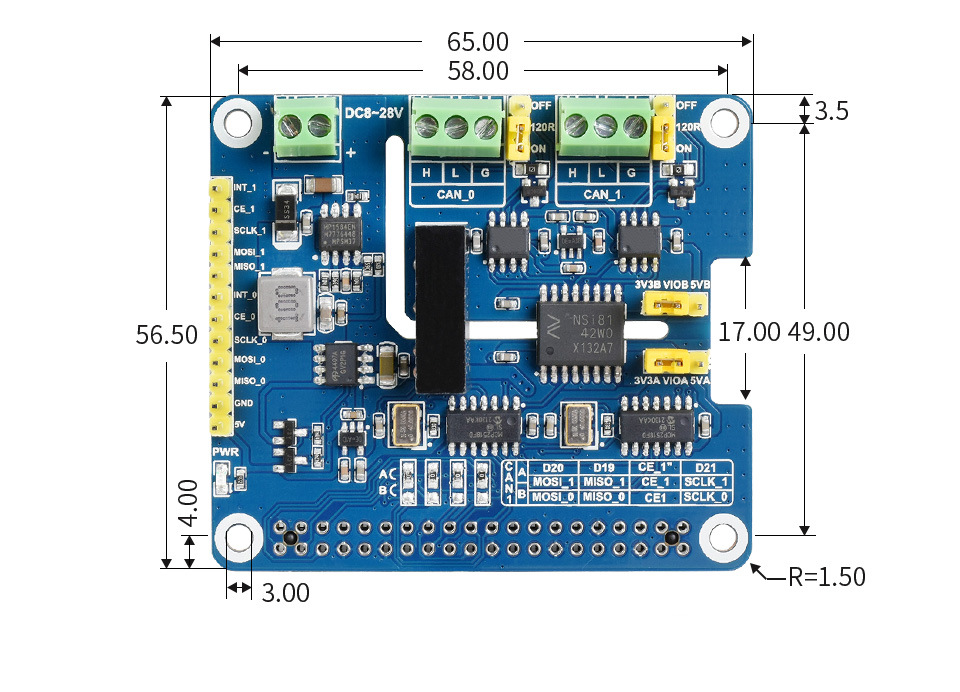

Overall dimensions: 65mm x 56.5mm

WIKI: 2-CH_CAN_FD_HAT

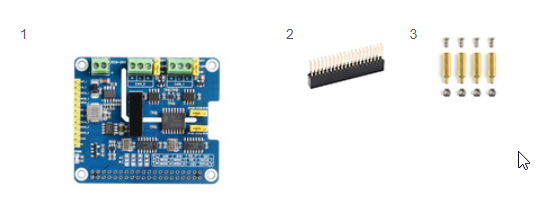

Scope of delivery:

1. 2-CH CAN FD HAT x1
2. 2×20PIN socket x1
3. Package of Standoffs (2pcs) x1

Weight: 0.03 kg
