Raspberry Pi Compute Module 4 - not included in the package!

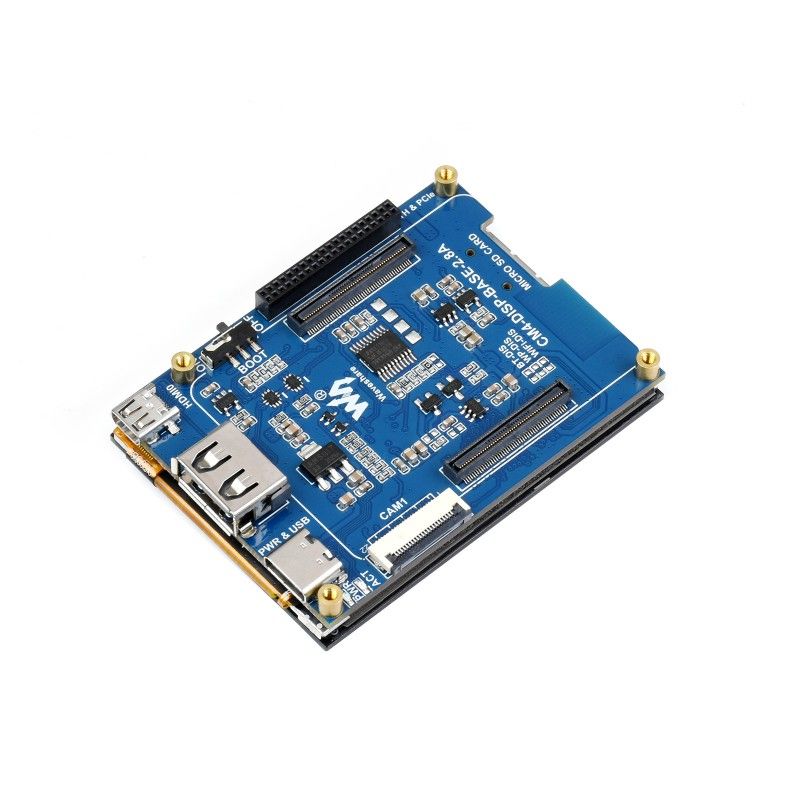

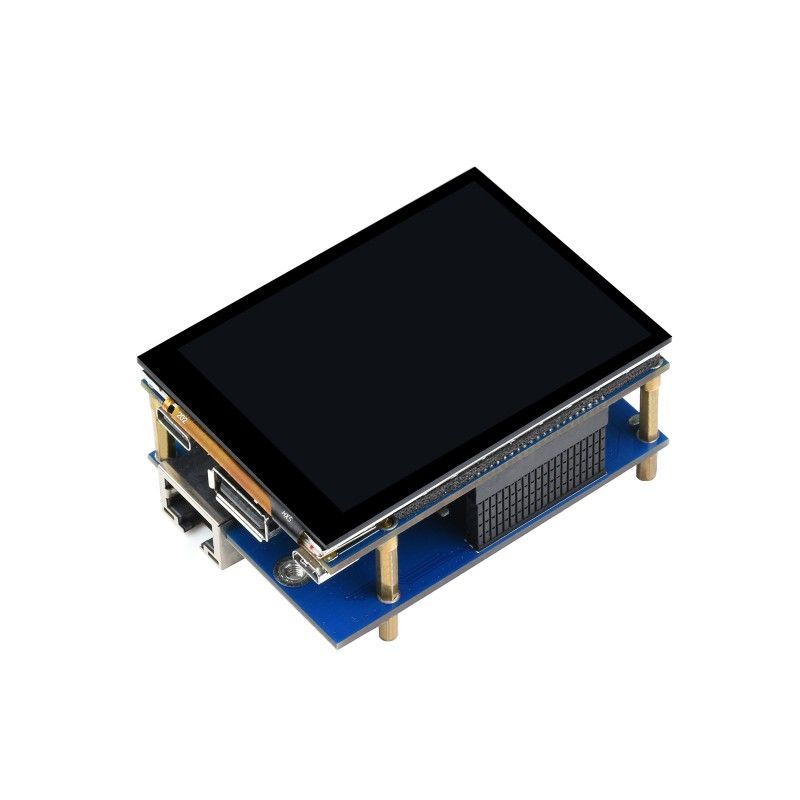

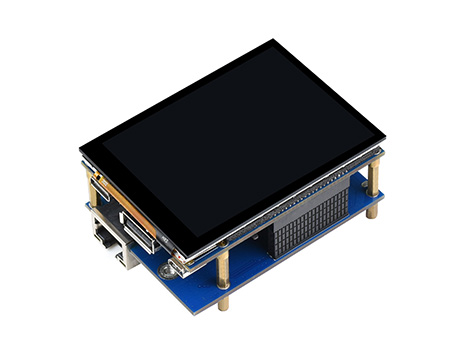

Raspberry Pi Compute Module 4 2.8"Touch Screen Expansion Board with Interface Expander (21435 ) is a touch screen expansion board that allows you to directly connect the Raspberry Pi Compute Module CM4 (for all CM4 variants) to a 2.8" IPS touch screen, and supports a camera and video output. It is slightly larger than the size of the computing module.

The Interface Expander variant also has an optional interface expander board with a Gigabit Ethernet port, an M.2 slot for connecting a communication module or SSD, and other USB ports.

Suitable for Raspberry Pi applications or other industrial applications requiring multifunctional peripherals

2.8-inch display with 5-point capacitive touch control

Specifications:

CM4 SOCKET suitable for all Compute Module 4 variants
USB USB 2.0 × 1
Connector MIPI CSI 22PIN 0.5 mm camera connector

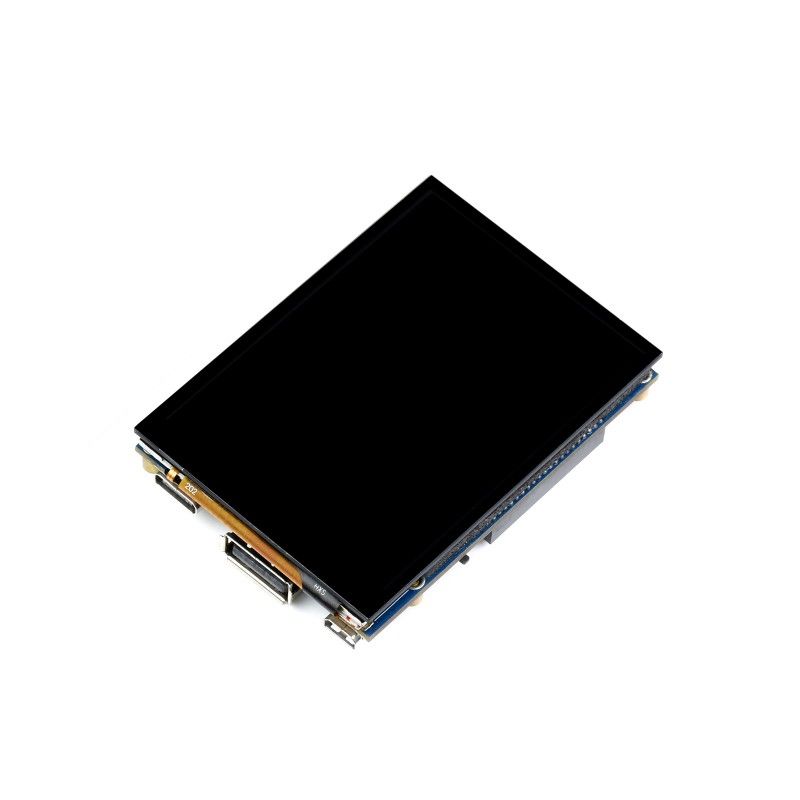

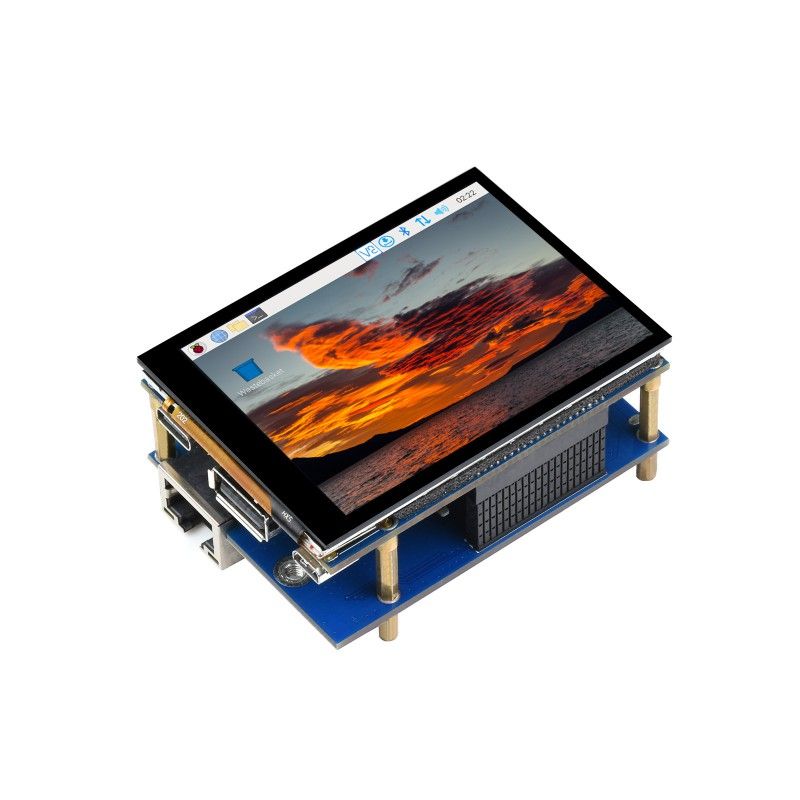

Display 2.8-inch optical screen, 480 × 640 pixels, 5-point capacitive touch screen, tempered glass panel
Video. micro HDMI × 1, supports 4K 30fps output
Data storage Micro SD card slot for Compute Module 4 Lite variants (without eMMC)
Power supply 5V

Interfaces:

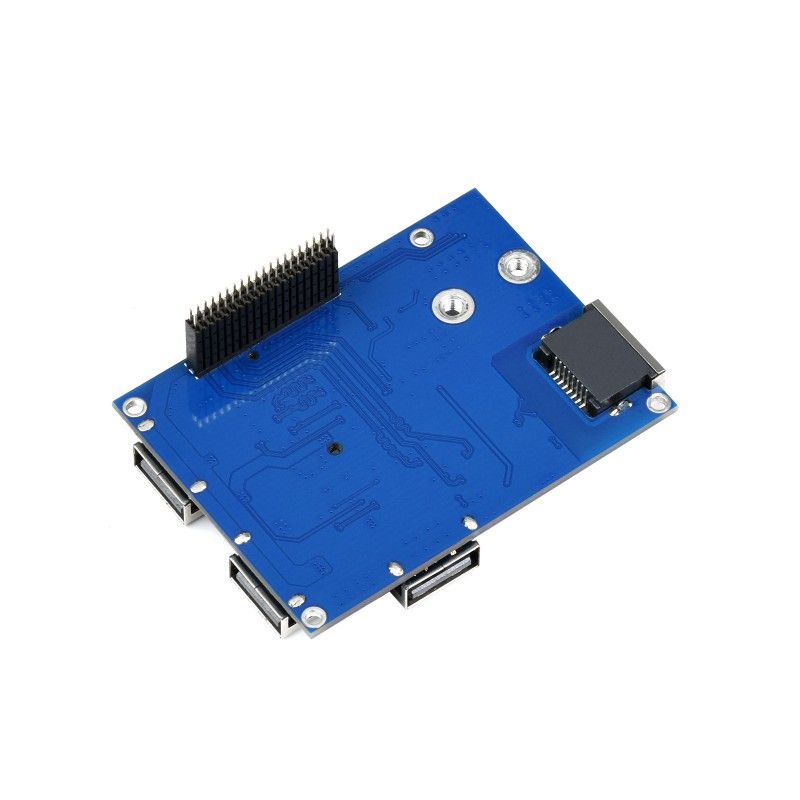

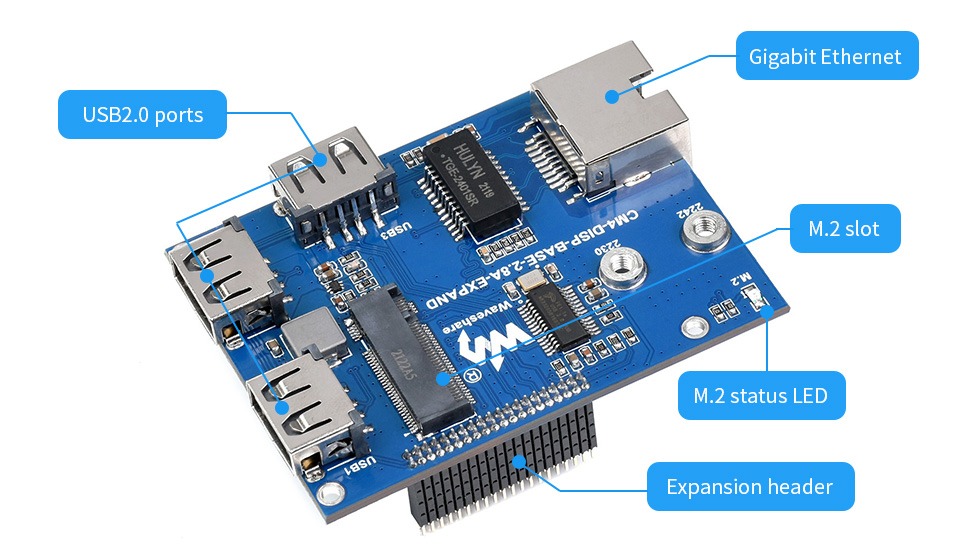

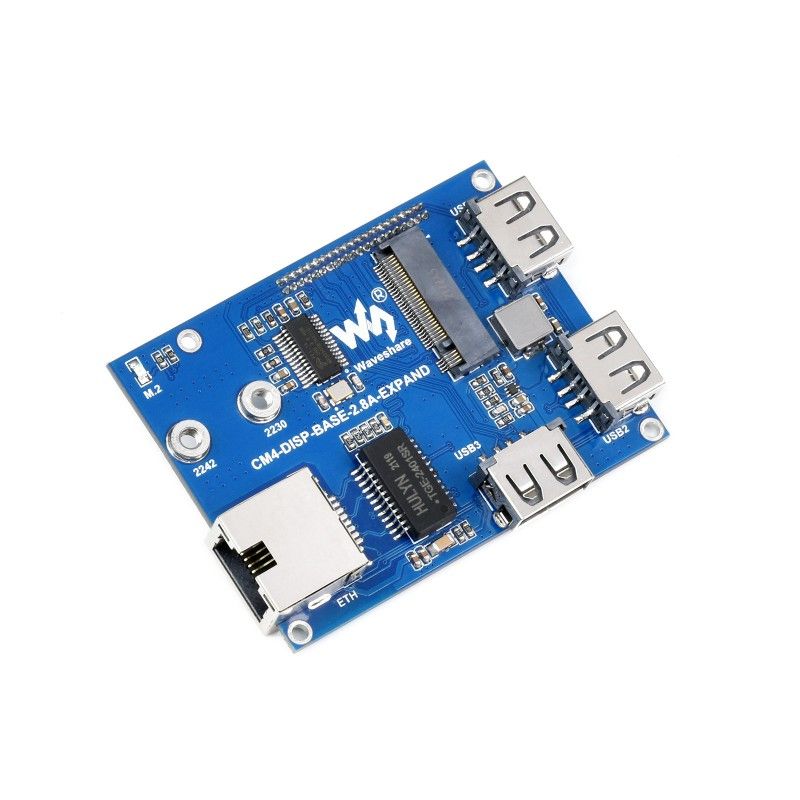

Interfaces of the Interface Expander card:

Network Gigabit Ethernet RJ45
M.2 M KEY, support NVME SSD or communication module
USB. USB 2.0 × 3

Overall dimensions: 57.6 mm × 47.9 mm

Information for developers (Wiki): CM4-DISP-BASE-2.8A

The package includes:

  1. Touch screen expansion board x1
  2. Package of screws x1 pc
  3. Interface extender x1

1.2. 3.

Weight: 0.066 kg

Specifications
Main characteristics
Country of origin
Made in China
Form factor
Carrier board CM4
HDMI
1 x microHDMI
USB
1 x USB 2.0
