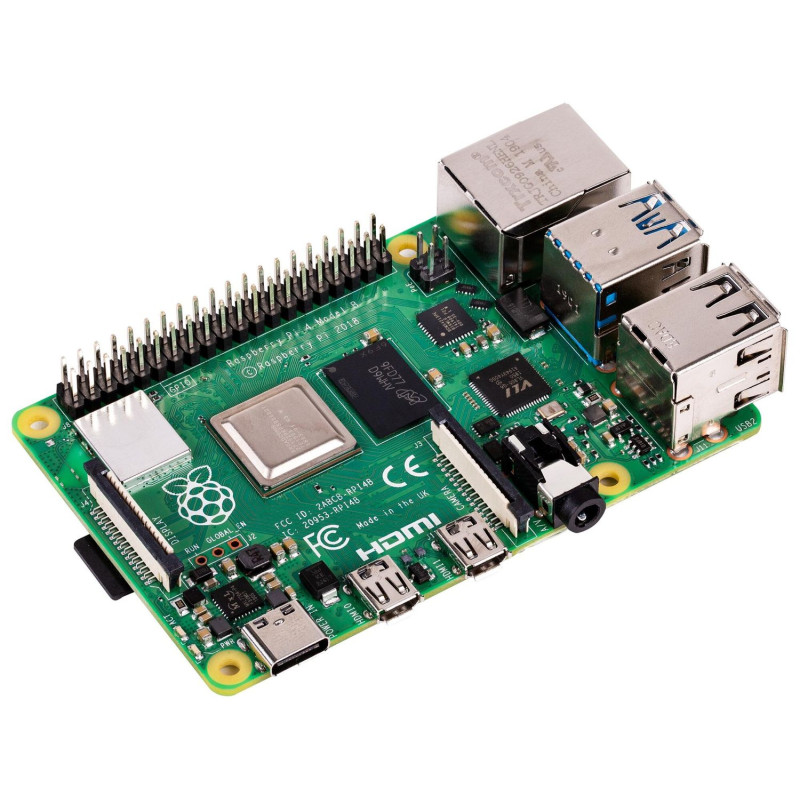

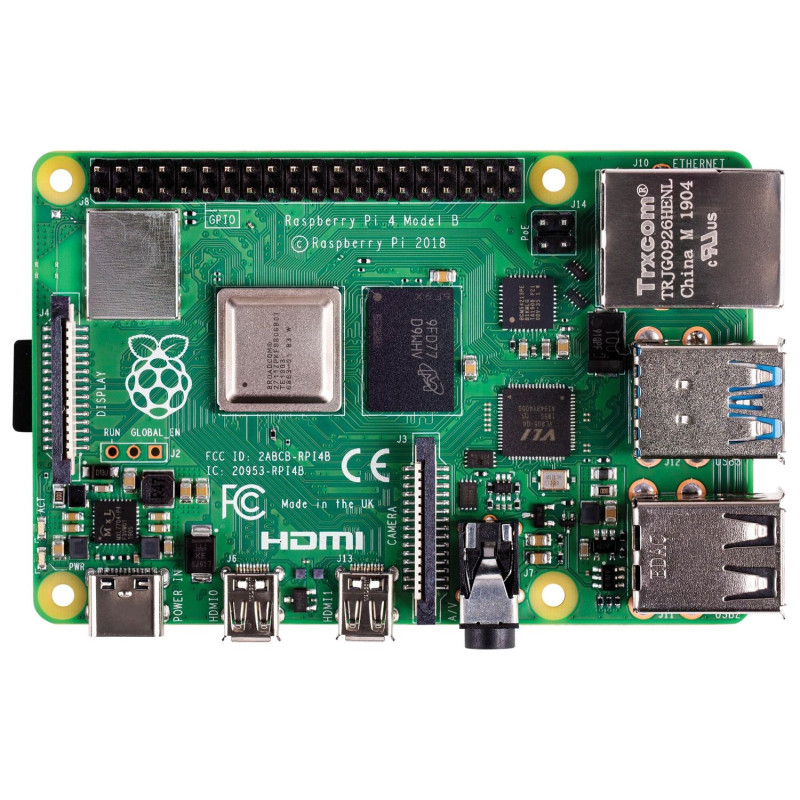

Raspberry Pi 4 Model B 1GB

The Raspberry Pi 4 Model B single-board microcomputer is a new product in the popular Raspberry Pi series of microcomputers.
The board carries a lot of improvements: increased processor speed, improved multimedia module performance, increased amount and speed of RAM and updated network modules compared to the previous generation Raspberry PI3 Model B+, while maintaining the level of power consumption and compatibility of peripheral modules. For the end user, the Raspberry Pi 4 Model B provides the performance of entry-level desktop solutions on the X86 architecture.

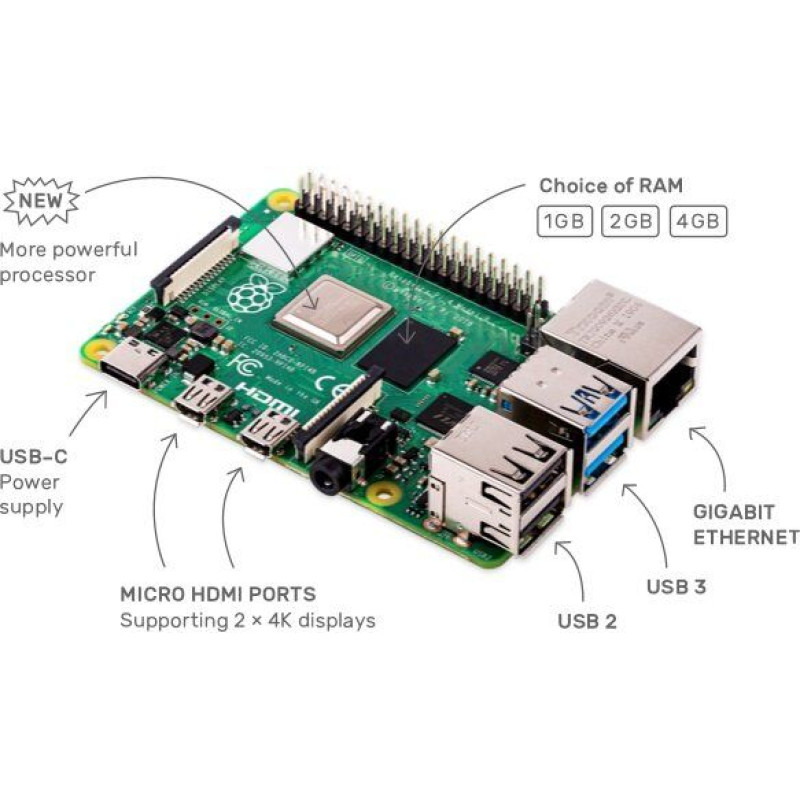

The key features of this product are a new, high-performance 64-bit quad-core processor, support for two displays with a resolution of up to 4k via a pair of micro-HDMI ports, hardware video decoding in 4Kp60, from 1 to 4 x GB of RAM (depending on the selected model), dual-band wireless network at 2.4 and 5.0 GHz, Bluetooth 5.0, Gigabit Ethernet, two USB 3.0 ports and PoE (using a separate PoE HAT module).
The dual-channel wireless LAN and Bluetooth are modularly certified, allowing the board to be used in end products with greatly simplified standards compliance testing, improving both cost and time to market.

Specifications:

Processor:

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

RAM:

• 1GB LPDDR4-2400 SDRAM for Raspberry Pi 4 Model B 1GB Single Board Microcomputer
• 2GB LPDDR4-2400 SDRAM for Raspberry Pi 4 Model B 2GB Single Board Microcomputer
• 4GB LPDDR4-2400 SDRAM for Raspberry Pi 4 Model B single board microcomputer 4GB
• 8GB LPDDR4-2400 SDRAM for Raspberry Pi 4 Model B Single Board Microcomputer 8GB

Connectivity:

• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE

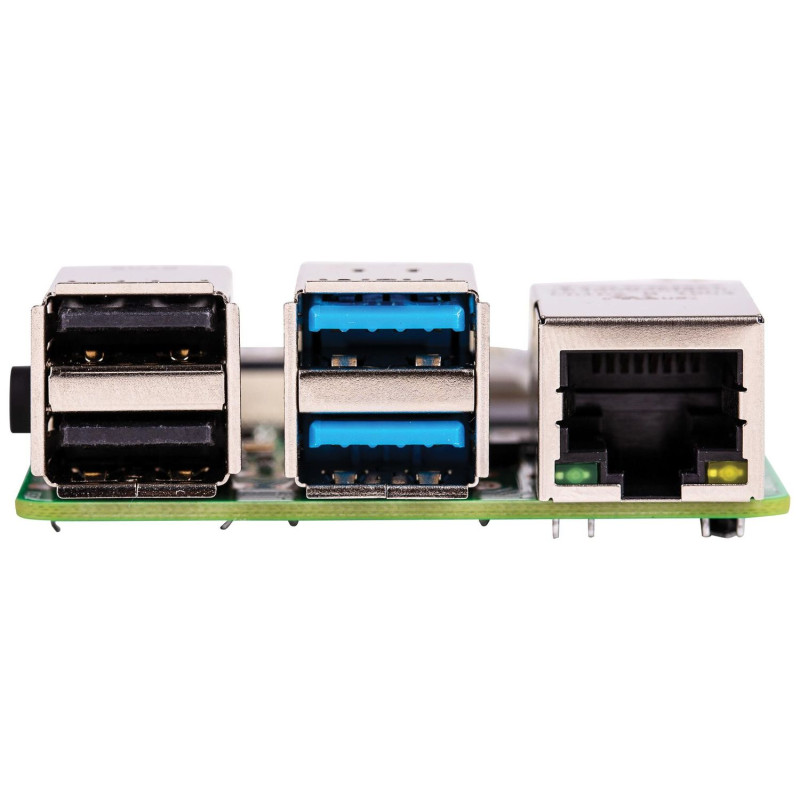

• 1 port Gigabit Ethernet
• 2 ports x USB 3.0
• 2 ports x USB 2.0

GPIO connector:

• Raspberry Pi standard 40 pin GPIO connector (fully compatible with previous models)

Video and sound:

• 2 micro-HDMI ports (support video up to 4kp60)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio and composite video port

Multimedia support:

• H.265 (4kp60 decoding)
• H264 (1080p60 decoding, 1080p30 encoding)
• OpenGL ES 3.0 graphics

Support for SD cards:

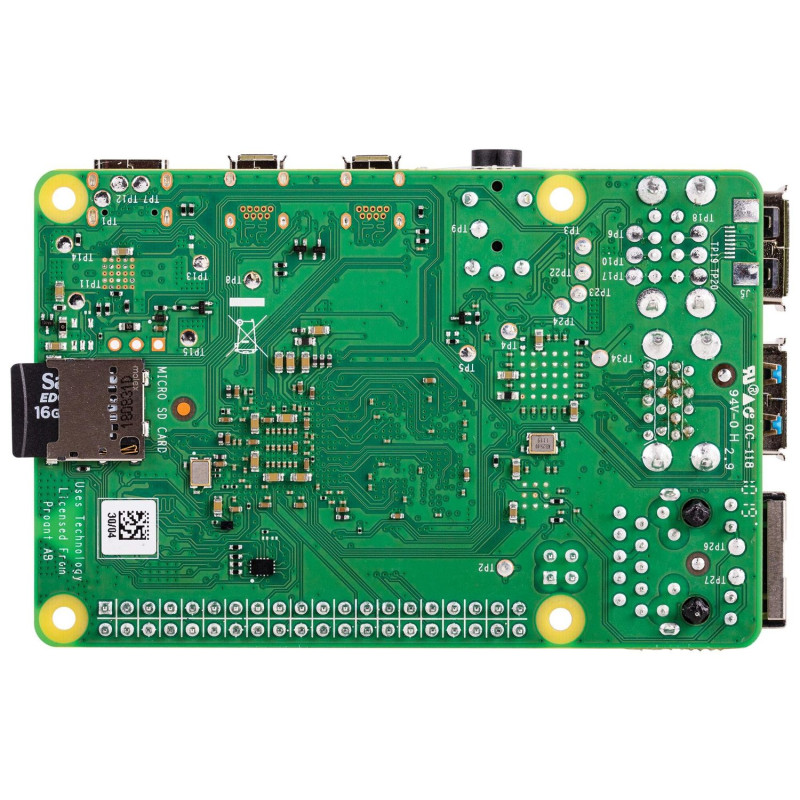

• Micro-SD card slot for booting the operating system and storing data

Power supply:

• 5V DC via USB-C connector (min 3A)
• 5V DC via GPIO connector (min 3A)
• Power over Ethernet (PoE) mode is available when using the PoE HAT expansion card for this functionality.

To ensure smooth operation of the board, we also recommend original Raspberry Pi accessories (sold separately):

• Raspberry Pi 4 Model B power supply
• Case for Raspberry Pi 4 Model B
• HDMI cable for Raspberry Pi 4 Model B
• Official Raspberry Pi Keyboard
• Original Raspberry Pi Mouse
