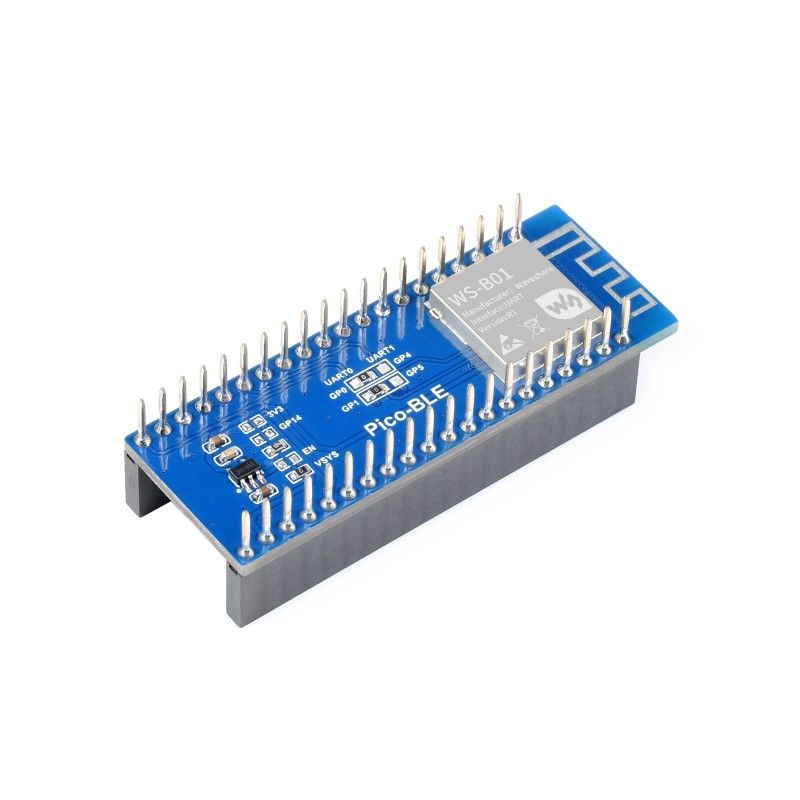

Raspberry Pi Pico BLE expansion board(21474)

Raspberry Pi Pico BLE Expansion Board(21474 ) - allows you to connect Raspberry Pi Pico to Bluetooth-enabled devices. This module supports two modes of operation: SPP (Serial Port Profile) and BLE (Bluetooth Low Energy), which is an energy-efficient Bluetooth technology used to transfer small amounts of data over long distances. SPP allows data to be transmitted over the Bluetooth serial port, which allows you to connect your Raspberry Pi Pico to other Bluetooth devices as a data exchange node.

Bluetooth 5.1 is a version of the Bluetooth standard that includes a variety of improvements and new features over previous versions. It offers faster data rates, longer communication ranges, improved connection stability, and support for new protocols and features.

Using the Dual-Mode Bluetooth Module for Raspberry Pi Pico allows you to extend the wireless communication and interaction capabilities of Raspberry Pi Pico with other Bluetooth devices. For example, you can use it to connect with Bluetooth devices such as smartphones, headphones, keyboards, or other Bluetooth-enabled microcontrollers for data transfer or control.

Key features:

• Standard Raspberry Pi Pico connector supports the Raspberry Pi Pico series
• Controlled by UART AT commands
• Comes with development resources and a manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

• BLUETOOTH MODULE: dual-mode Bluetooth to UART module
• TRANSMISSION RANGE: 30 м
• CONNECTION: UART
• ANTENNA: built-in antenna on the board
• TRANSMIT CACHE: 1 Kbyte UART cache, for SPP it is recommended to transmit less than 512 bytes per transmission
• UART BAUDRATE: 13 different baud rate configurations, 115200 bps by default
• INPUT VOLTAGE: 5V/3.3V
• OPERATING CURRENT:
  • Transient current at startup: about 25mA for about 300ms;
  • Stable state current: about 6mA, non low power mode;
  • Current in low power mode: refer to the user manual
• WORKING TEMPERATURE: -40℃ 80℃
• WORKING HUMIDITY: 5% 95%

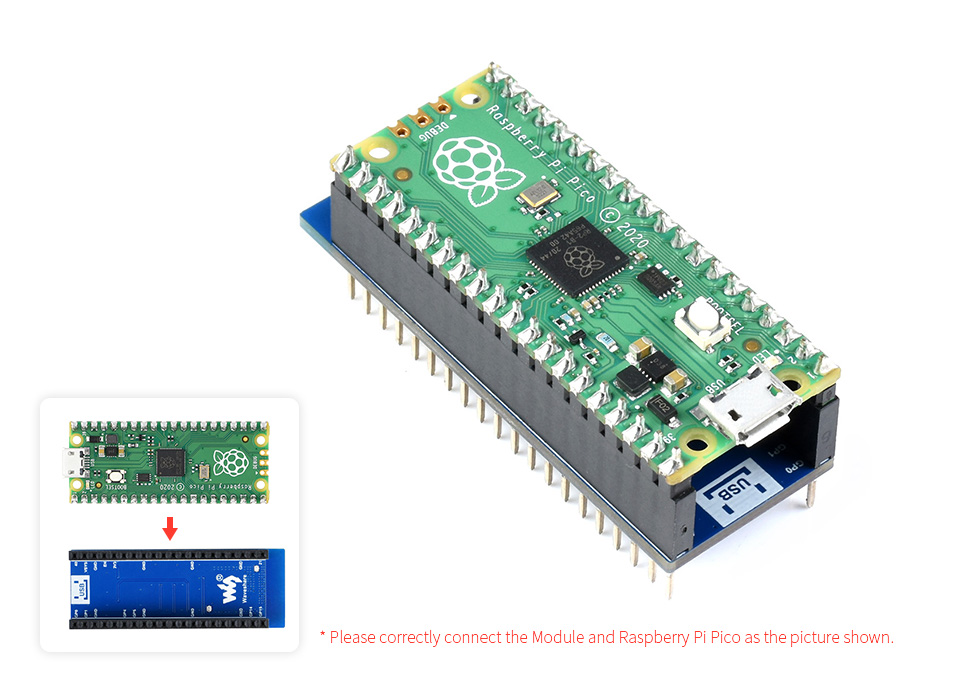

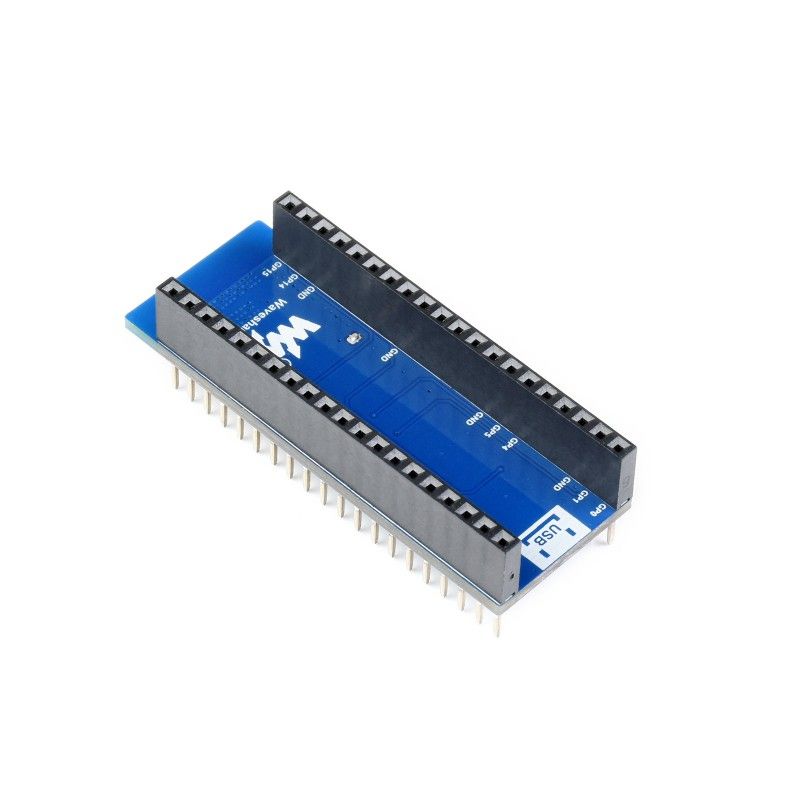

Raspberry Pi Pico connector compatibility allows easy connection of other boards in the form of a stack

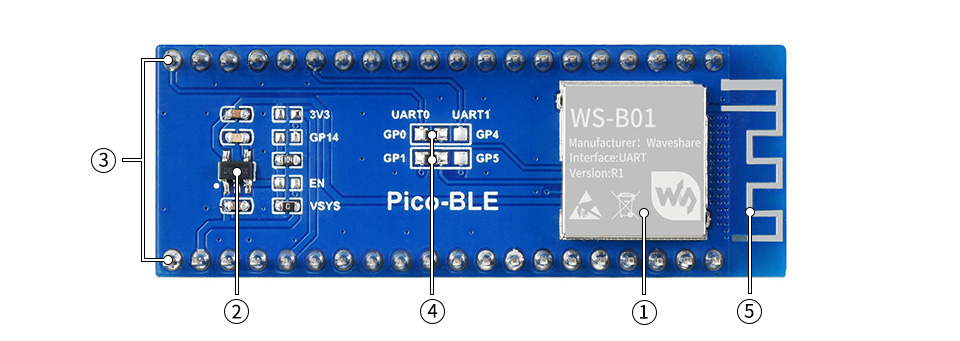

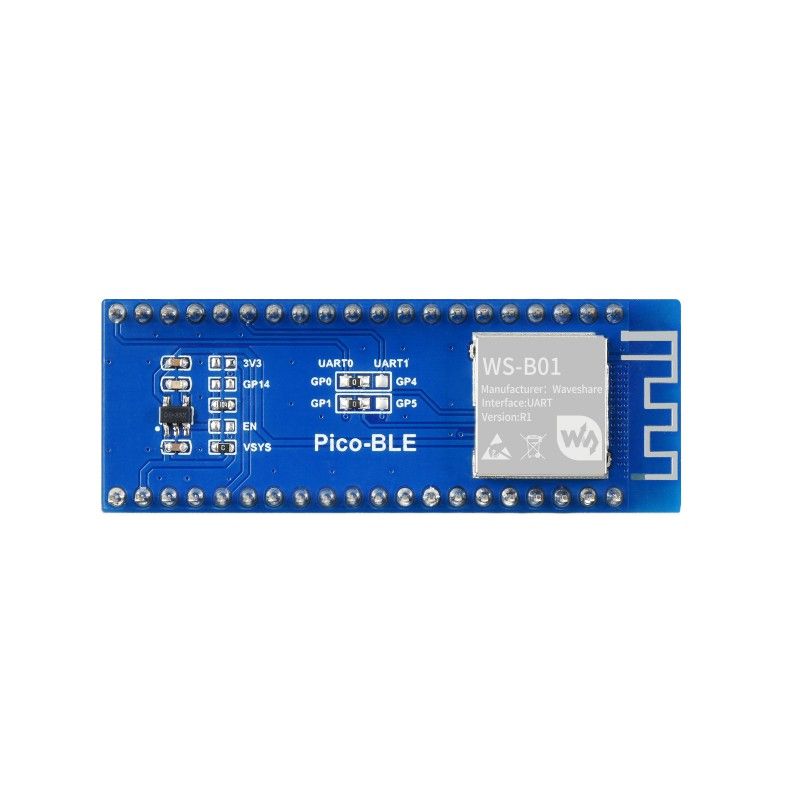

Board elements:

1. Bluetooth module
2. RT9193-33: 3.3V voltage regulator
3. Raspberry Pi Pico connector
4. UART input pins
5. Built-in Bluetooth antenna

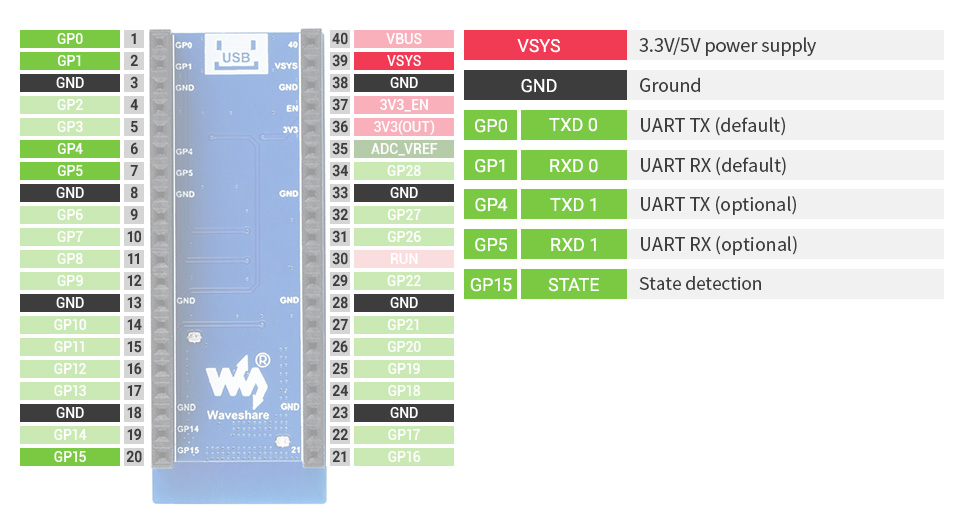

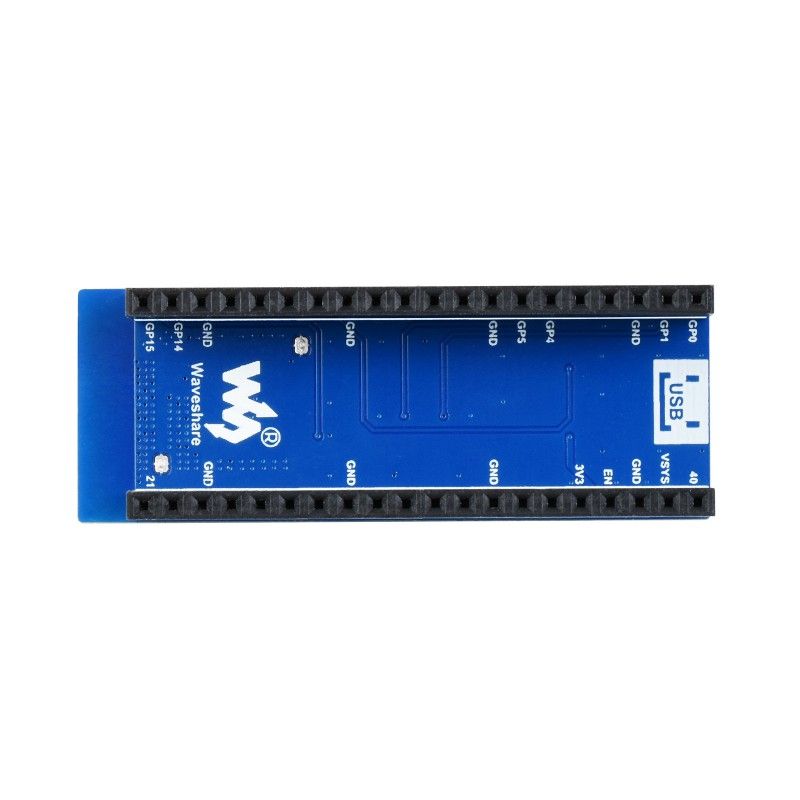

Pinout:

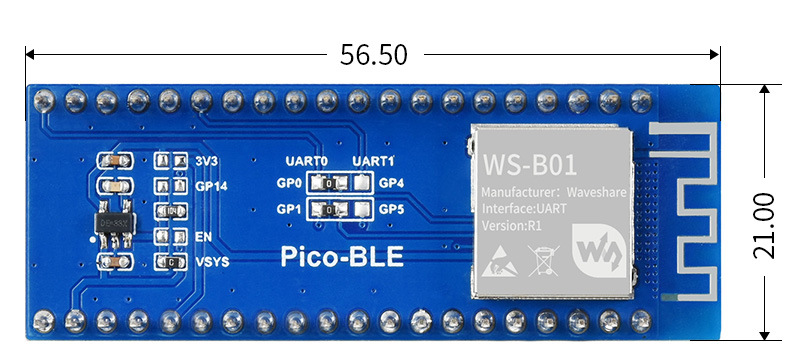

Overall dimensions: 56.5mm × 21mm

WIKI: Pico-BLE

Scope of delivery:

1. Pico-BLE x1

Weight: 0.010 kg
