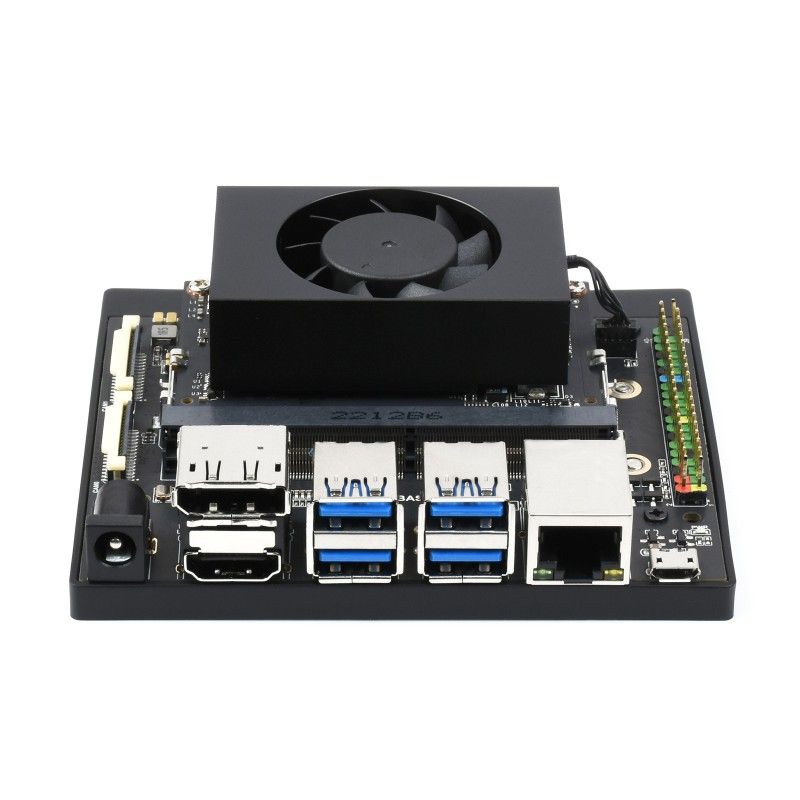

Waveshare Jetson TX2 NX Developer Kit (23036)

The Waveshare Jetson TX2 NX Development Kit (23036 ) is a developer kit that includes the base board and the Jetson TX2 NX Module. It allows you to create AI projects for embedded and edge computing, providing 2.5x the performance of the Jetson Nano, and integrating the NVIDIA Pascal architecture with 256 NVIDIA CUDA cores, with AI performance reaching 1.33 TFLOPs.

Support for working with cloud services allows developers to build and deploy high-quality functionality on embedded and edge devices. NVIDIA's NGC and TAO Toolkit pre-trained AI models provide a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices enables flexible and seamless upgrades.

The Nvidia Jetson TX2 Series modules deliver exceptional speed and power efficiency for embedded AI computing devices, enabling 1.33 TFLOPS of AI performance. Equipped with NVIDIA PASCAL GPUS, they have up to 4 GB of memory and 51.2 GB/s of memory bandwidth.

This developer kit is ideal for critical embedded applications. The Jetson TX2 NX can be used in AI-enabled systems such as commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical surveillance, smart factories, and other IoT embedded systems.

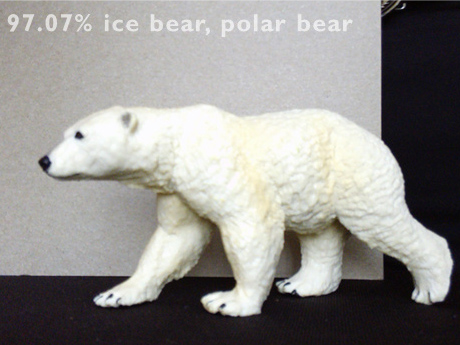

Image recognition

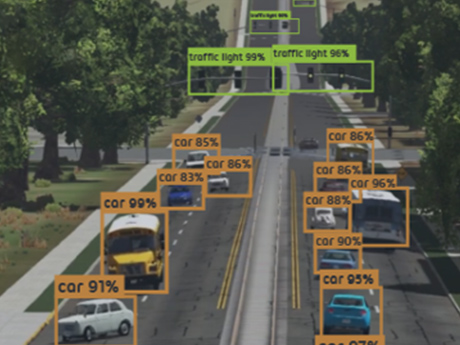

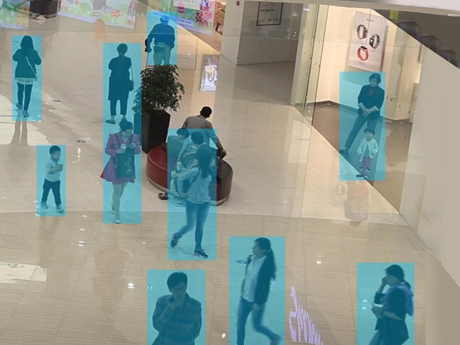

Object recognition

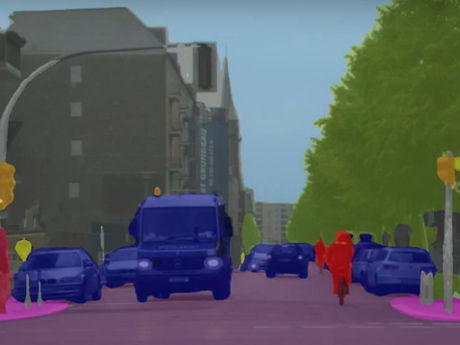

Semantic segmentation

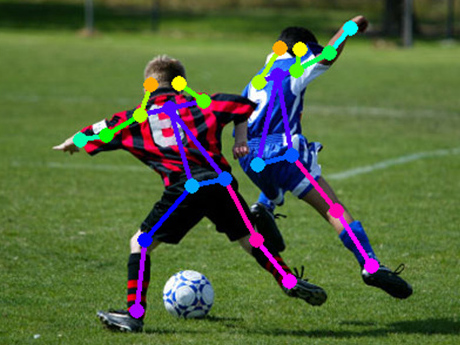

Pose estimation

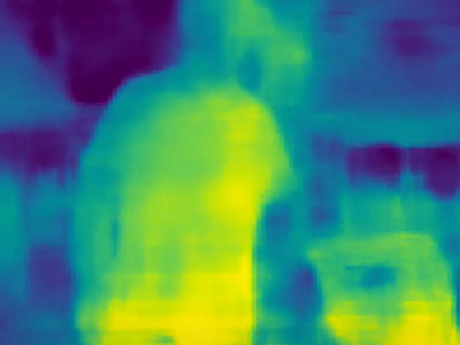

Monocular depth

Pose tracking

The Jetson Development Pack (JetPack) SDK is available. This is an All-In-One package that installs all the software tools for developing the Nvidia Jetson platform.

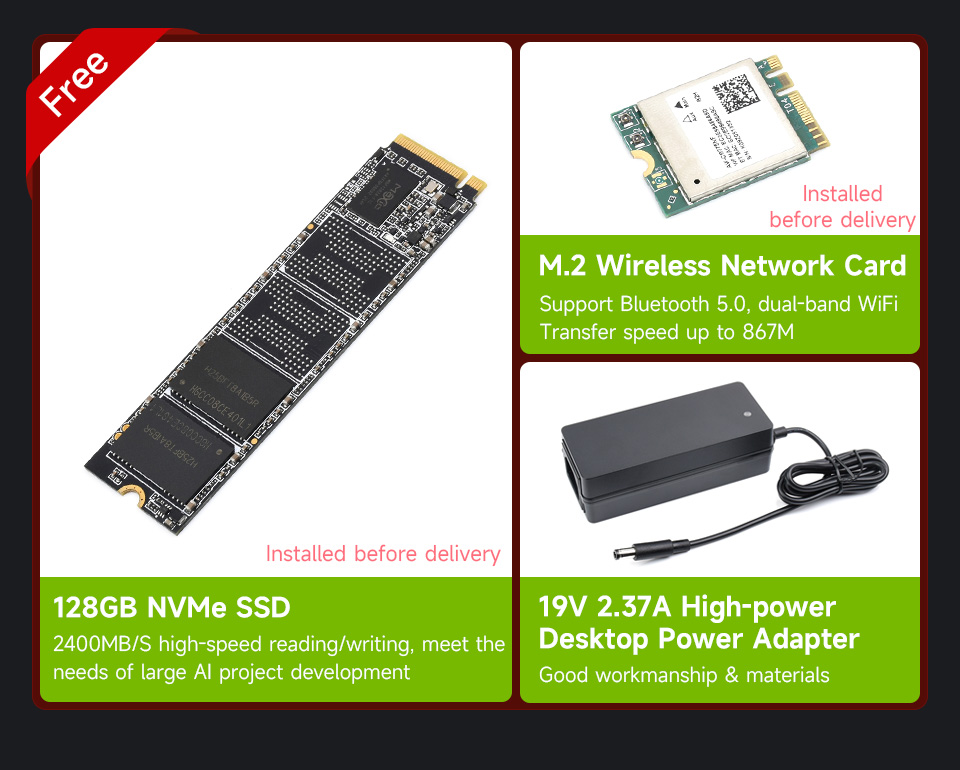

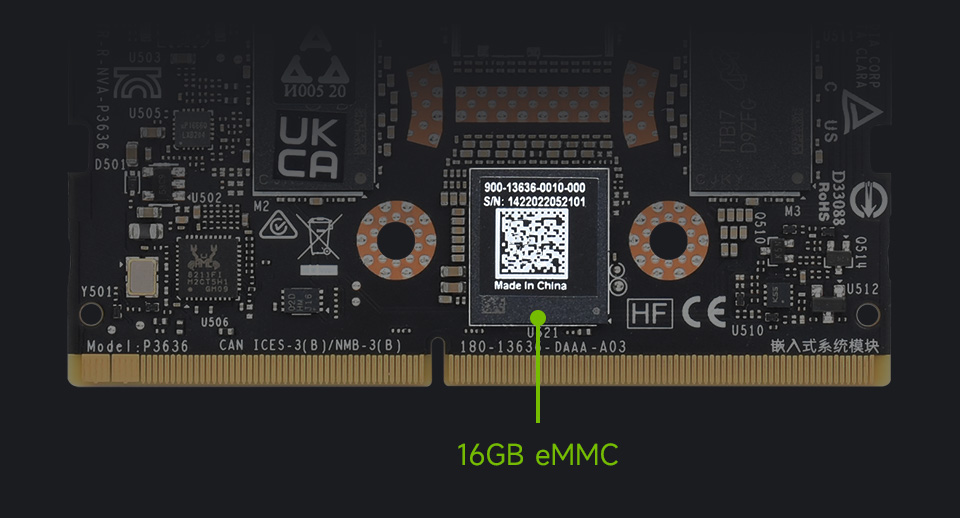

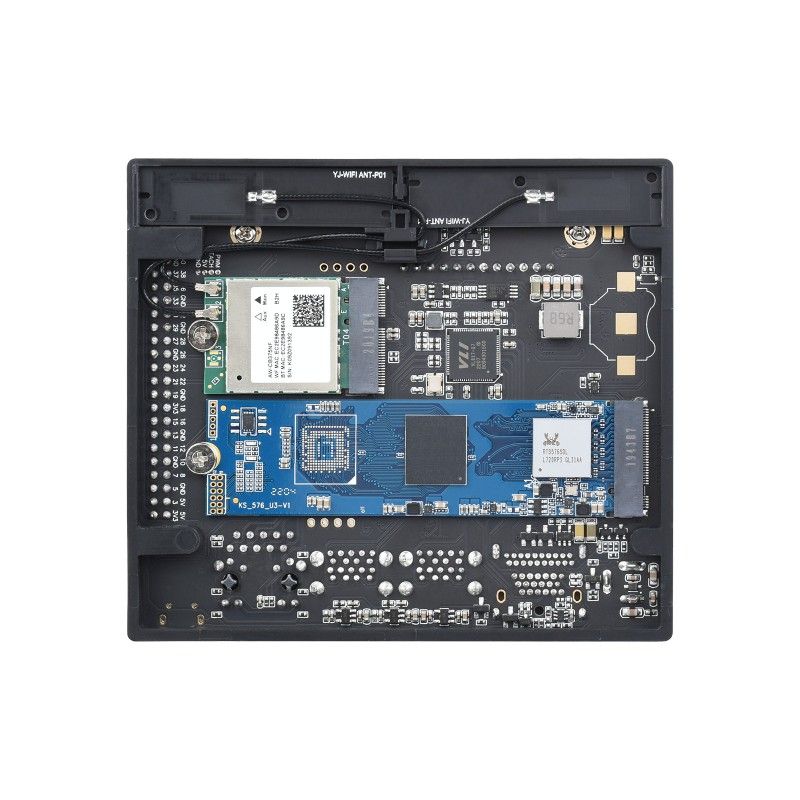

The Jetson TX2 NX Development Kit includes the TX2 NX module with built-in 16GB eMMC, and does not support Micro SD cards. This kit also includes a 128GB NVMe SSD, wireless communication module, power adapter, and cooling fan.

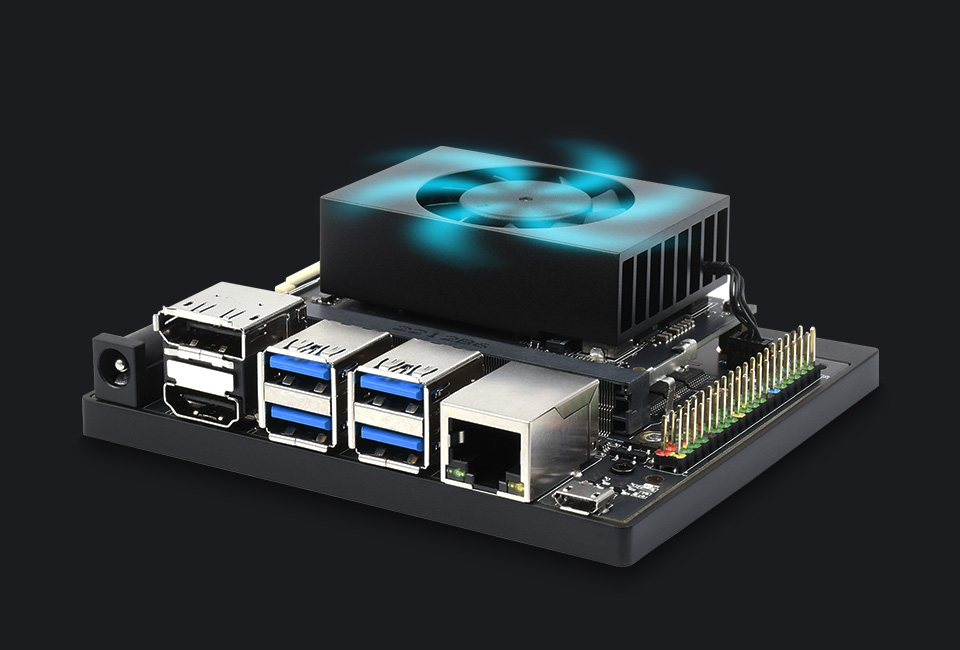

The special powerful cooling fan included in the kit reaches a speed of 5500 rpm and dissipates heat efficiently. This prevents the AI performance from dropping due to heat dissipation issues.

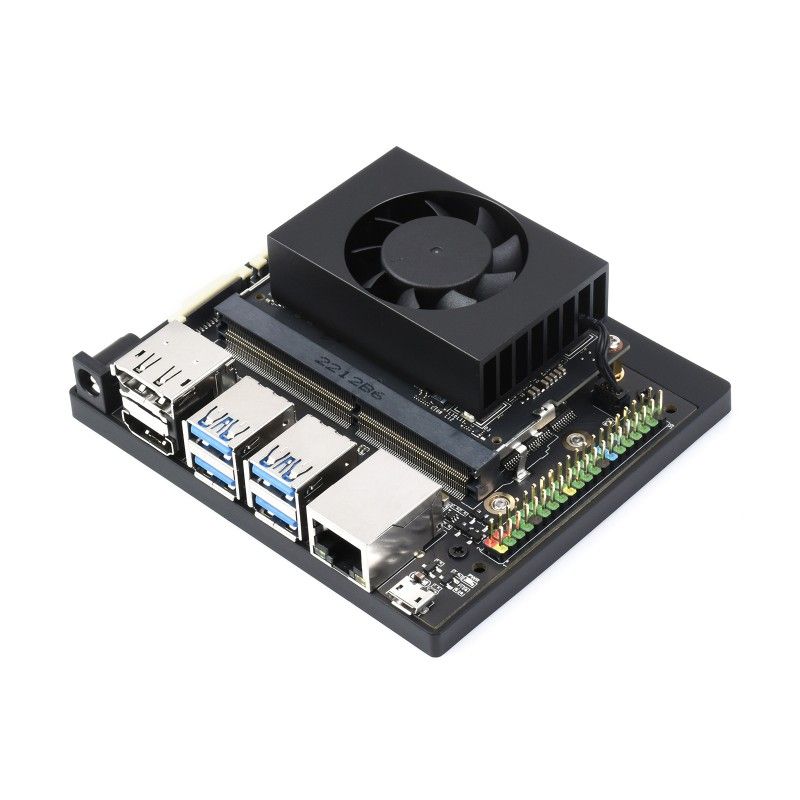

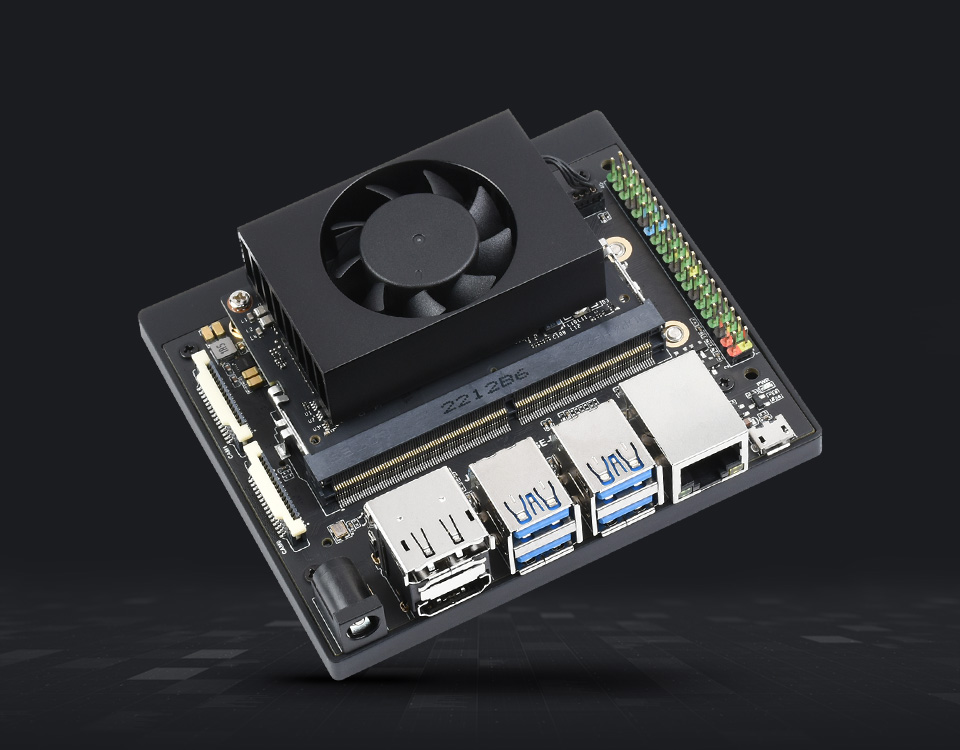

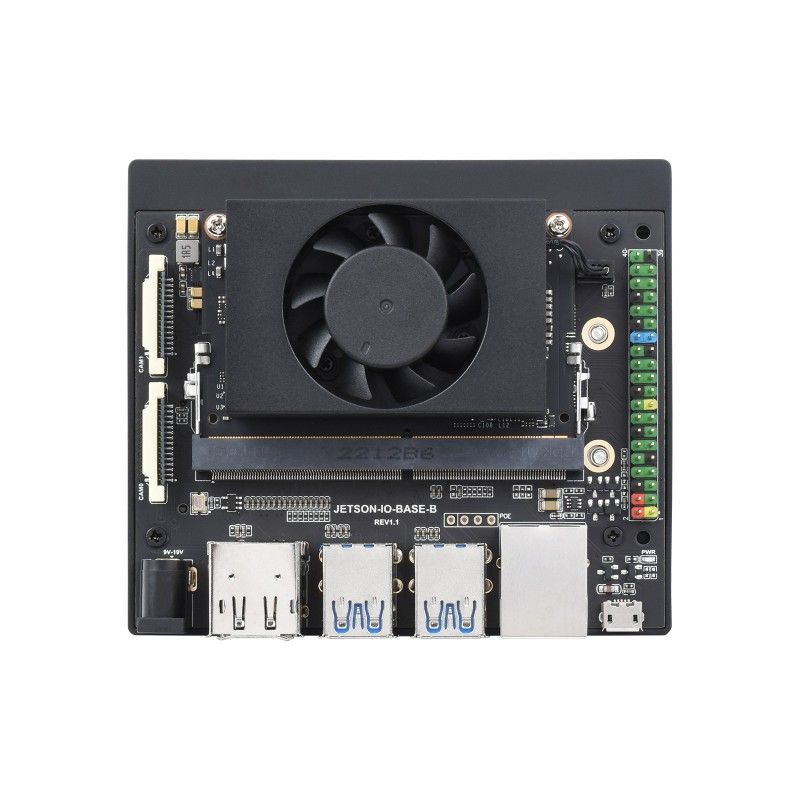

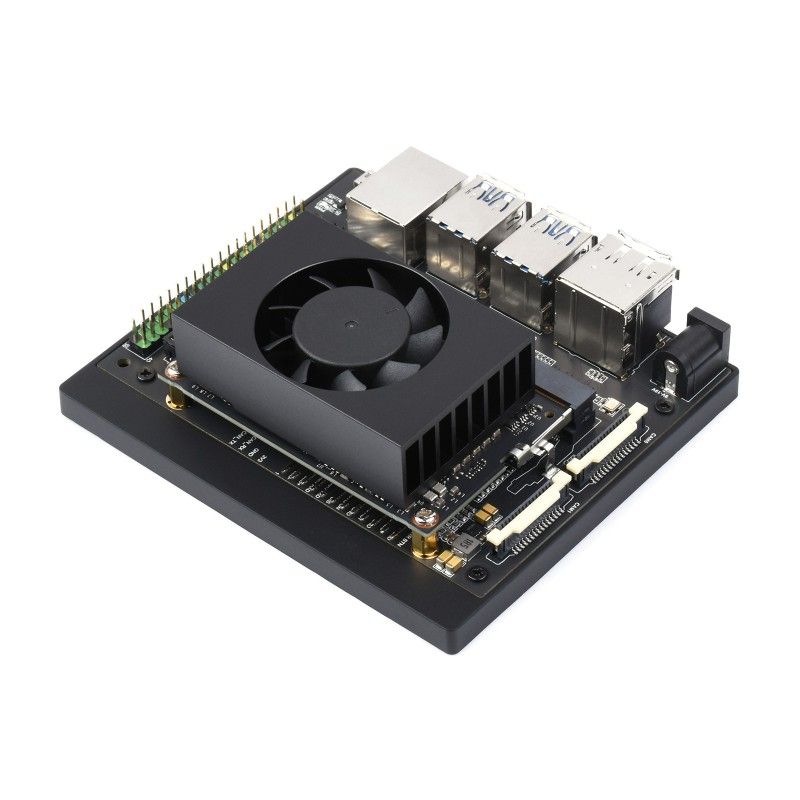

The high-quality base board is mounted on a metal frame and features full-size physical interfaces.

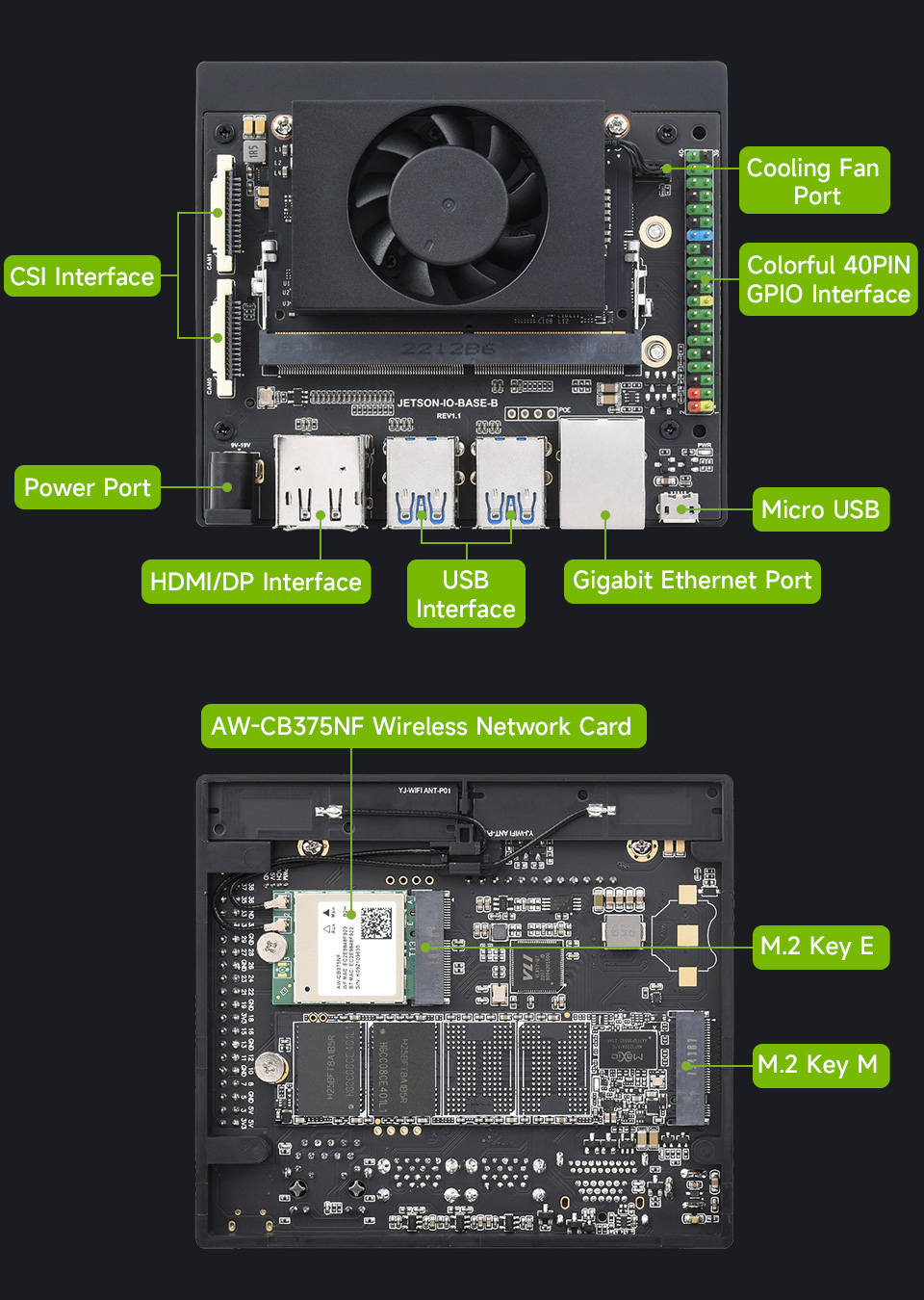

Interfaces of the base board:

• CSI
• Cooling Fan
• 40 pin GPIO
• Power Port
• Micro-USB
• HDMI/DP
• USB Type-A
• Ethernet
• M.2 Key E
• M.2 Key M

Comparison of sets from the Waveshare Jetson Series

Technical specifications of the Jetson TX2 NX Module:

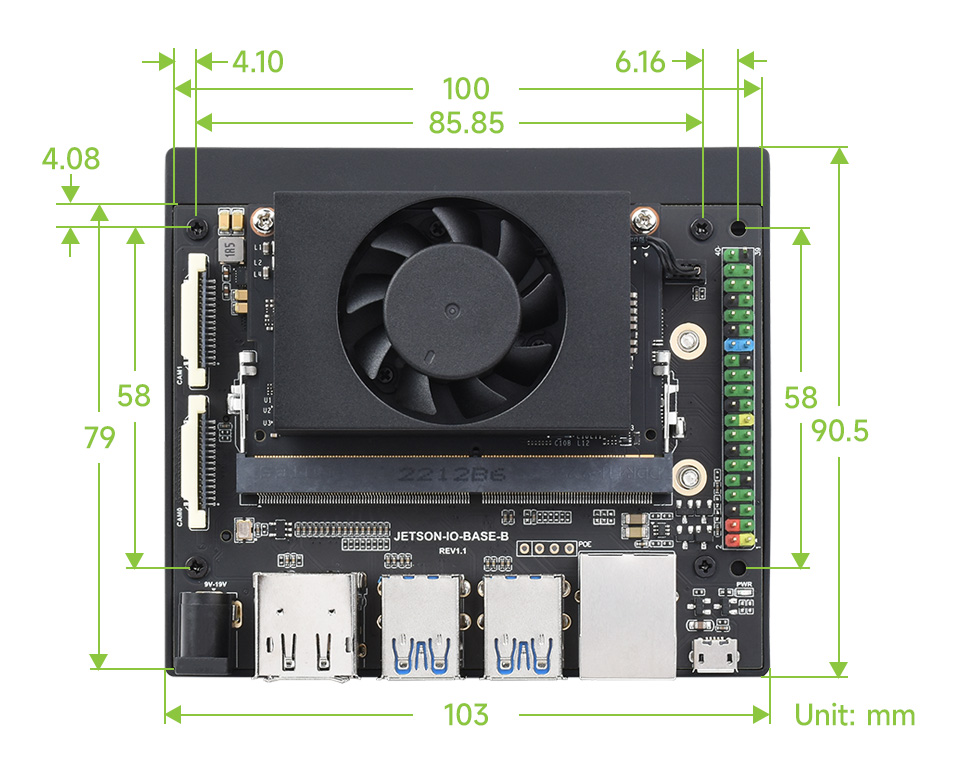

Overall dimensions: 103 x 90.5 x 34 mm

Information for developers: www.waveshare.com/wiki/JETSON-TX2-NX-DEV-KIT

The package includes:

1. WaveShare TX2 NX development kit:
   - Jetson TX2 NX module
   - Jetson-io-base-b
   - Cooling fan
2. 128 GB NVME SSD
3. Wireless network card and 2 antennas for it
4. Power adapter
