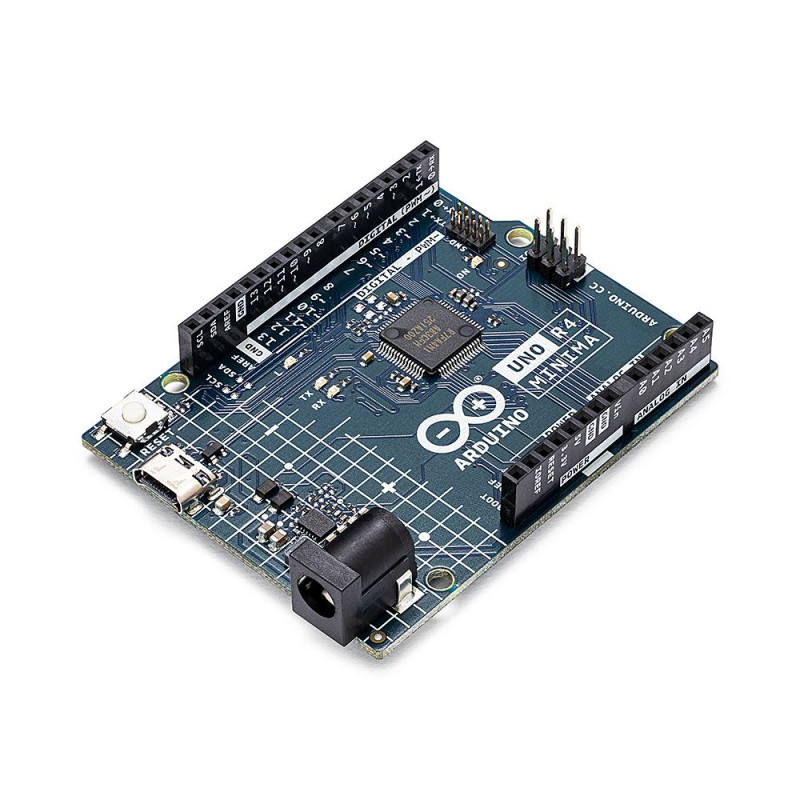

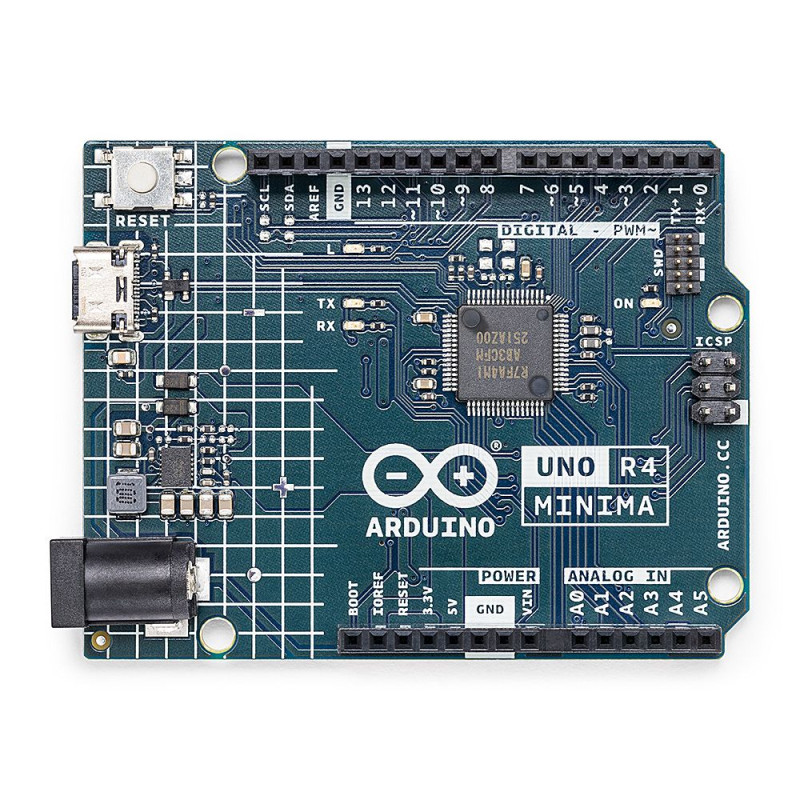

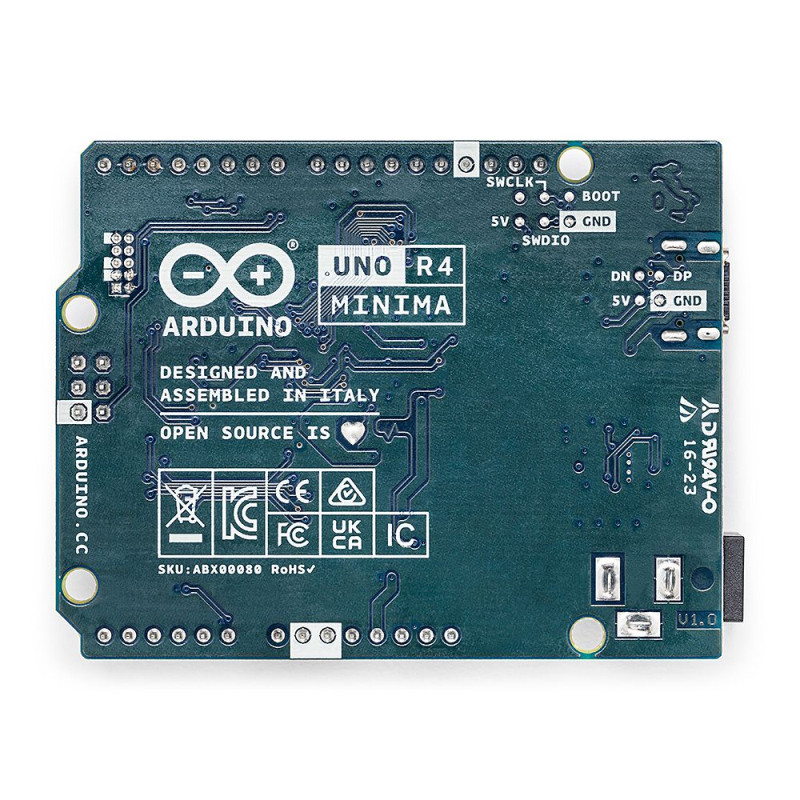

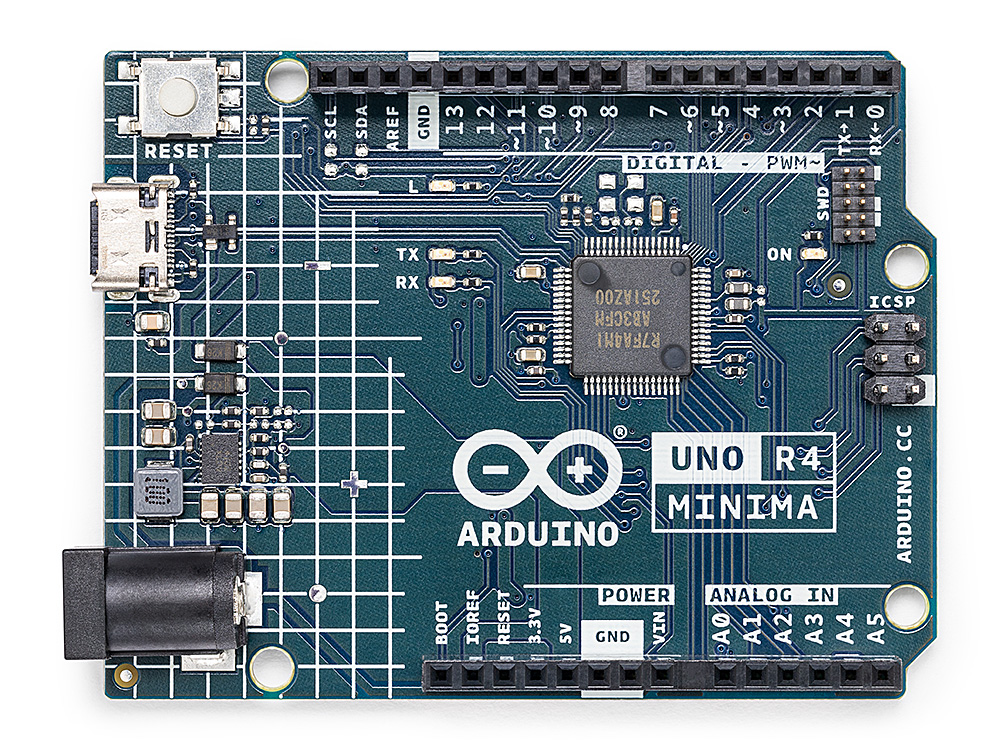

Arduino Uno Rev4 MINIMA / ABX00080

TheArduino Uno Rev4 MINIMA / ABX00080 is an Arduino Uno Rev4 based on the popular Arduino Uno model and is an updated version. It offers a lot of functionality and features for developing electronic projects. This board has many digital and analog I/Os, which allows you to connect various sensors, actuators, and other devices. It also supports the use of expansion boards that allow you to extend the board's functionality.

Arduino IDE support: This board is compatible with the Arduino IDE, a popular integrated development environment that provides a user-friendly interface for programming and controlling the board. With the Arduino language, you can create programs and control the board with ease.

With more processing power, memory, and speed in the familiar 5V UNO form factor, it allows users to easily update projects created with the UNO R3 or Leonardo.

What's more, thanks to Renesas' RA4M1 microcontroller, it can utilize two new standard peripherals, CAN BUS and (12-bit) DAC: ideal for automation or audio projects.

This board offers the following features:
- USB-C® connector
- HID device (for mouse or keyboard emulation)
- Improved power supply
- Diagnostics of execution errors
- 2x SPI + 2x I2C + 1x CAN buses
- DAC

This board boasts Renesas' RA4M1 microprocessor, which provides increased processing power, expanded memory, and additional peripherals. And the best part: It stays true to the robust UNO form factor and operates at a practical 5 V. Get ready to upgrade like no other with the Arduino UNO R4 Minima!

The main features of the UNO R4 Minima are:
● Hardware compatibility with the UNO form factor: The UNO R4 Minima retains the same form factor, footprint, and 5V operating voltage as its predecessor, the UNO R3. This ensures a smooth transition for existing boards and projects by leveraging the extensive and unique ecosystem already established for Arduino UNO.
● Expanded memory and faster clock: Get ready for more accurate calculations and the ability to complete complex projects with ease. The UNO R4 Minima boasts increased memory and faster clock speeds, enabling you to tackle complex tasks with ease.
● Additional built-in peripherals: The UNO R4 Minima introduces a number of on-board peripherals, including a 12-bit DAC, CAN BUS, and op amp. These additional components provide you with enhanced capabilities and flexibility in your projects.
● Extended tolerance to 24V: The UNO R4 Minima now supports a wider input voltage range, allowing power supplies up to 24 V. This allows for full integration with motors, LED strips and other drives, simplifying your projects by using a single power supply.
SWD connector: Debugging is a critical aspect of any project. Simply connect an external debugger to the UNO R4 Minima and easily monitor the internal workings of your system. Stay in control and gain valuable insights.
● HID support: UNO R4 Minima comes with built-in HID (Human Interface Device) support, which allows you to simulate a mouse or keyboard when connected to a computer via USB cable. This handy feature allows you to easily send keystrokes and mouse movements to your computer, enhancing usability and functionality.

Specifications:

• Microcontroller: Renesas RA4M1 (Arm® Cortex®-M4 with floating point module)
• Wireless connection: ESP32-S3
• USB: USB-C® / HID programming port
• Contacts:
  • Digital I/O pins: 14
  • Analog inputs: 6
  • DACS: 1
  • PWM outputs: 6
• Communication
  • UART: 1
  • I2C: 1
  • SPI: 1
  • CAN: 1 (external transceiver required)
• Power supply.
  • Operating voltage of the circuit: 5 V (ESP32-S3 3.3 V)
  • Input voltage (VIN): 6-24 В
  • Constant current per I/O pin: 8 mA
• RA4M1 clock frequency: 48 MHz
• RA4M1 memory: 256 KB Flash, 32 KB RAM
• Dimensions:
  • Width 68.85 mm
  • Length 53.34 mm
• Weight: 0.03 kg
