Raspberry Pi Compute Module 4 I/O Board With PoE (18606)

Brand: Waveshare Product Code: 18606
0
All about product
Description
Specification
Reviews 0
Questions0
new
Popular
Sold Out

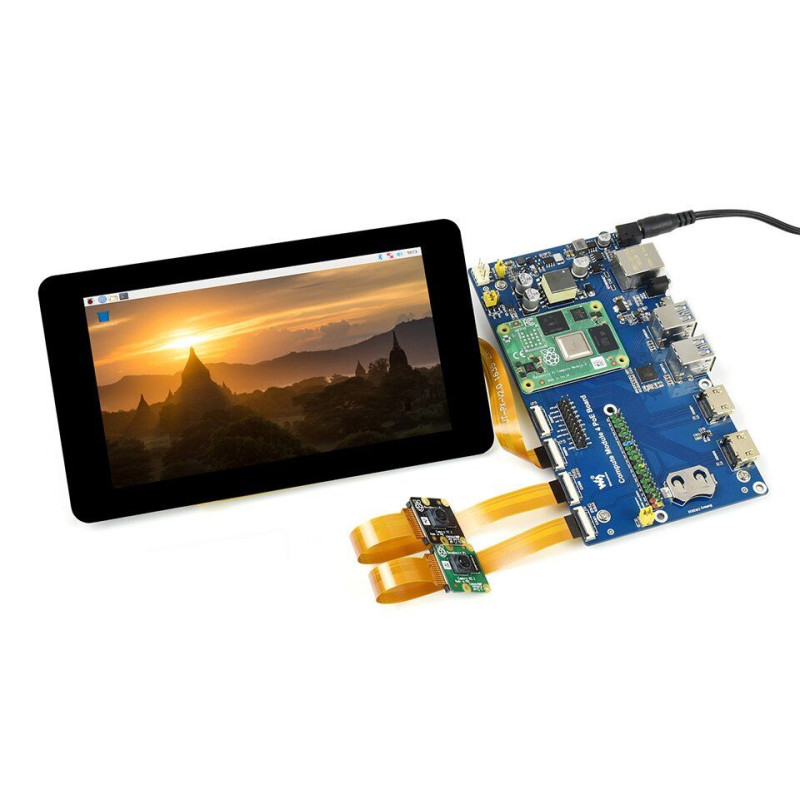

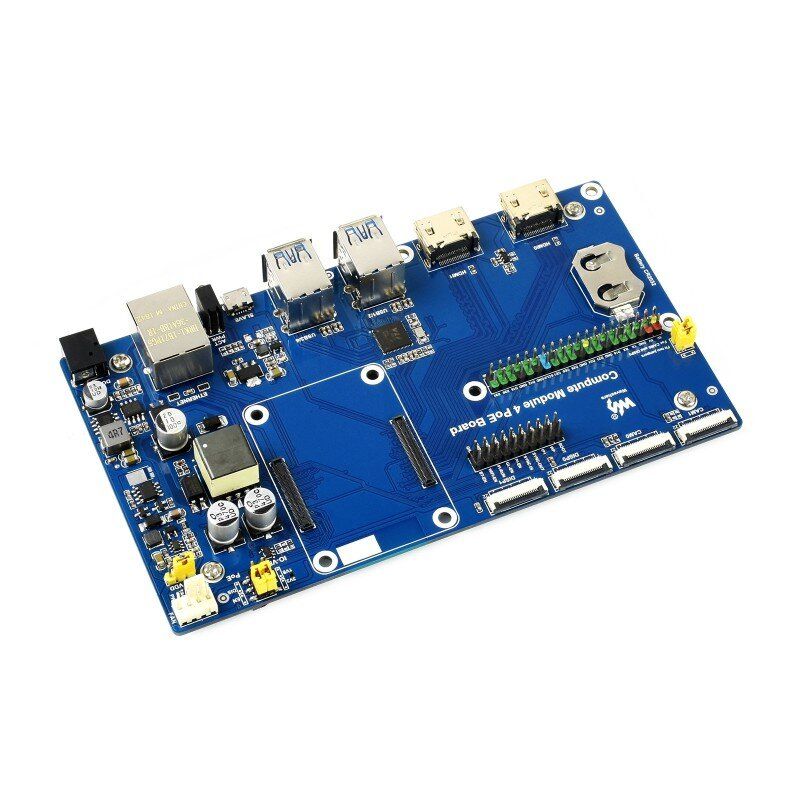

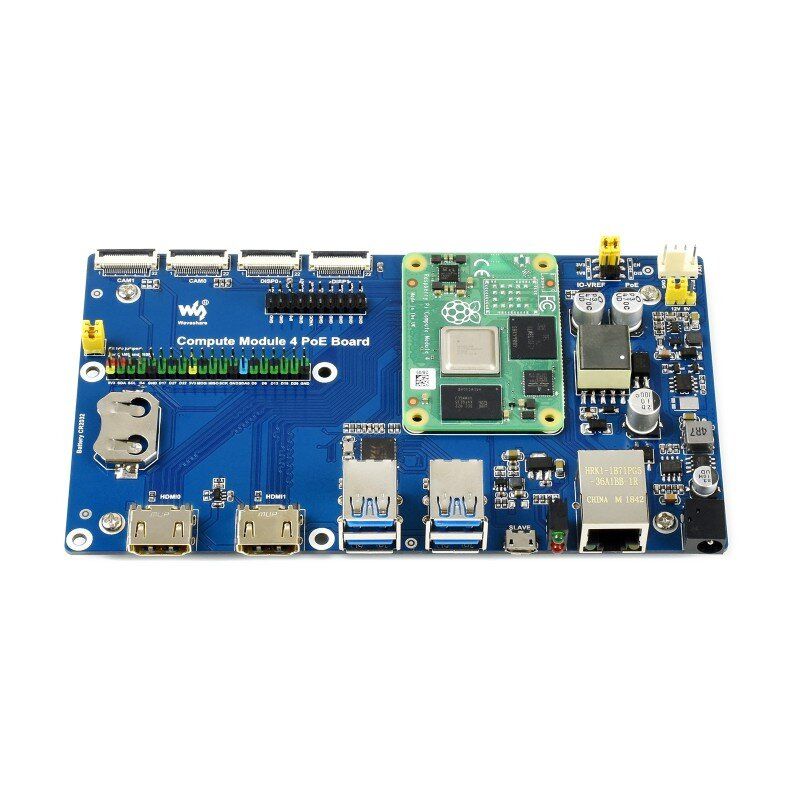

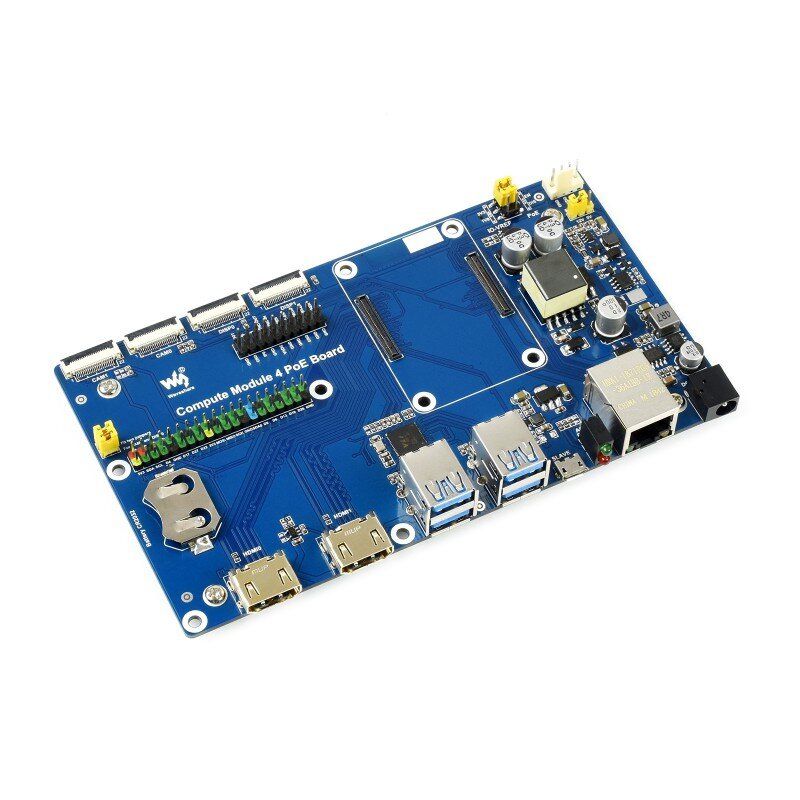

Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
Out Of Stock
£32.60
Country of origin:Made in China
Ethernet:10/100/1000 Ethernet
Form factor:Carrier board CM4
HDMI:2 x HDMI
USB:4 x USB 3.2
Delivery
Royal Mail 1st Class
Royal Mail 1st Class
£3.50
DHL Express
DHL Express
£9.99
Payment
ApplePay ApplePay
Google Pay Google Pay
bank transfer bank transfer
Secure Payment
Your payment information is processed securely.
We do not store credit card details.
Raspberry Pi Compute Module 4 I/O Board With PoE (18606)
£32.60
Description

The Raspberry Pi Compute Module 4 is not included

Raspberry Pi Compute Module 4 I/O Board With PoE (18606 ) is a WAVESHARE expansion board for exploring the Raspberry Pi 4 computing module with PoE (power over Ethernet), designed for all Raspberry CM4 computing module variants.

The main differences between the WAVESHARE Raspberry Pi Compute Module 4 I/O Board With PoE and the original Raspberry Pi Compute Module 4 I/O Board are as follows:

WAVESHARE CM4 POE IO BOARD RASPBERRY PI CM4 IO BOARD
POE. Contains 802.3af-compliant PoE circuit (5V / 2.5A) only PoE connector
USB 4 USB 3.2 Gen1 ports
1 Micro USB port		 2 USB 2.0 ports
1 Micro USB port
ETHERNET Gigabit Ethernet RJ45 with PoE support Gigabit Ethernet RJ45 with PoE support
GPIO connector Color-coded 40PIN GPIOconnector 40PIN GPIO connector without color coding
1 standard PCIe Gen 2 connector
Fan 5V / 12V standard connector 12V standard connector
Power input 7V36V 12V

Common characteristics with the original Raspberry Pi Compute Module 4 I/O Board:

CM4 connector suitable for connecting all modifications of Compute Module 4
RTC Real-time clock with battery compartment and wake-up option for Compute Module 4
Video. 2 MIPI DSI display connectors FPC connectors (22-pin 0.5 mm pitch cable)
Camera 2 MIPI CSI-2 camera connectors FPC connectors (22-pin 0.5 mm pitch cable)
SD card slot MicroSD card slot for Compute Module 4 Lite variants (without eMMC)
Overall dimensions 160 × 90mm

Peripheral connectors:

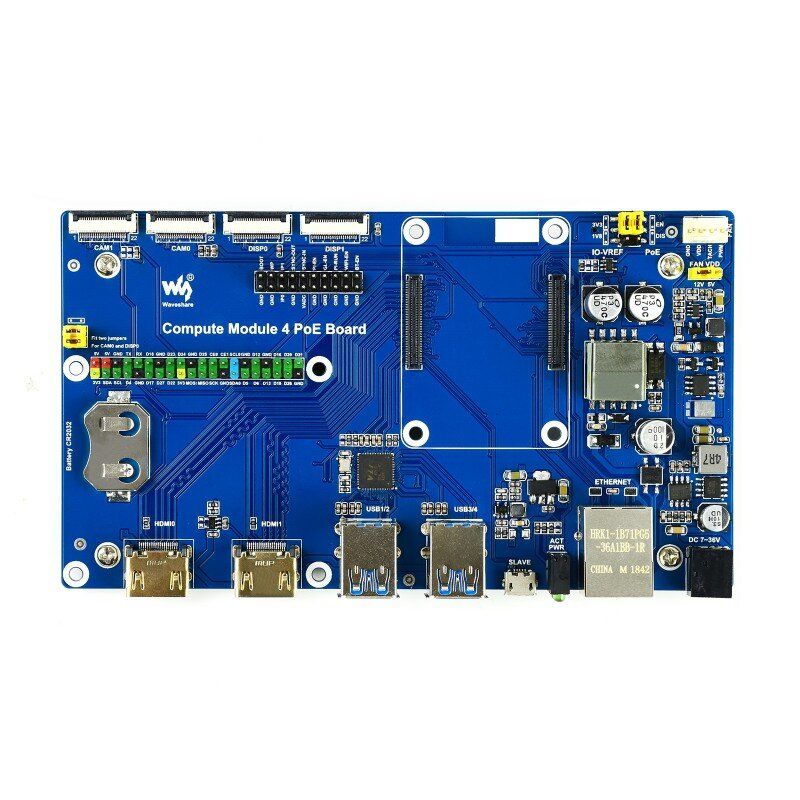

Board components:

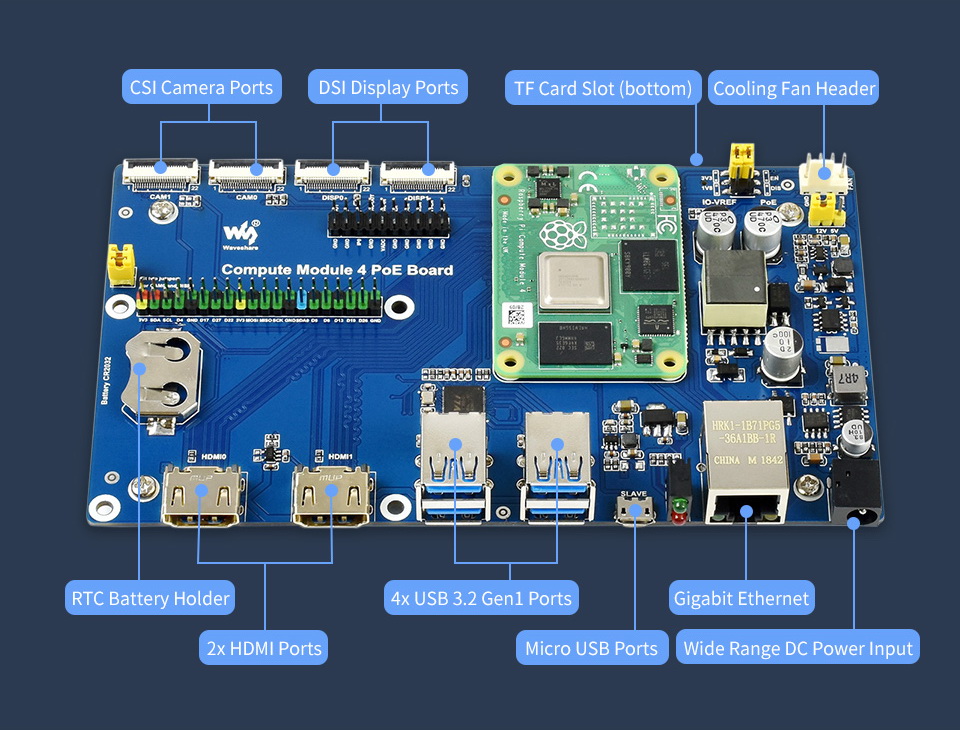

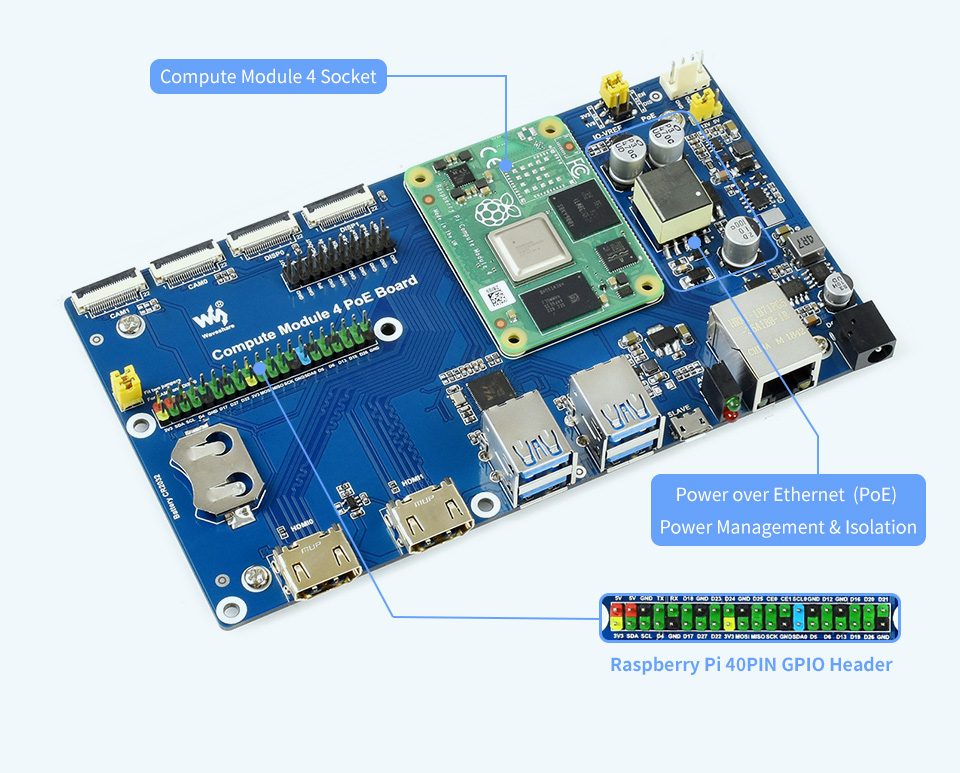

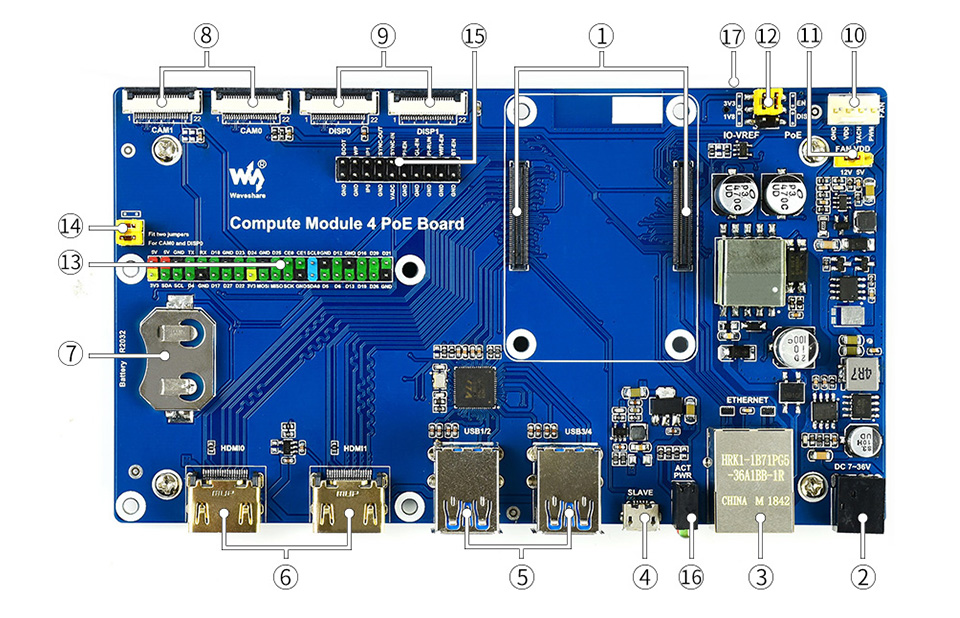

  1. CM4 connector. Suitable for all Compute Module 4 variants
  2. Power input. Can use a power supply with a voltage range of 7-36 V
  3. Gigabit Ethernet connector. Gigabit Ethernet RJ45 with PoE support
  4. USB SLAVE port. Allows you to write a system image to Compute Module 4 with eMMC
  5. USB3.2 ports. 4 USB 3.2 Gen1 ports for connecting various USB devices
  6. HDMI ports. 2 HDMI ports, support for dual 4K 30fps output
  7. RTC. RTC battery holder, allows you to perform RTC-related functions such as wake up, shutdown, reboot, etc.
  8. CAM. 2x MIPI CSI camera ports
  9. DISP. 2 MIPI DSI display ports
  10. FAN. For connecting a cooling fan, allows you to adjust and measure the speed
  11. Selection of fan power. Voltage 5 V or 12 V for fan drive
  12. IO-VREF / PoE selection. CM4 IO logical level: 3.3 V or 1.8 V. PoE: enable (EN) or disable (DIS)
  13. 40PIN GPIO connector.
  14. CAM0 and DISP0 I2C bus. To use CAM0 or DISP0, jumpers must be installed.
  15. Jumpers for selecting different configurations
  16. Double LED indicators. Red: Raspberry Pi power indicator. Green: Raspberry Pi operating status indicator
  17. TF card slot (on the bottom of the board). To start the Compute Module 4 Lite, you need to insert a Micro SD card with a pre-recorded system.

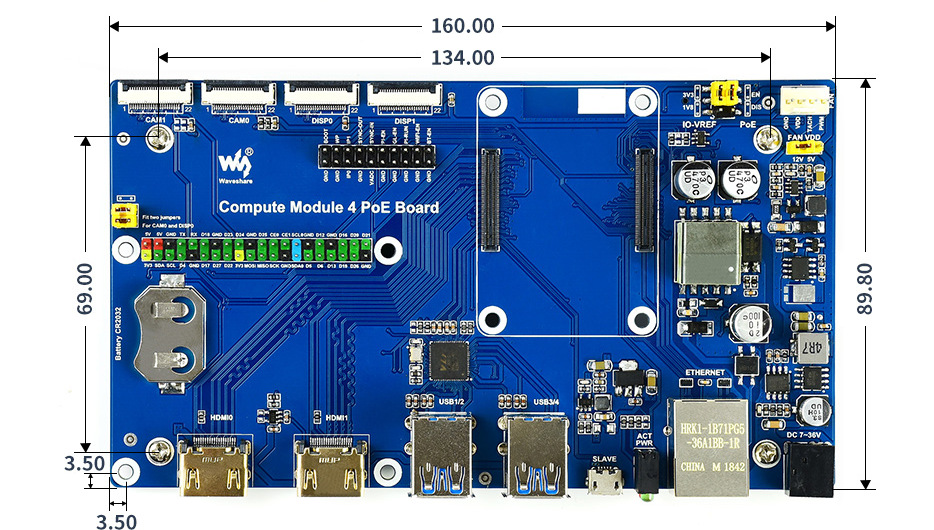

Overall dimensions (mm):

Information for developers (Wiki): Compute_Module_4_POE_Board

The package includes:

1. Compute Module 4 PoE Board - 1 pc.

Weight: 0.105 kg

Specifications
Main characteristics
Country of origin
Made in China
Ethernet
10/100/1000 Ethernet
Form factor
Carrier board CM4
HDMI
2 x HDMI
USB
4 x USB 3.2
Reviews

There are no reviews for this product.

There are no reviews for this product, be the first to leave your review.

Answers & questions
Add your question and we will answer as soon as possible.

No questions about this product, be the first and ask your question.
