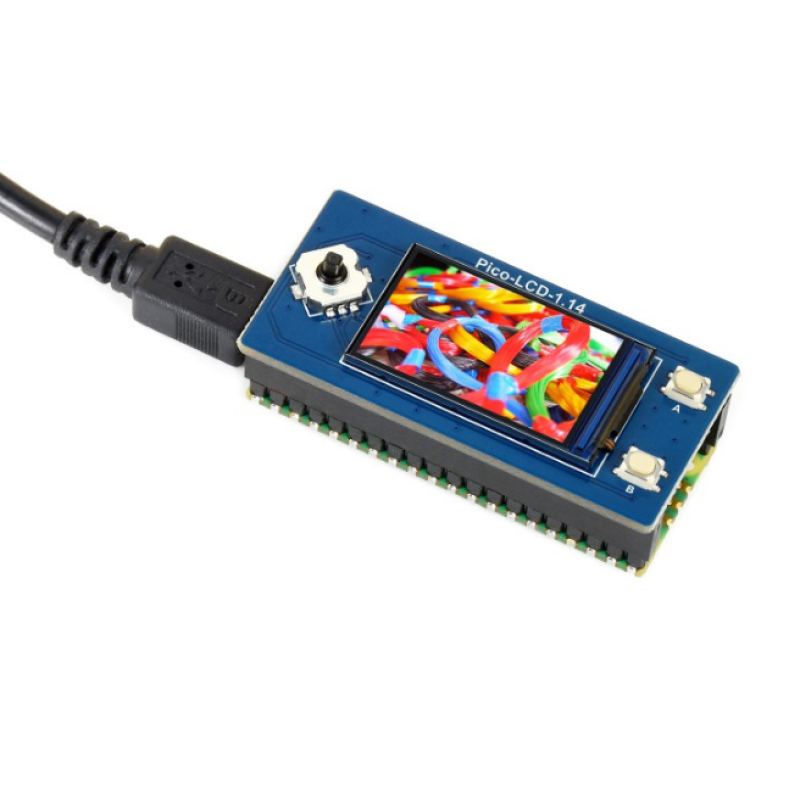

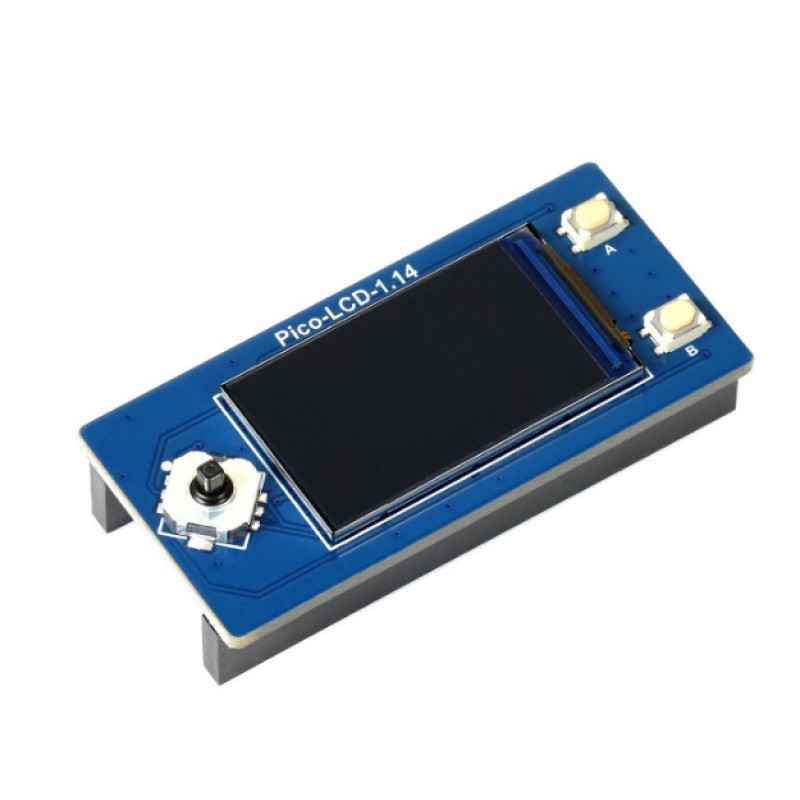

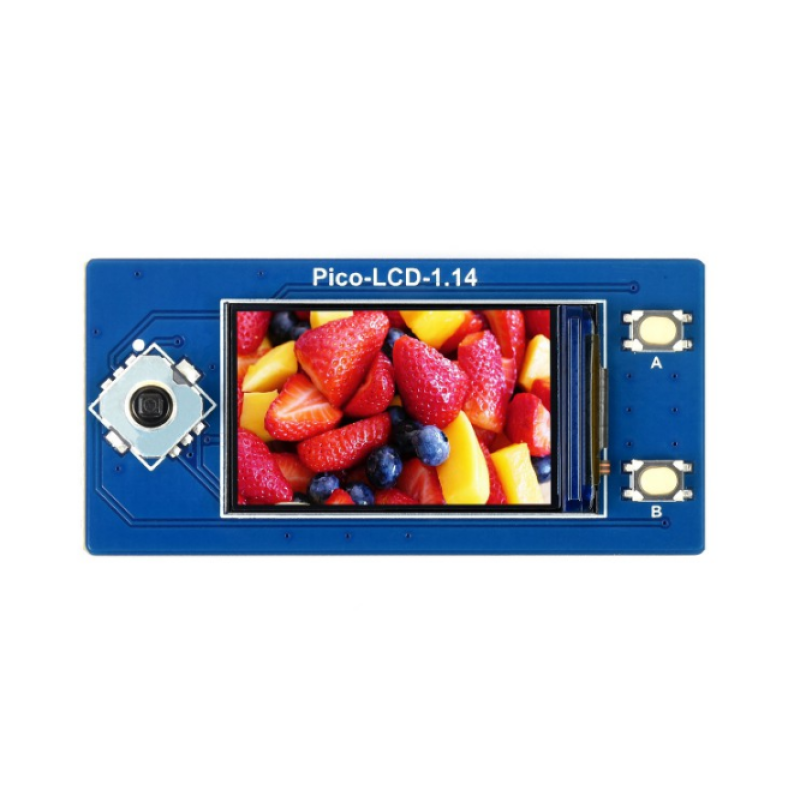

Display Raspberry Pi Pico 1.14inch LCD 240x135 (19340 ) is an expansion board specially designed for Raspberry Pi Pico with a full-color 65K RGB LCD display and a screen resolution of 240x135 pixels with a screen diagonal of 1.4 inches. The SPI interface is used for connection. This expansion board is designed to display digital and graphic information and can be used as price tags, signs, industrial tool displays, etc.

Main features:

IPS matrix
Colors: 65K RGB
4 special buttons for easy interaction
Has an SPI interface that requires a minimum number of I/O pins
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Technical specifications:

Operating voltage.	2.6 5.5V	Resolution.	240×135 pixels

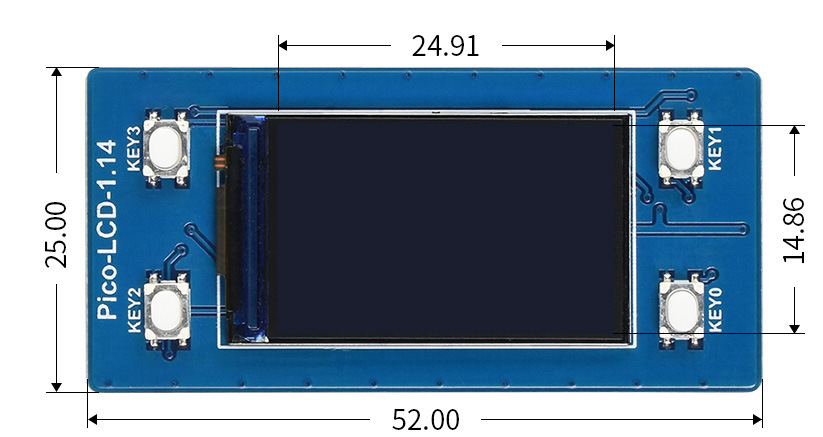

Interface.	4-wire SPI	Display size	24.91 × 14.86mm
Type of display matrix	IPS	Pixel size	0.1101 × 0.1035mm
Driver	ST7789	Overall dimensions	52.00 × 25.00mm

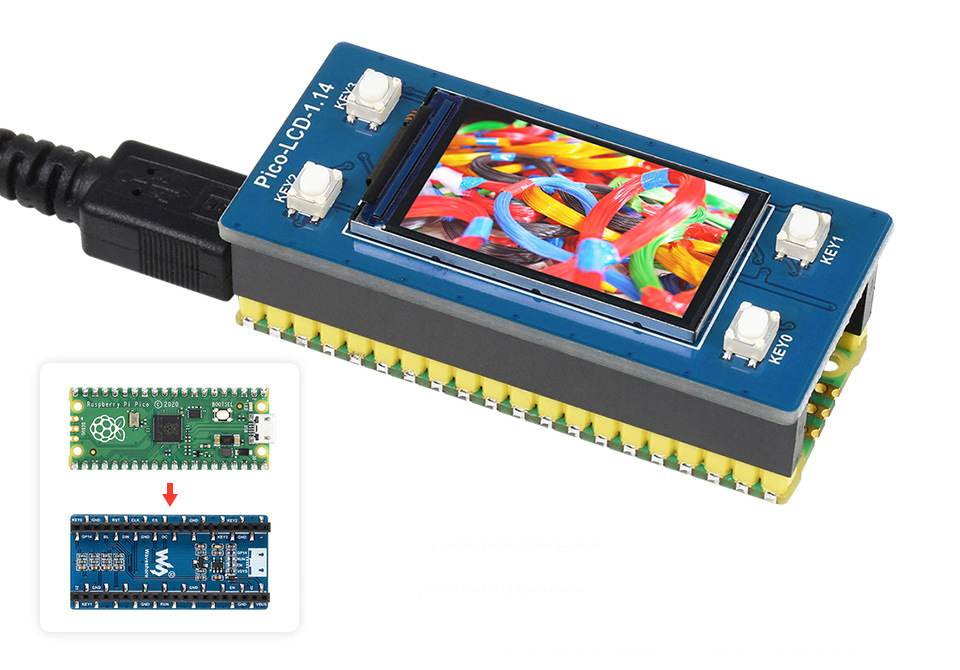

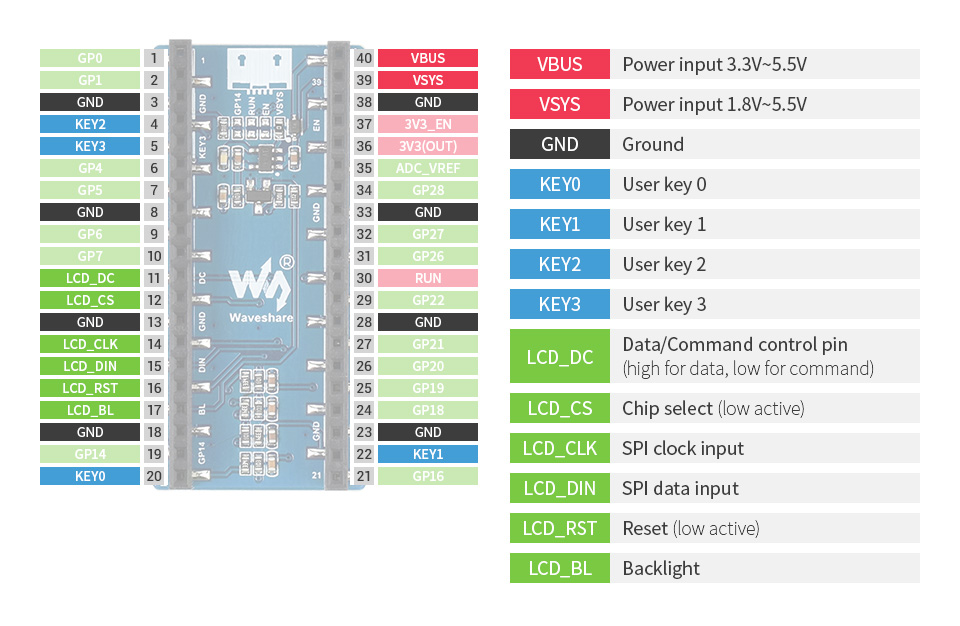

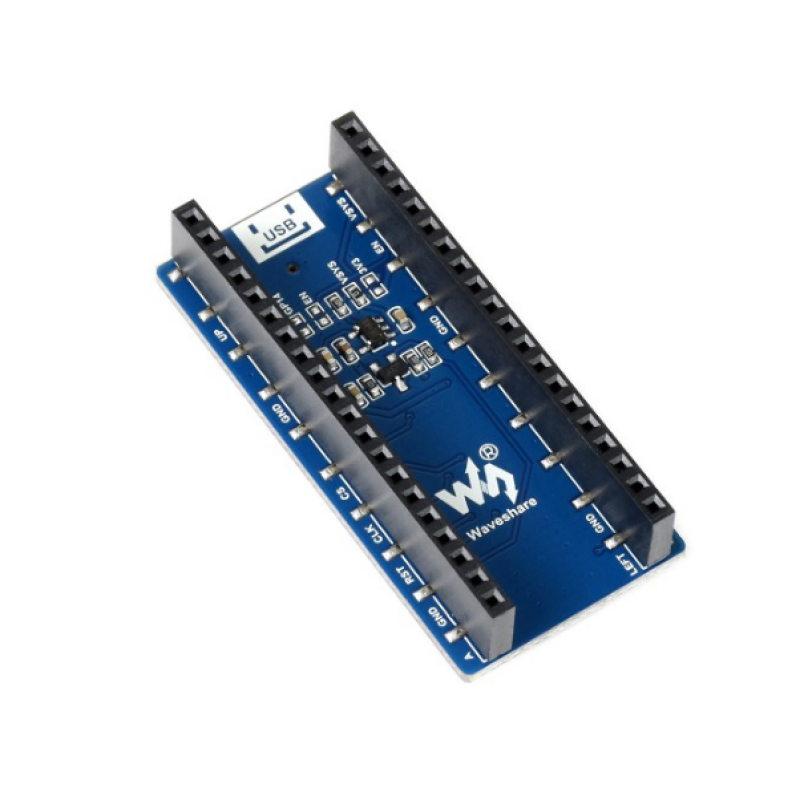

The expansion board is equipped with a connector for easy connection to the Raspberry Pi Pico pins. When installing the board, pay attention to the correct installation: the expansion board is marked with paint on the micro-USB connector side of the microcomputer board.
