Raspberry Pi Pico 10-DOF IMU Sensor Module HAT expansion board (19358)

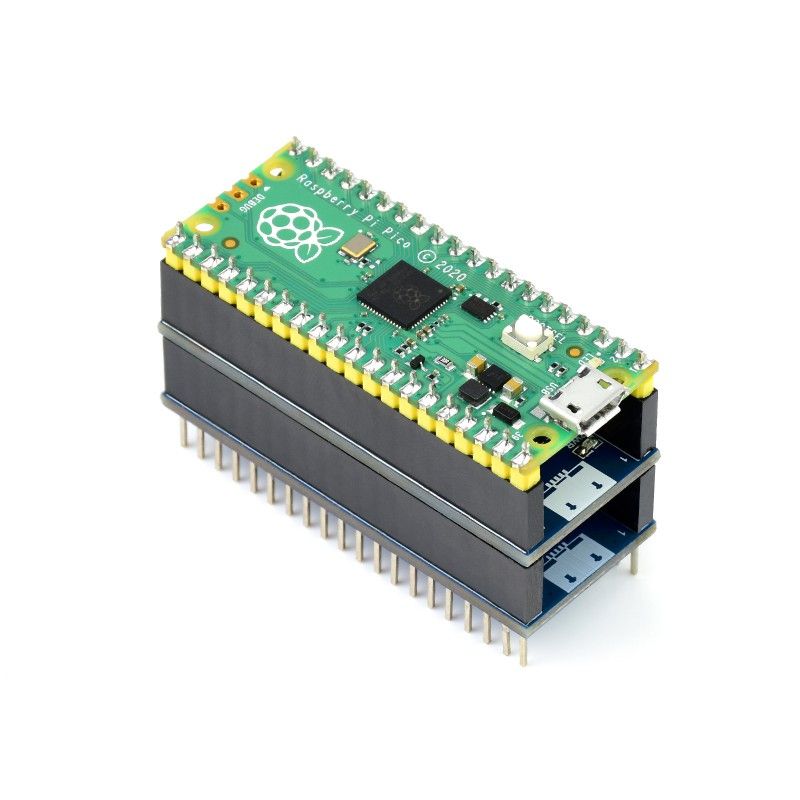

The Raspberry Pi Pico 10-DOF IMU Sensor Module HAT (19358 ) allows you to use the capabilities of a 9-axis motion sensor based on the ICM20948 sensor and a barometer based on the Baroceptor LPS22HB. This module includes gyroscope, accelerometer, magnetometer, barometer functions and uses the I2C bus for communication. Working in conjunction with the Raspberry Pi Pico microcontroller, this board can be used to collect environmental conditions such as temperature or pressure, and can also be useful in robots to provide gesture recognition and for orientation.

Main features:

• Standard Raspberry Pi Pico connector, supports all Raspberry Pi Pico series devices
• Built-in ICM20948 motion sensor (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for motion, gesture, orientation, and magnetic field detection
• Built-in barometric LPS22HB sensor for atmospheric pressure detection
• Comes with development resources and guidance (Raspberry Pi Pico C/C++ and MicroPython examples)

Technical specifications:

Thanks to the multi-layer stackable design, several other boards or external sensors can be connected.

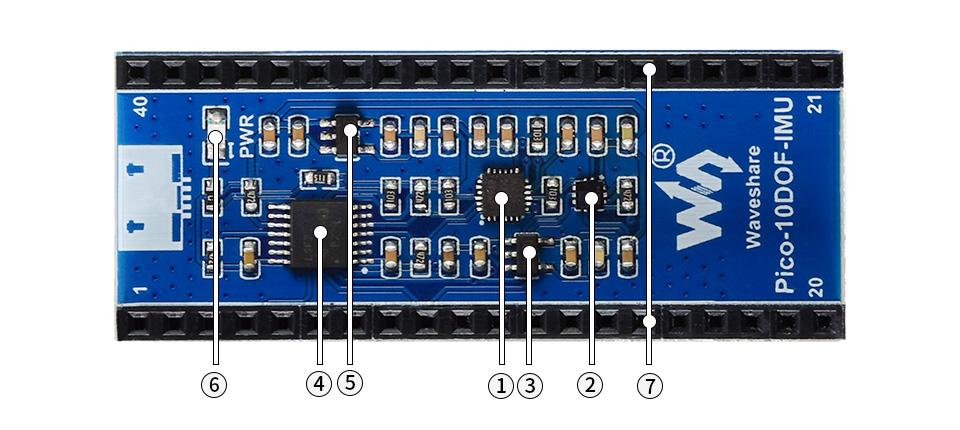

Main elements of the board:

1. 9-axis motion sensor on I2C bus
2. LPS22HB pressure sensor on the I2C bus
3. PT9193-33 - 3.3 V linear voltage regulator
4. LSF0204PWR - 4-channel voltage converter
5. RT9193-18 - linear voltage regulator 1.8 V
6. Power indicator

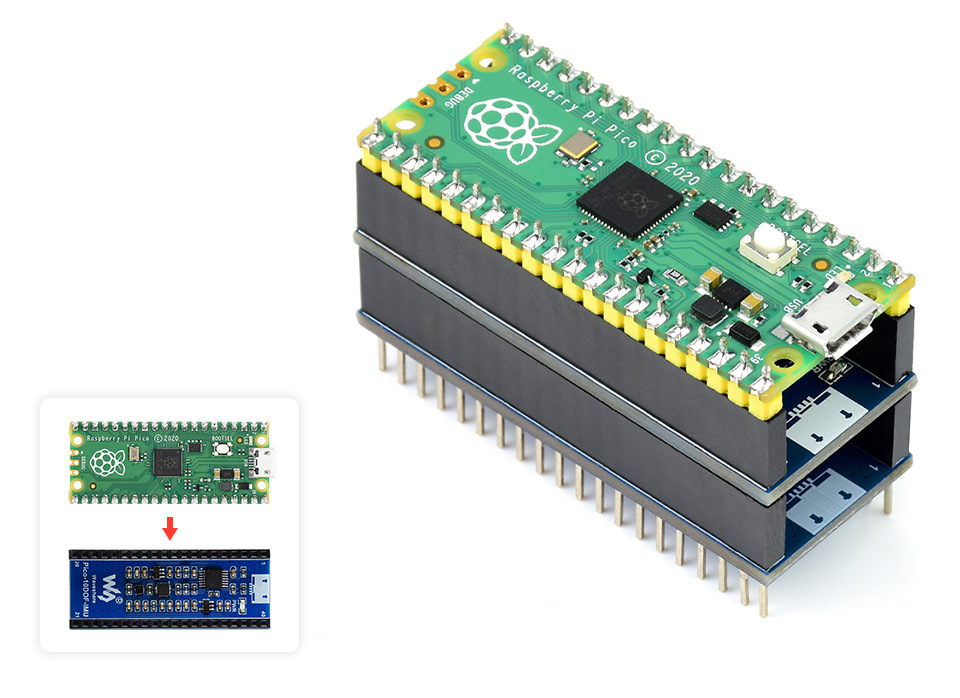

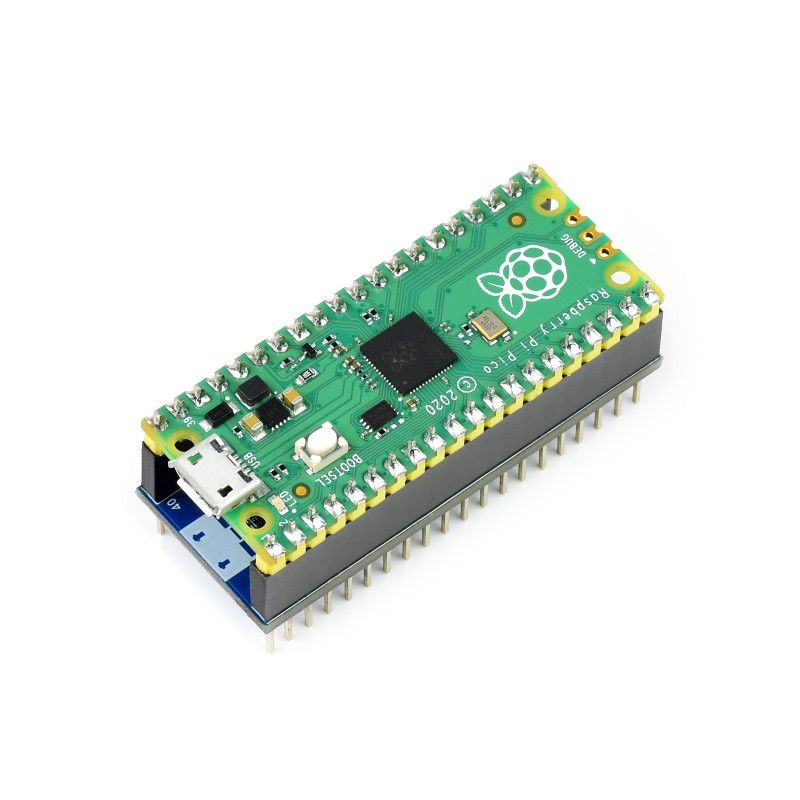

7. Raspberry Pi Pico connector for connection to Raspberry Pi Pico, stackable design

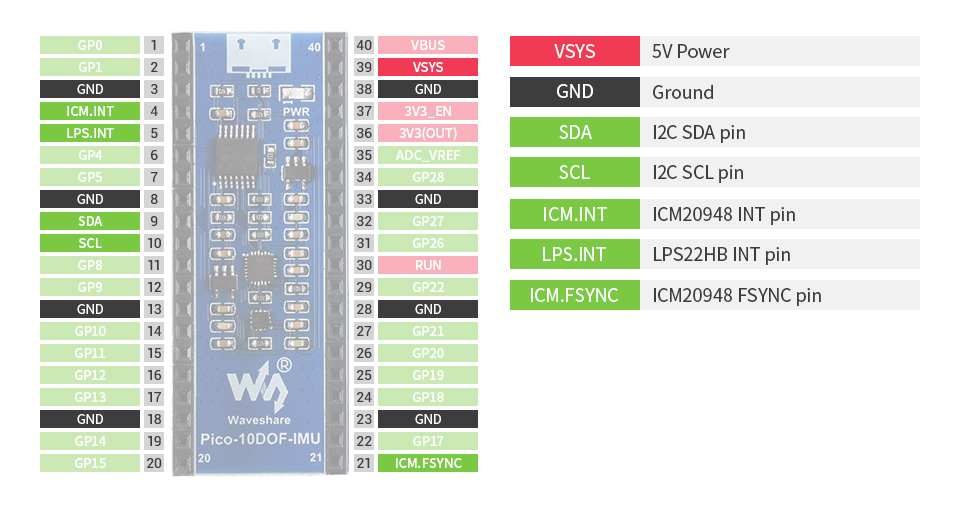

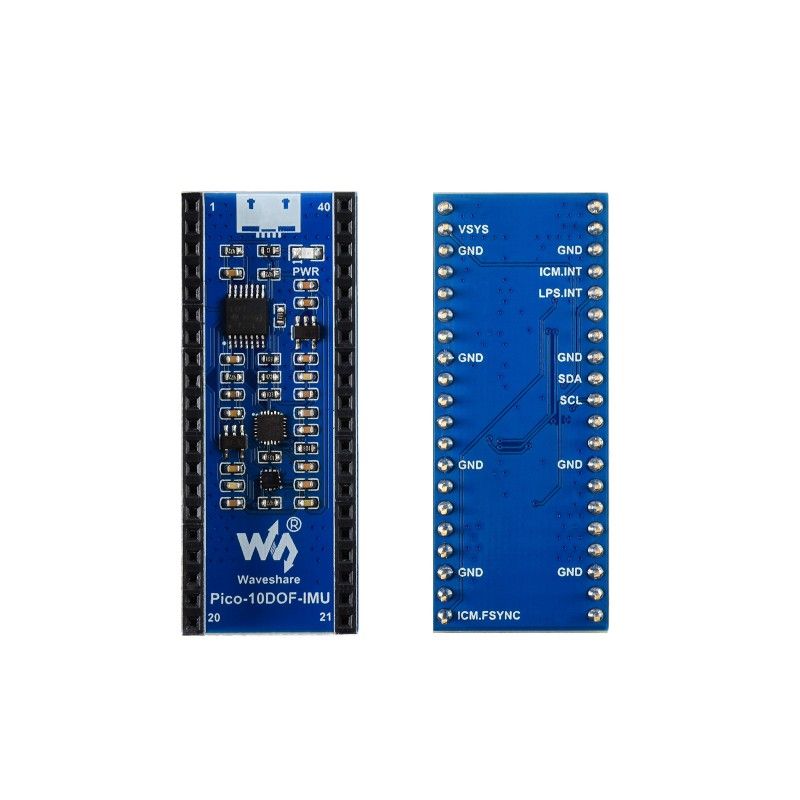

The purpose of the connectors:

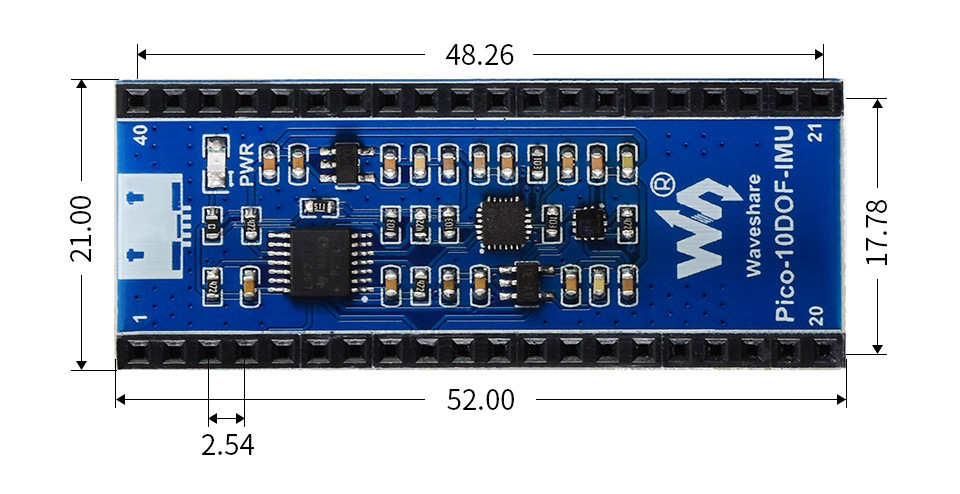

Overall dimensions, mm:

Resources for developers: Wiki: Pico-10DOF-IMU

The package includes:

1. Pico-10DOF-IMU x1
