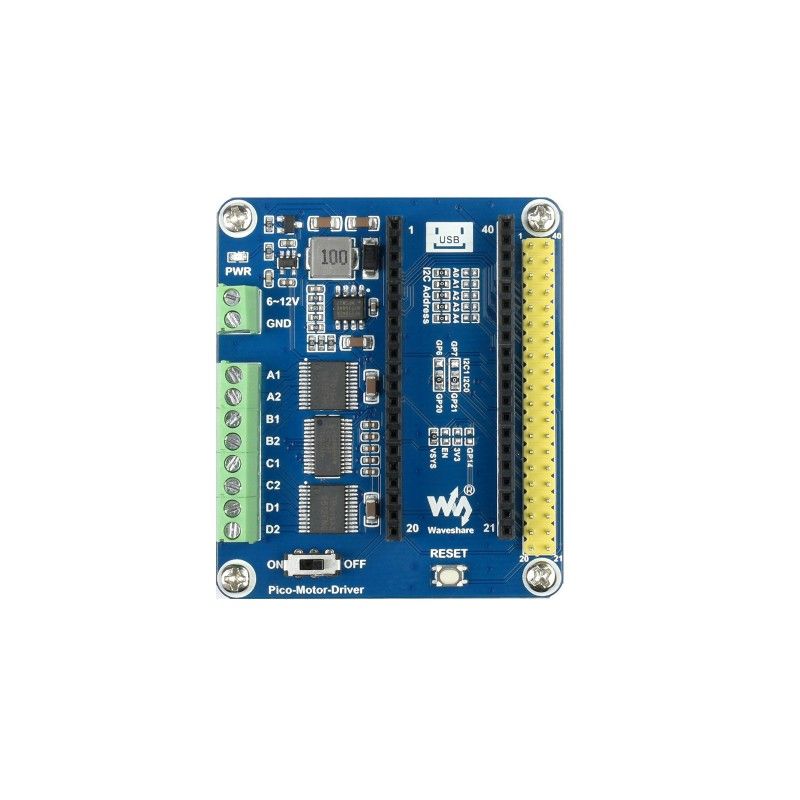

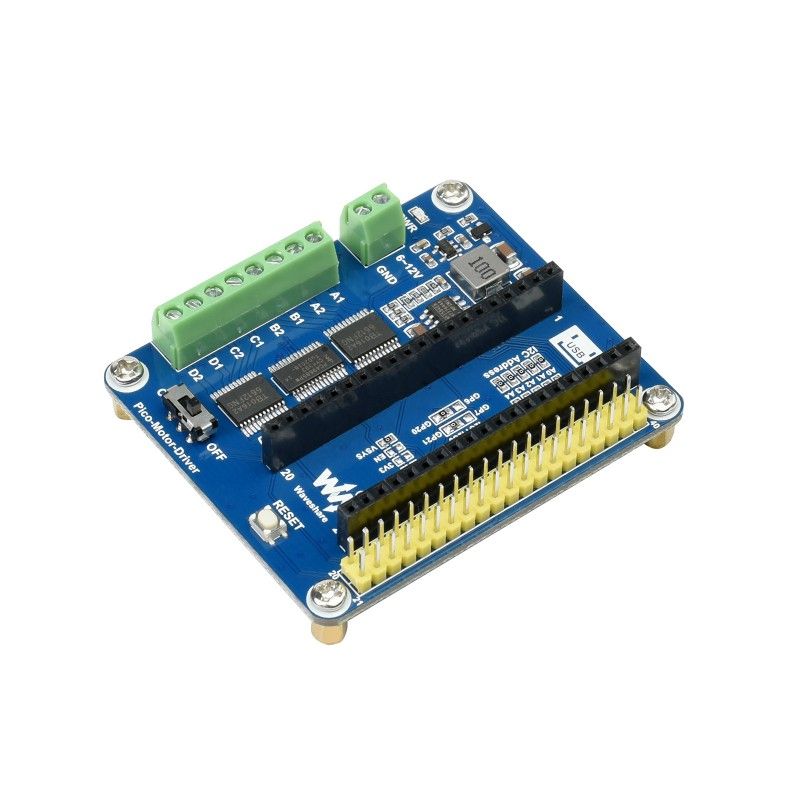

Raspberry Pi Pico Motor Drive expansion board (19764)

The Raspberry Pi Pico Motor Drive Expansion Board (19764 ) is a specialized board designed to control motors and drives in projects using the Raspberry Pi Pico microcontroller. This board allows you to conveniently connect and control various types of motors to realize moving mechanisms.

The Raspberry Pi Pico Motor Drive board has integrated motor drivers that support a wide range of motor types, including direct current (DC) motors, stepper motors, and servos. This allows you to easily connect and control a variety of drives without the need for additional electronic components.

The board has built-in communication interfaces such as I2C and UART, which simplifies communication with the Raspberry Pi Pico microcontroller. It also has convenient connectors for motors, sensors, and other devices, which makes it easy to connect and ensures reliable system operation.

This expansion board also has safety features such as over-voltage and short-circuit protection to help prevent damage to the electronics in case of emergency.

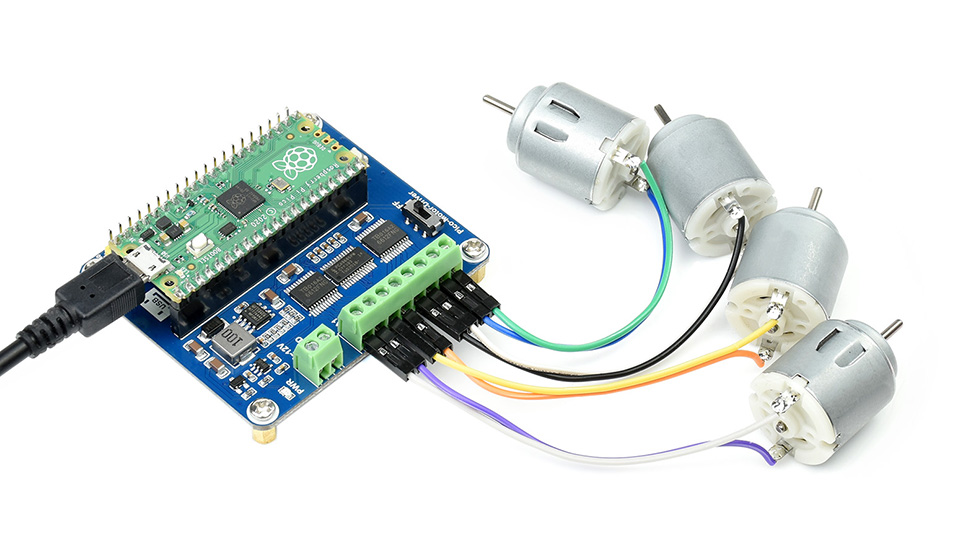

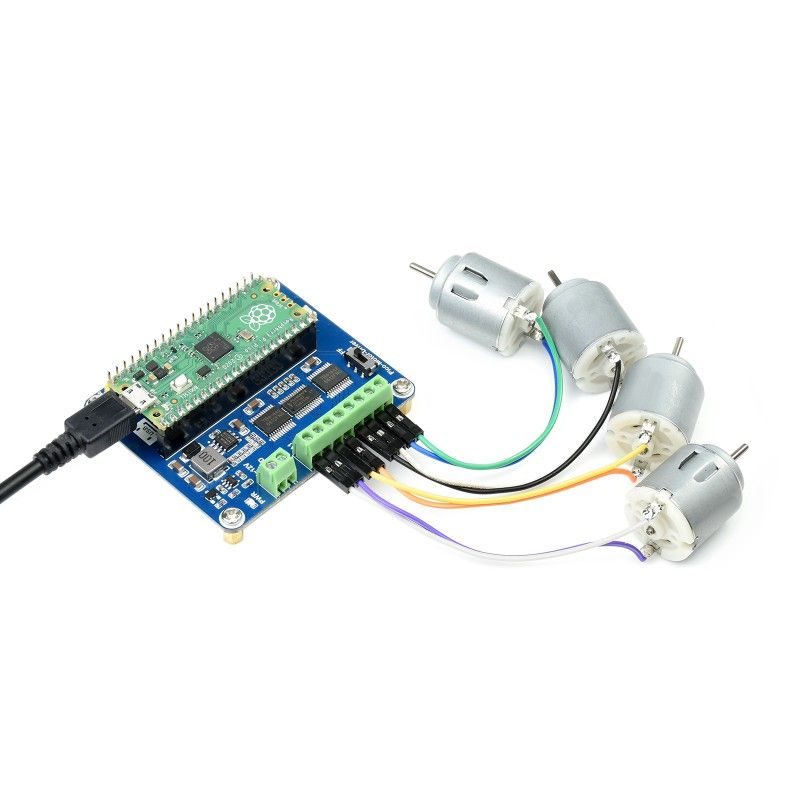

With the Raspberry Pi Pico Motor Drive Expansion Board, you can easily implement moving mechanisms in your projects such as robotics, automation, modeling, and more. It provides a convenient and reliable way to control motors and drives using the Raspberry Pi Pico microcontroller.

Main features:

• Has a standard Raspberry Pi Pico connector, supporting the Raspberry Pi Pico series
• I2C control, supports 32 different I2C addresses by setting 5 address jumpers
• Built-in PCA9685 chip provides 12-bit hardware PWM for motor speed control
• Integrated TB6612FNG dual H-bridge motor driver provides high efficiency and low heat
• Pull-out unused Pico pins for easy stretching
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

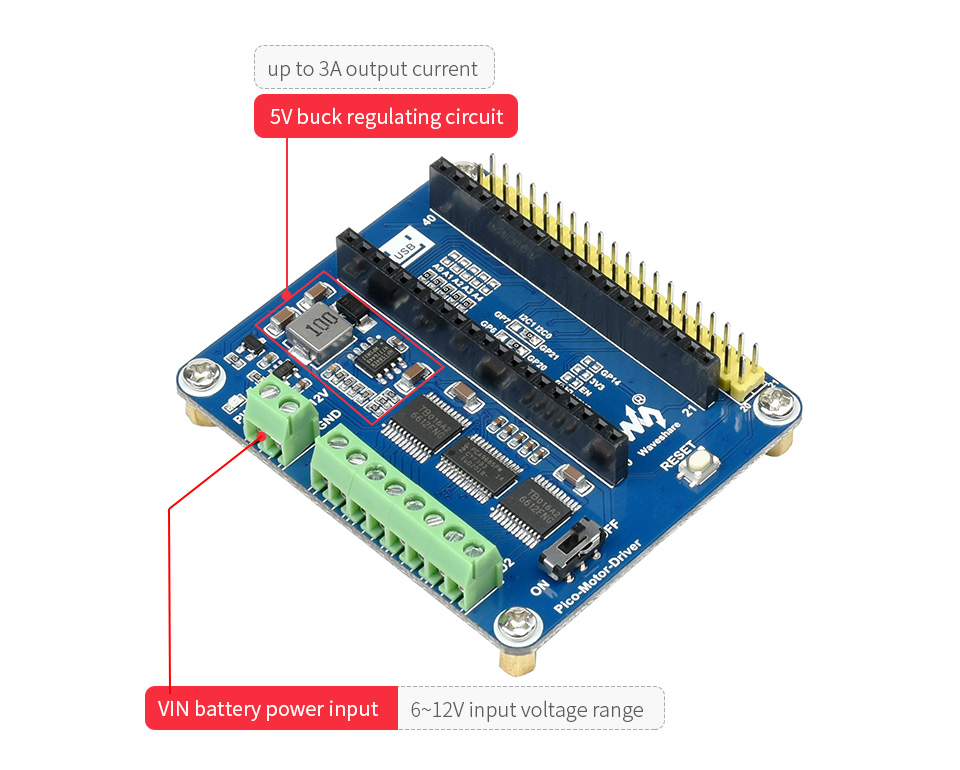

• Integrated 5V regulator, output current up to 3A, can be powered by battery via VIN terminal

Specifications:

• OPERATING VOLTAGE: 612 V (VIN terminals)
• LOGIC LEVEL: 3,3 В
• PWM driver: PCA9685
• MOTOR DRIVER: TB6612FNG
• CONTROL INTERFACE: I2C
• DIMENSIONS: 65 × 56 mm

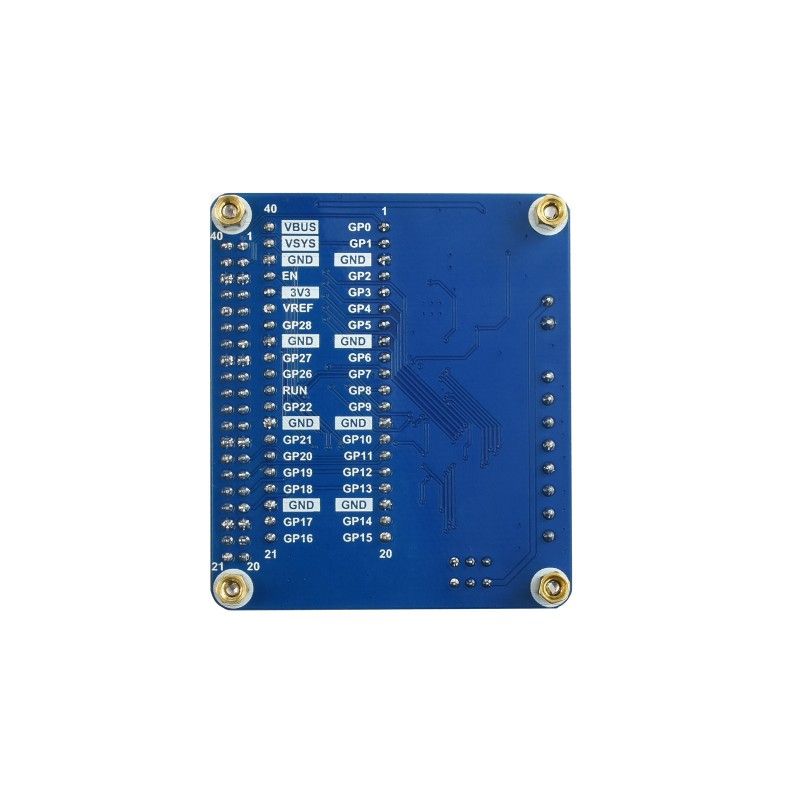

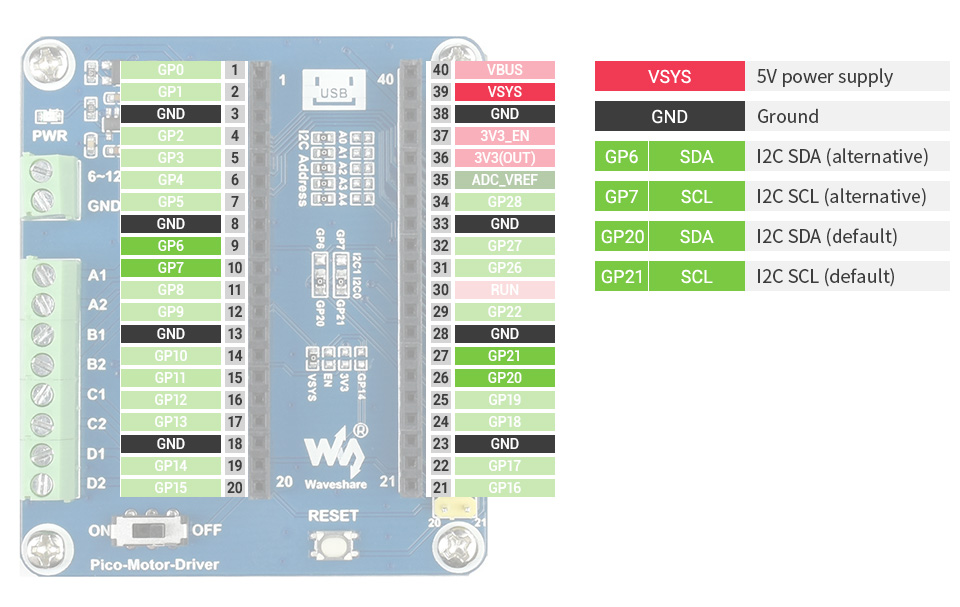

Pinout:

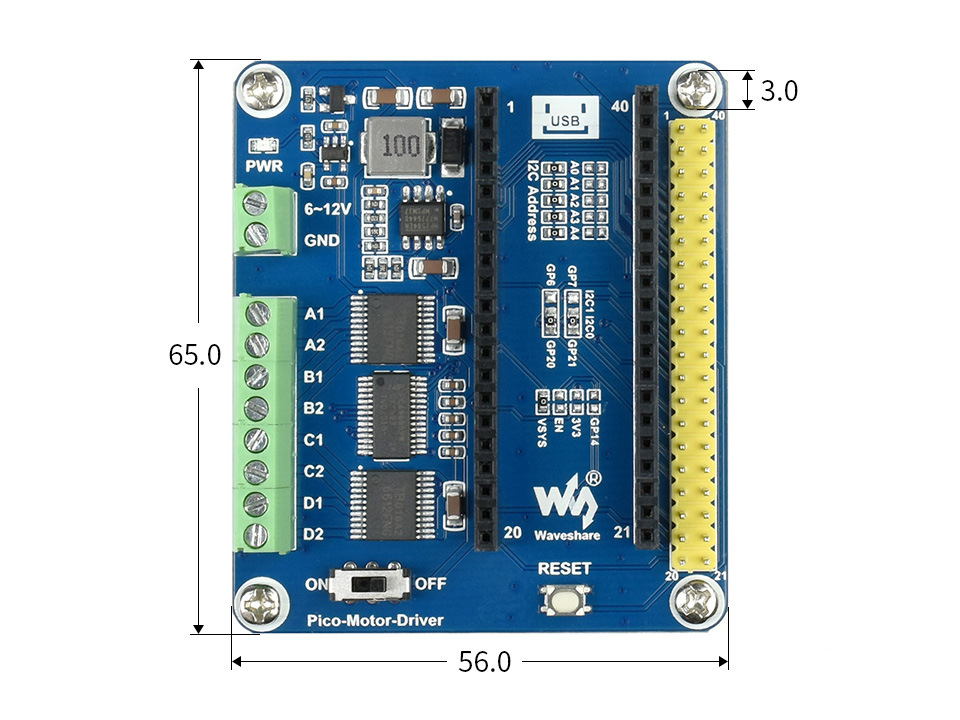

Overall dimensions: 65mm x 56mm

WIKI: Pico-Motor-Driver

Scope of delivery:

1. Pico-Motor-Driver x1

Weight: 0.027 kg
