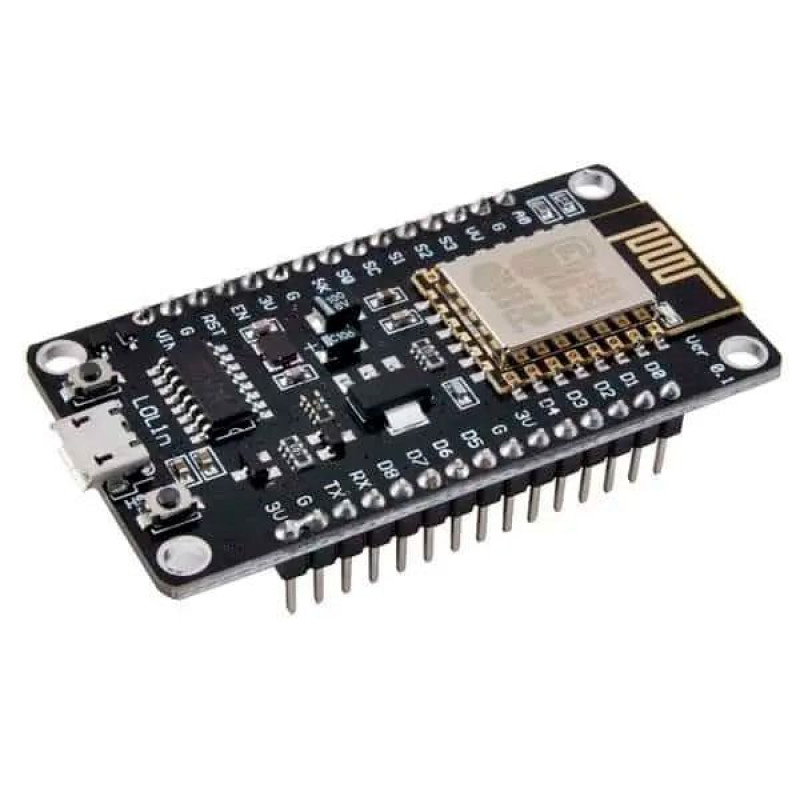

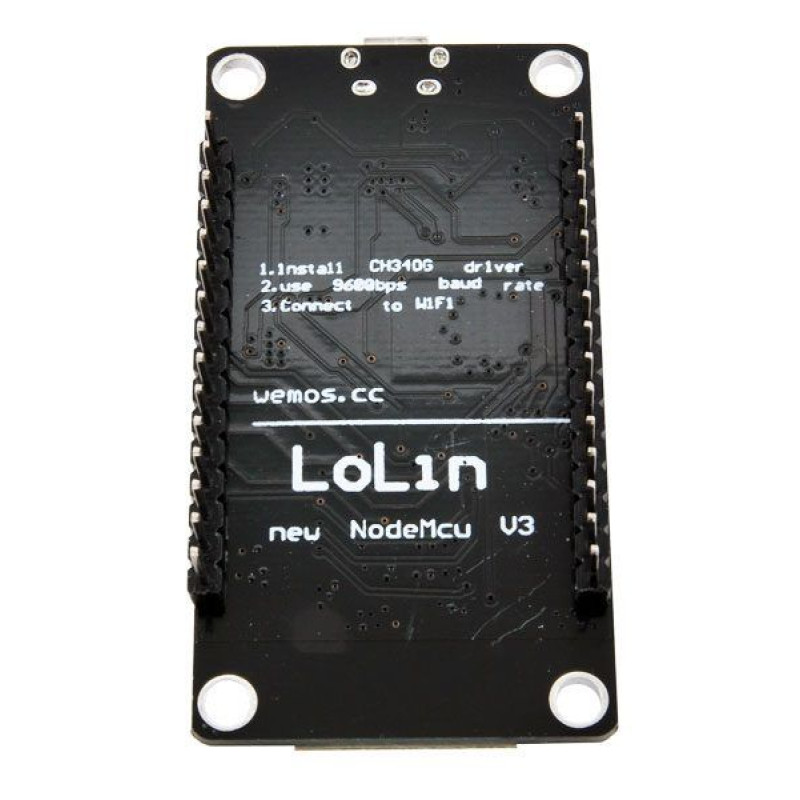

Arduino NodeMCU ESP8266 / TPX00165

TheArduino NodeMCU ESP8266 / TPX00165 is a microcontroller based on the ESP8266 Wi-Fi transceiver module and the CH340 USB converter chip, offering a wide range of possibilities for developing IoT projects. With this device, you can easily connect projects to the Internet and control them from anywhere in the world. The ESP8266 provides a wireless Wi-Fi connection that allows you to communicate with other devices and perform a variety of functions such as data collection, controlling relays or other devices, reading sensors, and more. It is small in size and low in cost, making it an ideal choice for projects with a tight budget or limited resources. The NodeMCU ESP8266 also supports software development with the Arduino IDE, making the programming process quick and easy for beginners and advanced users.

Key features:

• The Wi-Fi module is compatible with the 802.11 b/g/n standard at 2.4 GHz,
• The module has a built-in TCP/IP stack
• Has an output power of 19.5 dBm
• Has data interfaces: UART / HSPI / I2C / I2S / Ir Remote Control GPIO / PWM
• Has an antenna on the PCB.
• Has a micro USB connector and a reset button.
• Programmable with the Arduino IDE, it contains interpreters to handle commands for languages such as LUA.

Specifications:

• Model: ESP8266-12E
• Wireless standard: 802.11 b/g/n
• Frequency range: 2.4 GHz - 2.5 GHz (2400M-2483.5M)
• Wi-Fi mode: Station / SoftAP / SoftAP + station
• Stack: integrated TCP/IP
• Output power: 19.5 dBm in 802.11b mode
• Data interface: UART / HSPI / I2C / I2S / Ir
• GPIO / PWM remote control
• Supports security mode: WPA / WPA2
• Encryption: WEP / TKIP / AES
• Power supply: 4.5 V DC to 9 V DC (VIN) or via micro USB connector
• Consumption: with continuous Wi-Fi transmission approx. 70 mA (200 mA MAX.) - in standby mode < 200 µA
• Operating temperature: -40°C to +125°C

Overall dimensions: 58 mm × 31.20 mm × 13 mm

Weight: 10 grams
